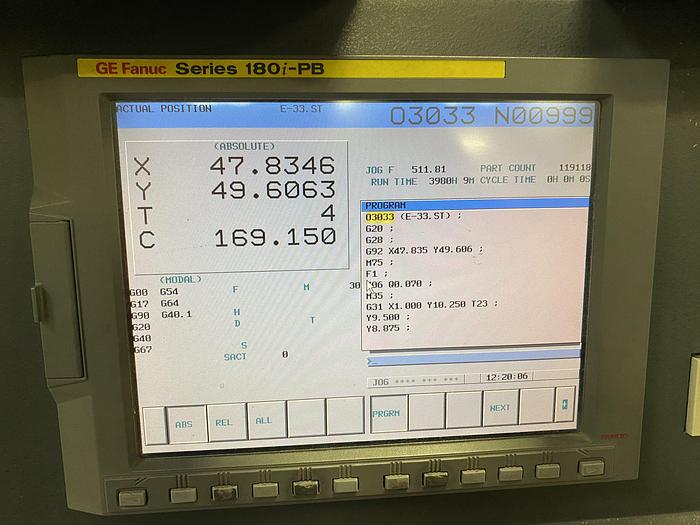

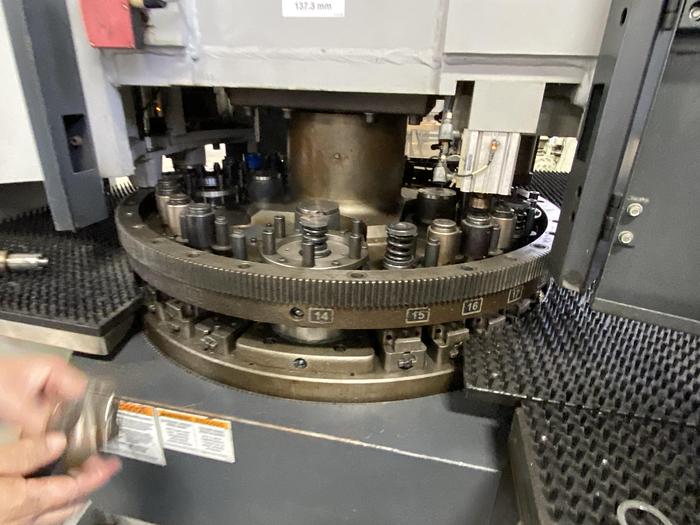

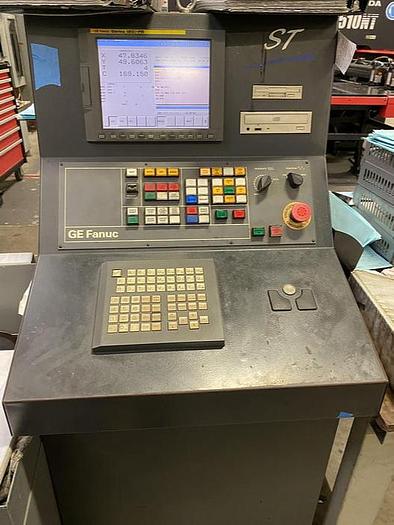

ST 1212 (20 ton 1250 x 1250 mm [49.21 in x 49.21 in]. Flexible thin turret (29 stations). Programmable 88,9 mm (3.5 in) auto index stations 3 auto index stations. Indexable multi-tool capability offers more capacity. Quick-change die holders. Smart Stroke automatically optimizes ram stroke. GE Fanuc CNC control Series 180I-PB.

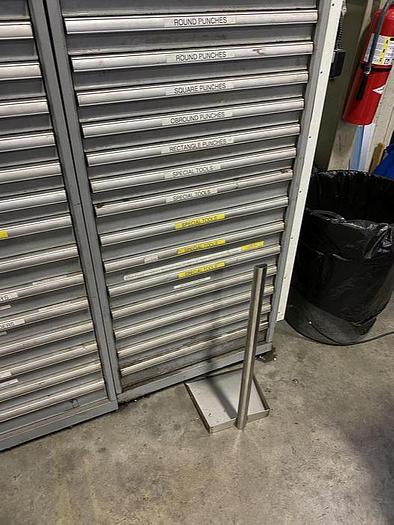

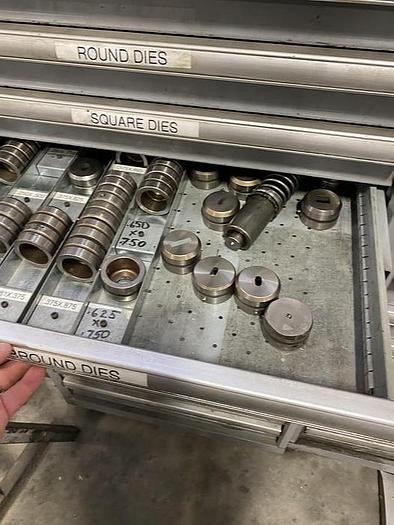

Two tooling cabinets full of tooling.

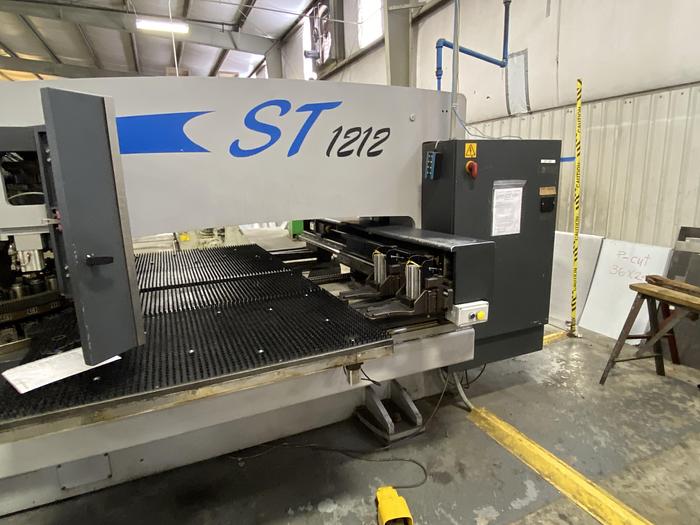

LVD is under power ready for inspection.
Manufacturer LVD
Model ST 1212
Condition Used
Stock Number UM-10795-143
Maximum Material Thickness 0.250 in
Punching Accuracy plus/minus .004 in
Tonnage 22 U.S. tons
Nominal Workpiece Size 49.2 in x 49.2 in Table Type Capacities -
All Brush or Combo Ball Brush Up to 136 lbs. at 100% speed
Floating Clamps 2 manual lockMaximum Clamp Spread 39. in
One Turret Station Change Time 1.1 sec.Maximum Turret Station Change Time 2.6 sec.
Auto-Index Stations (Standard)3 D Size (3.5 in)Angular Positioning Accuracy plus/minus .05 degree.
Axis Traverse SpeedUp to 4095 IPM combined Marking Stroke (standard)Up to 1700 SPM
