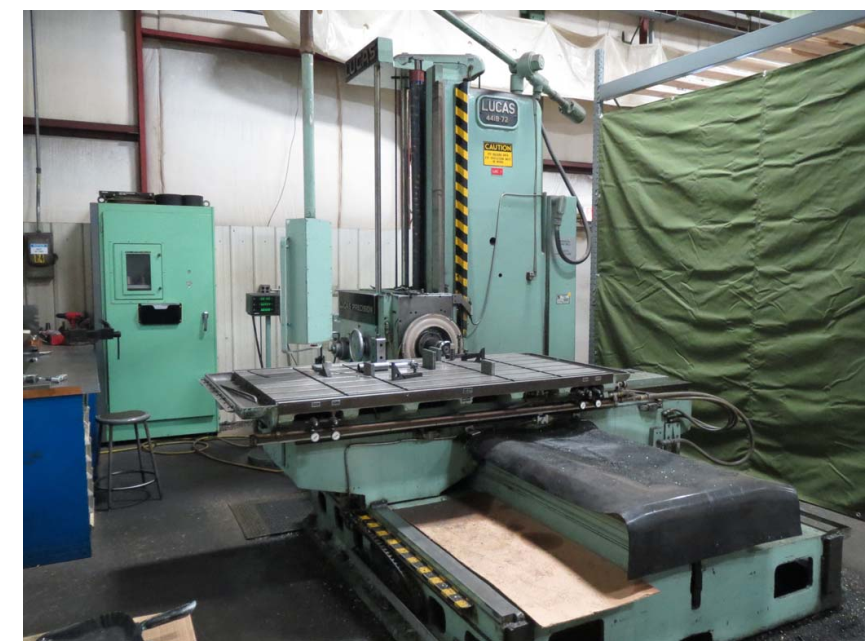

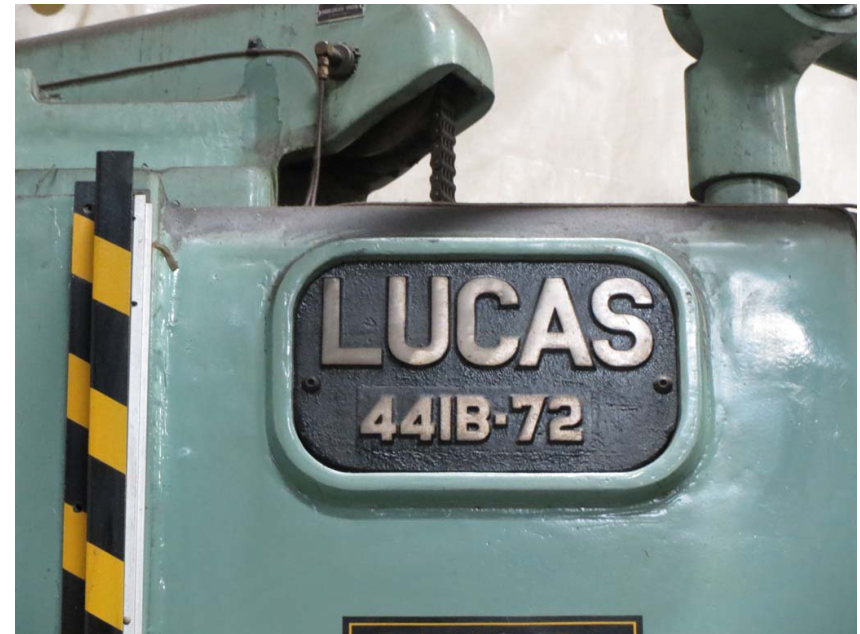

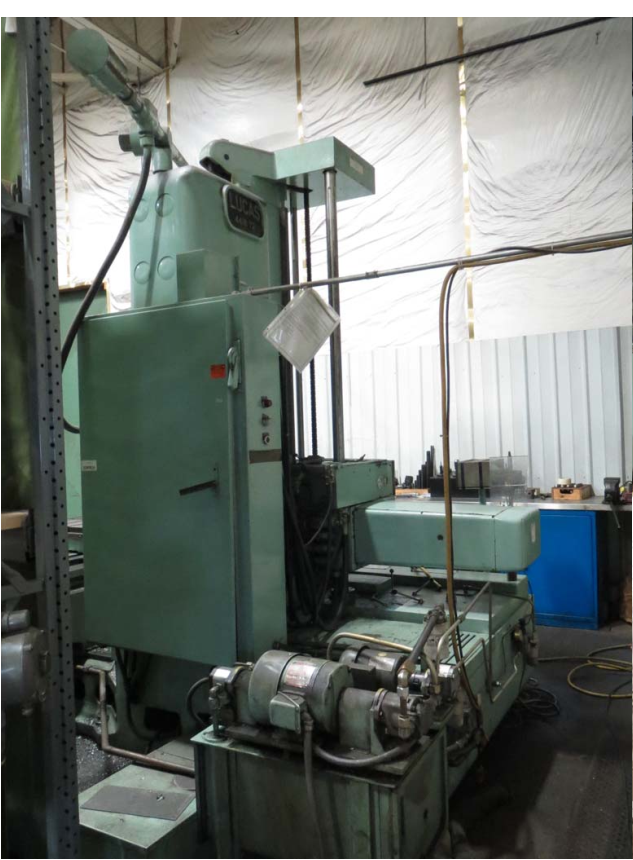

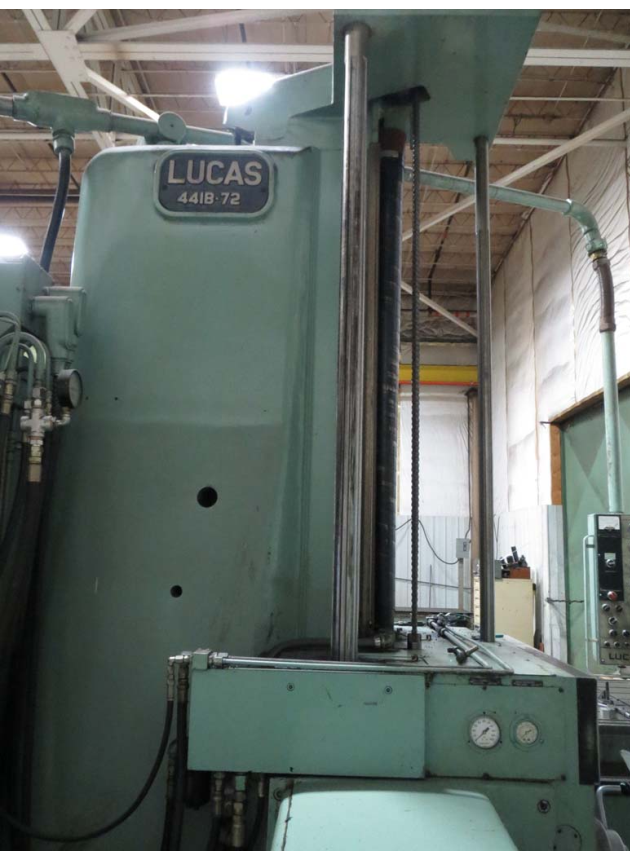

LUCAS MODEL 441B-72 HORIZONTAL BORING MILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


441B-72
S/N: 41B3209
Boring Mills
Horizontal, Table Type
used
39000 (LB)
0
$0.00

Description

MODEL 441B-72



S/N: 41B3209



SPECIFICATIONS:

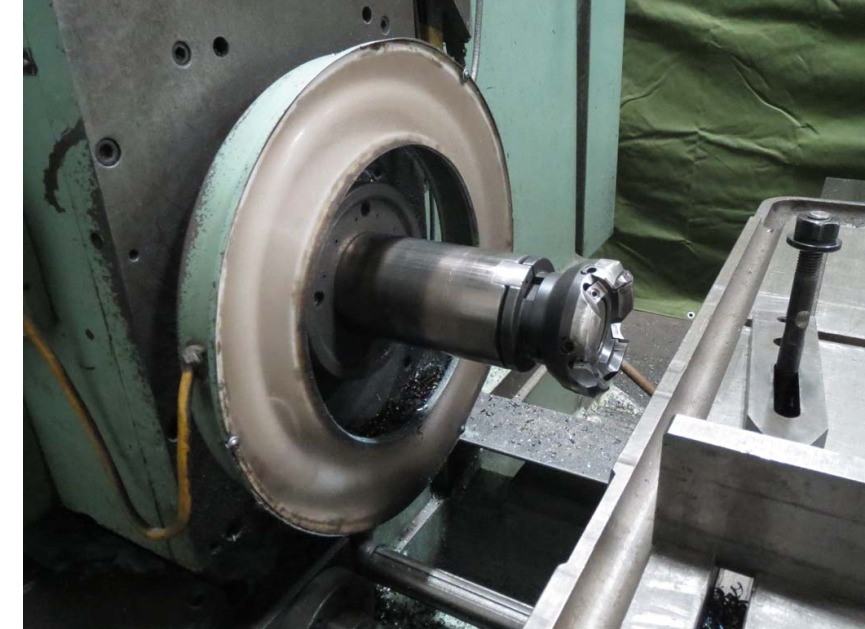

SPINDLE DIAMETER......................... 4 in

SPINDLE TAPER............................ No. 50 WITH POWER TOOL LOCK

SPINDLE TRAVEL........................... 24 in

VERTICAL TRAVEL.......................... 60 in

CROSS TRAVEL............................. 60 in

SADDLE TRAVEL............................ 60 in

SADDLE LENGTH............................ 102 in

TABLE SIZE............................... 42 in X 74 in

APPROX. TABLE CAPACITY................... 15 TON

SPINDLE SPEED (25)....................... 15 - 1550 RPM

ALL FEEDS (42)........................... 0.0001 - 0.925 IPR

RAPID TRAVERSE........................... 112 IPM

MOTOR.................................... 15 HP

APPROX. MACHINE WEIGHT................... 39,000 LBS

APPROX. MACHINE DIMENSIONS............... 109 in R-L x 17 F-B x 120 in H



EQUIPPED WITH:

POWER TOOL LOCK

AIR CLAMPING TO ALL THREE AXES

4-WAY BED

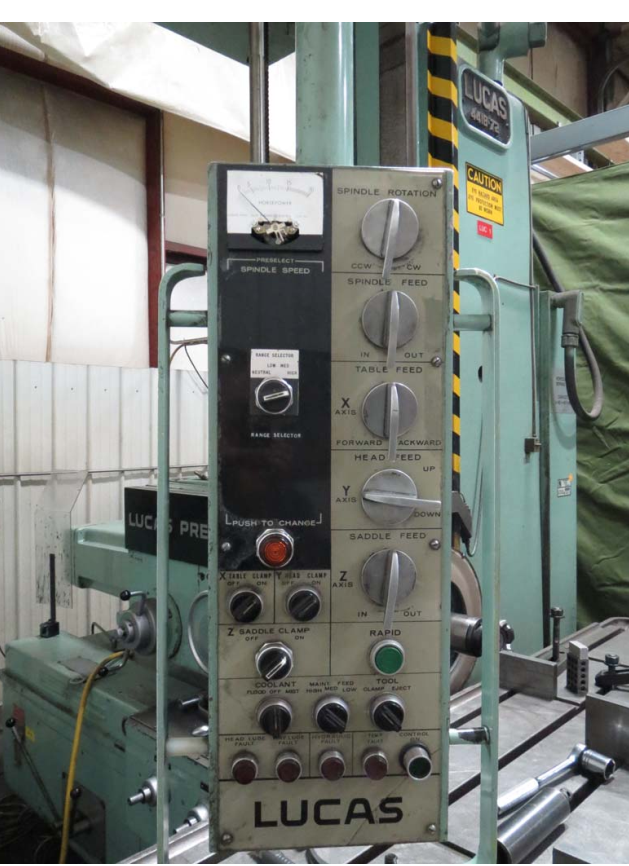

FULL PENDANT CONTROL

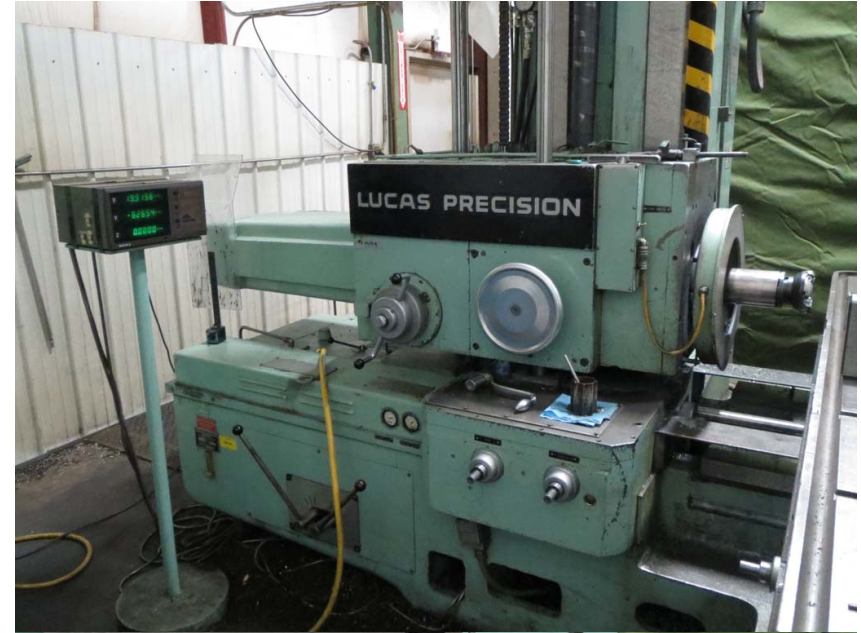

3-AXIS SONY DIGITAL READOUT

HARDENED & GROUND - ALL WAYS

AUTOMATIC LUBRICATION SYSTEM
