Lone Star Ranger 6 ft 9 in x 24 ft Hypertherm XPR 130 XD
Year 2016
Model Ranger

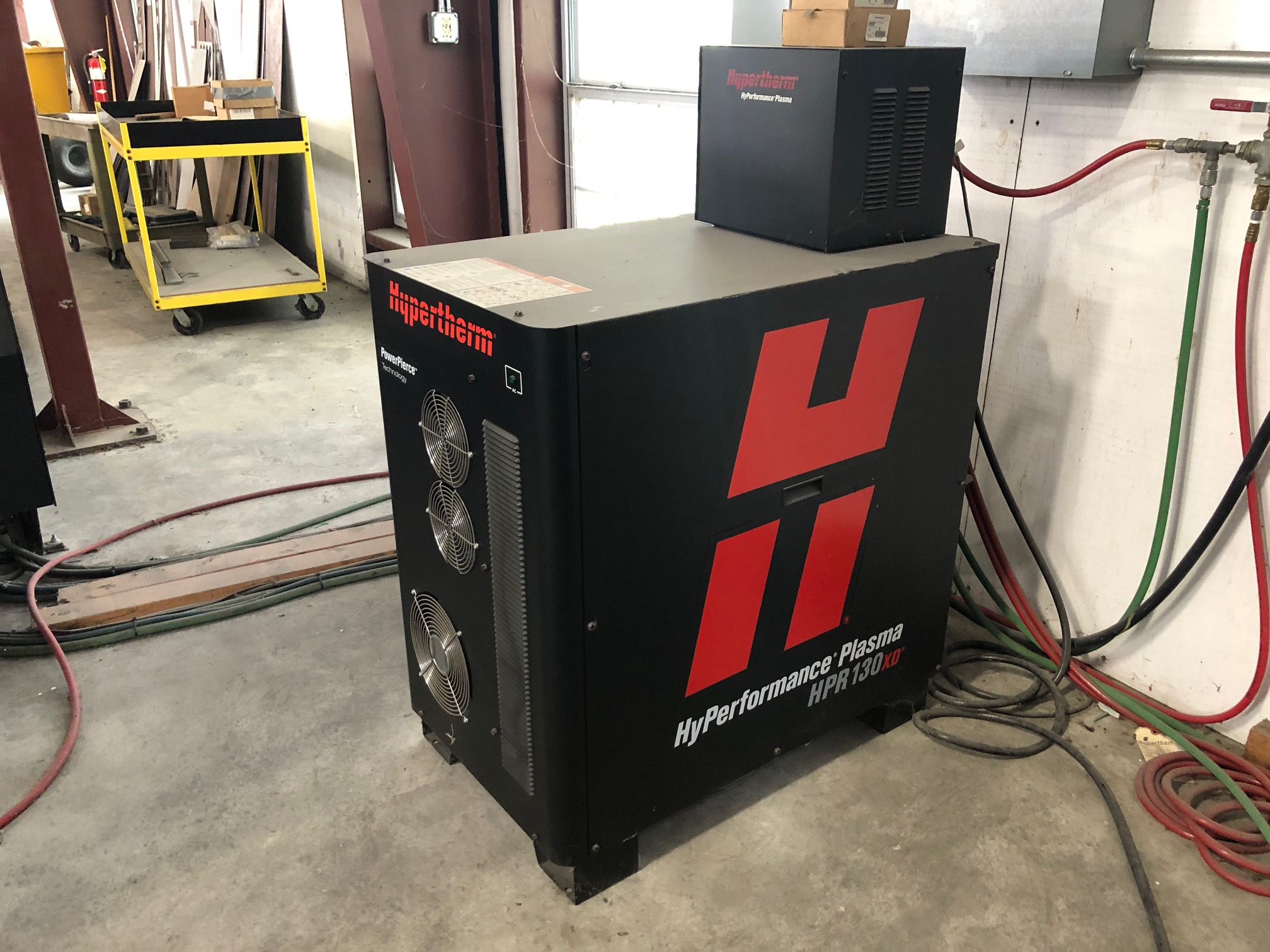

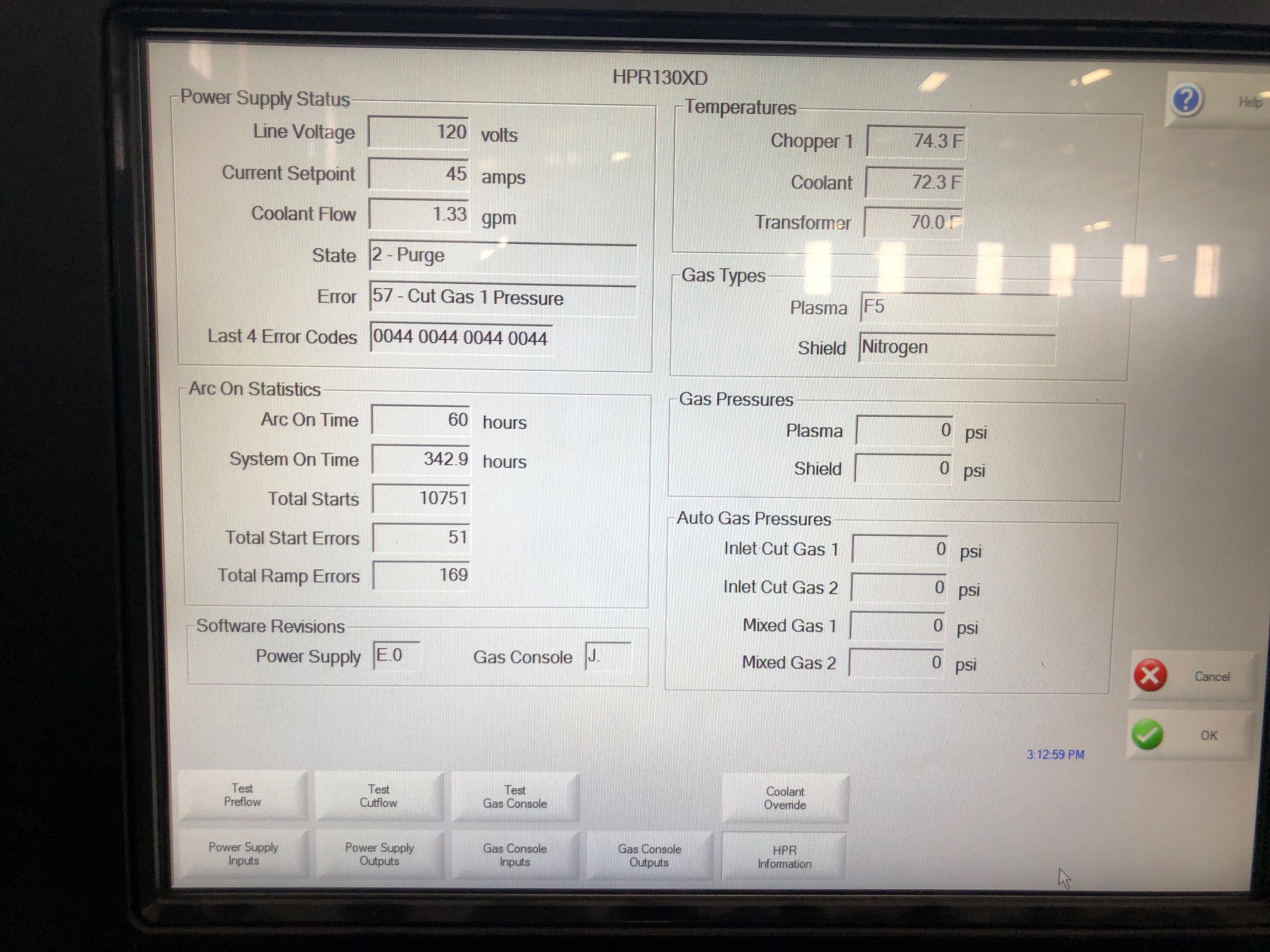

Power supply Hypertherm HPR 130 XD
Controller Hypertherm Edge
Table size 69 in x 24 in
Hours 300
FEATURES:
Effective Cutting Width 6 ft 9 inches
Effective Cutting Length 24 ft 0 inches
added after initial machine installation, will reduce X-Axis travel by 8 inches per
additional station.
8 in X 8 in thick walled square beam construction
Fully welded steel frame
Dual-side Helical Rack and Pinion Drive (X,Y)
Helical Rack protected by longitudinal tucked rail system
BISHOP WISECARVER Precision Hardened V-Groove Rails and Bearings
A/C Servo-Motor Drive System
Fully enclosed Cable and Hose Carrier in Y-Axis
Rear Delta Bracing
46 in long dual-side Saddles
Limit and Homing Switches
Fore/aft adjusters for proper alignment of oxy-fuel Stations to misaligned plate.
SPECIFICATIONS:
Rapid Traverse Speeds up to 1000 ipm
Vertical Positioning Speeds up to 150 ipm
Vertical Torch Stroke 8 inches
Maximum Number of Plasma Stations 2 (two)
Maximum Number of Oxy-fuel Stations 4 (four)
Machine Voltage 220V Single Phase, 30A
Machine Positioning Accuracy - +/- .007
Machine Repeatability - +/- .002
Controller:
Hypertherm Edge Connect TC CNC
Edge Connect TC-CNC Features:
Windows 10 Embedded
Intel J1900 Quad-core MCU or equivalent
120GB SSD Hard Drive or better
4GB DDR3 or better
19 inch Glass Touchscreen with 1366x768 Native resolution
IntelliTouch Pro PCAP (Projected Capacitive touch technology)
2 USB 2.0 Ports
Built-in Wireless Communication
Mild steel cut capacity
Dross free
Production pierce
Maximum cutting capacity
16 mm (5/8")
32 mm (1-1/4")
38 mm (1-1/2")
Stainless steel cut capacity
Production pierce
Maximum cutting capacity
20 mm (3/4")
25 mm(1")
Aluminum cut capacity
Production pierce
Maximum cutting capacity
20 mm (3/4")
25 mm (1")
Speed
(Mild steel)
Book specification at highest output current
12 mm (1/2")
2200 mm/m (80 ipm)
