LION / SUMMIT 39”/ 49” X 80” HEAVY DUTY GAP LATHE 1992’ #GMT-1968

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


C13MB
925195
Lathes (Manual)
Gap Bed Lathes
used
12500 (LB)
1992
$29,500.00

Description

SPECIFICATIONS:
Reference #
GMT-1968
Model #

C13MB
Serial #
925195
Year of manufacture

1992
Swing over bed

39 3/8 in
Swing in gap

49 7/32 in
Swing over cross slide

29 1/8 in
Distance between centers
78 3/4 in
Cross slide travel

16 35/64 in
Compound travel

6 19/64 in
Maximum weight capacity between centers

4,740 Lbs.
(24) Spindle speeds
8  1,000 R.P.M.
Spindle bore

4 1/16 in
Spindle nose

DIN 11
Tailstock diameter

4 5/16 in
Tailstock travel
7 31/64 in
Tailstock spindle taper

#6 Morse
Feeds, longitudinal

.005 2.293 I.P.R.
Feeds, cross

.0016 .7339 I.P.R.

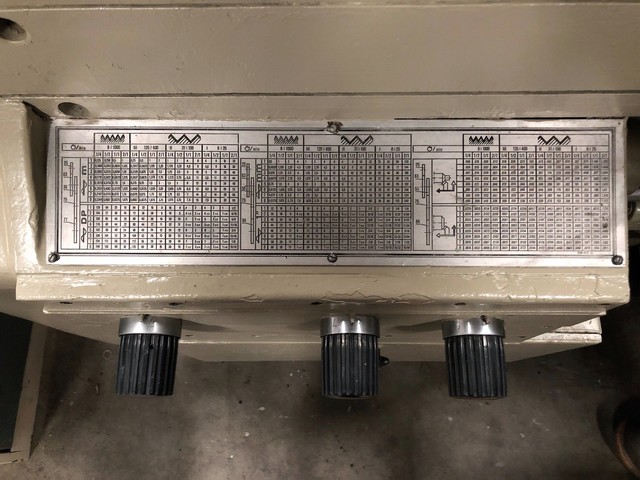

(72) Threads, inch

1/8-60 T.P.I.
(72) Threads, metric
.5 240 mm

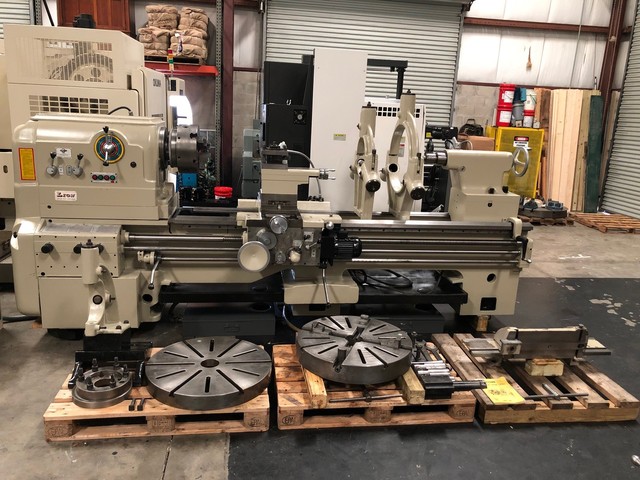

EQUIPPED WITH:
  • European Built machine
  • Removable gap
  • Inch and metric threading capability
  • Hardened & Ground Bed Ways
  • Taper attachment & Guide block

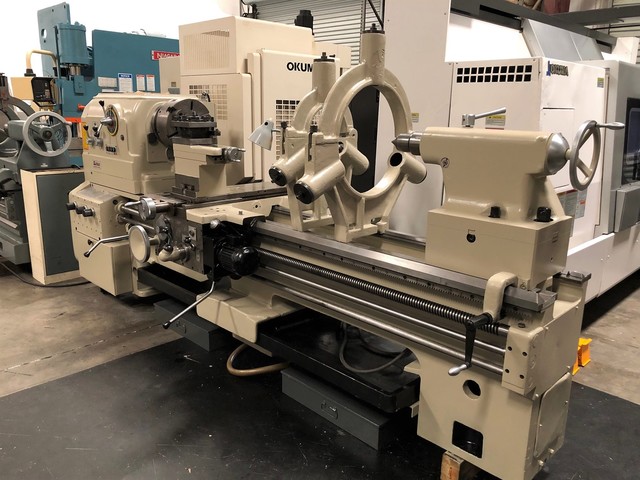

  • Steady rest roller type 21 in capacity
  • Steady rest roller type 11 in capacity
  • Follow rest
  • 15" BUCK FORKARDT three-jaw chuck with removable and reversible top jaws
  • 30 in 4 Jaw chuck
  • 30 in Face Plate
  • Dog plate

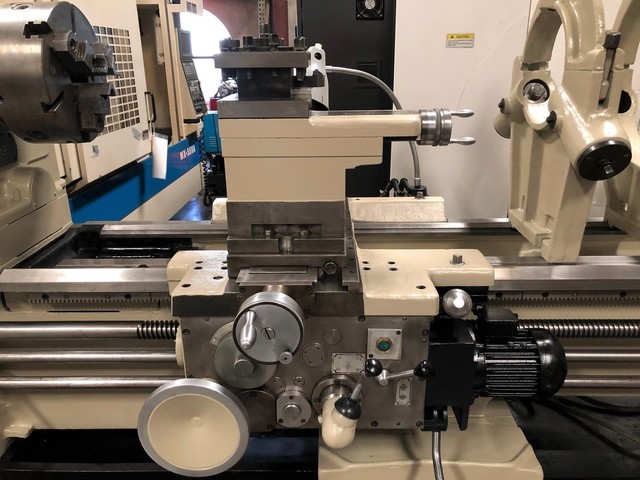

  • Four way motorized power rapid traverse to carriage and cross slide
  • Square turret-type toolpost
  • Boring bar holder
  • Threading dial

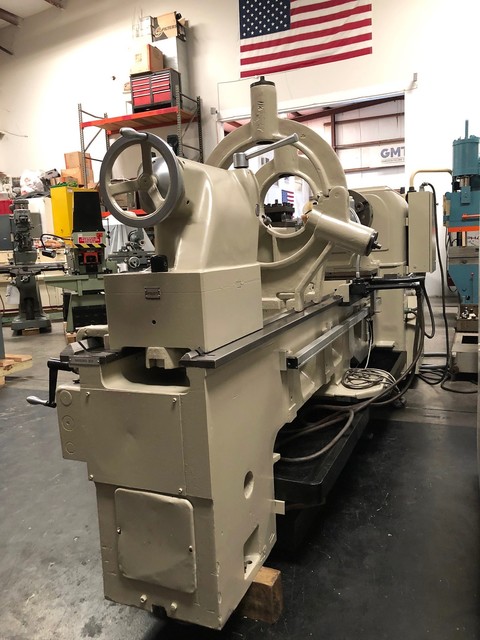

  • Tailstock with (1) Heavy Duty Live center
  • (2) Chuck wrenches
  • (2) Wrenches
  • Removable chip pans
  • Self-contained coolant system
  • Work light
  • Machine manual

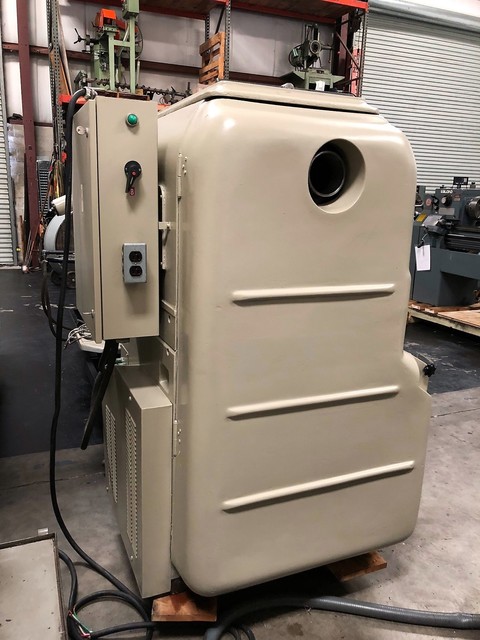

  • 17.5 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
  • Machine is wired for 230 volt operation.
APPROXIMATE WEIGHT (MACHINE ONLY):
12500 Lbs.
APPROXIMATE DIMENSIONS:
160 in L x 60 in W x 76 in H
LOCATION:
F.O.B. Bradenton, Florida
REFERENCE #:
Lathe -GMT-964
PRICE #:
$29,500.00
