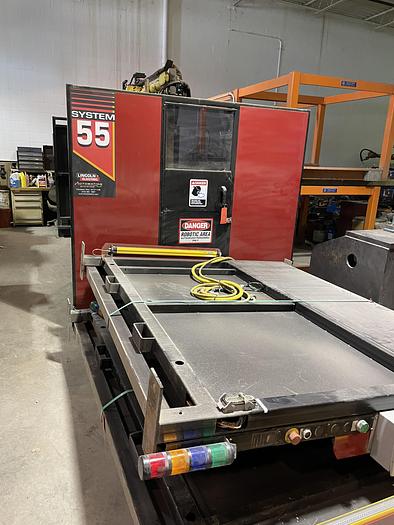

1-USED LINCOLN 55 TORCH CUTTING CELL WITH FANUC M710iC/20L ROBOT & TWO ROLL IN ROLL OUT

   WORK TABLES.

   ROBOT SERIAL NUMBER

   DATE OF MFG.

   STK#104279

========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

PLEASE NOTE THAT MAIN PHOTO IS AN M710IC/20L ROBOT MIG WELDING.  IT IS NOT THE ACTUAL ROBOT

WE ARE OFFERING IN THIS QUOTATION.  WE WILL BE POSTING ACTUAL PHOTOS WHEN THE UNIT ARRIVES HERE.

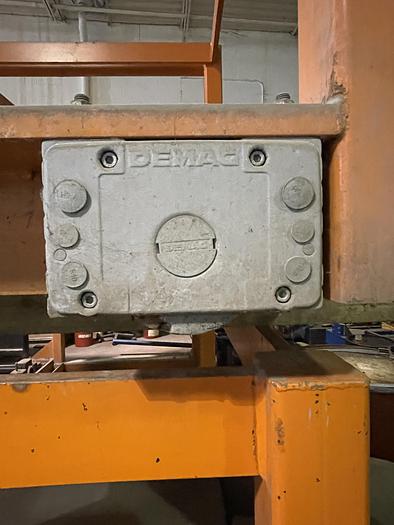

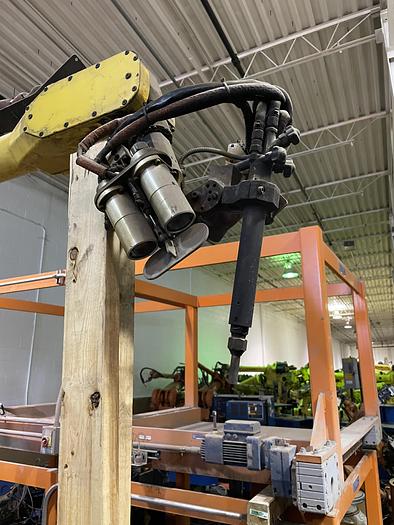

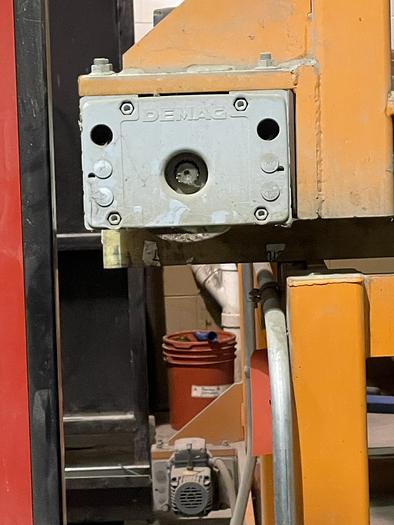

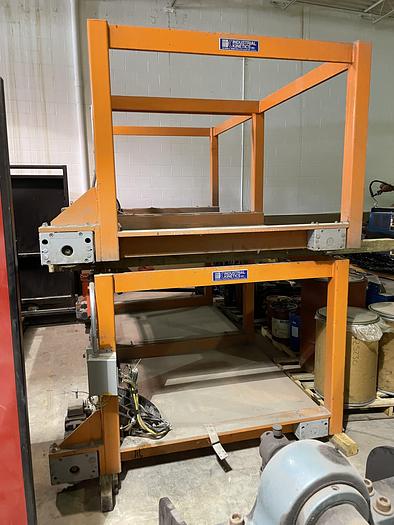

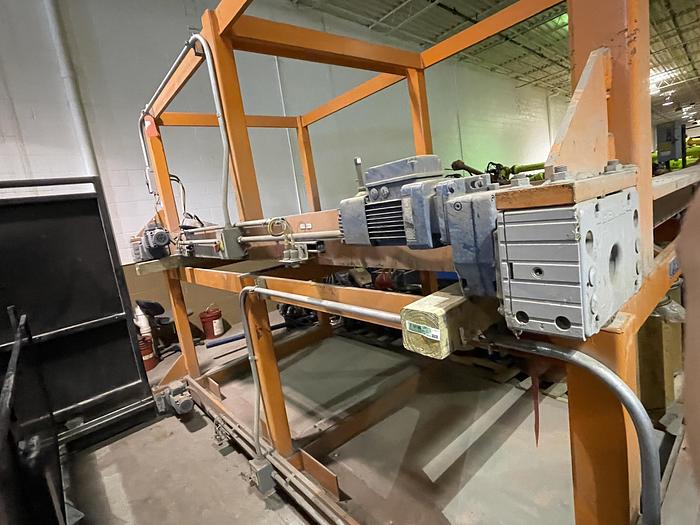

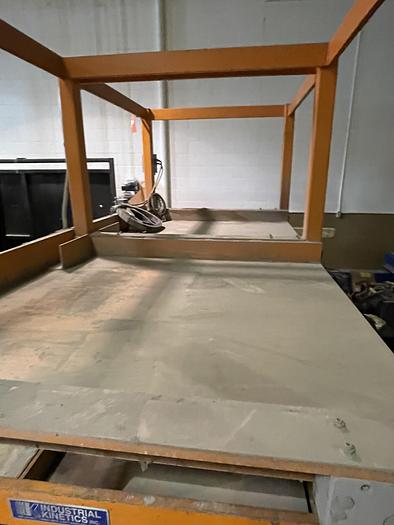

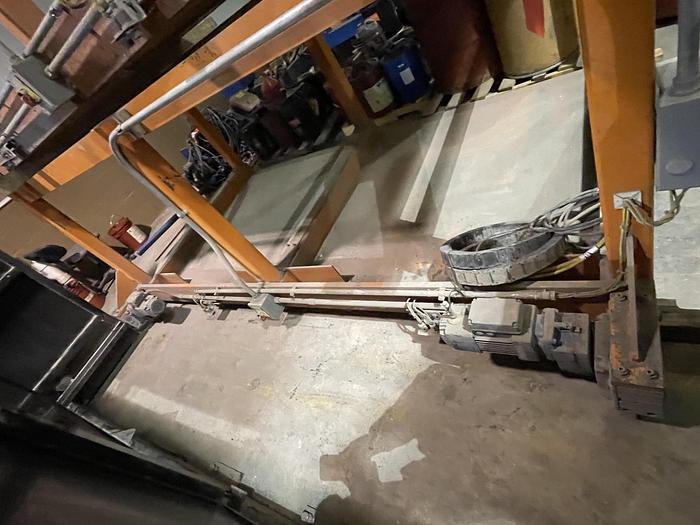

THIS CELL IS SET UP WITH ROBOT HAVING AN ACETYLENE TORCH GUN ON END OF ARM.  THERE ARE TWO

TABLES TO ROLL WORK IN AND AWAY FROM THE ROBOT.  SEE PHOTOS FOR DETAILS.

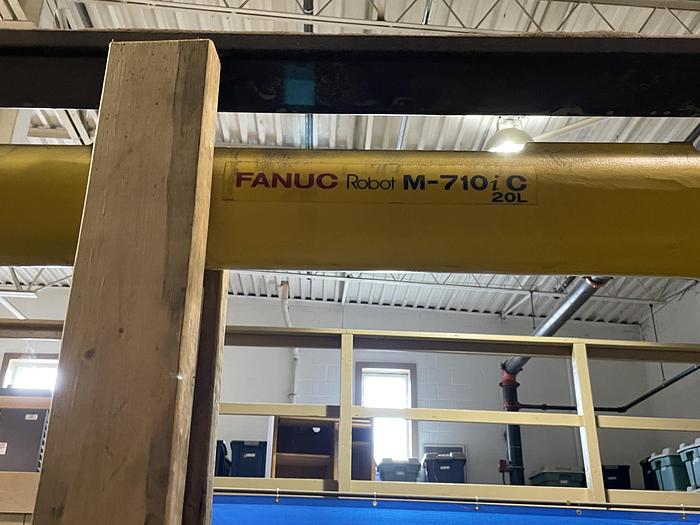

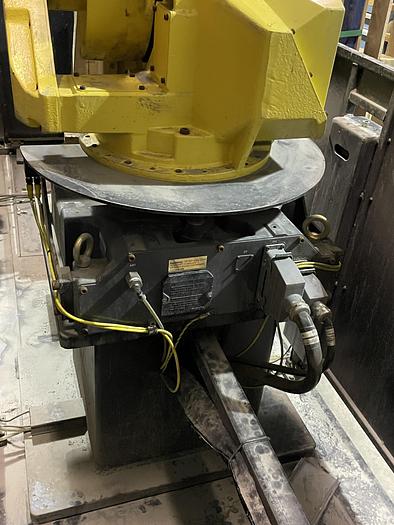

This Fanuc Robot is Designed for long reach handling applications, the FANUC M-710iC/20L features six axes and high-speed performance. Serial link construction simplifies installation and maximizes reach and reliability. Extremely fast axes and an extra-large work envelope help the M710iC/20L R30iA move parts around fast. With a reach around 2582mm, this robot can provide a pretty hefty work envelope with high speeds on the J4 and J6 axis.

Robot Specifications:

Axes: 6

Payload: 20.00 kg

H-Reach: 3110.00 mm

Repeatability: Plus/minus 0.1500 mm

Robot Mass: 540.00 kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 175 deg/s (3.05 rad/s)

J2 175 deg/s (3.05 rad/s)

J3 180 deg/s (3.14 rad/s)

J4 350 deg/s (6.11 rad/s)

J5 360 deg/s (6.28 rad/s)

J6 600 deg/s (10.47 rad/s)

Robot Motion Range:

J1 Plus/minus 360 deg

J2 Plus/minus 225 deg

J3 Plus/minus 432 deg

J4 Plus/minus 400 deg

J5 Plus/minus 280 deg

J6 Plus/minus 360 deg

Robot Uses:

Waterjet Robots

Dispensing Robots

Machine Loading Robots

Material Handling Robots

Packaging Robots

Palletizing Robots

Part Transfer Robots

Material Removal Robots

Arc Welding Robots

Fiberglass Cutting Robots

EQUIPPED WITH:

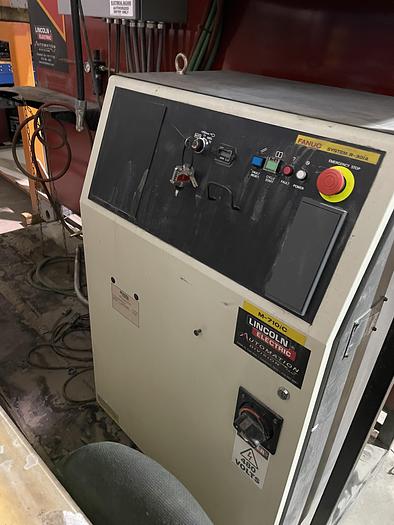

FANUC R30iA CONTROLLER

FANUC CONNECTION CABLES

FANUC TEACH PENDANT

TORCH GUN WITH VISION

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

Manufacturer FANUC

Model FANUC M710iC/20L

Year 2012

Condition Used

Stock Number 104279

Axes 6

Payload 20.00 kg

H-Reach 3110.00 mm

Repeatability Plus/minus 0.1500 mm

Robot Mass 540.00 kg

Structure Articulated

Mounting Floor, Inverted, Angle

Documents:

 FANUC M710 SERIES PDF BROCHURE.pdf

 Lincoln system 55 acetylene torch cell Drawing Approval for Robot.pdf

 Lincoln system 55 acetylene torch cell Dump Cart System Layout.pdf

 Lincoln system 55 acetylene torch cell Robot Layout.pdf
