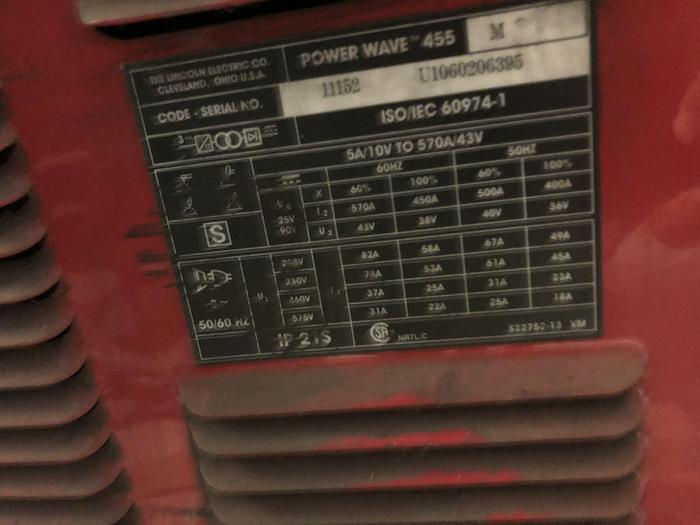

LINCOLN DUAL TRUNNION WELD CELL WITH FANUC ARCMATE 100IB ROBOT LINCOLN 455M WELDING POWER SUPPLY LOW HOURS (SOLD)

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


FANUC ARCMATE 100iB
F75573
Robotic Equipment
Robotic Weld Cell
used
135 (KG)
0
$0.00

Description

SOLD        SOLD         SOLD

Description:

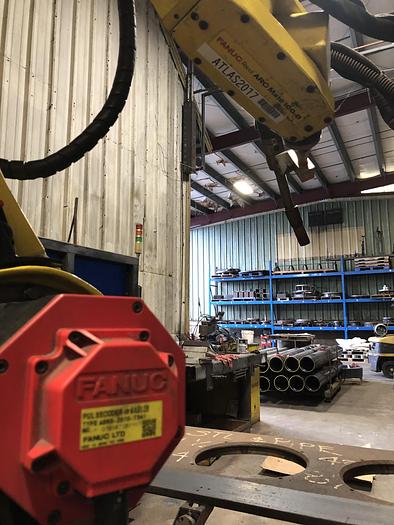

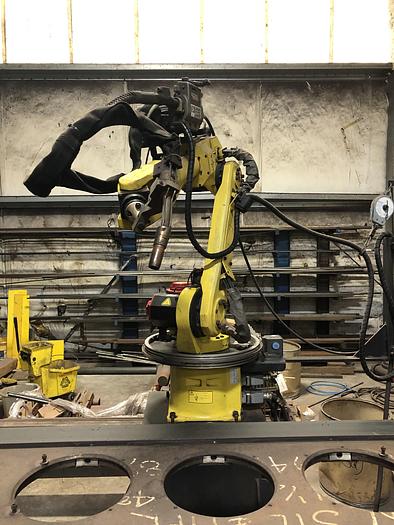

1-USED LINCOLN DUAL TRUNNION ROBOTIC MIG WELDING CELL WITH FANUC 100iB ROBOT & RJ3iB CONTROLLER

   SERIAL NUMBER OF ROBOT F75573

   DATE OF MFG.

   STK#104815

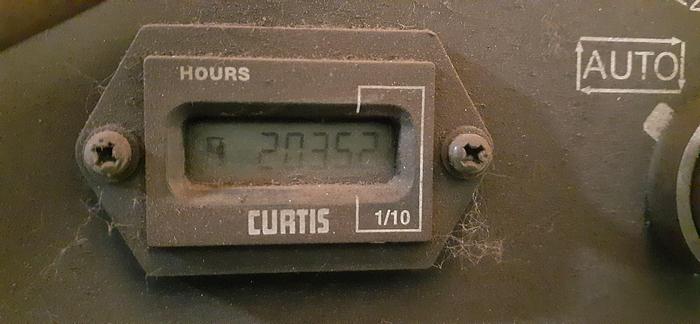

   HOURS ON METER 2,035

=======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

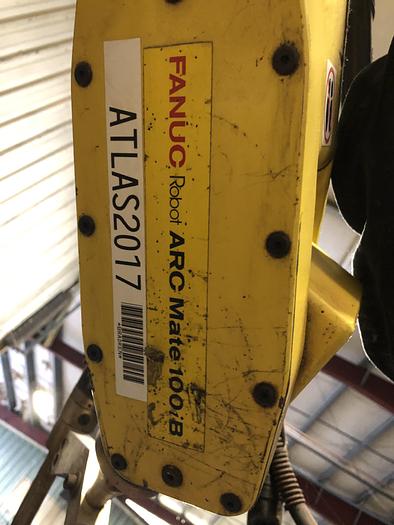

FANUC ARC Mate 100iB

The FANUC ARC Mate 100iB is a six-axis, modular construction, electric servo-driven welding robot that was designed with high speed in mind. Compact and flexible, the Arc Mate 100iB robot is capable of high speed welding and cutting, yet precise enough to handle pick and place applications. The FANUC ARC Mate 100iB has a relatively lightweight payload ability at 6kg, which makes it perfect for welding applications.



Furthermore, the wire feed motor mounts directly to the top arm with added durability through the use of sealed bearings and protected drives.Its high speed wrist axes reduce haircut times and improve the overall throughput. The ARC Mate 100iB RJ3iB FANUC robots also have extremely narrow wrists, making the inside of parts or other machines easily accessible. It offers a very large work envelope that is useful for large parts or tooling. There are also gas/air lines and a Lincoln Electric wire feed motor cable routed inside the robot arm, helping to improve overall reliability and eliminate external cabling requirements.



The benefits dont stop here! The Turbo Move advanced servo control features enable quick and smooth point-to-point motion to increase arc on-time and throughput. The Lincoln Electrics Power Wave TM or STTTM power source keeps things simple with its plug and play ability.



This robot will be paired with a RJ3iB controller and ARC Mate 100iB RJ3iB arc welding robots are compatible with all major brands of welding equipment for maximum flexibility.




Robot Specifications:

Axes: 6

Payload: 6kg

H-Reach: 1373mm

Repeatability: Plus/minus 0.08mm

Robot Mass: 135kg

Structure: Articulated

Mounting: Floor, Inverted, Wall, Angle


Robot Motion Speed:

J1 150 deg/s (2.62 rad/s)

J2 160 deg/s (2.79 rad/s)

J3 170 deg/s (2.97 rad/s)

J4 400 deg/s (6.98 rad/s)

J5 400 deg/s (6.98 rad/s)

J6 520 deg/s (9.08 rad/s)


Robot Motion Range:

J1 Plus/minus 170 deg

J2 +160 deg - 90 deg

J3 +145 deg - 170 deg

J4 Plus/minus 190 deg

J5 Plus/minus 140 deg

J6 Plus/minus 360 deg


Applications:

Arc Welding Robots

Welding Automation Robots

MIG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots


EQUIPPED WITH:

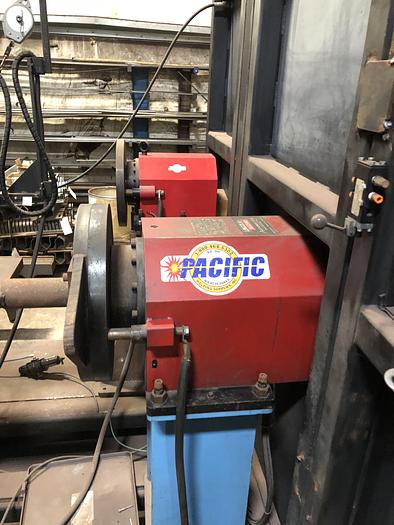

TWO LINCOLN SERVO TRUNNIONS

ENCLOSURE

LINCOLN WIRE FEEDER

LINCOLN TORCH TIP CLEANER

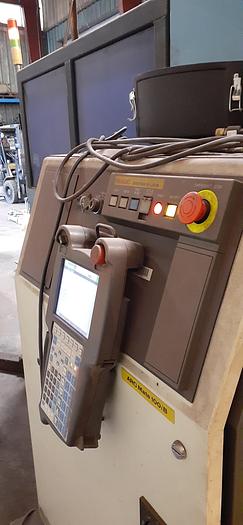

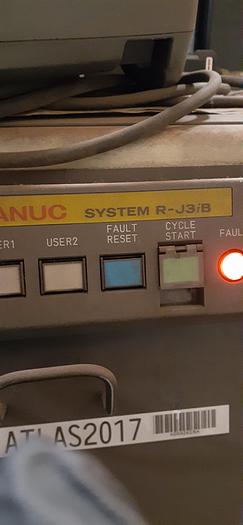

FANUC RJ3iB CONTROLLER

FANUC ROBOT CONNECTION CABLES

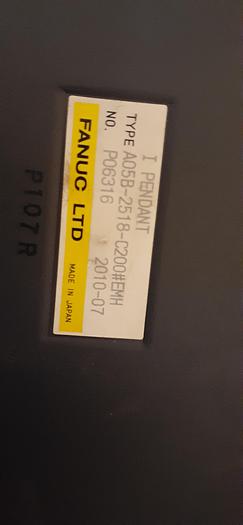

FANUC TEACH PENDANT


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.


RAB INDUSTRIES, INC.


Specifications:

Manufacturer FANUC

Model FANUC ARCMATE 100iB

Condition Used

Serial Number F75573

Stock Number 104815

Axes 6

Payload 6kg

H-Reach 1373mm

Repeatability Plus/minus 0.08mm

Robot Mass 135kg

Structure Articulated

Mounting Floor, Inverted, Wall, Angle

Manufacturer FANUC

MODEL FANUC ARCMATE 100iB

Documents:

 Fanuc arcmate100iB pdf brochure.pdf
