LEADWELL MCV-2000I VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MCV-2000I
Our stock number: 2649
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
33000 (LB)
2011
$0.00

Feature Video

Description


SOLD          SOLD           SOLD

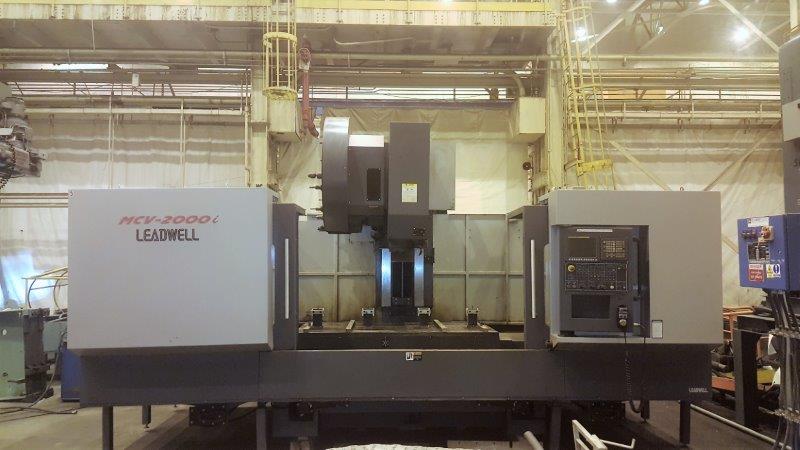

LEADWELL MCV-2000I VMC
Specifications:
X-AXIS TRAVEL ......................... 80.3"
Y-AXIS TRAVEL ......................... 40"
Z-AXIS TRAVEL ......................... 28.3"
TABLE SIZE ............................ 82.7" X 40"
TABLE MAX LOAD ........................ 4,000 LBS
TABLE HEIGHT FROM FLIGHT .............. 40.6"
SPINDLE SPEEDS (2-SPEED GEAR BOX) ..... 8,000 RPM
SPINDLE TAPER ......................... CAT 50
SPINDLE MOTOR, HI/LO .................. 35 HP
TOOL CAPACITY ......................... 30 ATC
FEED RATES, X/Y/Z ..................... 787 IPM
APPROXIMATE FLOOR SPACE .............. 216" X 163" X 150"
APPROXIMATE WEIGHT ................... 33,000 LBS

EQUIPPED WITH:

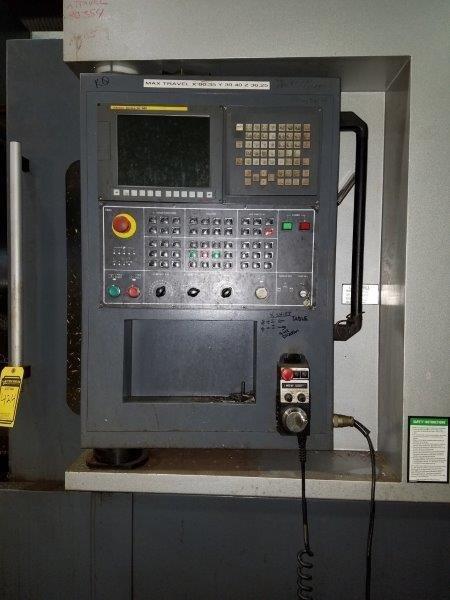

* FANUC OIMD CNC CONTROL W/ 10.4" COLOR LCD DISPLAY
* 30-STATION SIDE MOUNTED AUTOMATIC TOOL CHANGER
* PREPPED FOR COOLANT THROUGH SPINDLE
* ALL BOX WAY CONSTRUCTION * 2-SPEED GEAR BOX
* FLOOD COOLANT UNIT & SPINDLE COOLANT RING
* SPINDLE AIR BLOW (TO CLEAN TOOL)
* SPINDLE OIL CHILLER
* HEAT EXCHANGER FOR COOLING INSIDE ELECTRICAL CABINET

INSPECT UNDER POWER IN PHILADELPHIA WAREHOUSE
