STANDARD FEATURES
72HP FANUC SPINDLE MOTOR
FANUC OItF plus 10.4 in LCD COLOR MONITOR W/ USB
2-SPEED GEAR BOX
64 Bit MICRO PROCESSER
1,500 RPM SPINDLE
512K METERS MEMORY w/ PCMCIA CARD SLOT
6.0 in THICK OFFSET TURRET DESIGN
RS 232C and EMBEDDED ETHERNET CONNECTIONS
31.5 in Max Turning Diameter
MANUAL GUIDE I:
158 in Max Turning Length Available (L)
HANDHELD REMOTE MPG HANDWHEEL
12 TOOL STATION BI-DIRECTIONAL TURRET
BASE WASH:

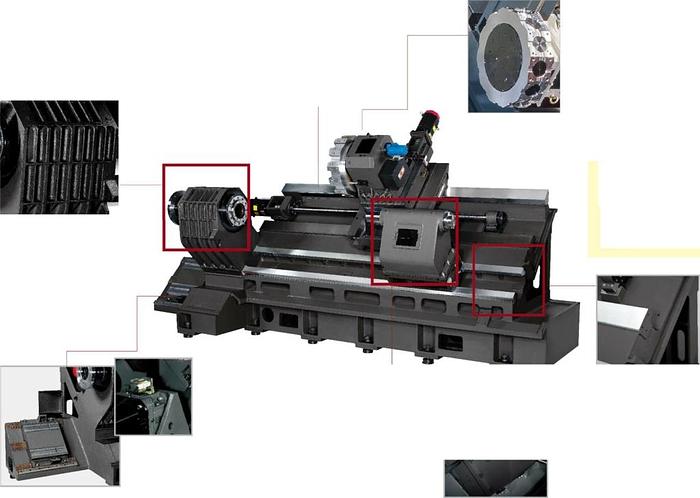

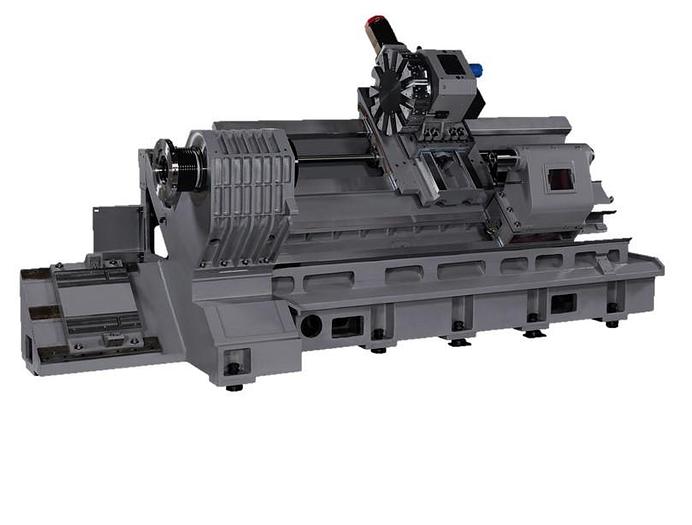

HIGH RIGID 45 DEG SLANT BED CONSTRUCTION
HANDHELD REMOTE MPG HANDWHEEL
PROGRAMMABLE TAILSTOCK and QUILL
CUSTOM MACRO B and SKIP FUNCTION
CHIP CLEAN WASH:
HEAT EXCHANGER FOR ELECTRICAL CABINET
AUTOMATIC CENTRAL LUBRICATION SYSTEM
SPECIFICATIONS:
CAPACITY
Max Work Swing 33.5 in
Swing Over Cross Slide 27.56 in
Max. Turning Diameter (M Version) 31.5 in
Max. Turning Length (M Version) 39.6 in
59.2 in (L)
78.9 in (XL)
118.3 in (XXL)
157.7 in (L)
Max. Workpiece Weight 2,626 lbs
TRAVELS:
X axis (M Version) 16.7 in (17.9 in)
Z axis 43.3 in
63 in (L)
82.7 in (XL) stock standard
122 in (XXL)
161.4 in (L)
FEED RATES:
X axis 590 IPM
Z axis (L,XL / XXL / L) 787 / 472 / 393 RPM
Jog Feed Rates 50 IPM
TURRET:
Standard M(BMT75 DIN 1809)
Tool Stations 12 12
Number of Live Tool Stations n/a 12
Tool Size (square dimension) 1.25 in 1.25 in BMT75
Tool Size (round dimension) 2.0 in (2.5 in Option Max) 2.0 in (2.5 in Option Max)
Indexing Accuracy Plus/minus 6.0 arc sec. Plus/minus 6.0 arc sec.
Indexing Time Tool-to-Tool 1.25 sec. 1.00 sec.
Indexing Time 180 deg. 3.8 sec. 2.50 sec.
Rotary Spindle Speed (rpm) n/a 3,600
Rotary Spindle Motor n/a 15 Hp. *
TRAVELS:
Programmable (drag/drop)
Tailstock Movement & Travel 34.6 in
54.3 in (L)
74 in (XL)
113 in (XXL)
153 in (L)
Quill Taper MT #6
Quill Drive Type Hydraulic
Quill Diameter and Stroke 6.1 in dia 4.9 in stroke
Max. Quill Thrust 2,860 lbs.
AXES SPECIFICATIONS:
X axis Ball Screw 1.97 in dia x .394 in pitch
Z axis Ball Screw (XXL/L) 1.97 in dia x .394 in pitch (2.48 in dia x .472 in)
X axis Motors 12 Hp.Fanuc Alpha A/C Brushless * (A22i)
Z axis Motors 28 Hp. Fanuc Alpha A/C Brushless * (A40i)
X axis Maximum Thrust 3,411 lbs.
Z axis Maximum Thrust 5,568 lbs.
COOLANT SYSTEMS:
Pump Motor Output 1.13 Hp.
Pump Flow Rate 7.1 gpm
Pump Pressure 29 psi.
Tank Capacity 79 gal.
87 gal. (L)
95 gal. (XL)
111 gal. (XXL)
127 gal. (L)
GENERAL:
Floor Spacing (L x W x H)
173 in x 92 in x 93 in
192 in (L)
212 in (XL)
256 in (XXL)
310 in (L)
Machine Net Weight 24,251 lbs.
