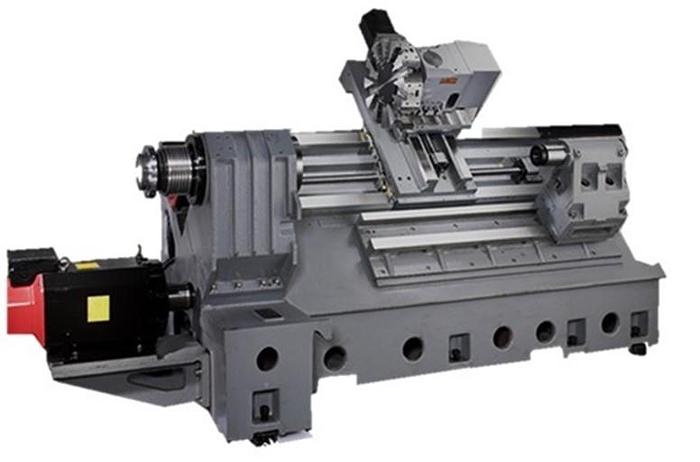

LEADWELL LTC-25il CNC BOX WAY TURNING CENTER
STANDARD FEATURES:
40HP FANUC HIGH TORQUE SPINDLE MOTOR
FANUC OITF 10.4 in PLUS LCD COLOR MONITOR W USB
ELECTRICIAL HI LOW WINDING (M40 M41)
64 Bit MICRO PROCESSER
12 in CHUCK W 2.99 in BAR CAPACITY (A2-8)
512K METERS MEMORY w PCMCIA CARD SLOT
2,800 RPM SPINDLE RS 232C and EMBEDDED ETHERNET CONNECTIONS
12 TOOL STATION BI-DIRECTIONAL TURRET MANUAL GUIDE I
17.7 in Max Turning Diameter
CUSTOM MACRO B and SKIP FUNCTION
HIGH RIGID 45 DEG SLANT BED CONSTRUCTION
HANDHELD REMOTE MPG HANDWHEEL
TAILSTOCK with PROGRAMMABLE QUILL
HEAT EXCHANGER FOR ELECTRICAL CABINET
CHIP CONVEYOR WITH BUCKET AUTOMATIC CENTRAL LUBRICATION SYSTEM
CAPACITY:
Max Work Swing 26.4 in
Swing Over Cross Slide 17.3 in
Max. Turning Diameter (M Version) 17.7 in (16.15 in)
Max. Turning Length (M Version) 29.9 in
40.1 in (L)
Max. Workpiece Weight 1,100 lbs
TRAVELS:
X axis 9.4 in
41.3 in (L) stock standard
GENERAL:
Floor Spacing (L x W x H) including chip conveyor 138 in x 77 in x 80 in x 148 in (L)
Machine Net Weight 13,227 lbs. 15,652 (lb.)
To view more information on the LEADWELL LTC-25IL CNC BOX WAY TURNING CENTER, including reviews, brand information, photos, videos, and more,
