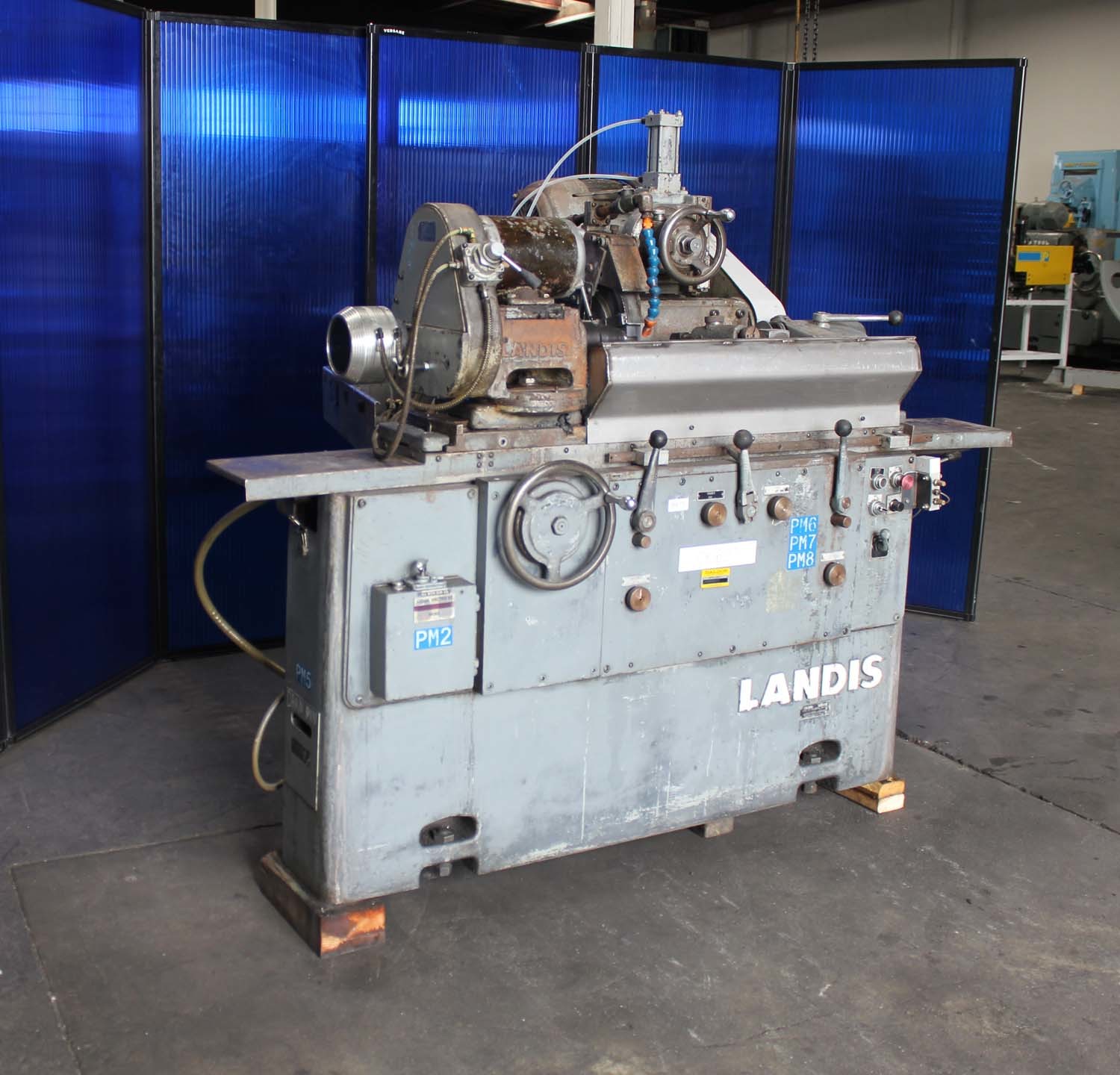

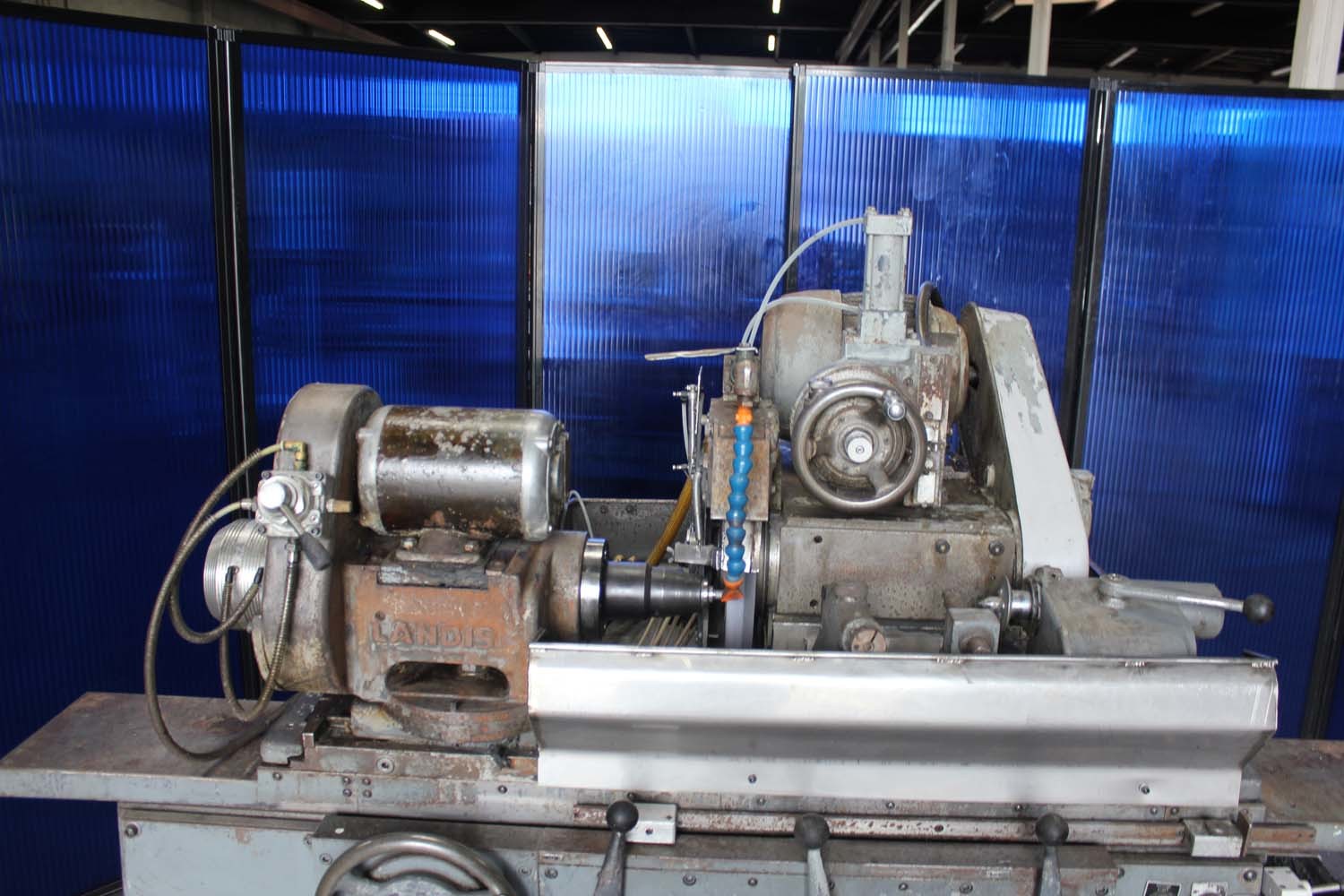

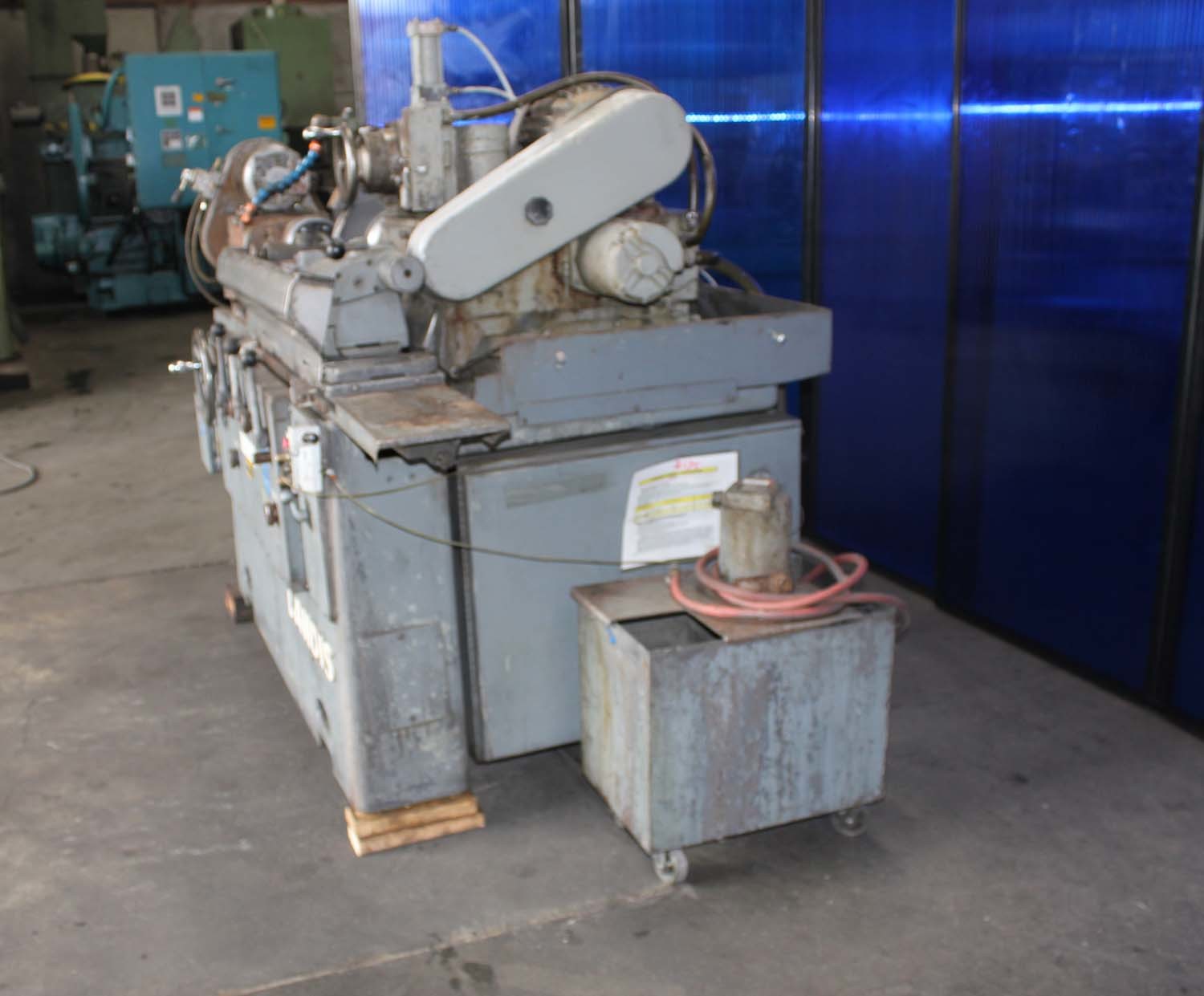

Basic Information

Model: 1R
Manufacturer: Landis
Serial #: 836-12
Location: Huntington Park, CA
Year Built: -

---

Specifications

Swing Over Bed: 10"
Distance Between Centers: 20"
Table Speed: 2- 240 IPM
Grinding Wheelhead Swivel (Right Or Left): 90 Degrees
Grinding Wheel Speeds: 2,000 & 2,530 RPM
Grinding Wheel Size: 12" x 1" x 5"
Workhead Speeds (6): 60- 600 RPM
Workhead Nose: A2- 5
Workhead Swivel Range: 120 Degrees
Workhead Center: #10 Jarno
Footstock Work Center: #6 Jarno
Dimensions (L x W x H): 80" x 50" x 70"
Weight: 4,100 Lbs.

---

Equipped with

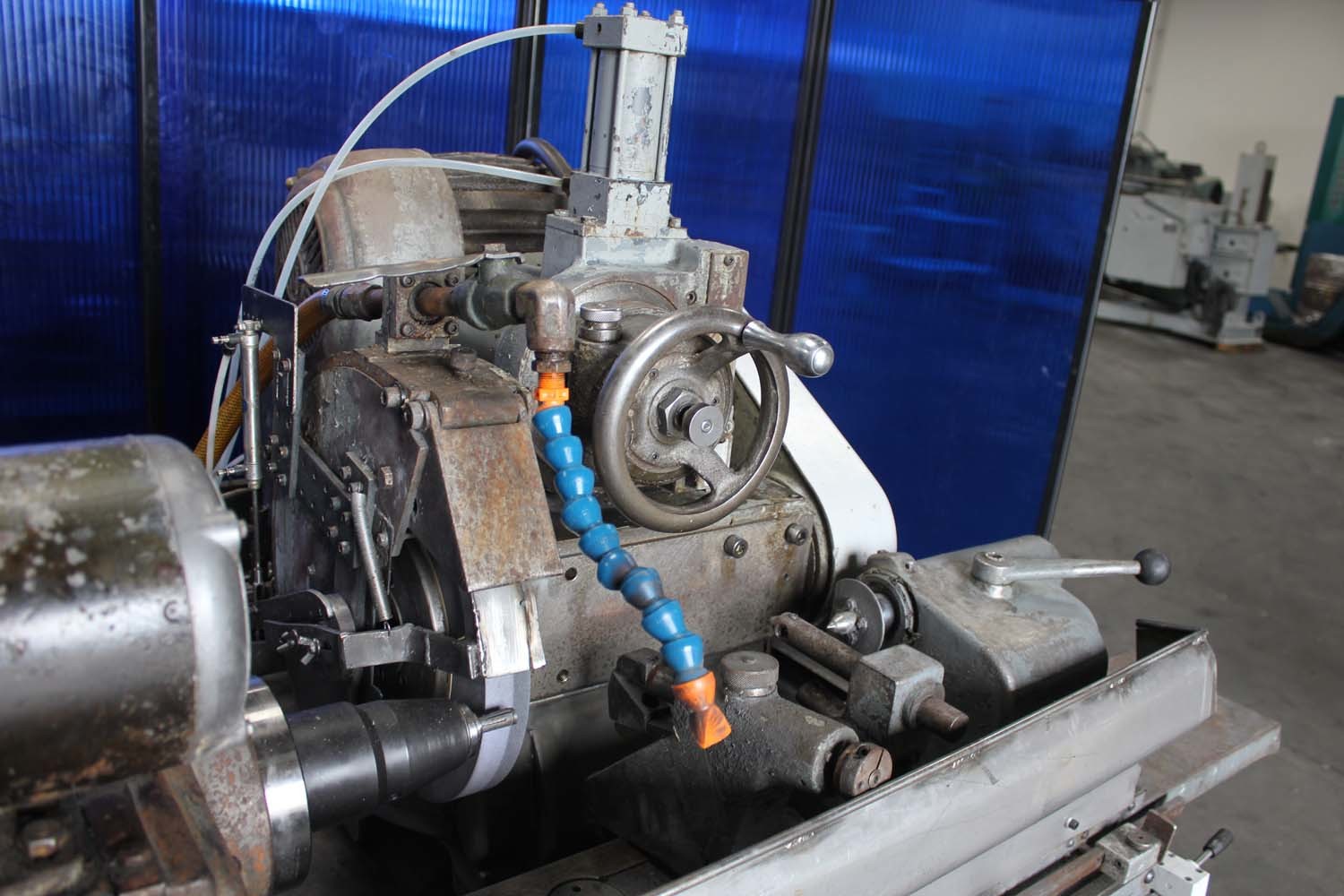

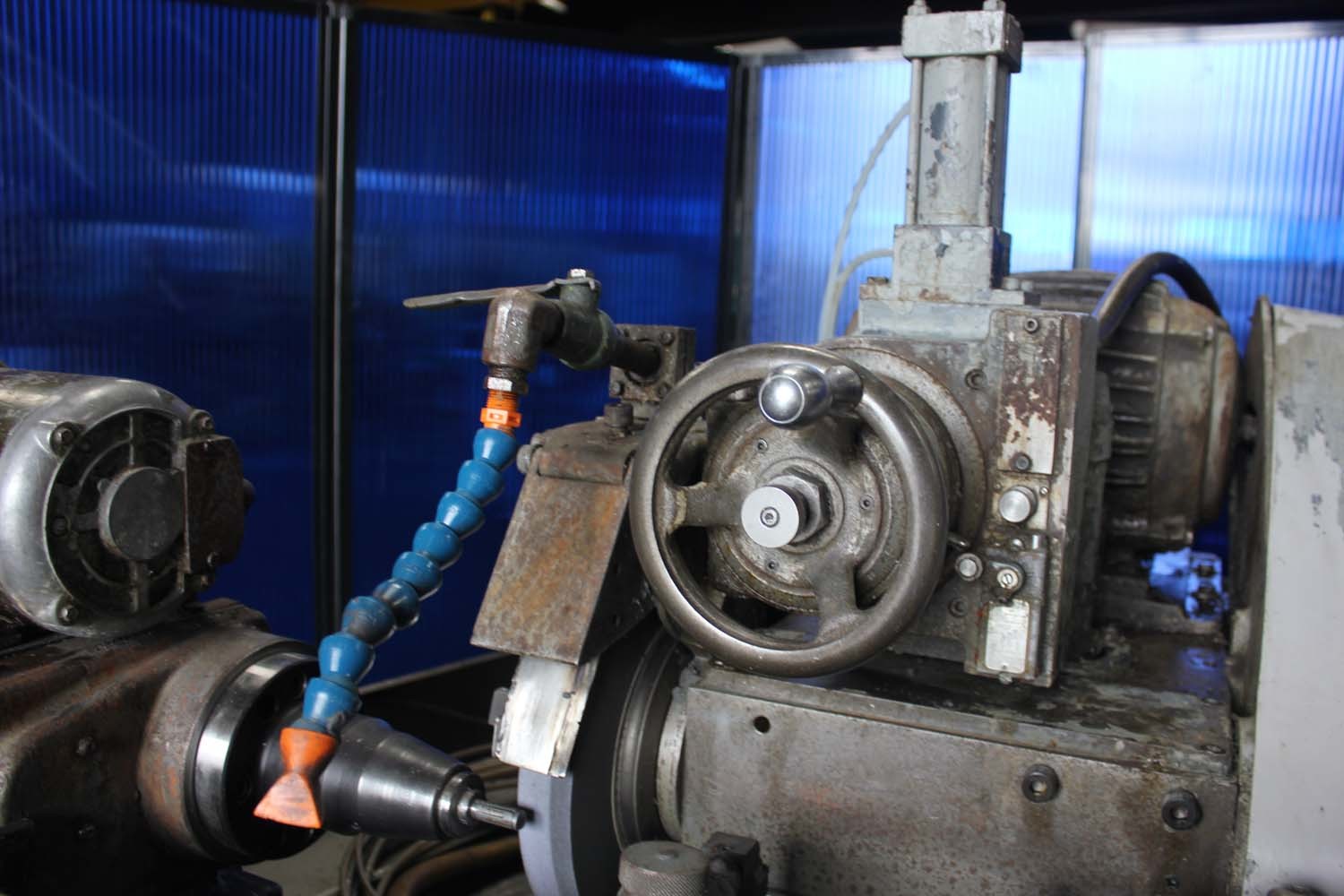

• Motorized Workhead
• Footstock

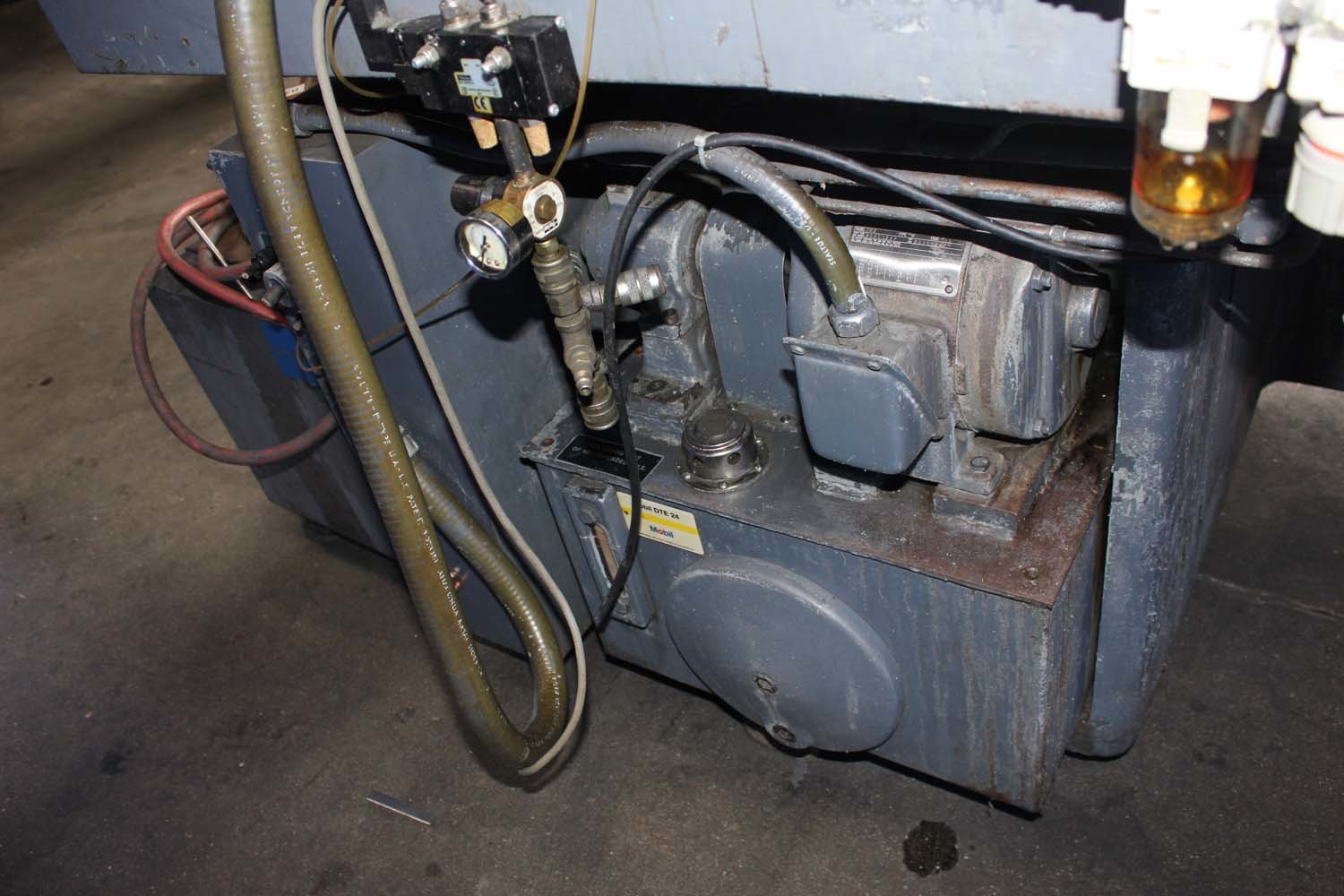

• Hydraulic Infeed
• Pneumatic Collet Chuck on Workhead
• Work Rest
• One Shot Lube System
• Coolant System
• Horsepower: 3

Basic Information

Model: 1R
Manufacturer: Landis
Serial #: 858-52
Location: Huntington Park, CA
Year Built: -

---

Specifications

Swing Over Bed: 10"
Distance Between Centers: 20"
Table Speed: 2- 240 IPM
Grinding Wheelhead Swivel (Right Or Left): 90 Degrees
Grinding Wheel Speeds: 2,000 & 2,530 RPM
Grinding Wheel Size: 12" x 1" x 5"
Internal Grinding Wheel Speed: 16,500 RPM
Workhead Speeds (6): 60- 600 RPM
Workhead Nose: A2- 5
Workhead Swivel Range: 120 Degrees
Workhead Center: #10 Jarno
Footstock Work Center: #6 Jarno
Dimensions (L x W x H): 80" x 50" x 70"
Weight: 4,100 Lbs.

---

Equipped with

• Motorized Workhead With Hardinge 5C Spin Collet Fixture
• Tailstock
• Swing Down Internal Grinding Attachment
• Hand Infeed Of Wheelhead
• One Shot Lube System
• Coolant System
• Horsepower: 3
