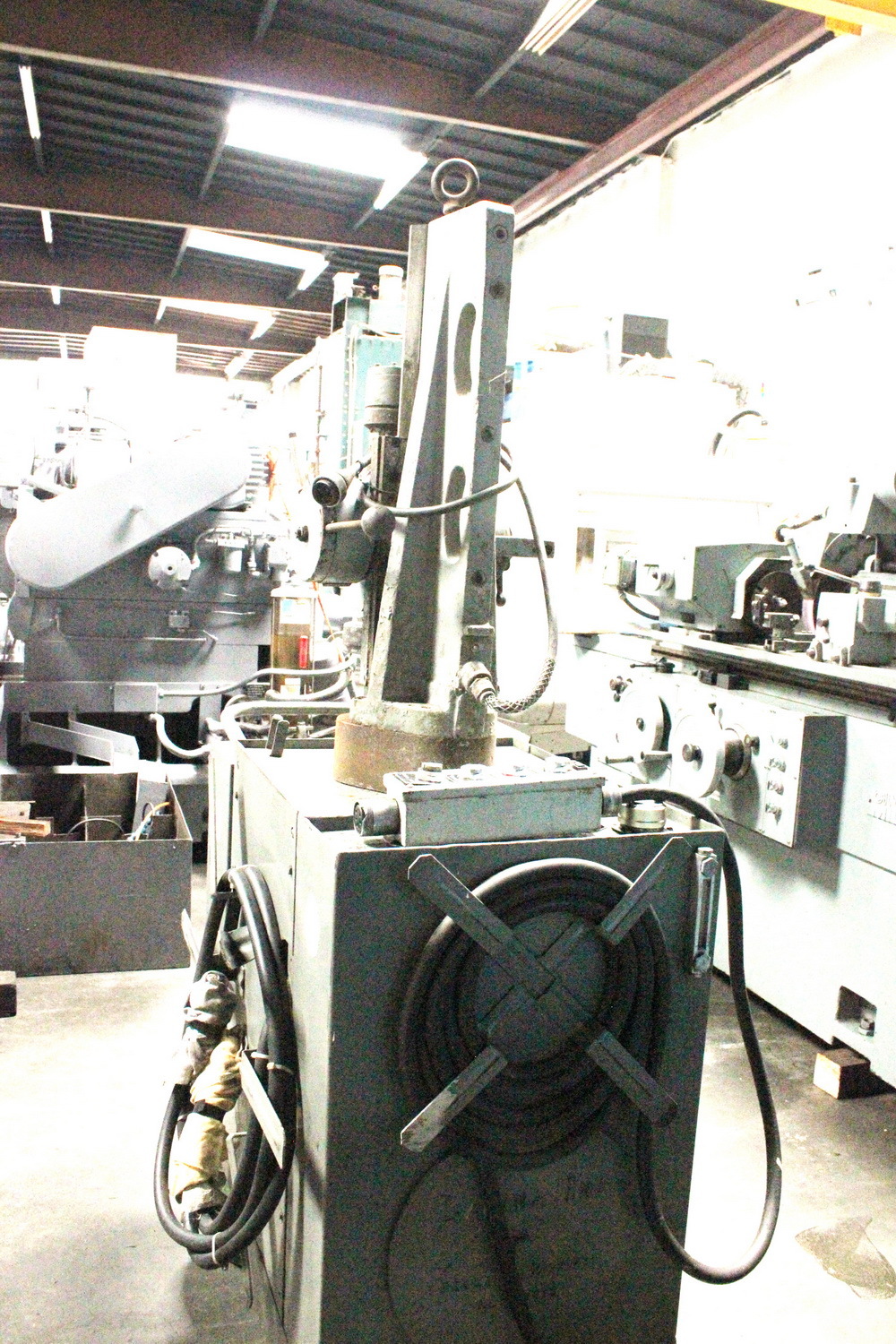

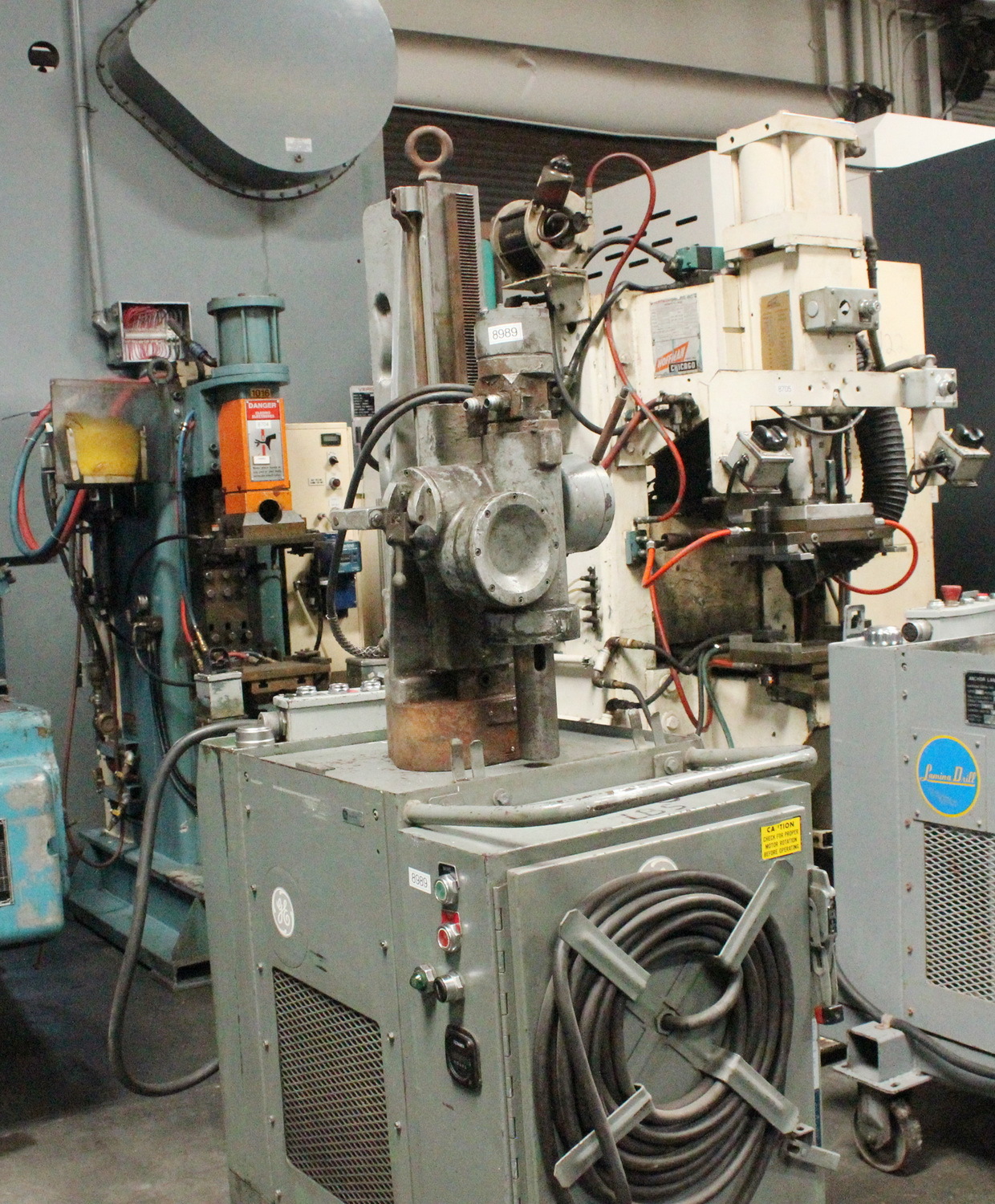

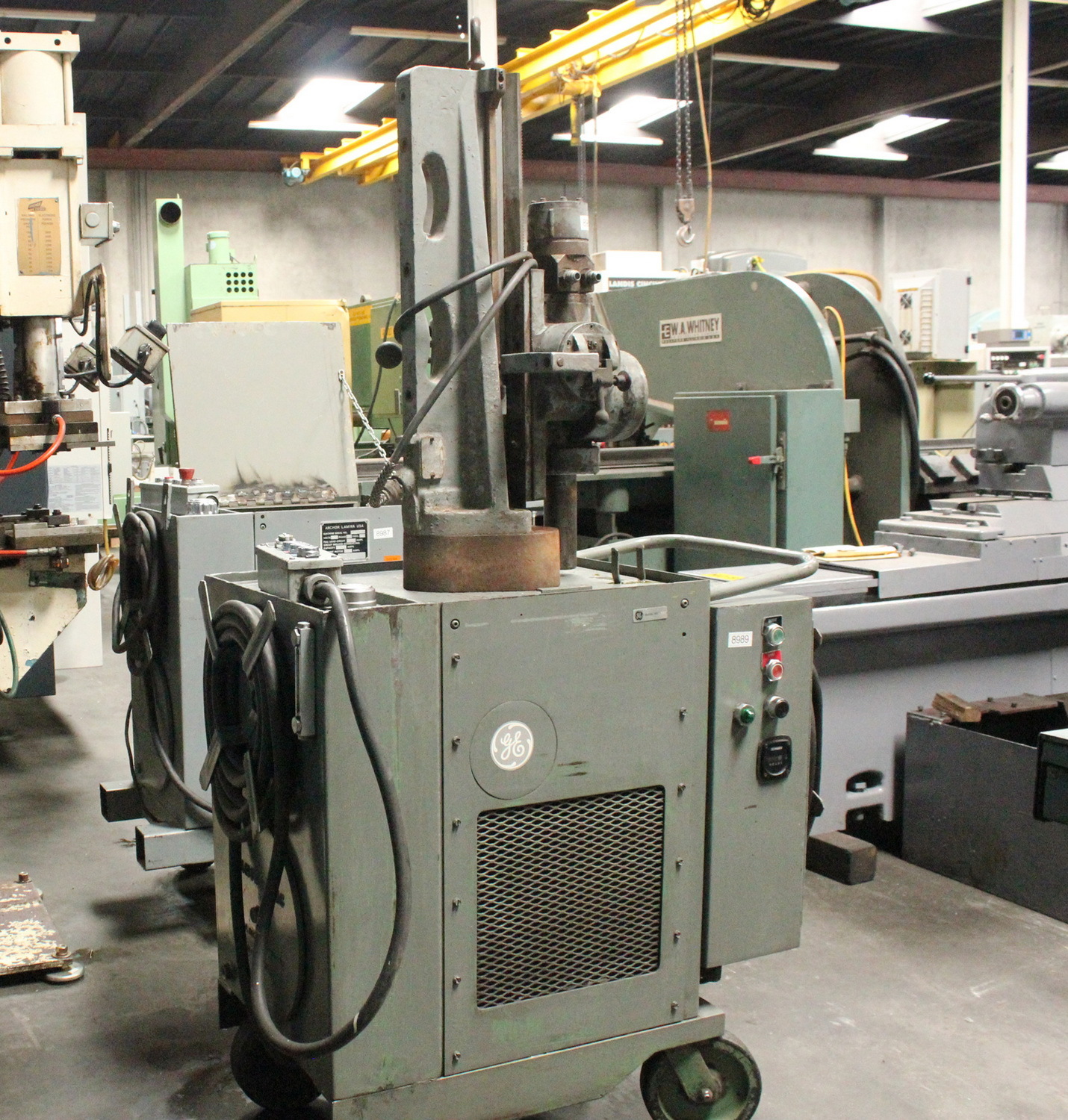

Model: 141/H15075P Manufacturer: Lamina Serial #: P1777V Location: Huntington Park, CA Year Built: -
Specifications
Drilling Capacity: 1.5" Tap Capacity: 1.25"- 7 TPI Drill Speed: 0- 140 RPM Spindle Nose: #4 MT Drill Stroke: 11" Drill Head Weight: 140 Lbs. Flow Rate: 12 GPM Operating Pressure: 1,600 PSI Max. Pressure: 3,000 PSI Oil Tank Capacity: 15 Gallons Bar : 200 Dimensions (L x W x H): 40" x 30" x 45" Weight: 1,350 Lbs.
Equipped with
#H15075P Drill Head

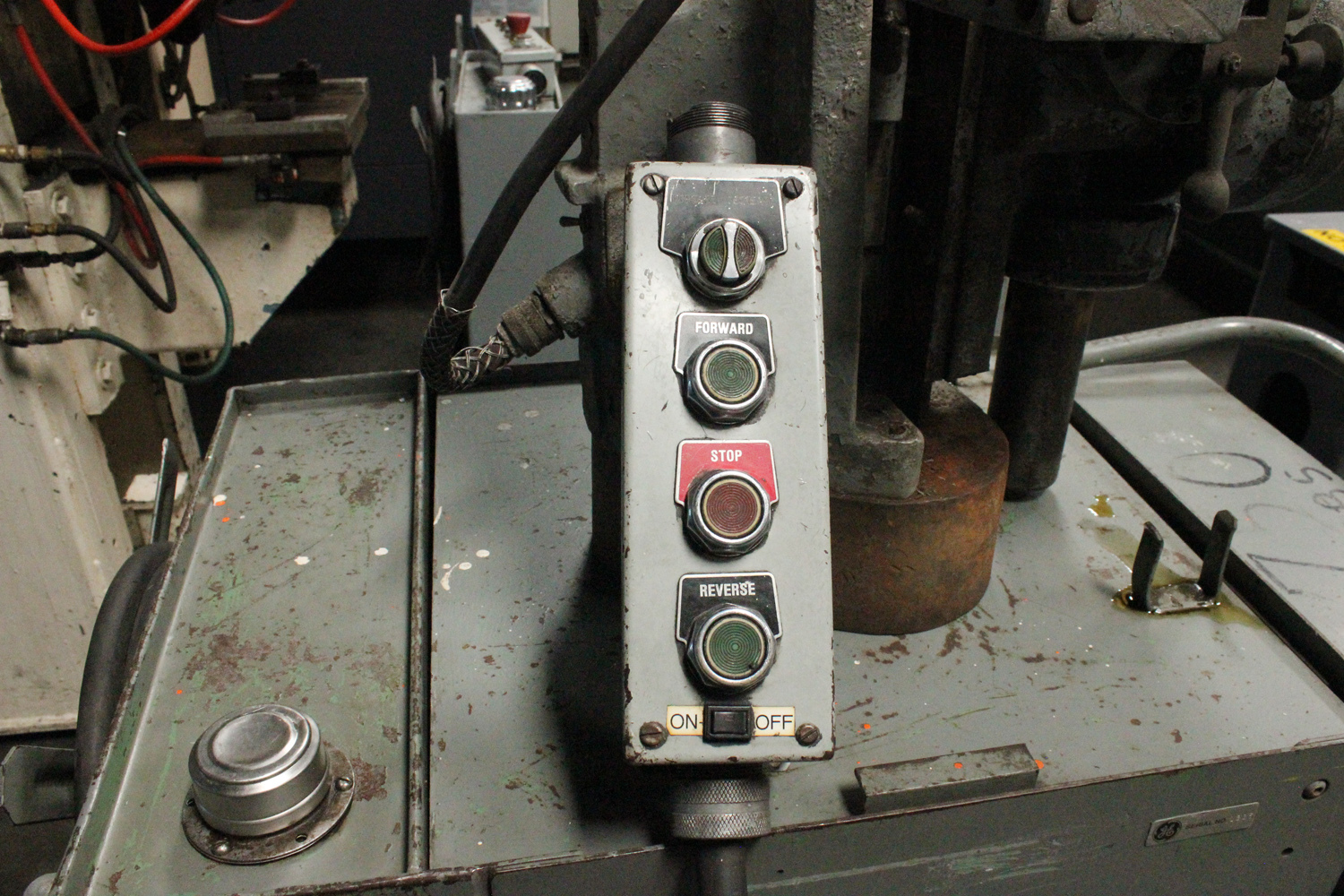

Remote Hand Pedant Control

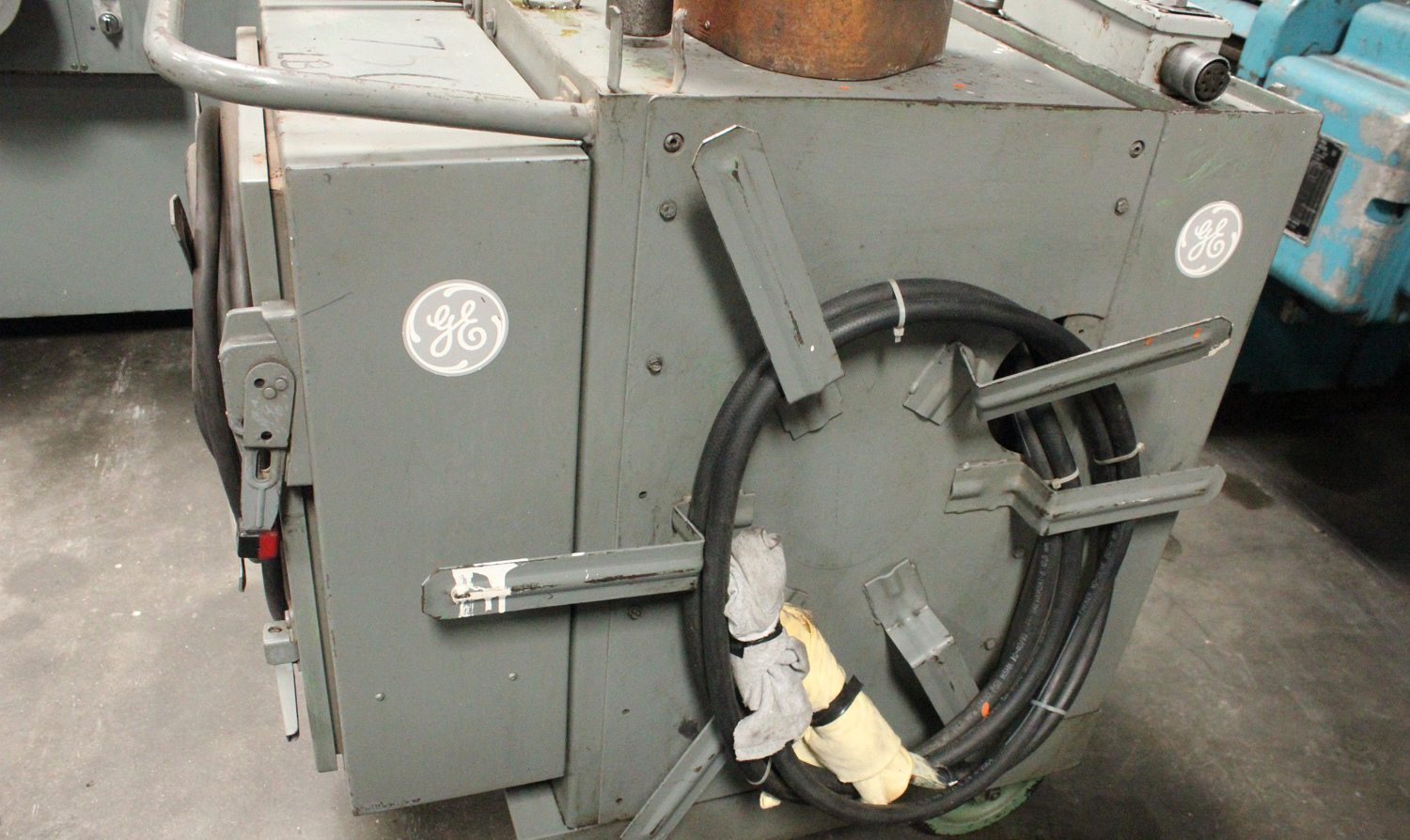

15\' Hydraulic Hose & Connections
Casters

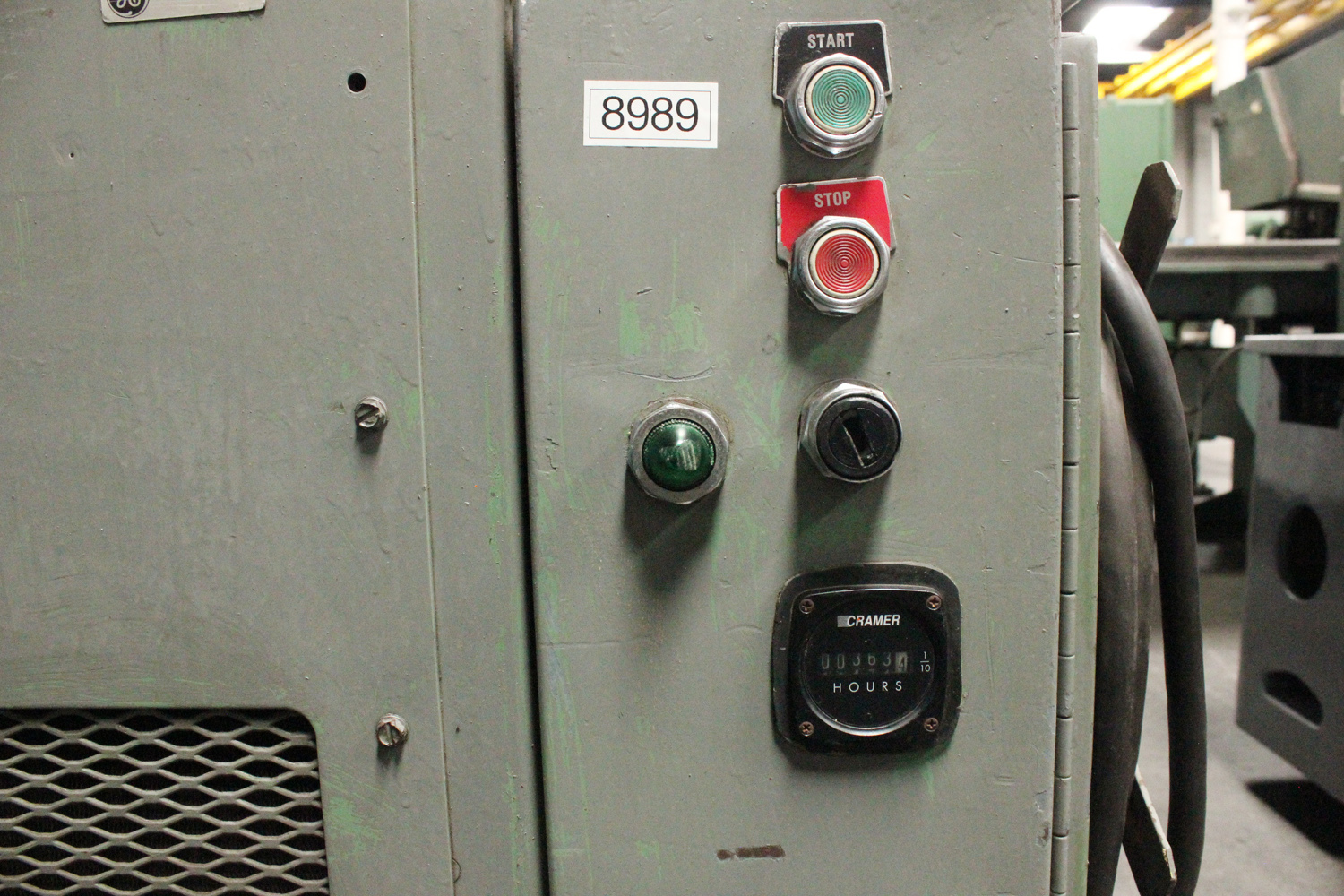

363 Hours On Meter
Horsepower: 7.5
'
