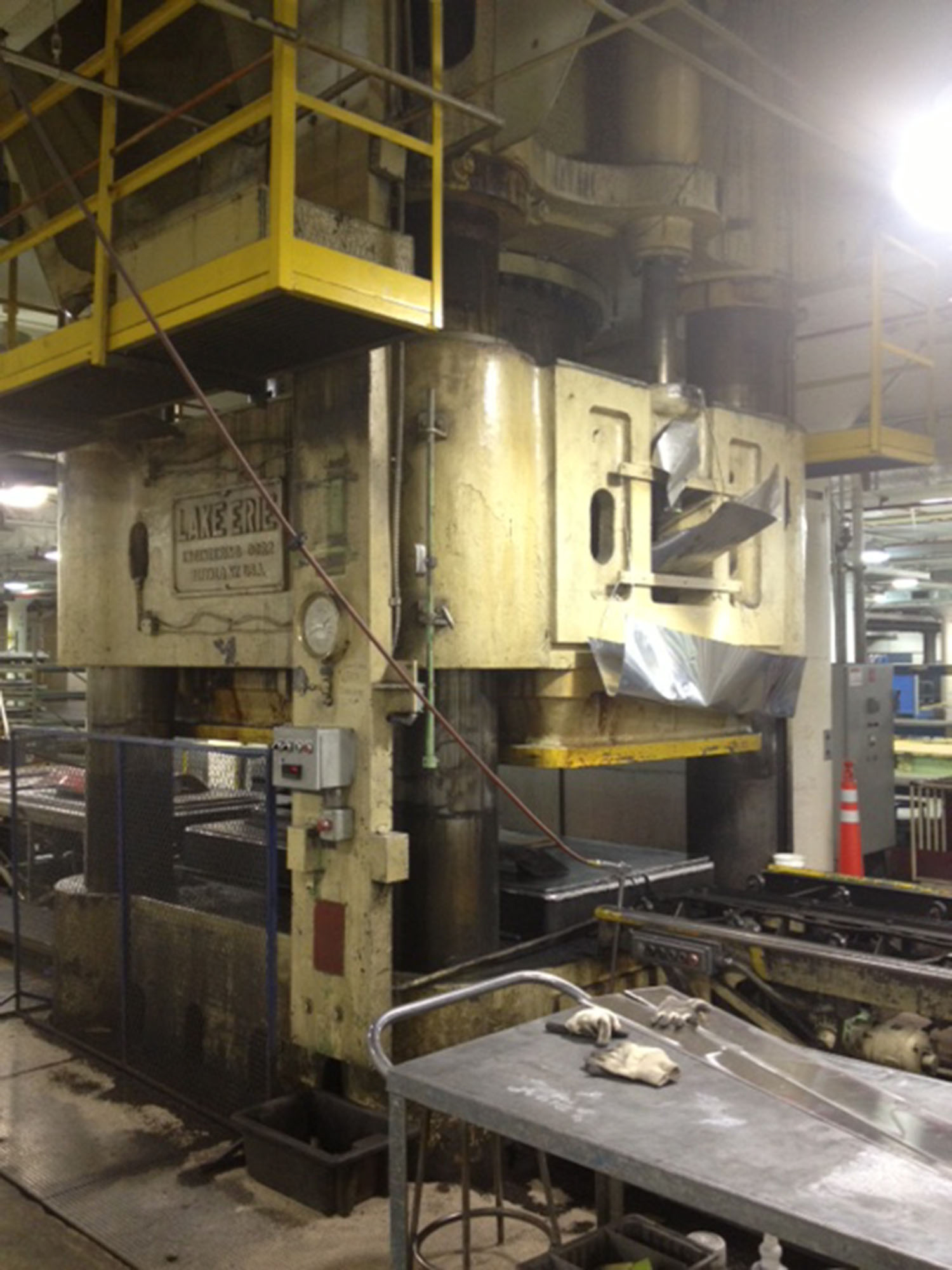

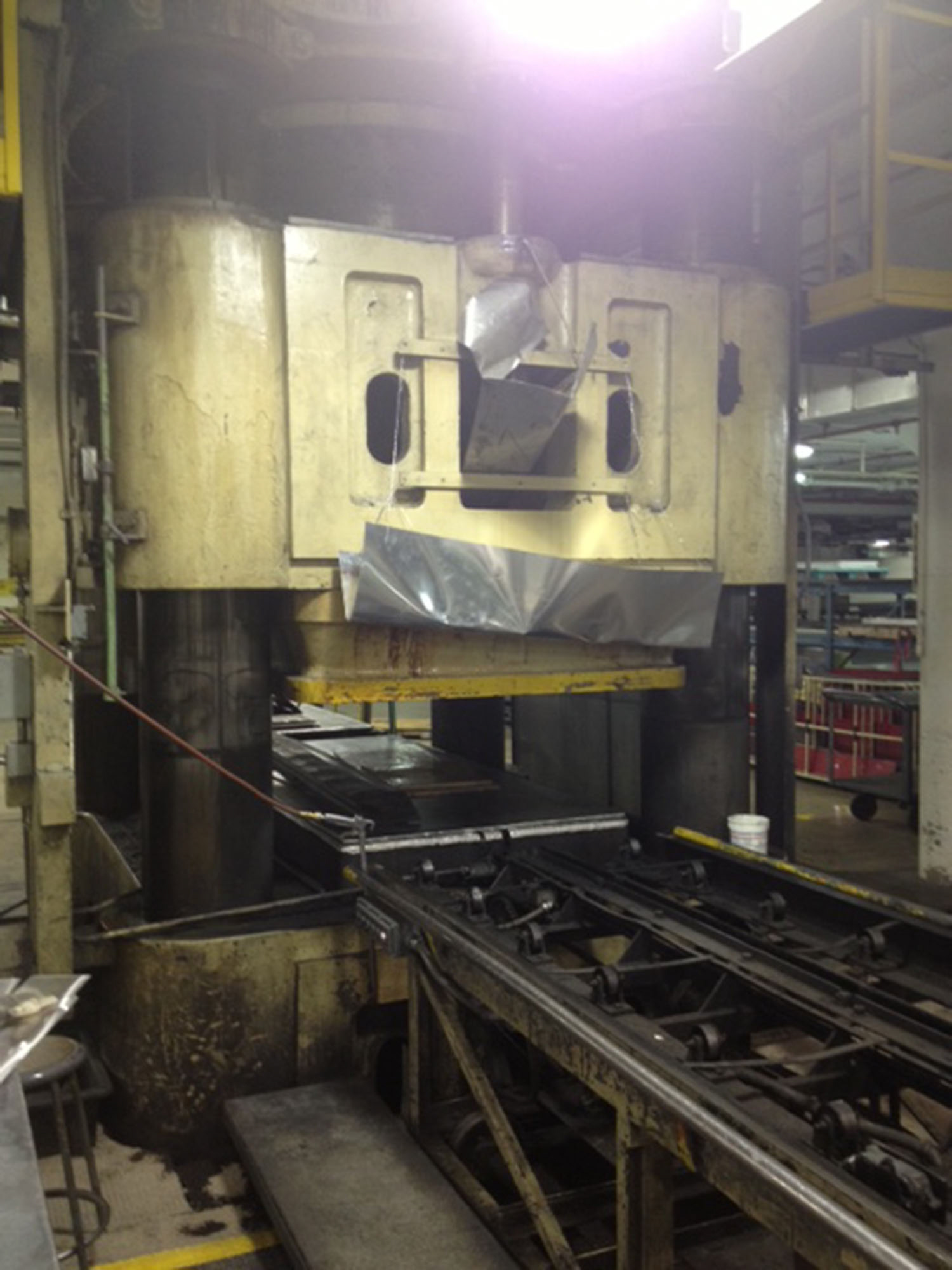

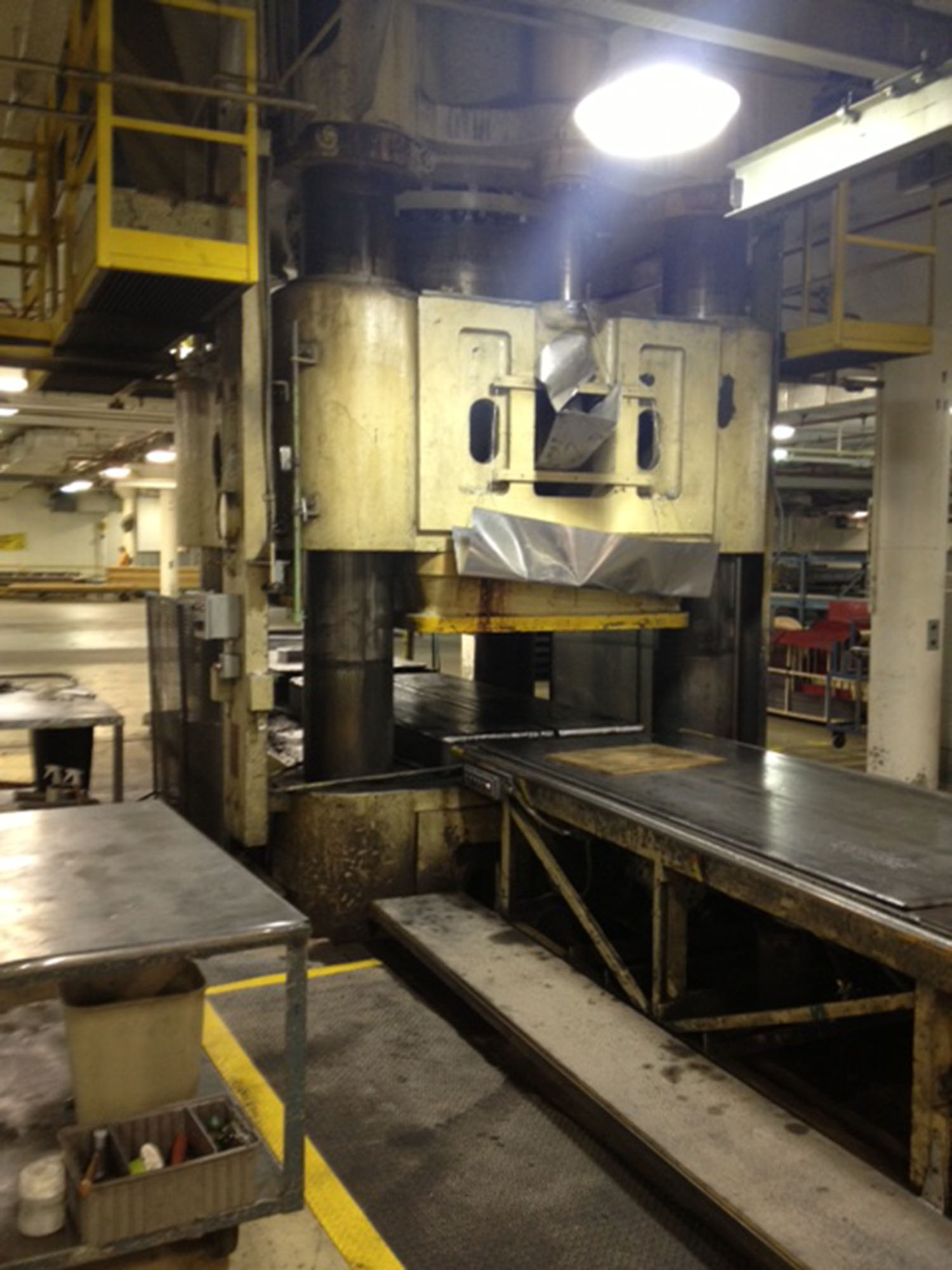

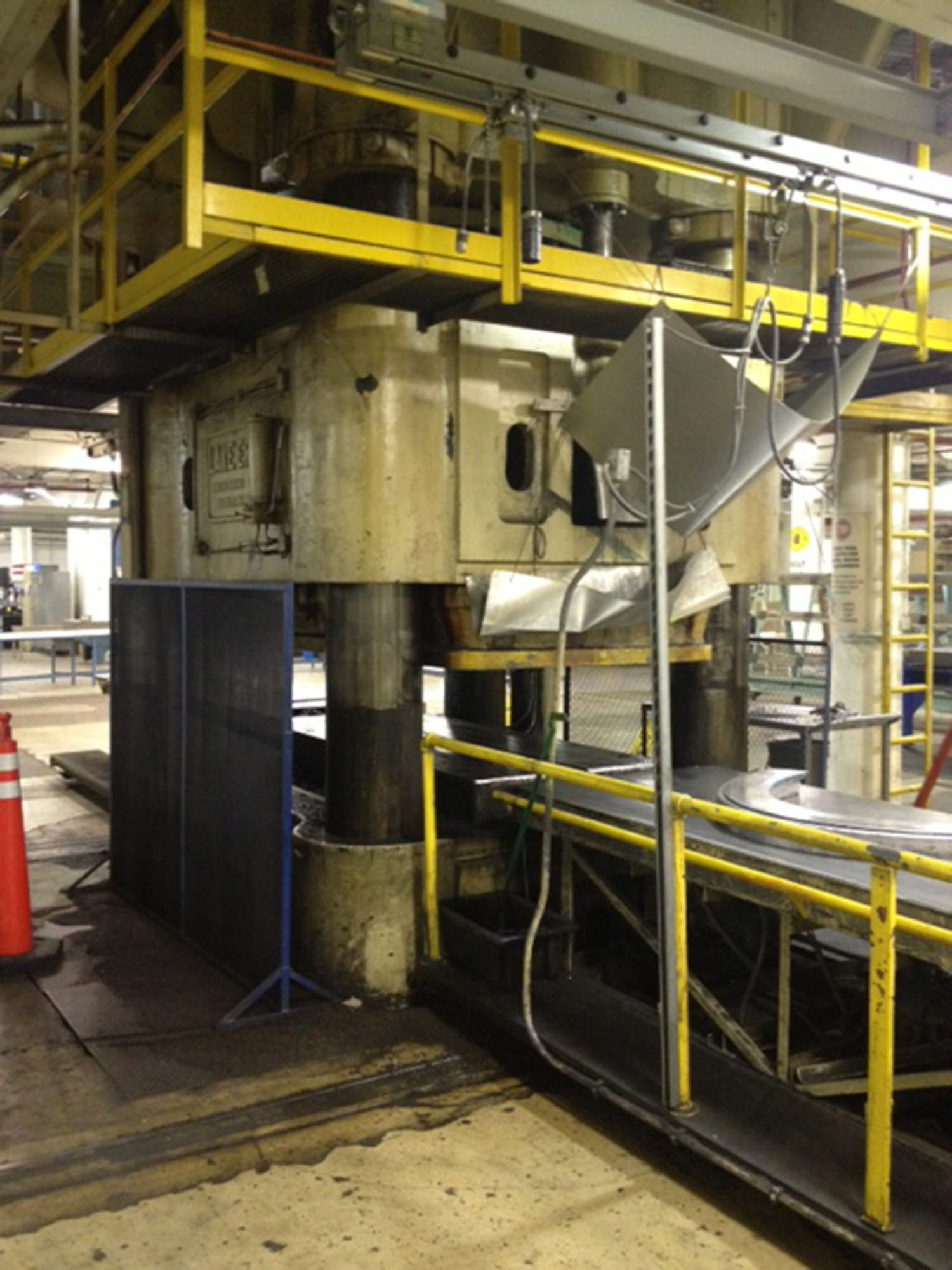

Lake Erie - 4 Post Hydraulic Press With Rubber Pad | 5,000 Ton x 112" x 48"

LAKE ERIE - 4 POST HYDRAULIC PRESS WITH RUBBER PAD | 5,000 TON X 112" X 48"

Add to Your File

Brand: LAKE ERIE - 4 POST HYDRAULIC PRESS WITH RUBBER PAD | 5,000 TON X 112" X 48"

Model:

Serial No. : 1678

Category:

Sub Category:

Condition: used

Weight: (KG)

Year Built:

Status:

Price: $0.00

Description

Basic Information

Model:
Manufacturer: Lake Erie
Serial #: 1678
Location: Fort Worth, TX
Year Built: -

Specifications

Tonnage: 5,000
Ram Stroke: 48"
Daylight: 60"
Platen Area: 112" x 48"
Bolster Size (L-R, F-B): 112" x 48"
Distance Between Posts (L-R, F-B): 78" x 64"
Ram Speeds:
Approach: 300 IPM
Forming (H.P. Pressing): 7.1 IPM
Forming (L.P. Pressing): 13.8 IPM
Return: 250 IPM
Ram Diameter: 67"
Post Diameter: 18"

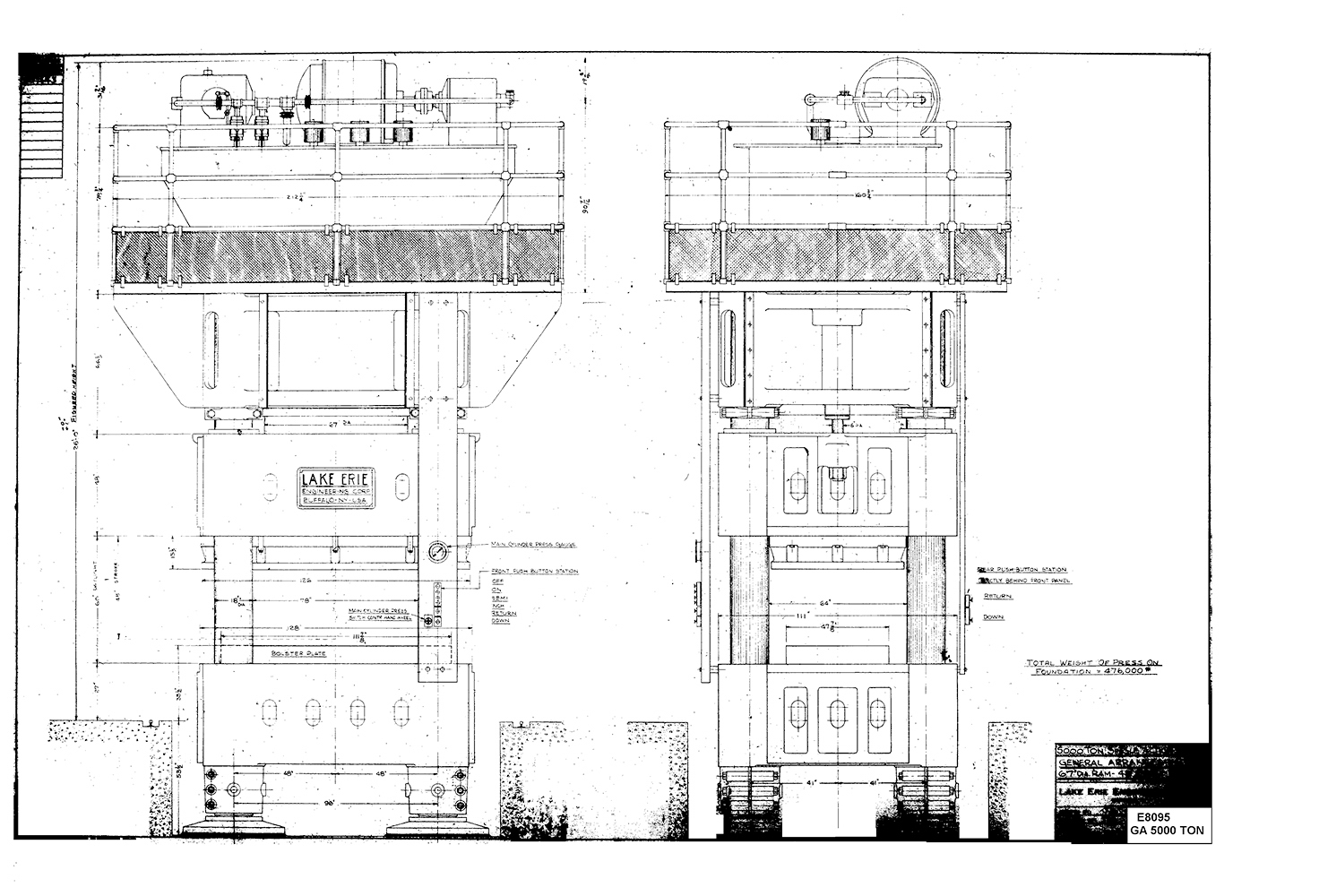

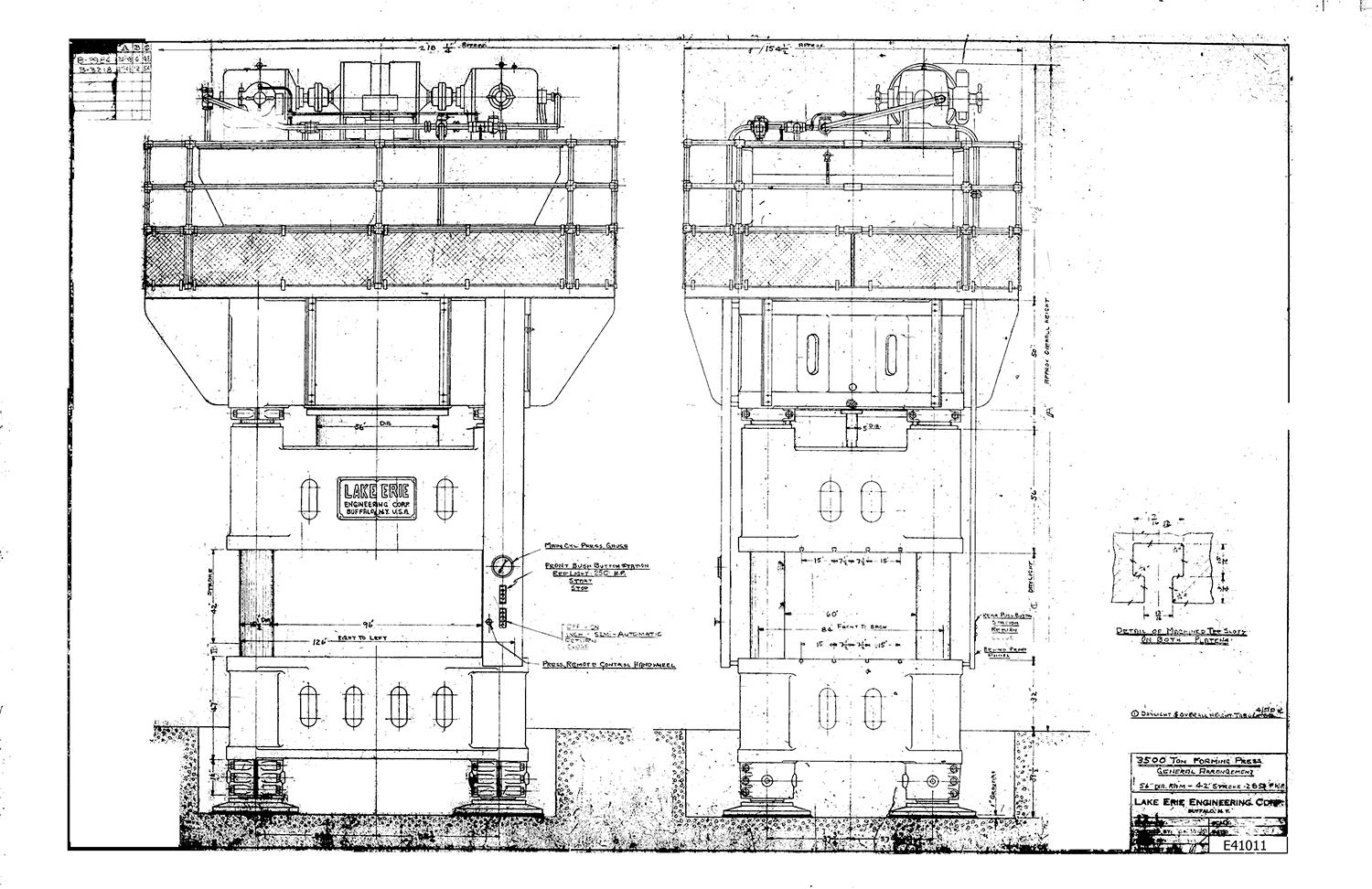

Dimensions (L x W x H): 128" x 111" x 374"
Height Above The Floor (With Bed At Floor Level): 285"
Weight (Approx.): 476,000 lbs

Equipped with

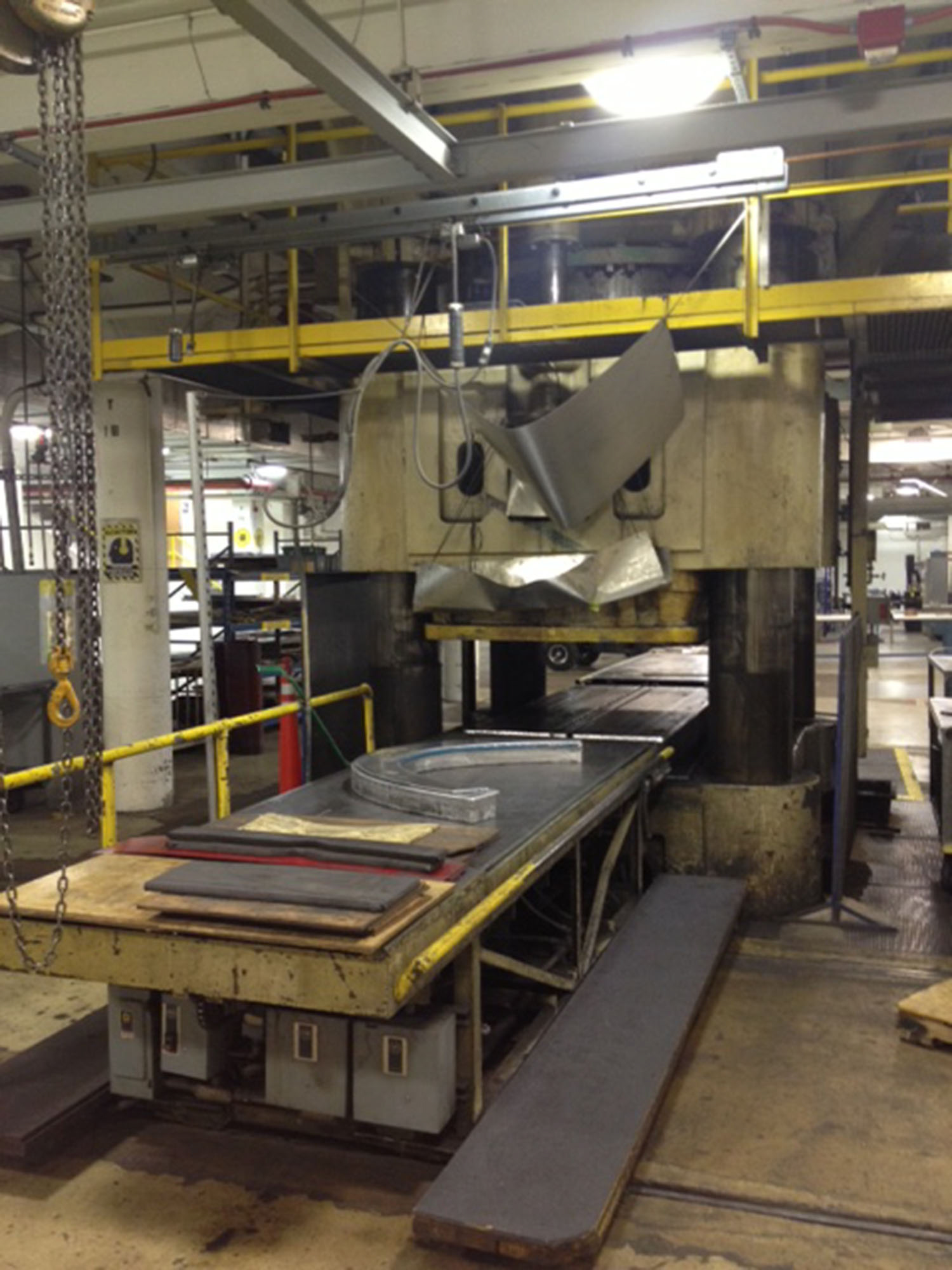

Rubber Pad Fluid Forming Unit

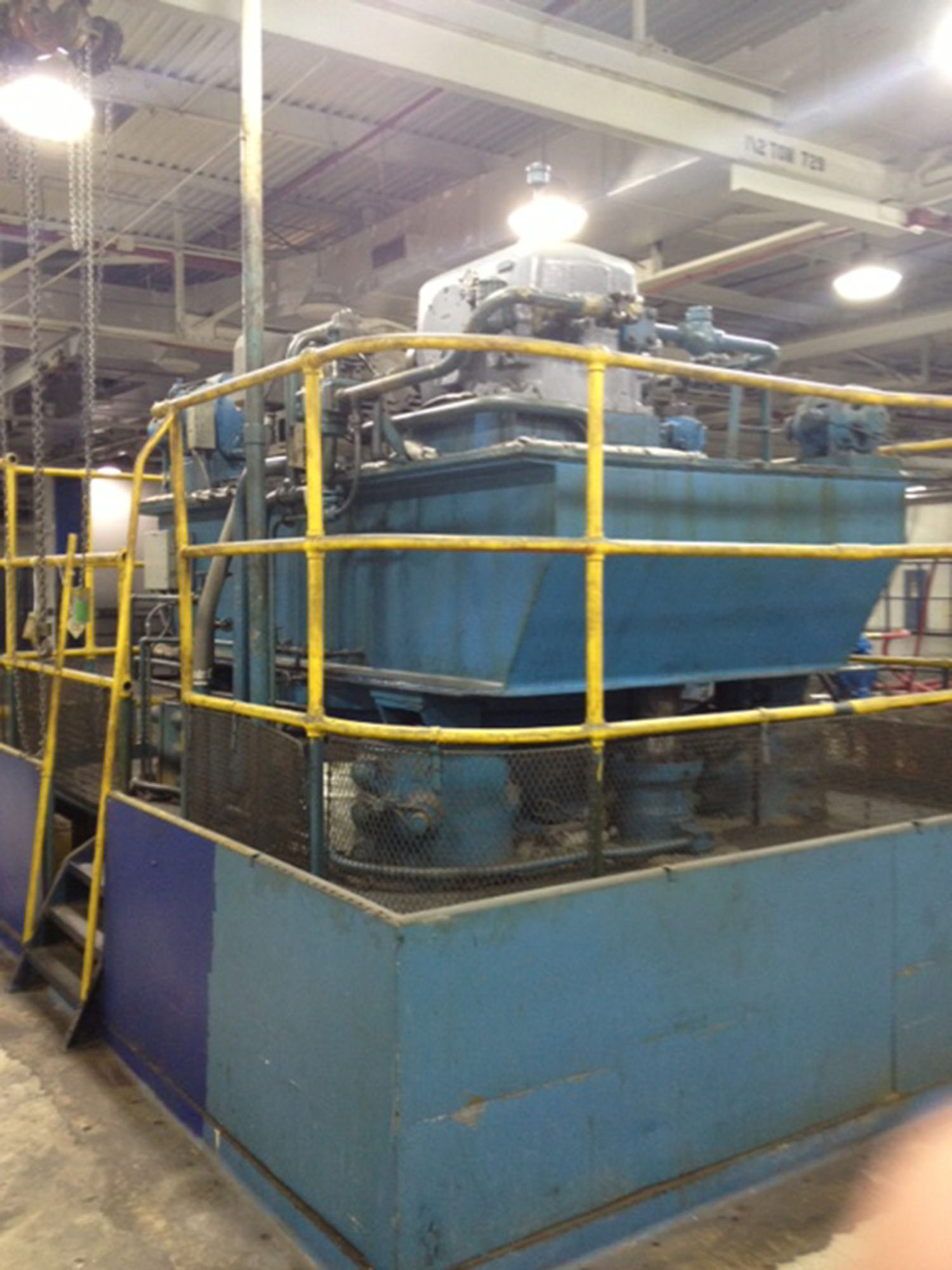

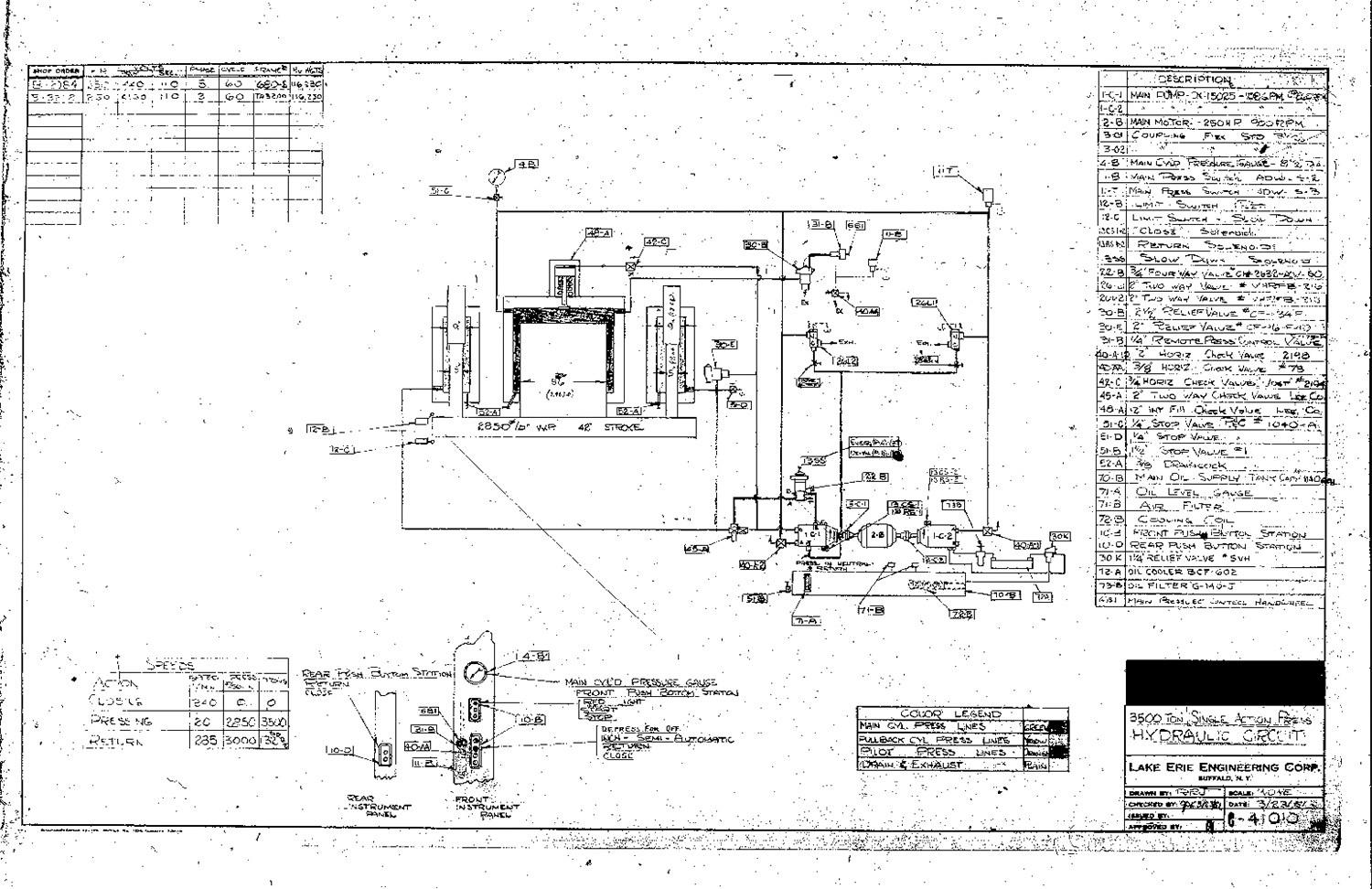

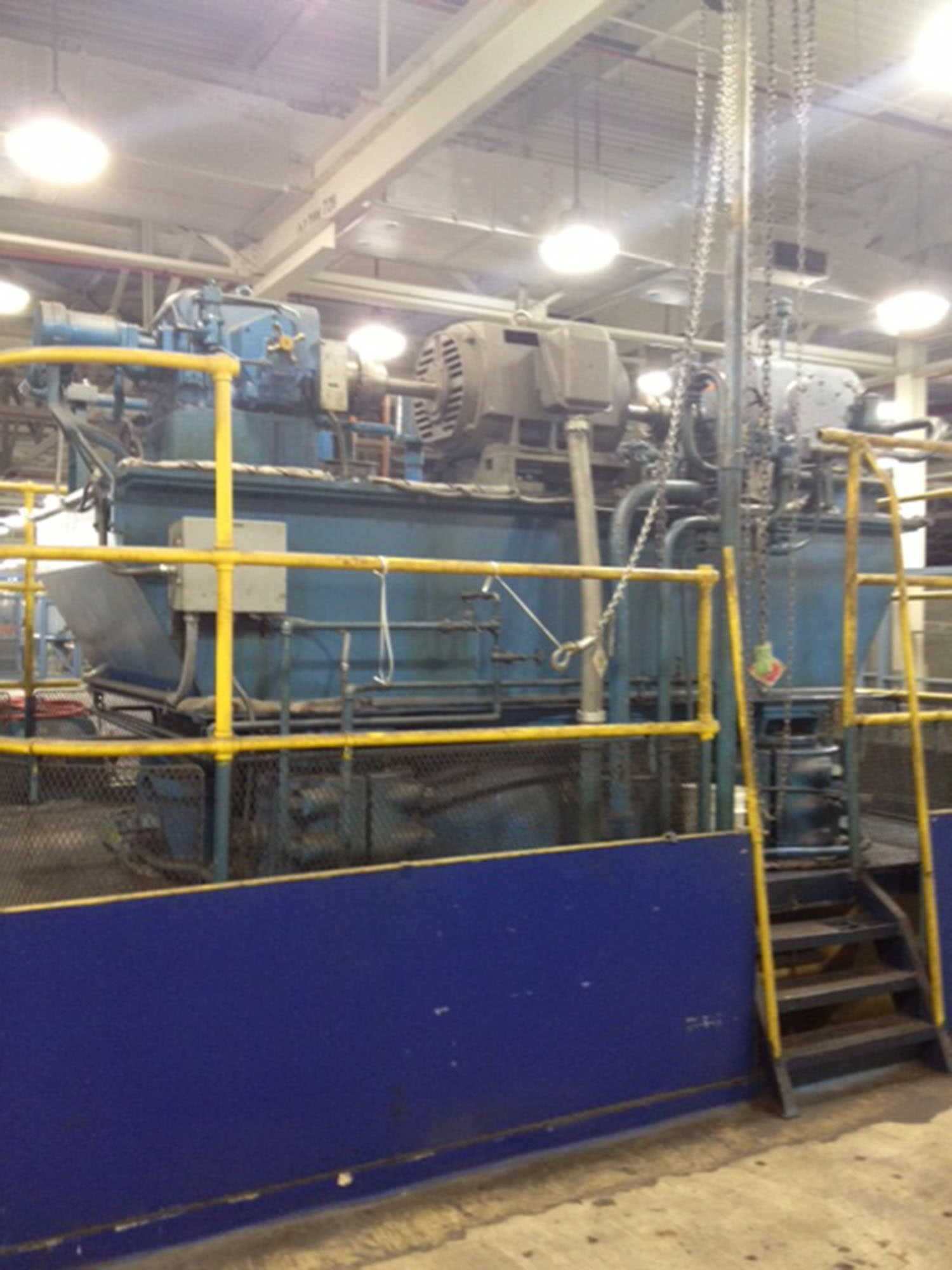

Top Mounted Hydraulic Power Unit

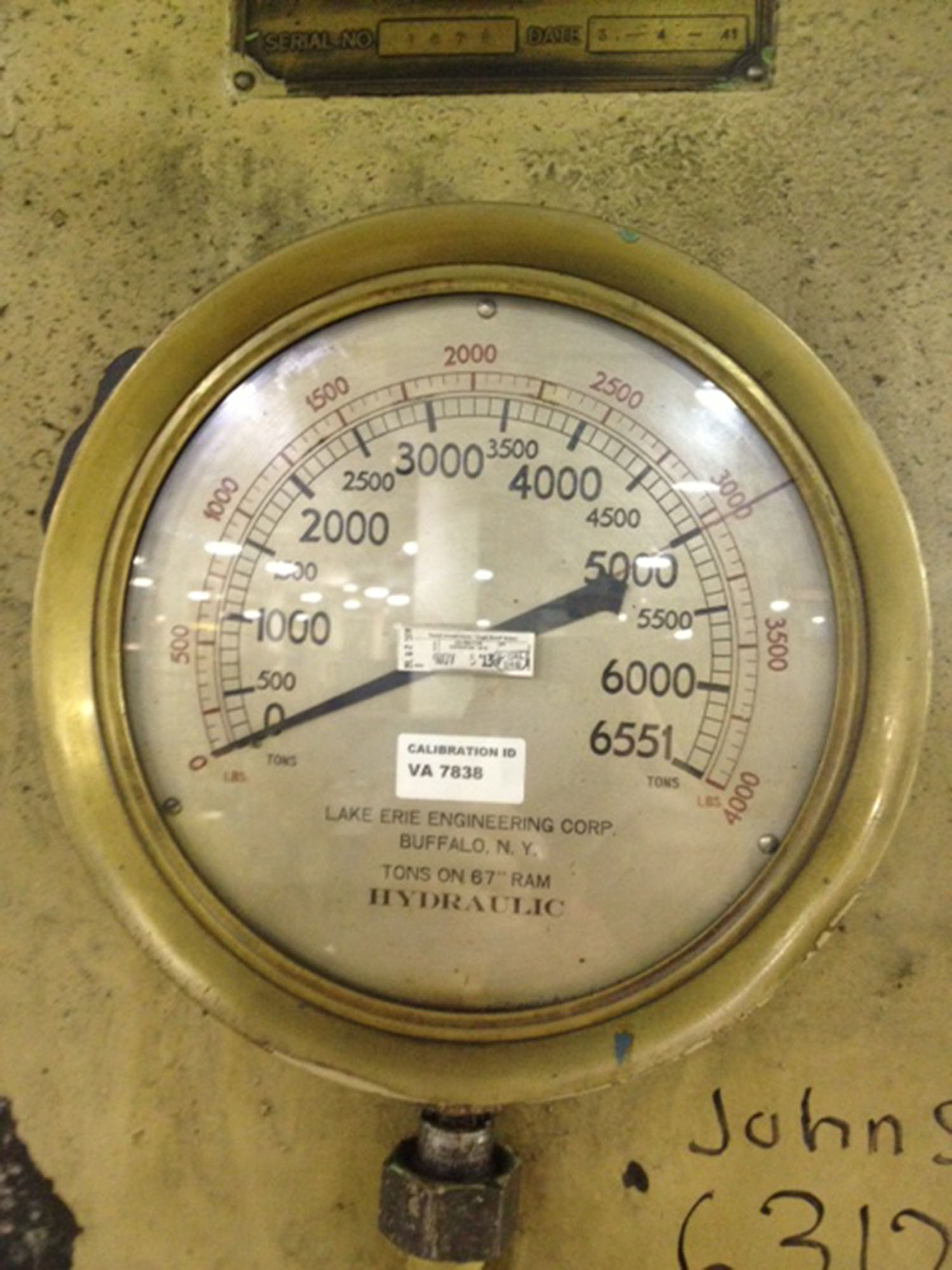

Main Cylinder Press Gauge

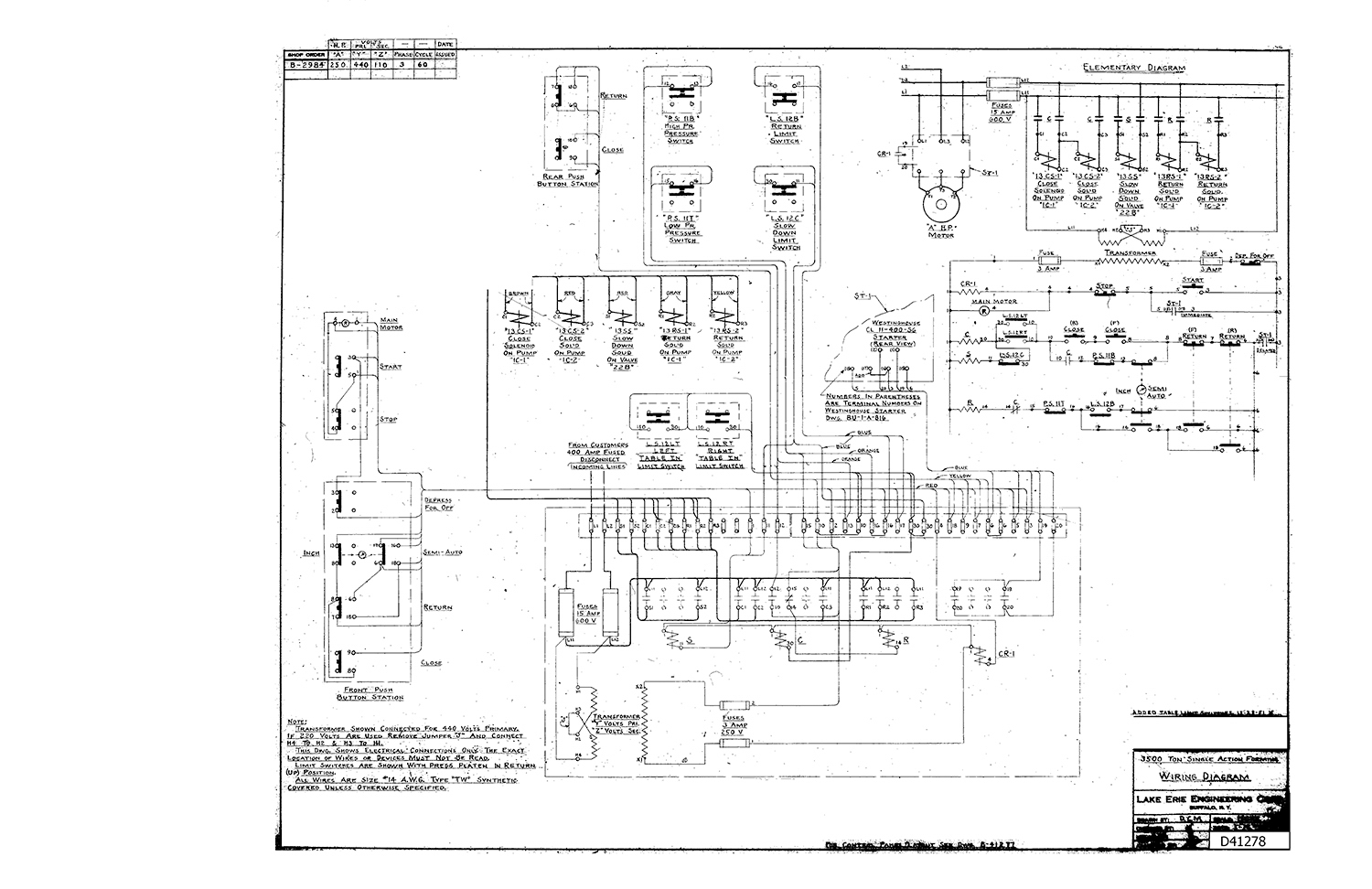

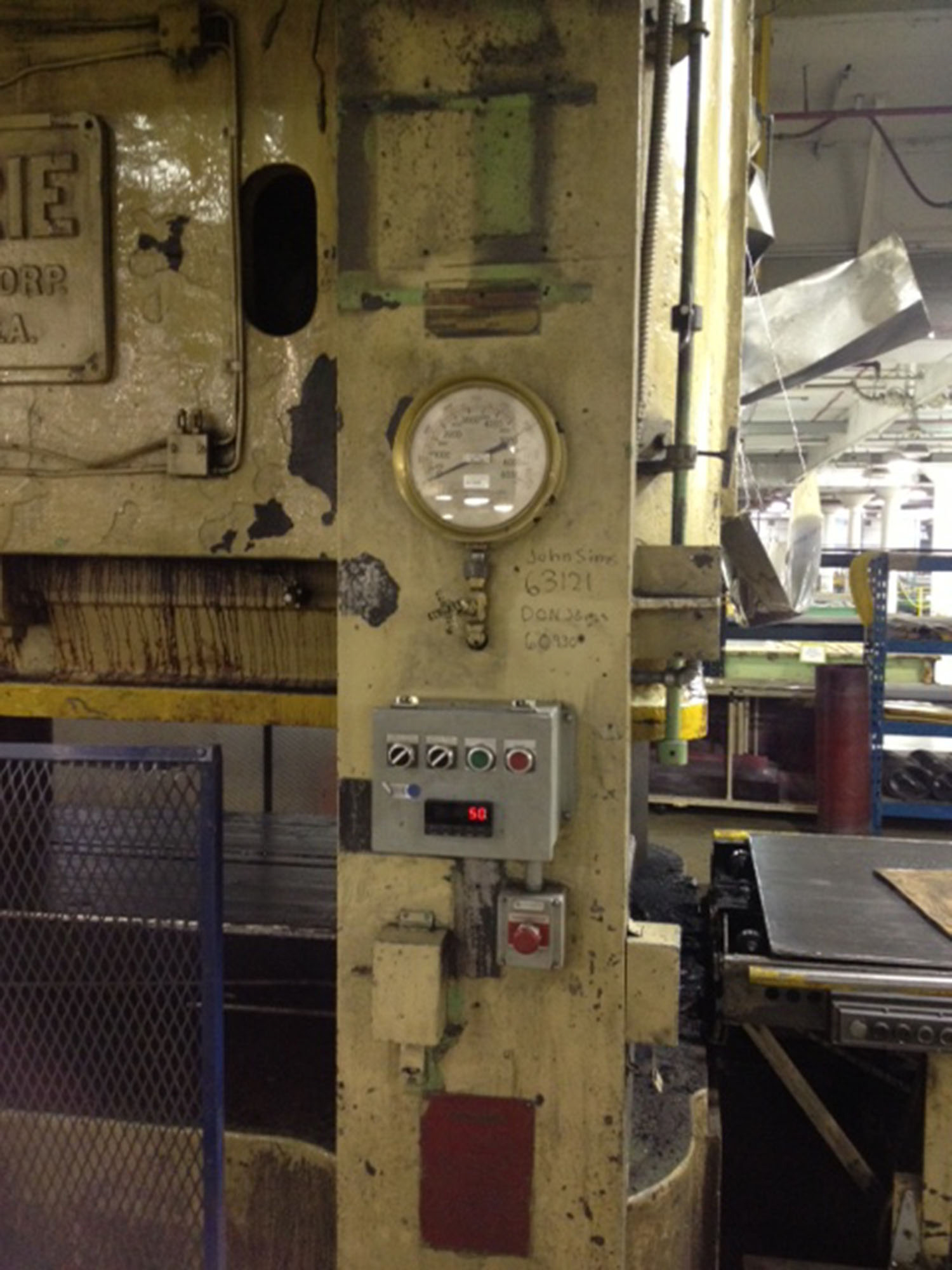

Electrics With On/Off/Semi/Inch/Return/Down Controls
Horsepower: 250
