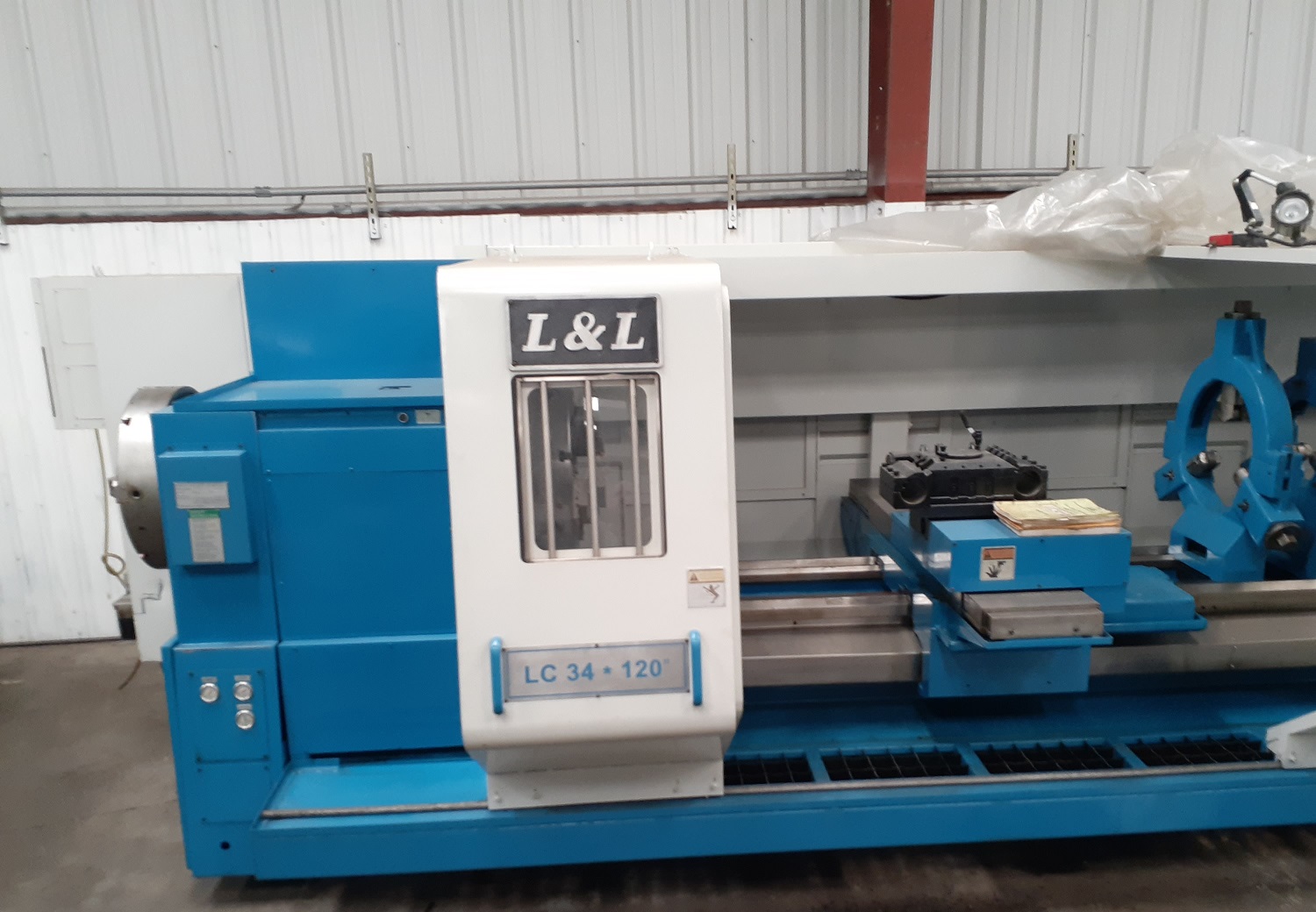

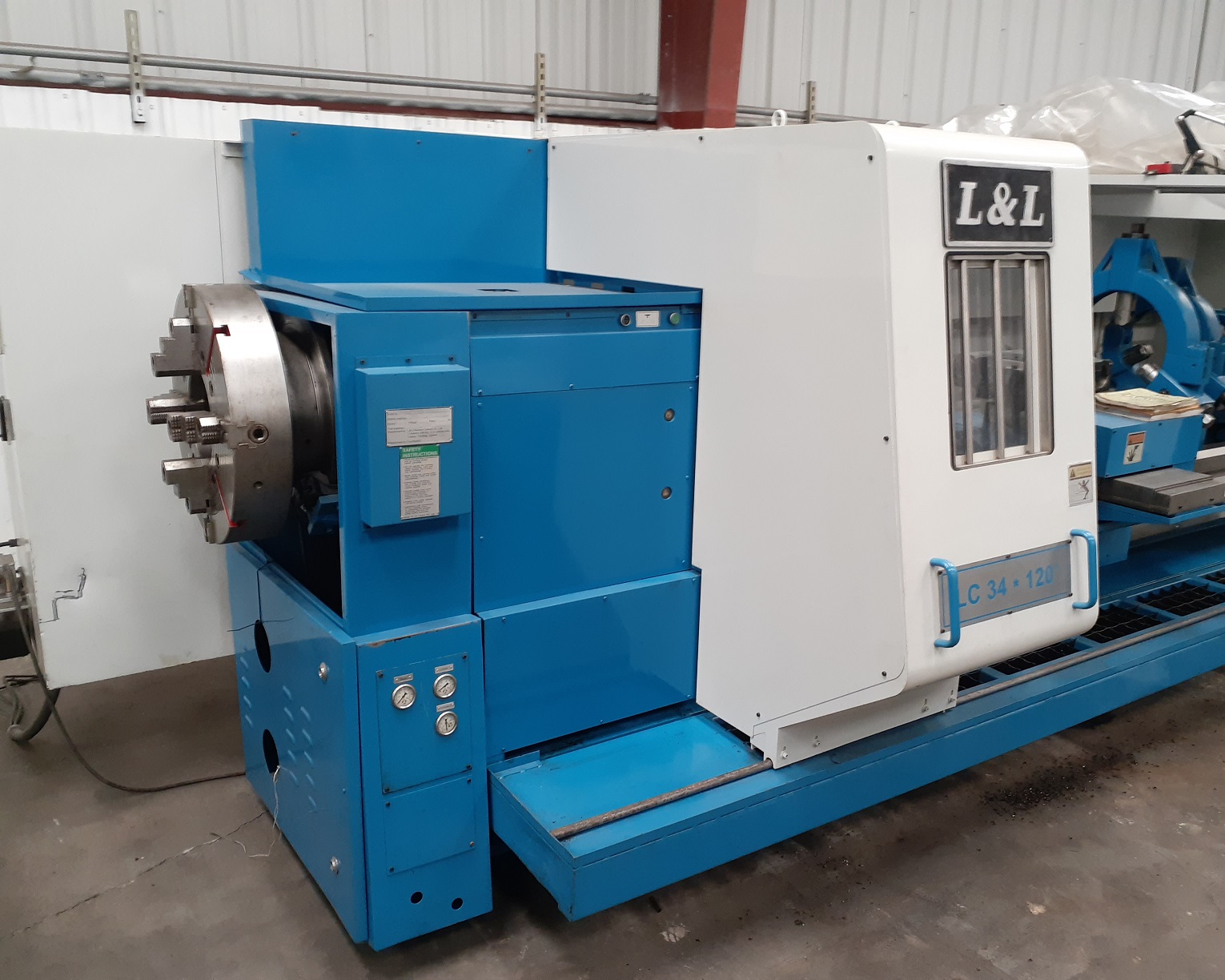

L & L CNC FLAT BED BIG BORE LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


LC 34
TLA203409129/2009
Lathes and Turning Centers CNC
CNC Lathe (Flat Bed)
used
(LB)
2009
$97,500.00

Feature Video

Description

Specifications:

Model                                     LC 34

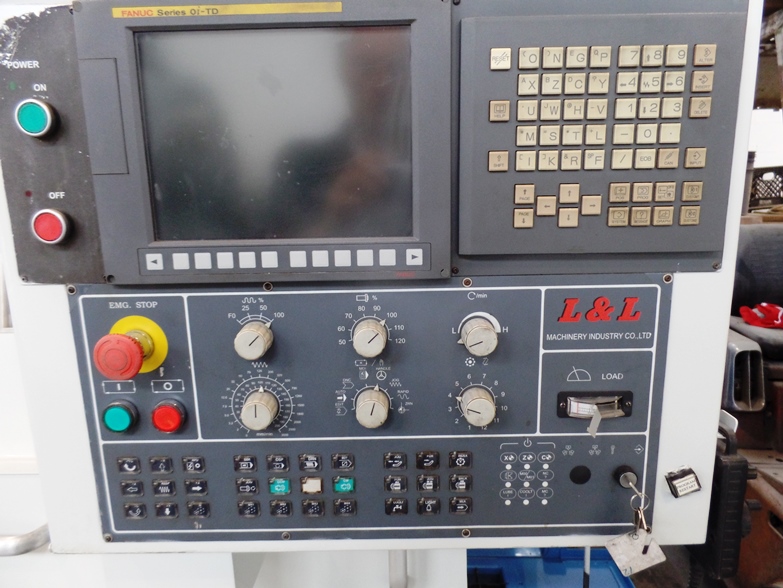

CNC control                           Fanuc OiTC

Serial number/YOM               TLA203409129/2009

Swing over bed                      34 in

Swing over cross slide           20 in

Center height                         17.3 in

Width of carriage                   35 in

Center distance                     124 in

Width of bed                          22 in

Spindle bore                          10 in

Spindle nose                          A-2-20

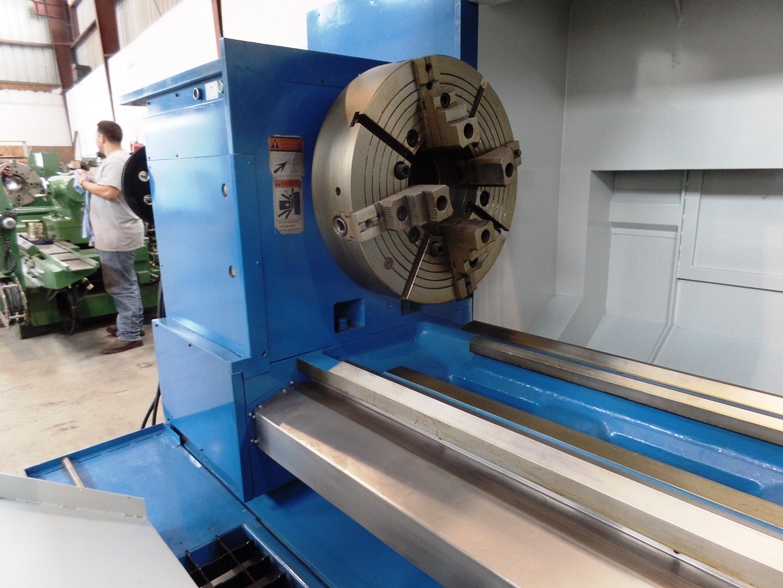

Chucks                                  F&R Four jaw 24 O.D. x 10.5 in I.D.

Steady rests                          (2) 12 in & 18 in

Spindle speed                        4-400 rpm.

Tailstock center                      MT # 5

Main motor                             30/37 hp.

Turret stations                        4 stations

Tailstock quill diameter           6.4 in

Tailstock center                      MT #6

Feeds:

X-axis                                     6M/min.

X-axis range                           0.1 mm/min to 3000 mm/min.

X-axis travel                           20 in

Z-axis rapid traverse              4M-6M/min.

Z-axis range                           0.1 mm/min to 3000 mm/min.

Z-axis traverse                       157 in

Coolant                                   Yes

Chip conveyors                       Yes, Front & Rear

Guards                                    Front door and rear splash guard



Price:  $ 97,500.  FOB Houston, TX.  Subject to Prior Sale.
