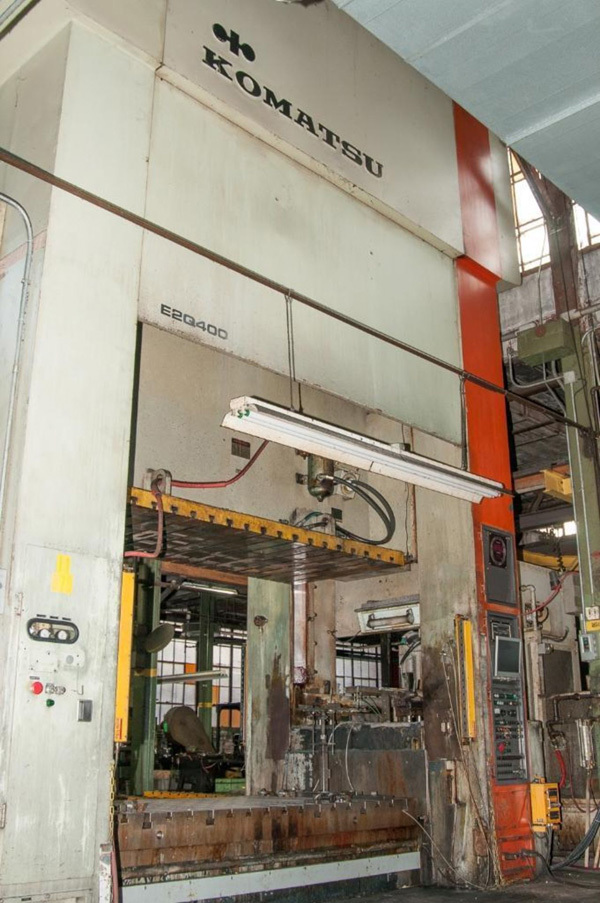

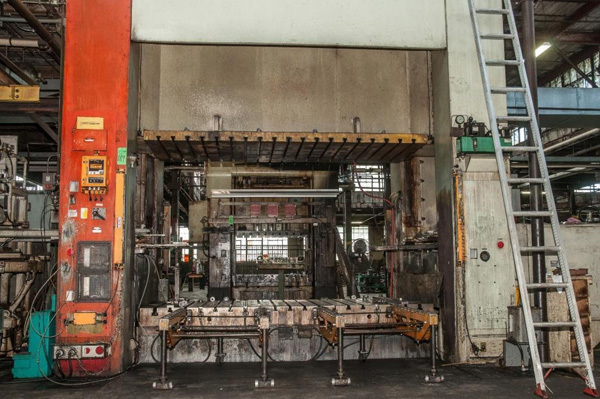

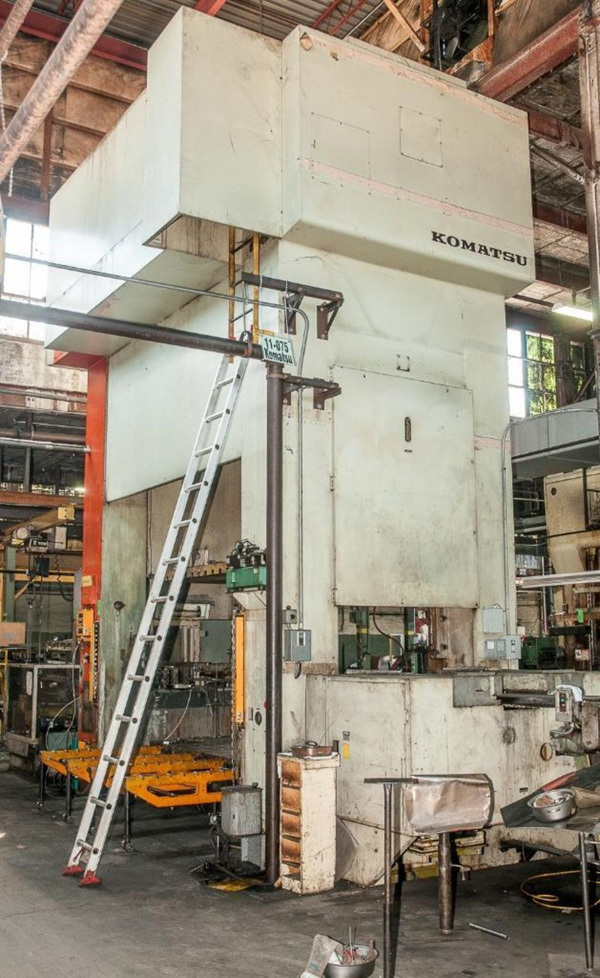

KOMATSU ECCENTRIC GEARED STRAIGHT SIDE DOUBLE CRANK PRESS 400 TON X 120" X 51"

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


E2Q400
10002
Presses & Accessories
PRESSES, STRAIGHT SIDE, DOUBLE CRANK
used
(KG)
0
$0.00

Description

Basic Information

Model: E2Q400

Manufacturer: Komatsu
Serial #: 10002
Location: Terre Haute, IN
Year Built: 1984

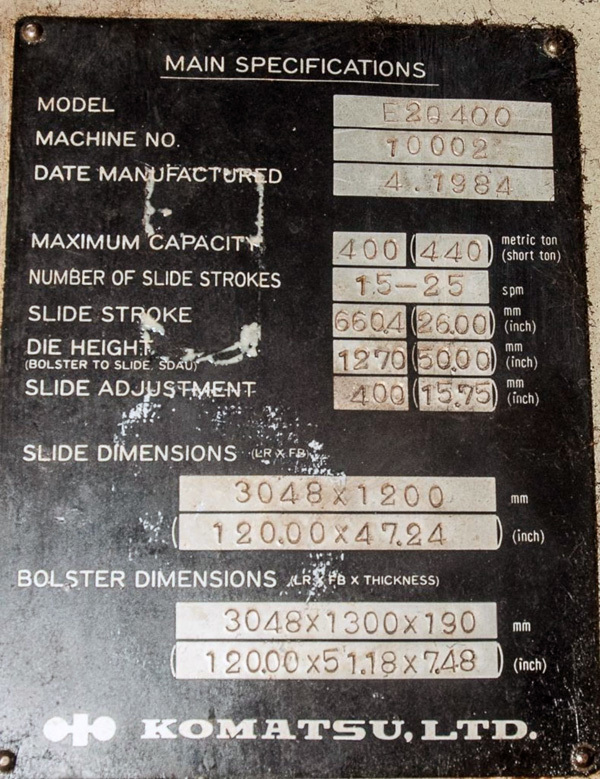

Specifications

Tonnage: 400
Ram Stroke: 26"
Ram Adjustment: 15.75"
Shut Height: 50"
Bed Size (L-R, F-B): 120" x 51" x 7.48" (Bolster)
Ram Size (L-R, F-B): 120" x 47.24"
Stroke Per Minute (Variable): 15- 25
Window Size (W x H): 55"
Dimensions (L-R, F-B): 171" x 97"

Equipped with

  • High Torque Hydraulic Clutch And Brake
  • \"Link Drive Motion\"
  • Pneumatic Air Counter Balance
  • Recirculating Lubrication System T-Slotted Ram and Bolster
  • 7.5\" Bolster Plate
  • Automatic Flywheel Brake
  • Hydraulic Overload Protection

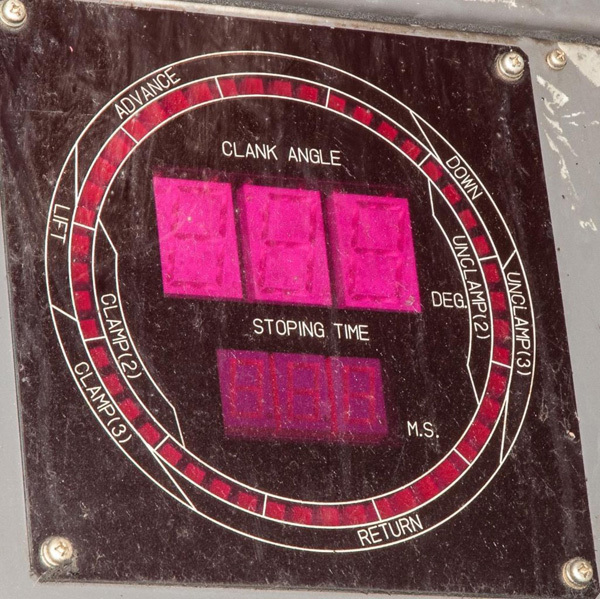

  • Crank Angle Indicator
  • Load Monitor
  • 55\" Wide Windows
  • Precision Plunger Guide Design
  • Oil Lubricated Gibs With Controlled Oil Flow Bronze Liners
  • Hardened And Ground Helical Gears With Splined Connections

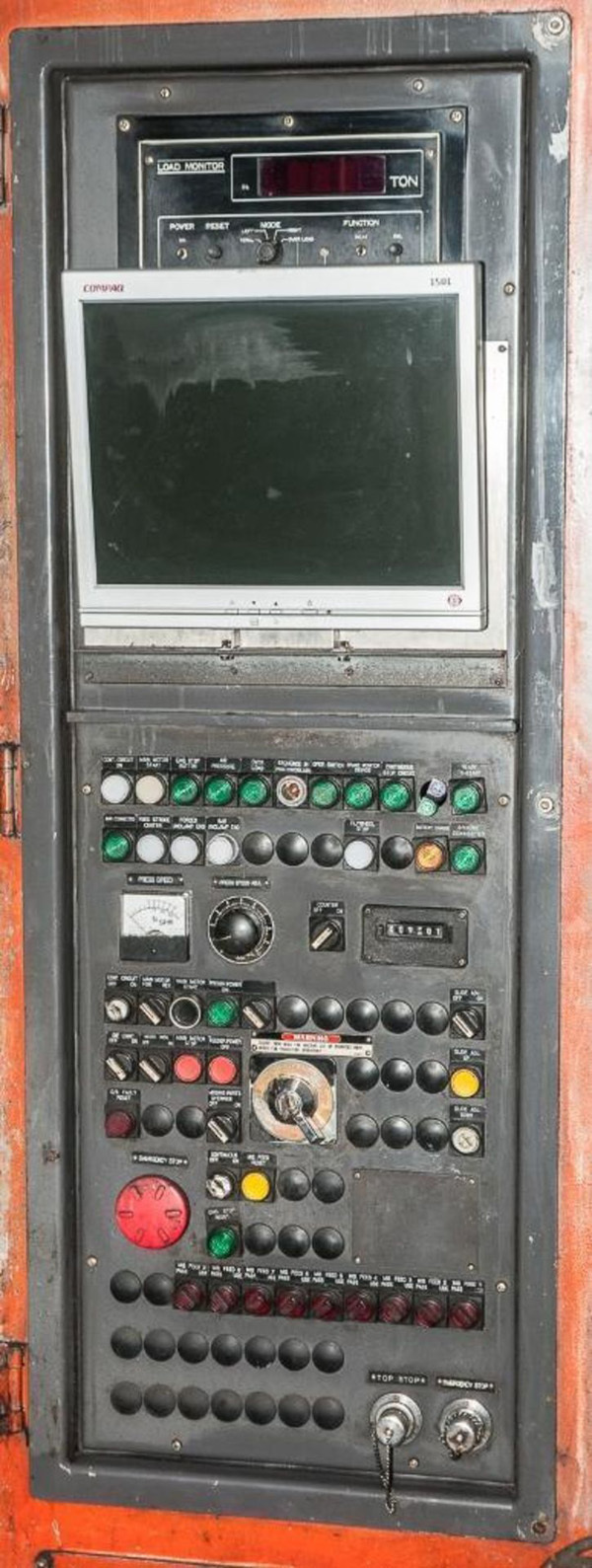

  • Motorized Slide Adjustment From Operator Panel
  • Hydraulic Slide Lock Mechanism
  • Variable Speed Main Motor
  • Flush Floor Design
  • Note: Special Price Prior To Removal Ex-Site: Terre Haute, IN
  • Horsepower: 75
