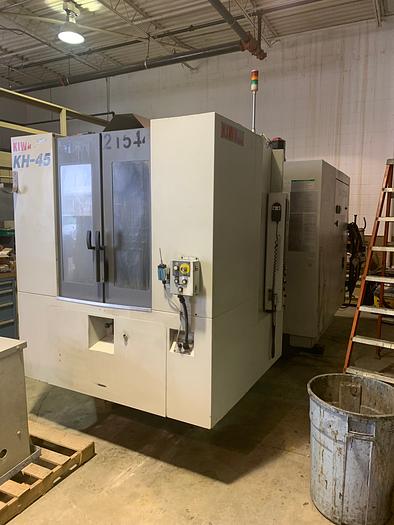

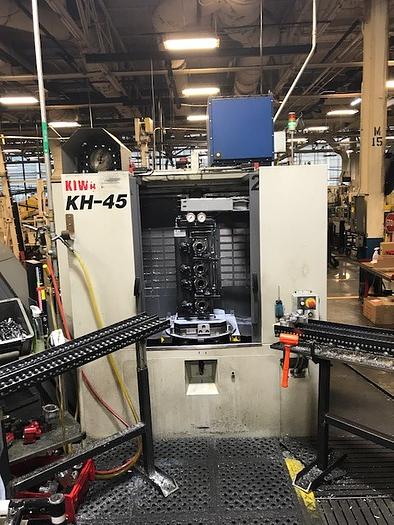

KIWA KH45 4 AXIS 400MM HORIZONTAL MACHINING CENTER (SOLD)

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


KH45
JB4713
Machining Centers Vertical Horizontal CNC
Horizontal Machining Centers
used
20240 (LB)
2008
$59,000.00

Description

SOLD              SOLD                SOLD


Description:

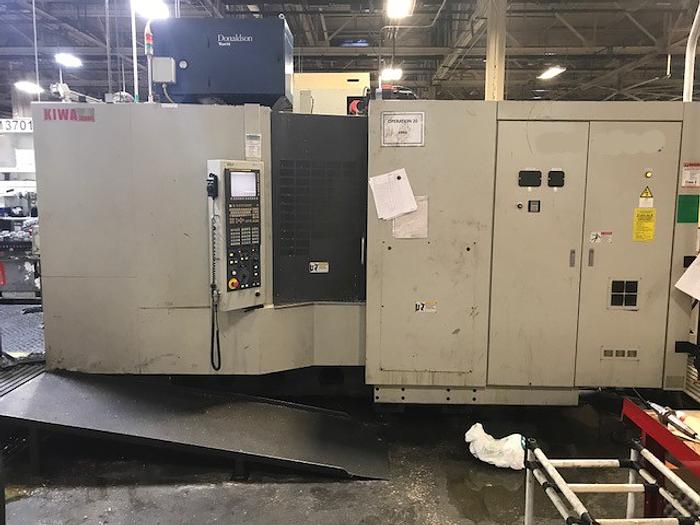

1-USED KIWA KH45 4 AXIS 400 MM HORIZONTAL MACHINING CENTER

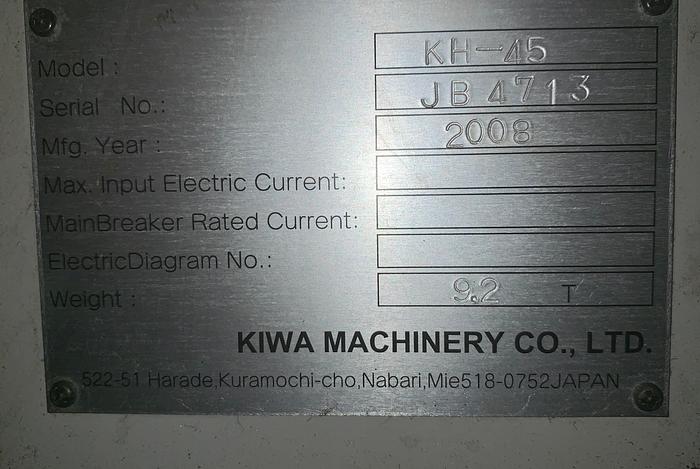

  MACHINE SERIAL NUMBER JB4713
  DATE OF MFG. 2008/ PUT INTO SERVICE IN 2010
  STK# 103491
=============================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

CONTROLLER
Fanuc 31i-MA

TABLE/WORK SUPPORT
Table Size L x W (in.)        15.750 x 15.750
Max. Workpiece Weight (lbs)    1,100
Pallet Changer No. of Pallet   2    Opt. 8

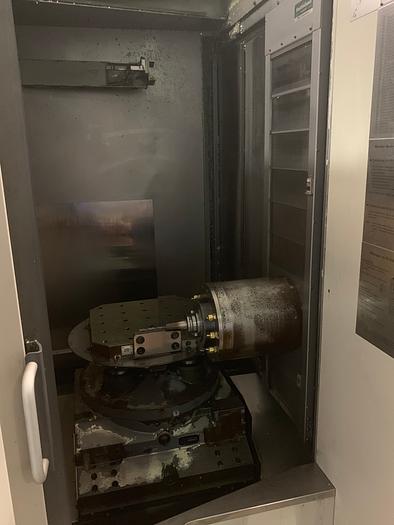

Rotary Table full 4th

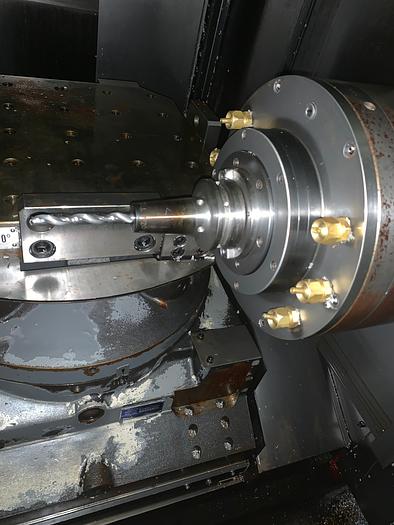

SPINDLE(S)
Num. Main Spindles 1
Taper CAT-40
Top RPM 12,000
Horse Power (30 min rating) 30.00
# Speed Ranges 1
Type Fixed

TOOLING
Primary Tool Carrier(s) ATC
Number of Tools 60
Tool Change Time C-to-C (sec)  0.90 sec tool-to-tool
Max. Tool Length 15.700"
Max. Tool Diameter 2.800" (with empty adacent pockets)
Max. Tool Weight 17.60 LBS

AXES AND TRAVELS
Number of Axes:  4   U Axis: None
Travel Max Feed/Rapid Rate
X1 Std. 25.200" 1,181 ipm/2,362 ipm
Y1 Std. 24.000" 1,181 ipm/2,362 ipm
Z1 Std. 26.800" 1,181 ipm/2,362 ipm
B1 Std. 360,000 deg 33 rpm 33 rpm

WIGHTS AND MEASURES
Machine Dimensions (L x W x H) 95" x 179" x 109"
Machine Weight 20,240 LBS
Spindle Nose To Table Edge 30.700"
Spindle To Table Center 3.900"

EQUIPPED WITH:

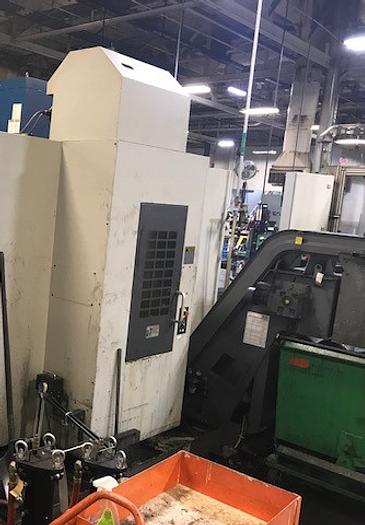

CHIP CONVEYOR
HIGH PRESSURE COOLANT THRU SPINDLE

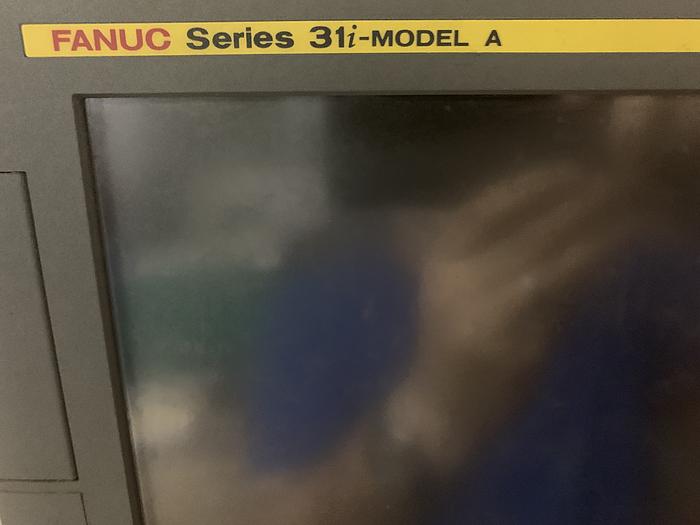

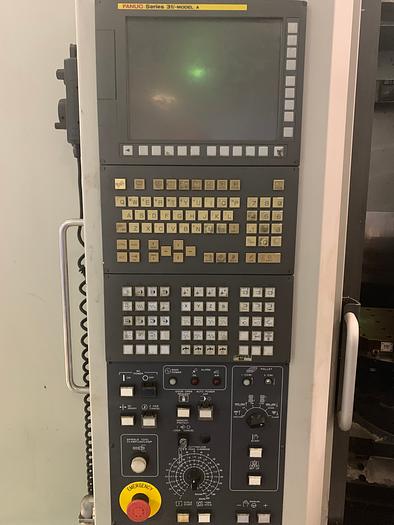

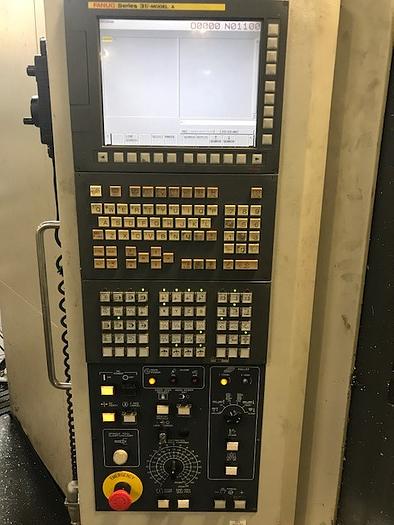

FANUC SERIES 31i -MODEL A CNC CONTROL

FOB TRUCK,  IMLAY CITY,  MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

(586)752-0090
WWW.RABINDUSTRIES.COM

Specifications:
Manufacturer KIWA
Model KH45
Year 2008
Condition Used
Serial Number JB4713
Stock Number 103491
