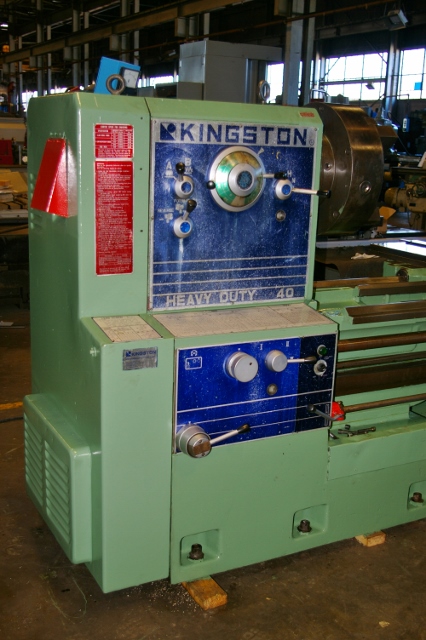

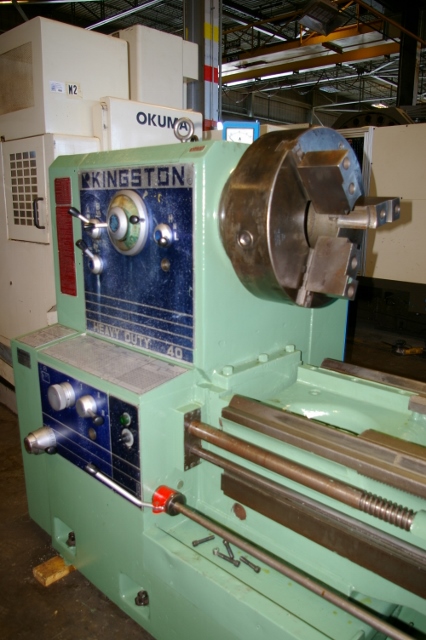

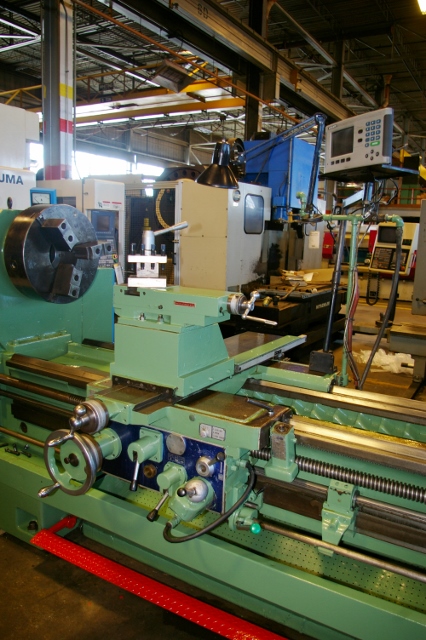

40"/51" X 80" KINGSTON MODEL HR-2000 GAP BED LATHE
SWING OVER BED ---------------------------- 40"
SWING IN GAP ------------------------------ 51.5"
SWING OVER CROSS SLIDE -------------------- 31"
LENGTH IN GAP FROM SPINDLE NOSE ----------- 12"
DISTANCE BETWEEN CENTERS ------------------ 80"
HOLE THROUGH SPINDLE ---------------------- 4-1/16"
SPINDLE NOSE ------------------------------ D1-11 CAMLOCK
TAPER IN TAILSTOCK QUILL ------------------ #6 MORSE
TAILSTOCK IN QUILL DIAMETER --------------- 4"
SPINDLE SPEEDS ---- ( 16 ) ---------------- 8 TO 800 RPM
METRIC THREADS ---------------------------- .75 TO 9 TPMM
INCH THREADS ------ ( 24 ) ---------------- 2.5 TO 44 TPI
LONGITUDINAL FEEDS- ( 90 ) ---------------- .00048 TO .2694 IPR
CROSS FEEDS ------- ( 90 ) ---------------- .00024 TO .1357 IPR
COMPOUND REST TOOL SLIDE TRAVEL ----------- 9.4375"
CROSS SLIDE TRAVEL ------------------------ 21.25"
MAIN DRIVE MOTOR -------------------------- 20 HP 220/3/60
EQUIPPED WITH ---
19-1/2" 3 JAW CHUCK

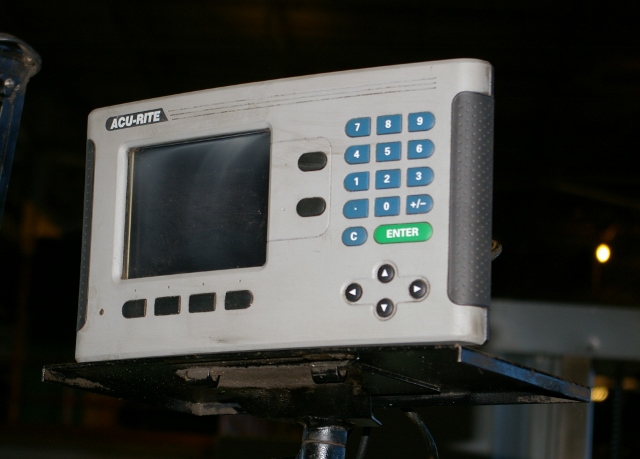

2 AXIS DIGITAL READOUT
SQUARE TURRET TOOLPOST
HARDENED BED WAYS
Stock No. 18419
