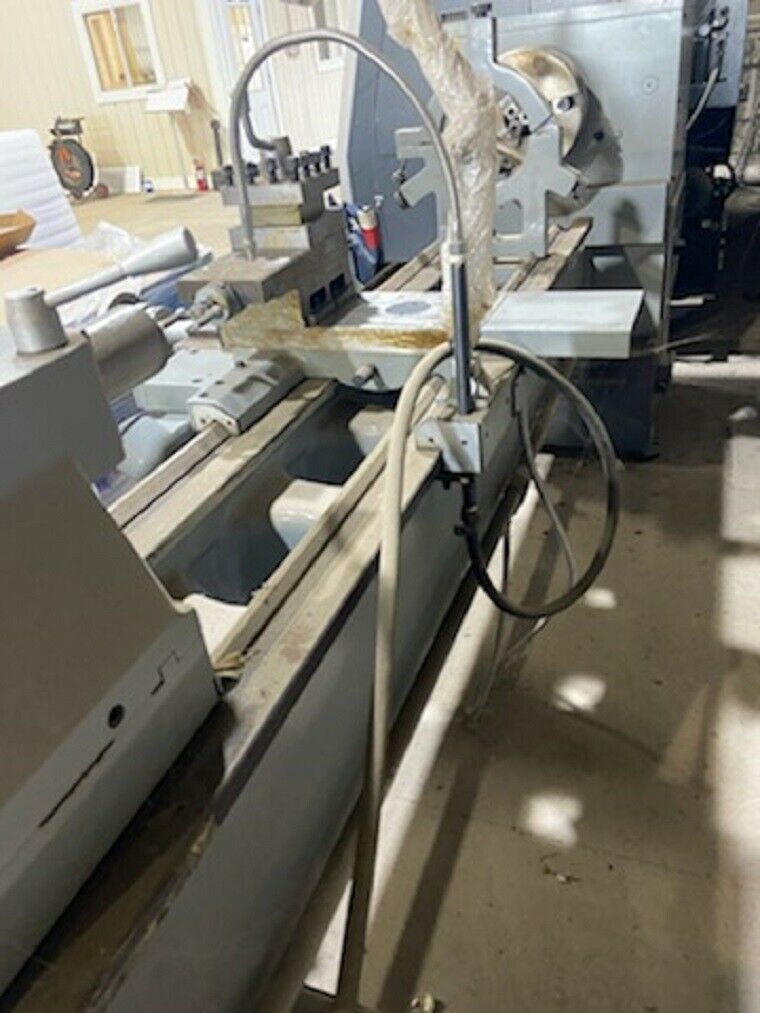

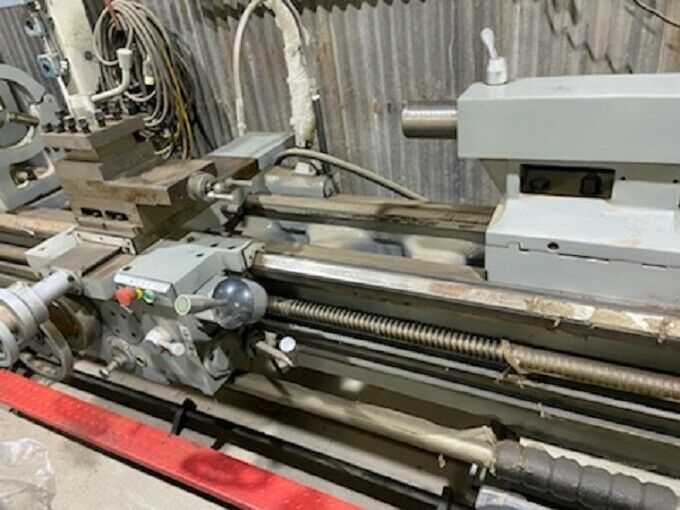

Under power and ready for inspection
EZ Systems Stock # ez50907
Machine Location: Houston, TX 77009
Distance Between Centers : 80"
Inch Threads : (22) 2 to 28 TPI
Metric Threads : (67) 1 to 14mm

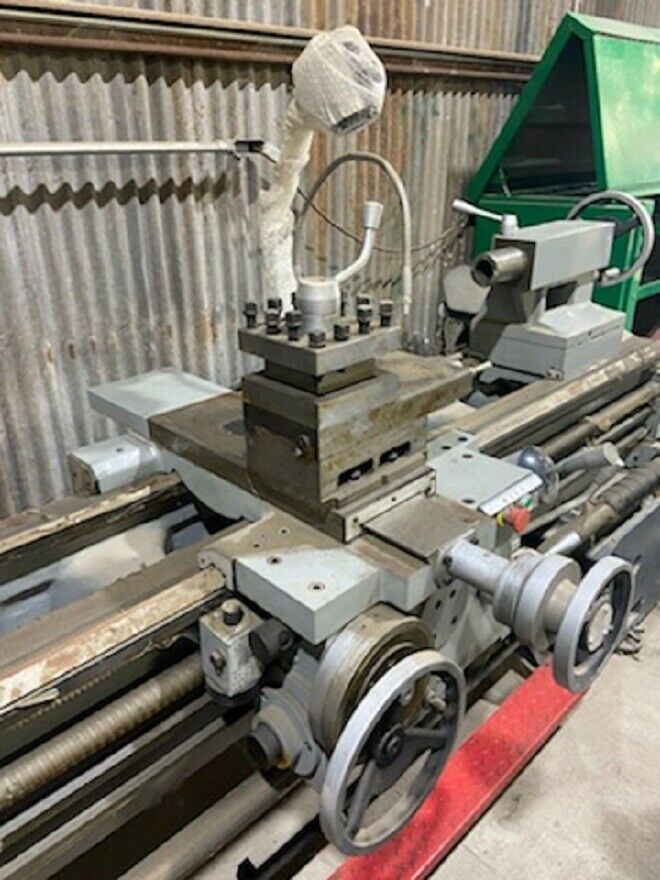

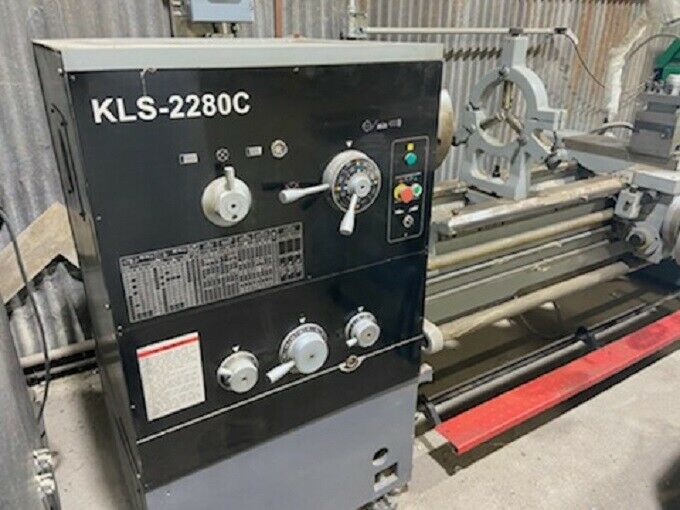

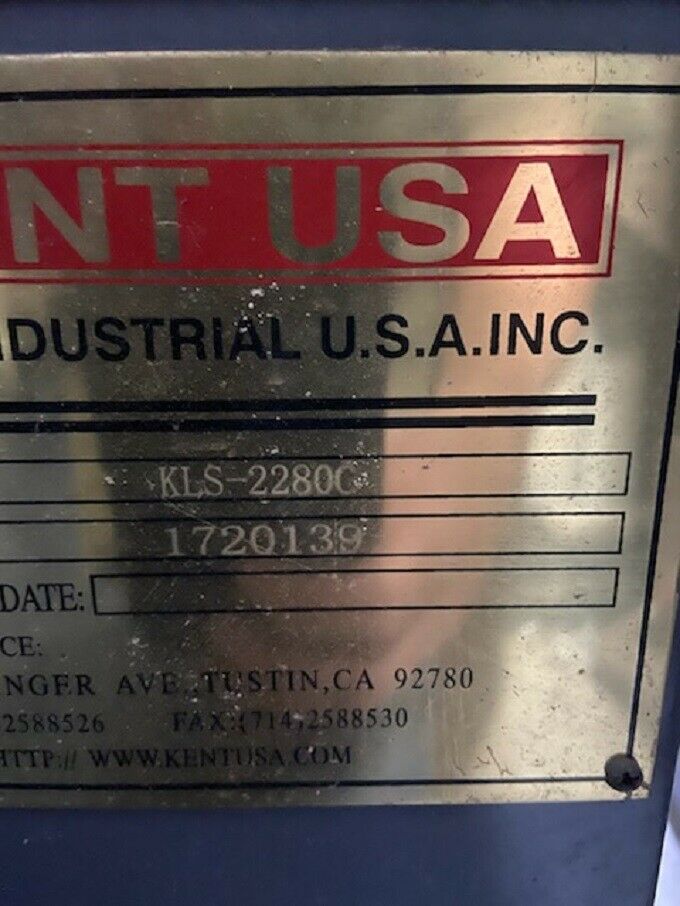

Model Number : KLS-2280C
Motor : 10 HP, 230/460V, 3 PH
Spindle Bore : 4.12"
Spindle Nose : D1-8 Camlock
Spindle Speeds : (12) 36 to 1, 600 RPM
Swing Over Bed : 22"
Swing Over Cross Slide : 12-1/2"
Swing Over Gap : 30"

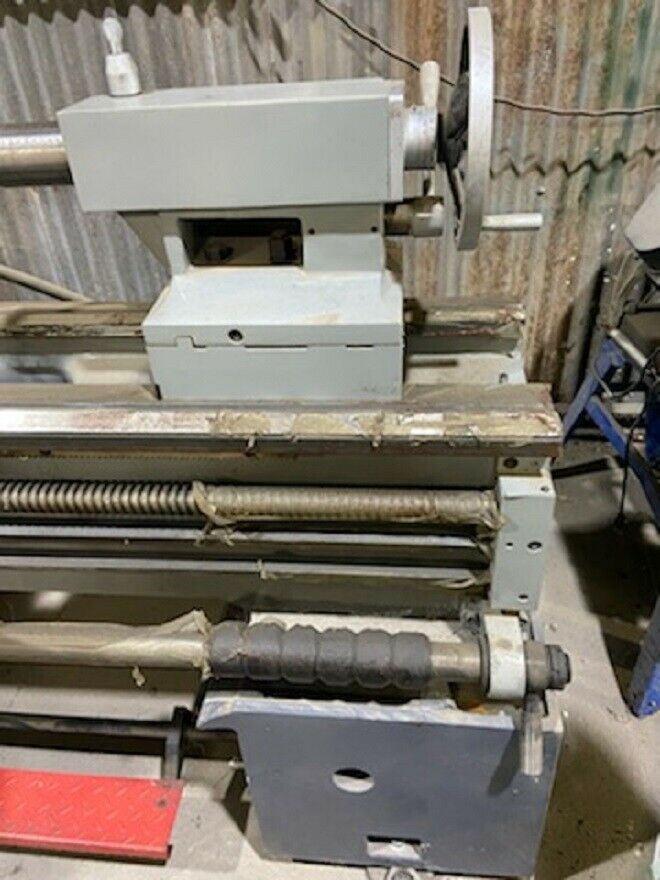

Tailstock Taper : 5MT
Tailstock Travel : 6"
10 HP main spindle motor, 12 speeds
D1-8 camlock, 4.1 in spindle bore

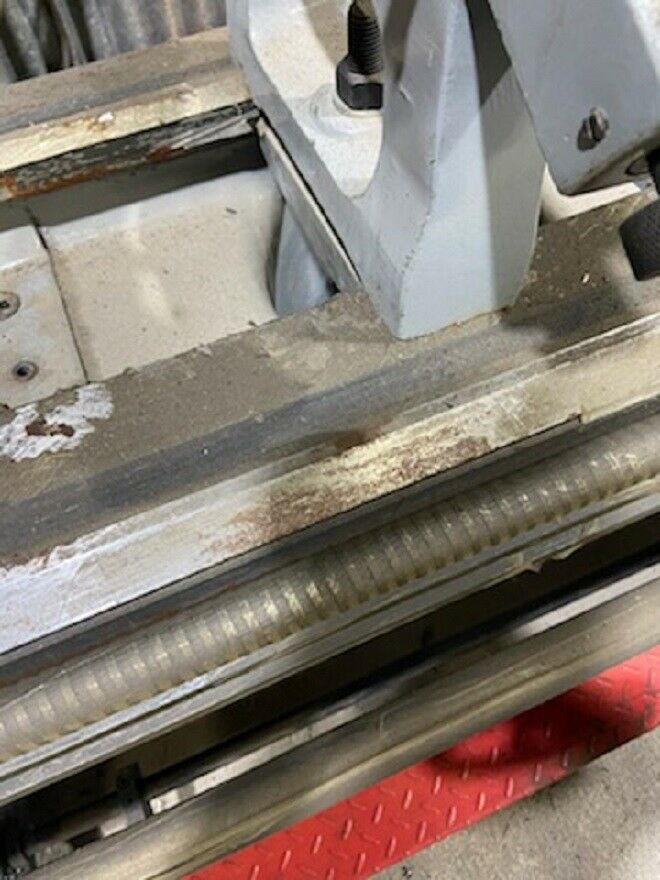

Hardened and ground gears and bedways
Jog button, 4-way rapid traverse

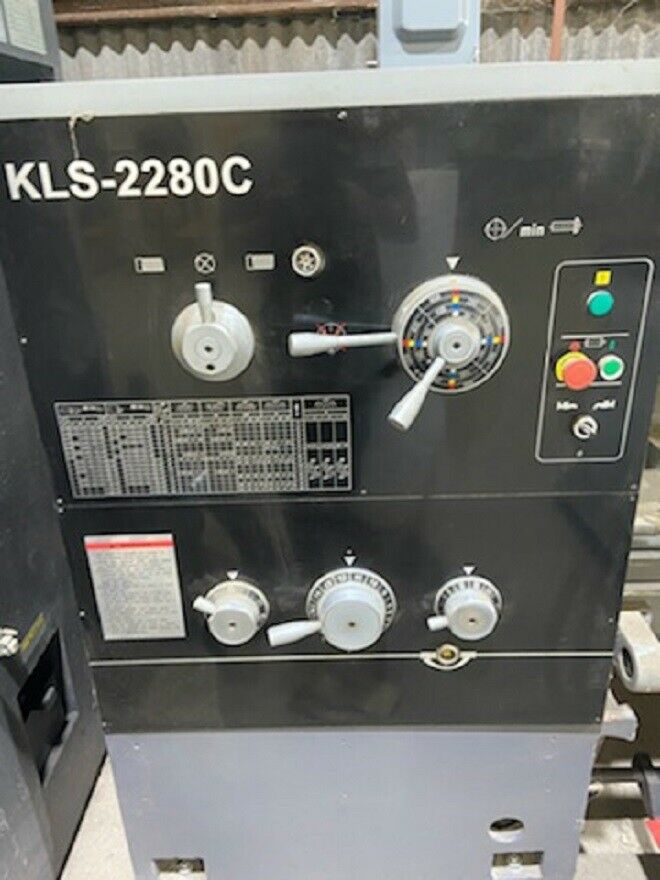

Mechanical clutch style headstock
Inch dials and leadscrews
Centralized lube system in headstock
Safety Foot brake
Specifications
Specification KLS-1860V KLS-2280C KLS-26120C
Swing Over Bed 18" 22" 26"
Swing Over Cross Slide 10.8" 12.5" 16.5"
Swing Over Gap 27.5" 30" 34"
Width of Bed 13" 16" 16"
Distance Between Centers 60" 80" 120"
Cross Slide Travel 11" 10.2" 12.2"
Top Slide Travel 4" 5.75" 5.75"
Spindle Speeds 12 12 12
Spindle Speed Range 200-2000 RPM 36-1600 RPM 36-1600 RPM
Through Hole Diameter 3.2" 4.12" 4.12"
Spindle Nose D1-8 Camlock D1-8 Camlock D1-8 Camlock
Spindle Bore Taper MT#7 w/ sleeve MT#6 MT#6
Thread Standard (Whitworth) 61 (1-5/8 to 72) tpi 32 (2 to 28) TPI 32 (2 to 28) TPI
Thread Metric Pitch 28 (0.5 to 20) mm 18 (1.25 to14) mm 18 (1.25 to 14) mm
Longitudinal Feed 0.0015 in to 0.0913 in in/rev 0.0024 in-0.0992 in/rev 0.0024 in to 0.0992 in/rev
Cross Feed 0.0006 in 0.0365 in/rev 0.0011 in to 0.042 in/rev 0.0011 in to 0.042 in/rev
Lead Screw Diameter 1.4" 1-9/16" 1-9/16"
Threading Pitch 4 TPI 2 TPI 2 TPI
Quill Travel 5" 6" 6"
Quill Diameter 3 in 2.9" 2.9"
Quill Bore Taper MT#5 MT#5 MT#5
Main Motor 7.5 HP 10 HP (3-phase) 10 HP (3-phase)
Coolant Pump Motor 1/8 HP 1/8 HP (3-phase) 1/8 HP (3-phase)
Machine Dimension 112" x 40" x 50" 137" x 45" x 57" 177" x 45" x 57"
Packing Dimension 120" x 45" x 72" 143" x 55" x 84" 185" x 55" x 84"
Machine weight 5830 lbs 7260 lbs 8580 lbs
Standard Accessories

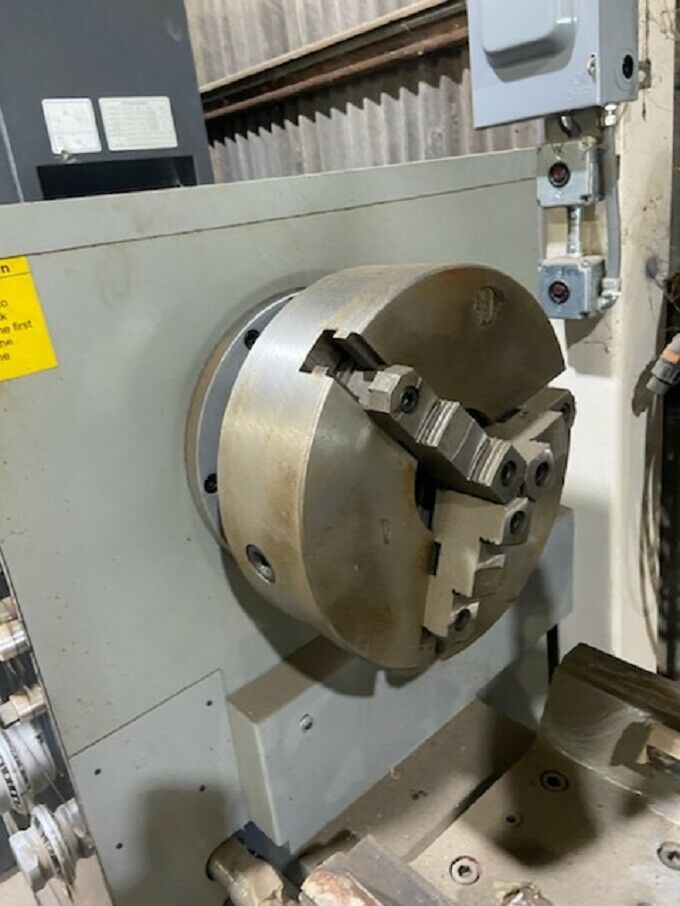

3-jaw chuck
Face plate
Steady rest
Follow rest
Thread chasing dial toolbox with standard tools
