AML Stock #002468

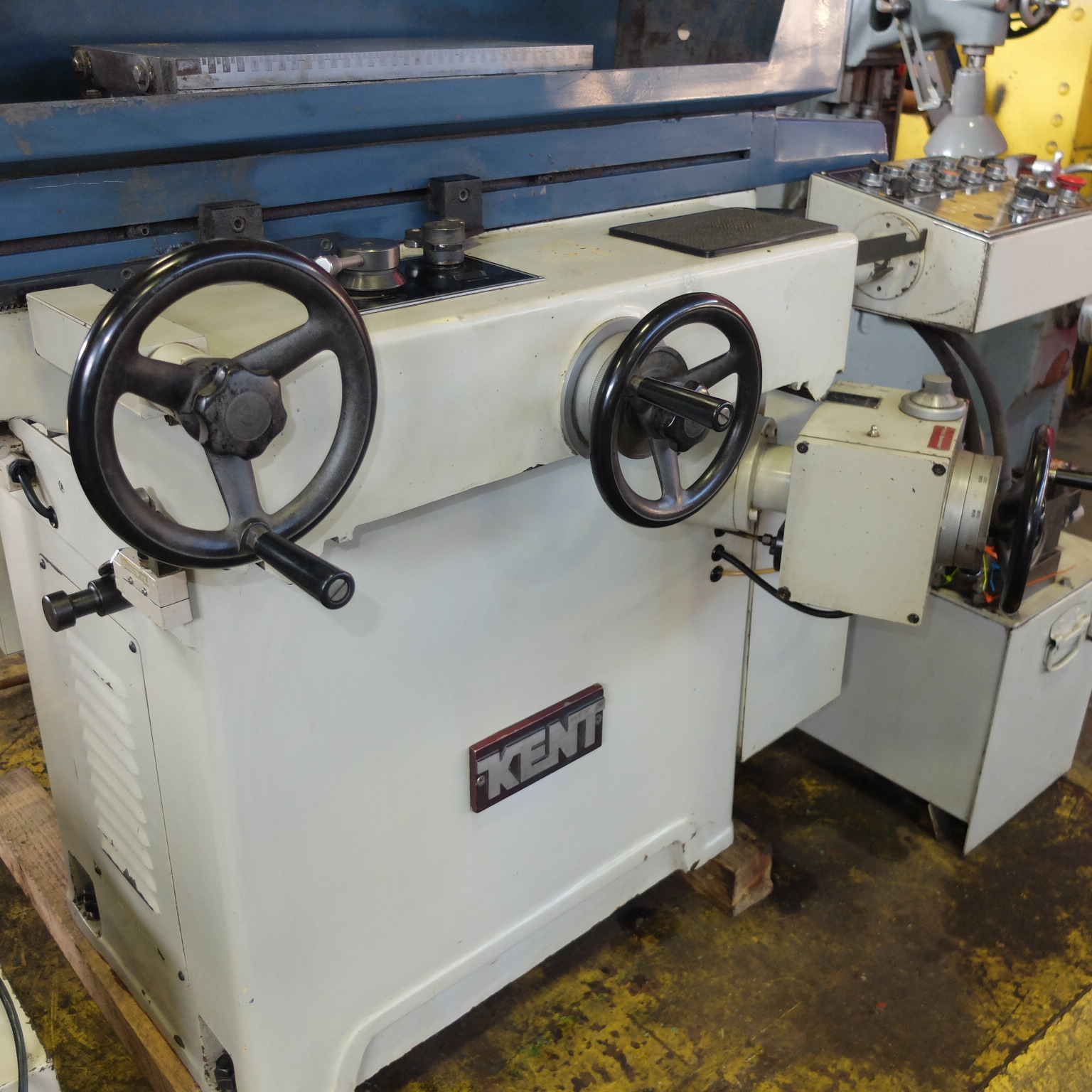

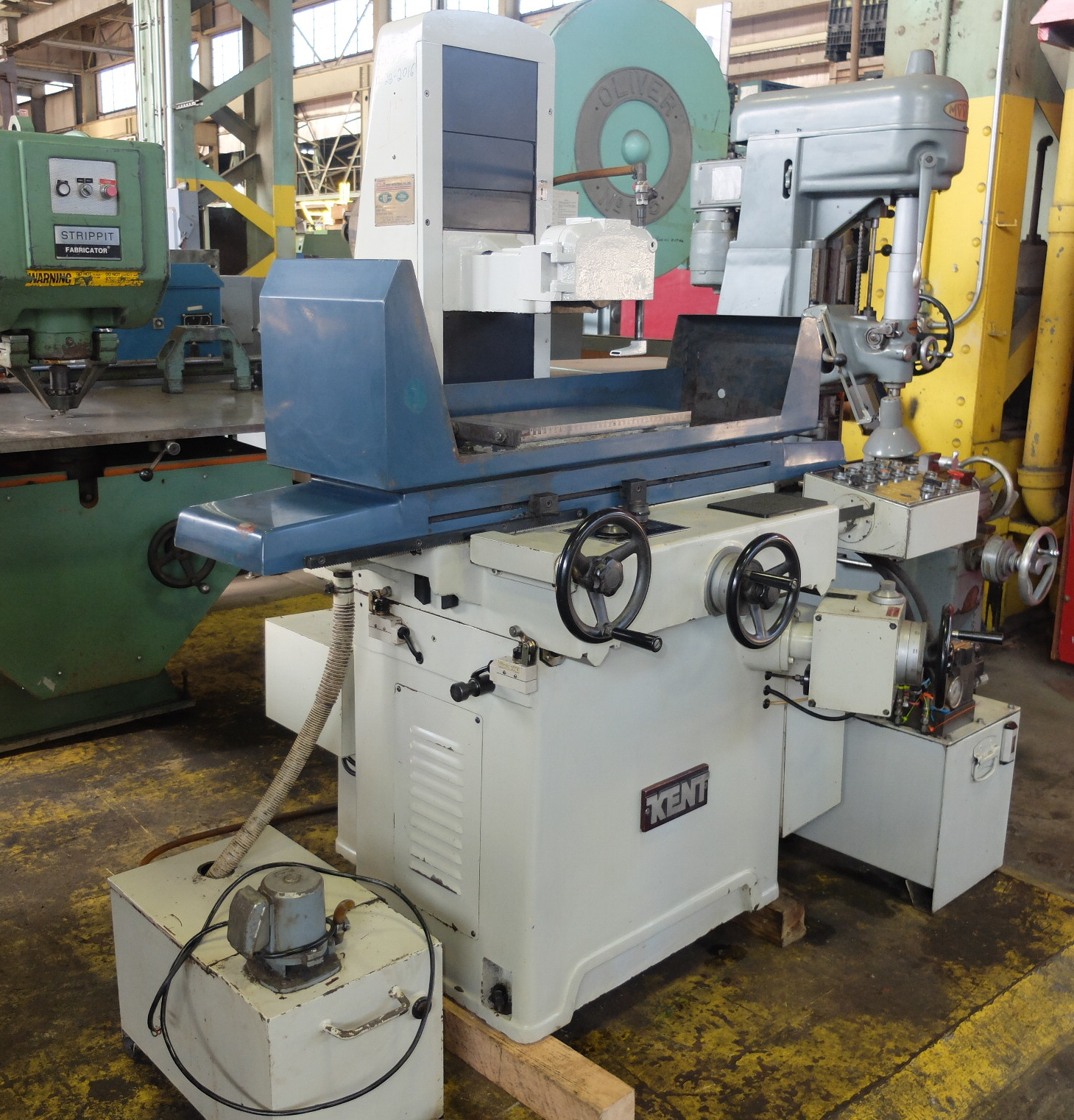

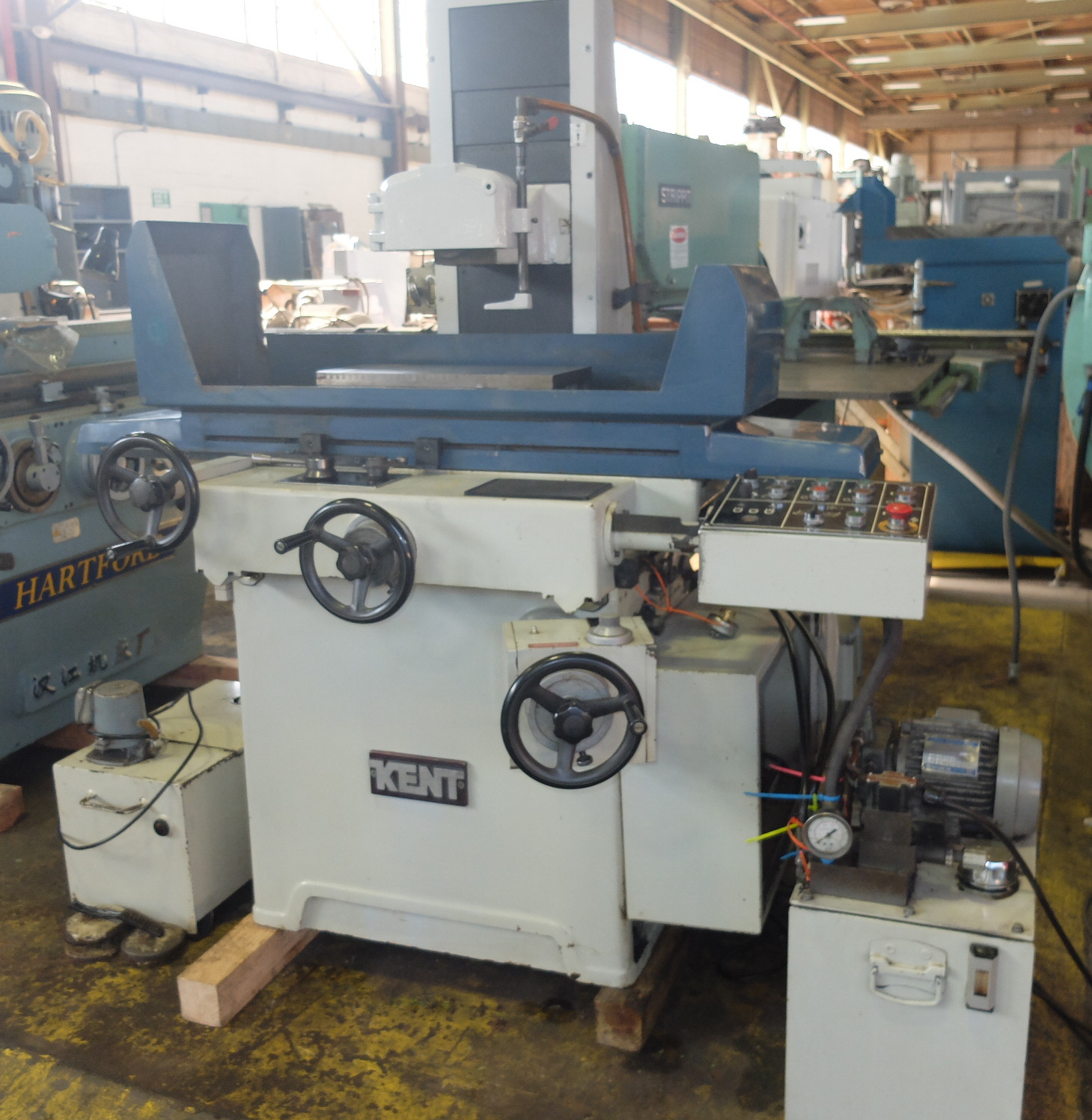

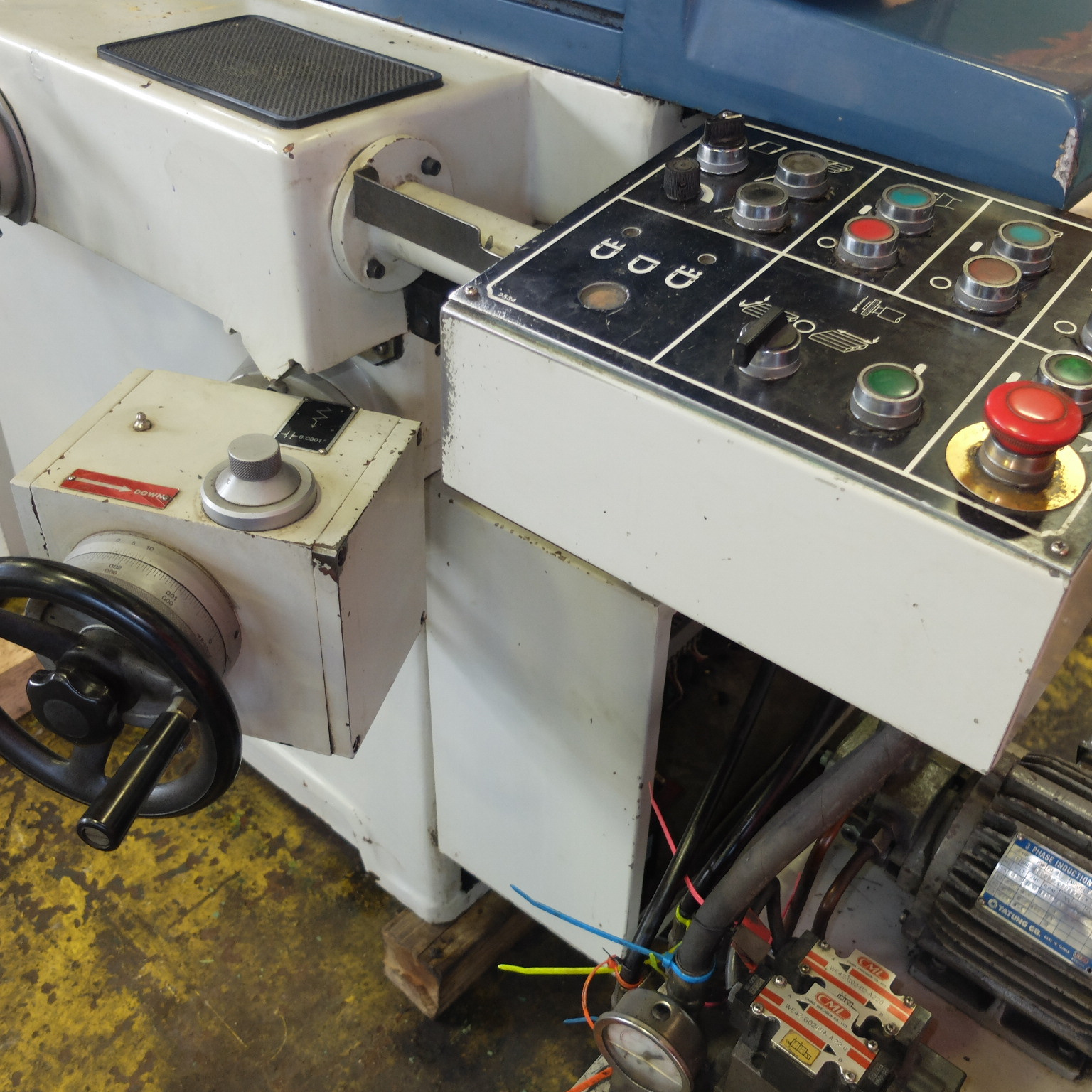

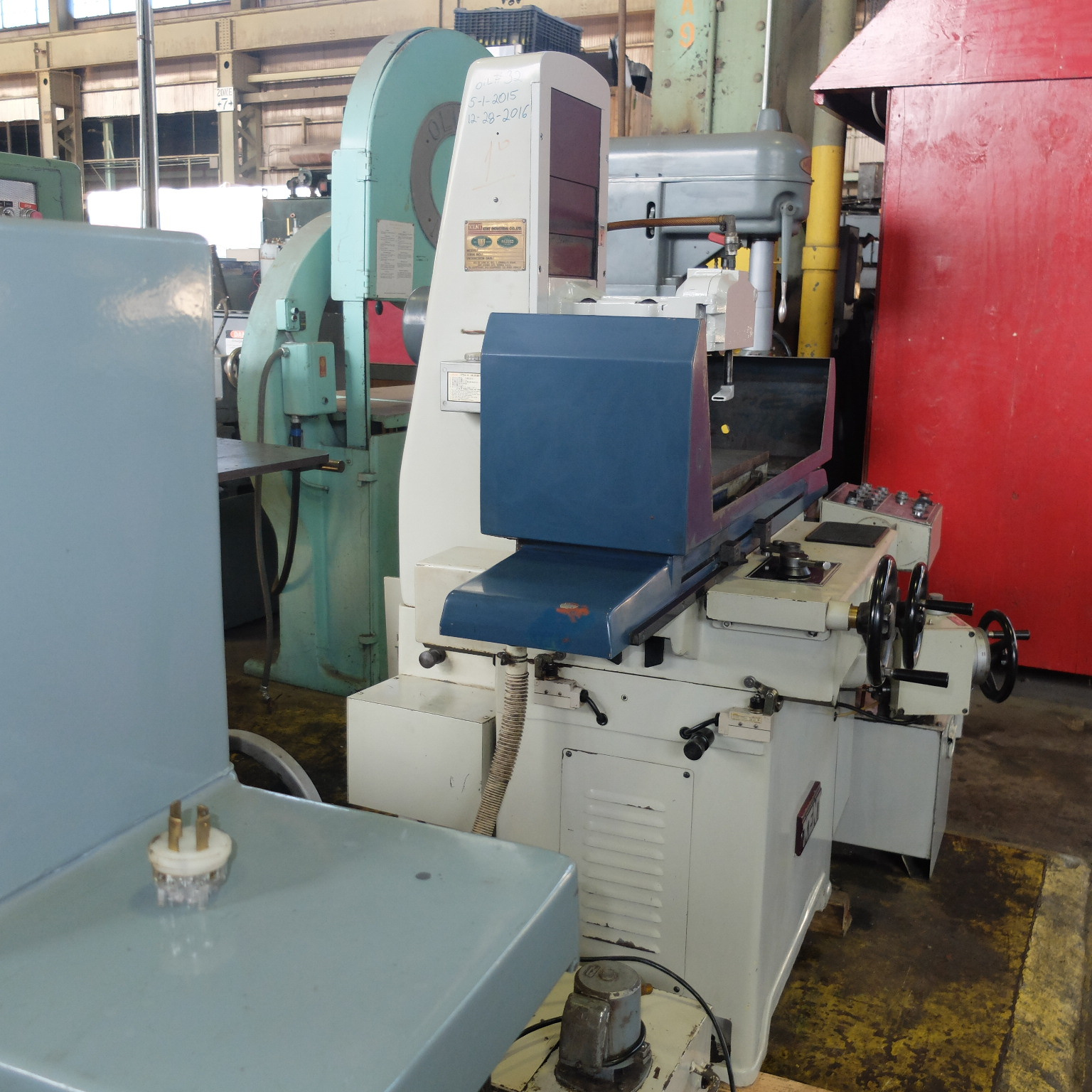

8 in x 18 in KENT ... (3) AXIS AUTOMATIC SURFACE GRINDER, Model KGS – 250 AHD, S/N 03085301, New 1999
SPECIFICATIONS:
Table Size...................... 8 in x 18 in
Longitudinal Travel........(X).. 21-1/4 in
Cross Travel...............(Y).. 10-1/2 in
Vertical Travel............(Z).. 18-11/16 in
Center Line Spindle To Table.... 18-11/16 in
Table Work Load Capacity........ 220 Lbs
Wheel Size...................... 8 in x 3/4 in x 1-1/4 in
Axis............................ (3) Axis Automatic
Motor Size...................... 2 HP - 220/440V - 3 Phase
Weight.......................... 3300 Lbs
Dimensions (LxWxH).............. 69 in x 66 in x 83 in
Equipped With:
Incremental Down Feed- .001 to .0001 down feed increments

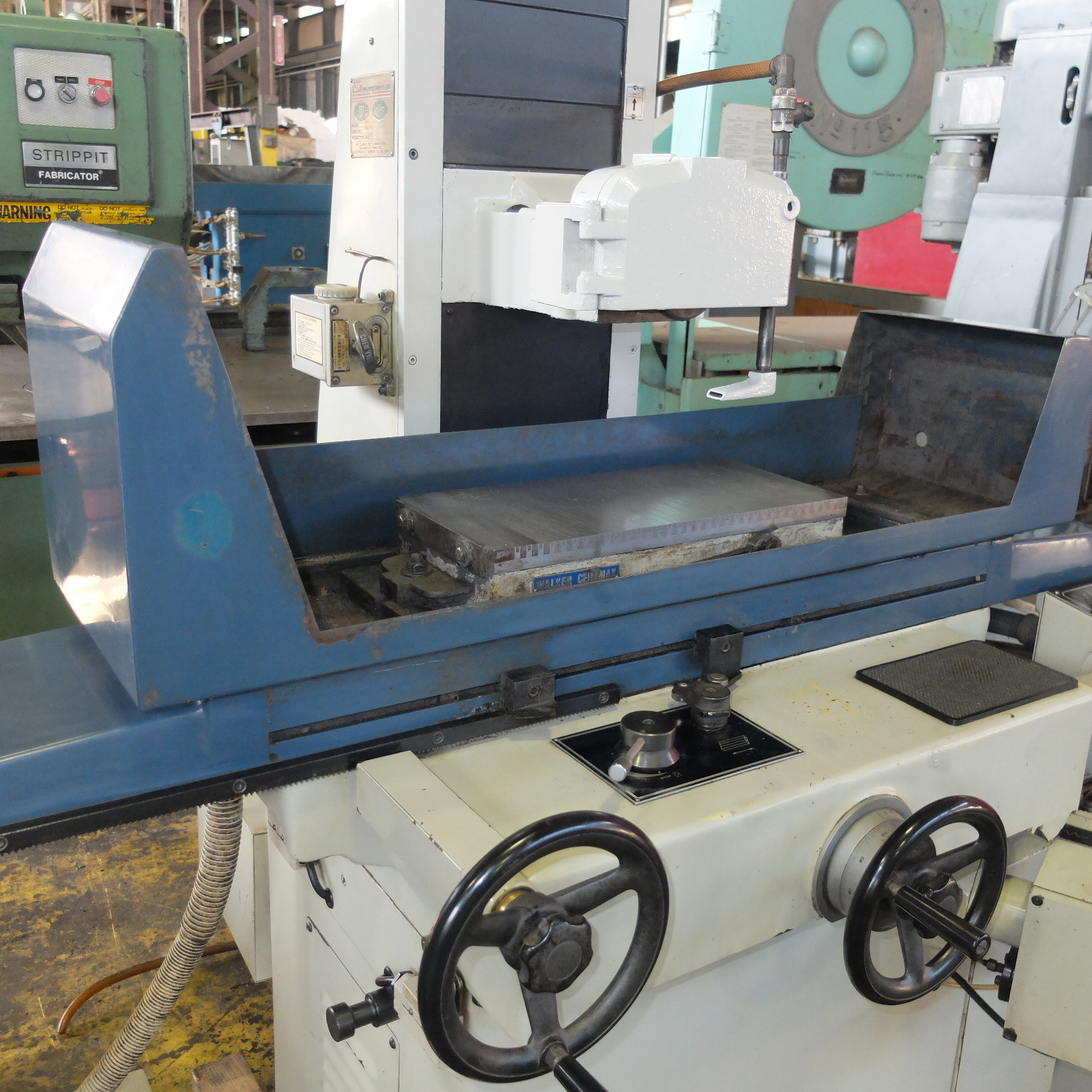

8 in x 18 in Walker Permanent Magnetic Chuck
Coolant Unit
Very Good Running Machine
Currently (2) available!
Call Marc @ (732) 390-0006 to Inspect Under Power in Lebanon, NJ
