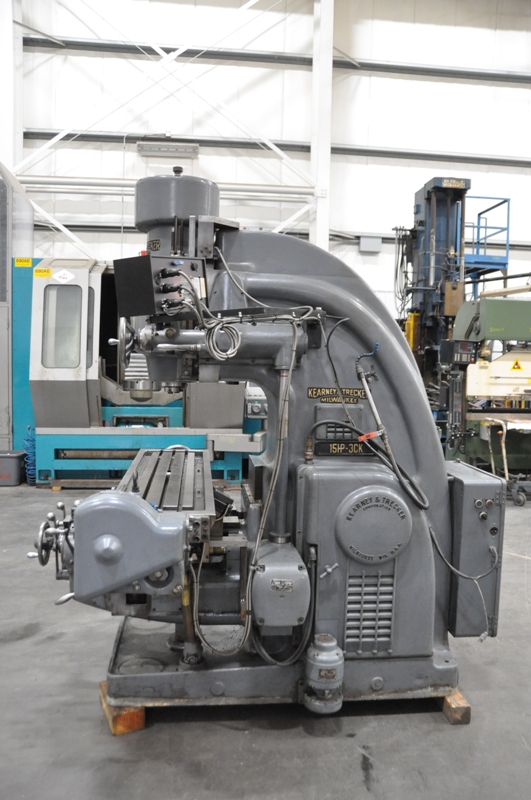

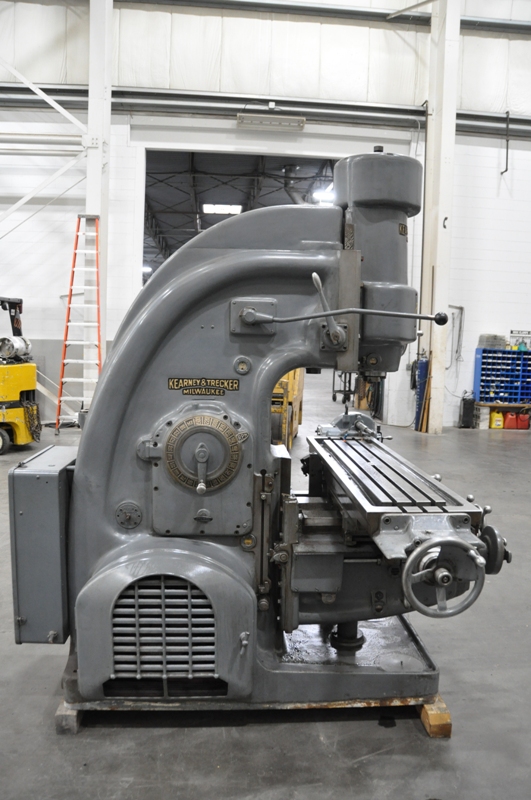

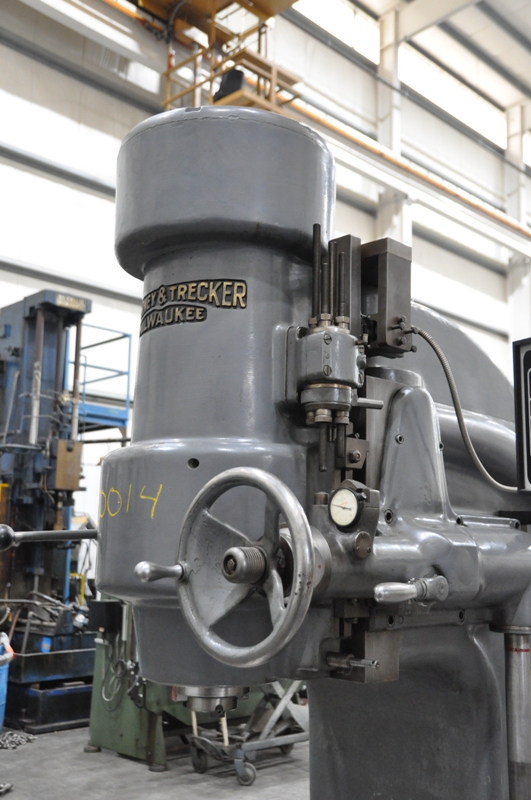

3CK KEARNEY TRECKER VERTICAL MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA    $9,750.00

HMC Stock # 20014

Machine Serial No.: 6414
Machine Model No.: 3CK
New Date: 1951

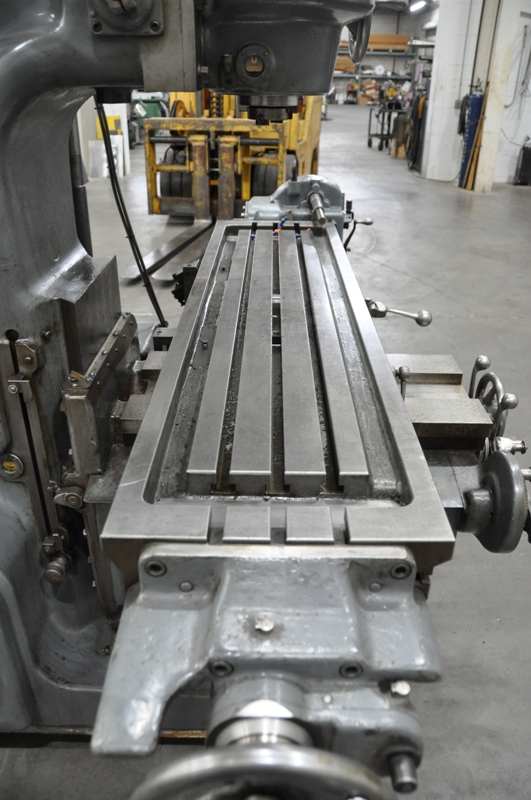

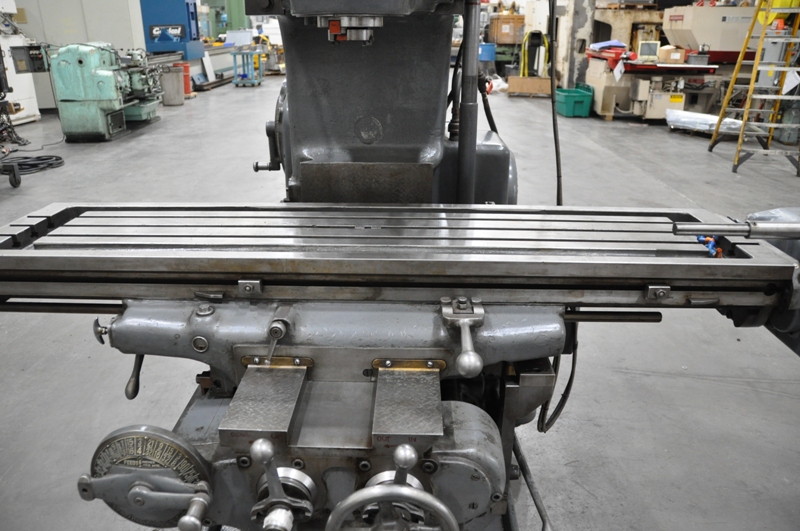

Table Size: 15-1/2" x 64" with (3) T-Slots

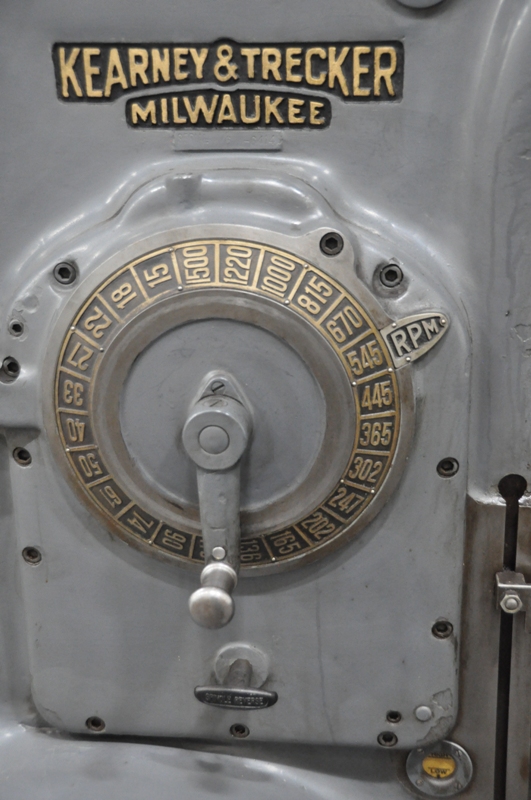

(24) Spindle Speeds: 15 to 1500 RPM
(32) Power Feeds: 3/8 to 90 IPM
Longitudinal Table Travel: 35"
Table Saddle Travel: 15"
Vertical Knee Travel: 16"
Vertical Head Travel: 8"
Distance Face of Column to Center of Table: 8-3/8" Min. to 22-1/2" Max.
Distance Under Spindle Nose to Table: 20-3/8" Max.
Spindle Taper: #50 National Standard

EQUIPPED WITH:
Power Down Feed to Head With 4 Adjustable Stops & Dial Indicator
Power Rapid Traverse to All 4 Axis
#40 to #50 Spindle Tool Holder Adapter

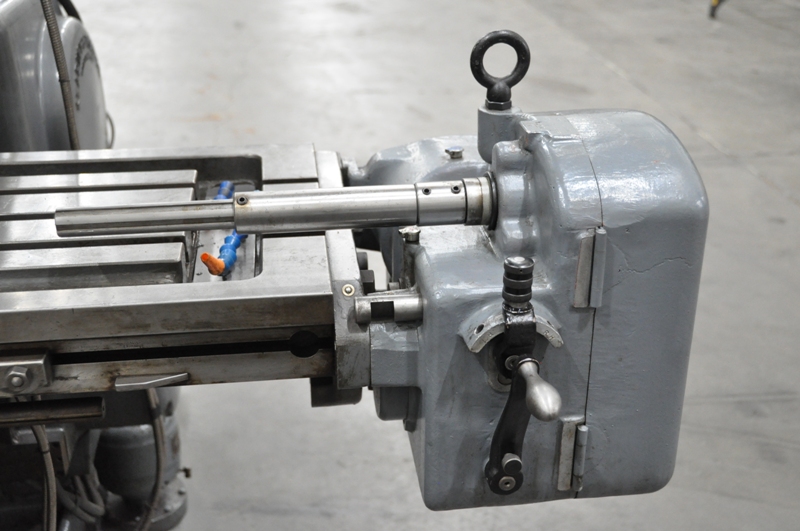

Table Low Lead Drive Unit (no change gears)

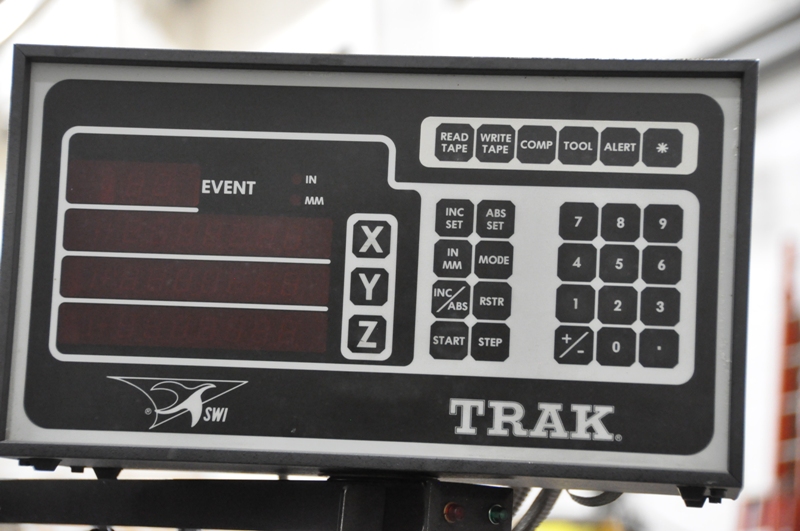

Southwest Industries 3 Axis Digital Readout X-Y-W, Model MP15D-363
Manual Tool Draw Bar for #50 Taper
One Shot Way Lubrication System
Coolant Sump in Machine Base

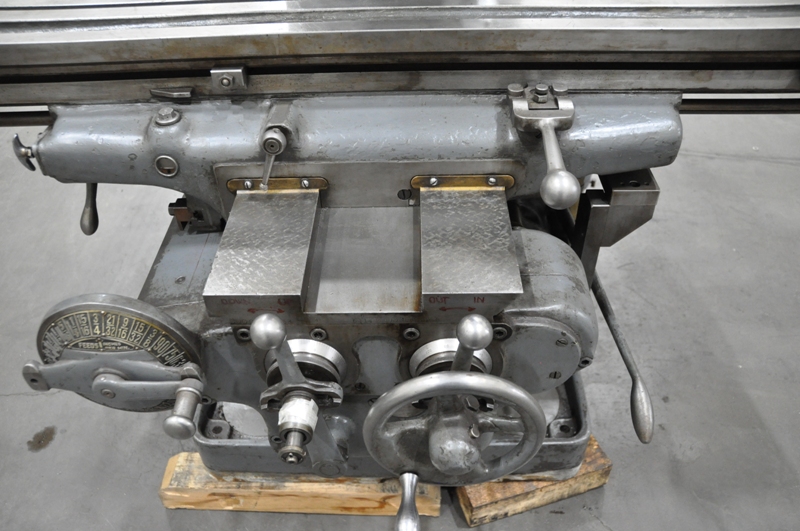

Adjustable Satin Chrome Graduated Dials on Each Axis
All Machine Ways that have been Recently Re-scraped and are in Very Good Condition
Machine Overall is Very Clean and in Very Good Condition
MISSING Knee Crank Handle (we have the connector socket part)
1/4 HP, Wired for 3 Phase, 60 Hz, 220/440 Volt Coolant Motor
3 HP, Wired for 3 Phase, 50/60 Hz ,220/440 Volt Feed Motor
15 HP, Wired for 3 Phase, 50/60 Hz, 220/440 Volt Feed Motor

Overall Size: 91" LR x 86" FB x 94" High x 10,500 Lbs.
(Machine height measured over 3-1/2" blocks and can be reduce a few inches by lowering the head.)
