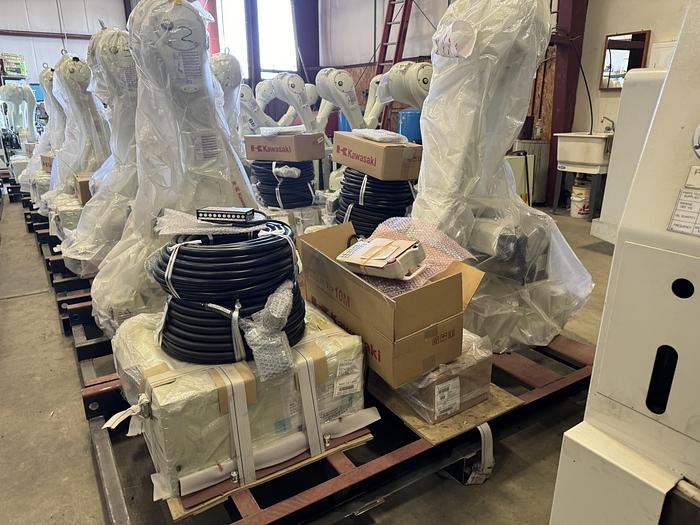

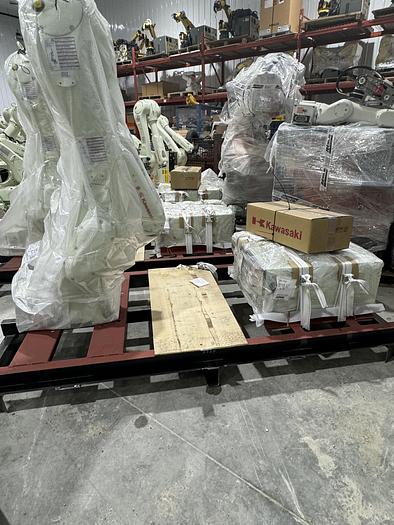

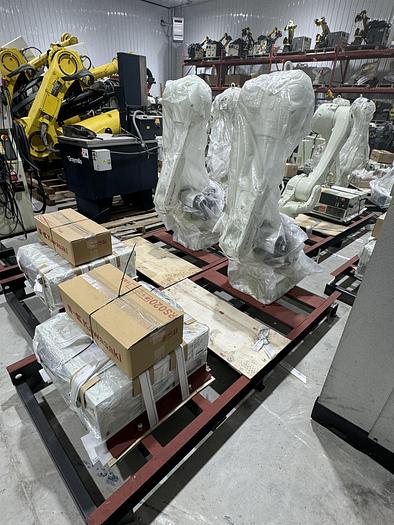

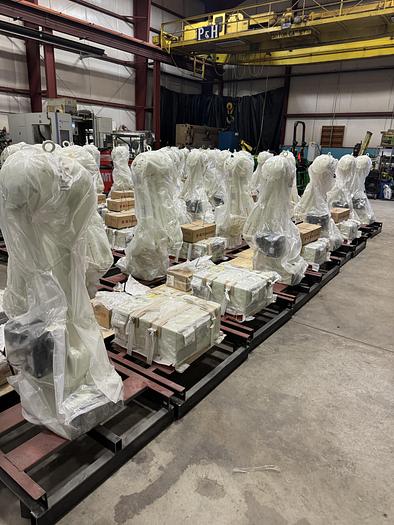

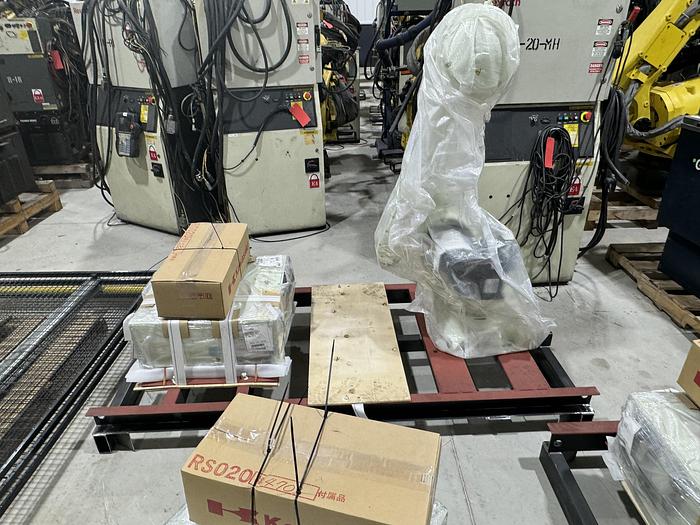

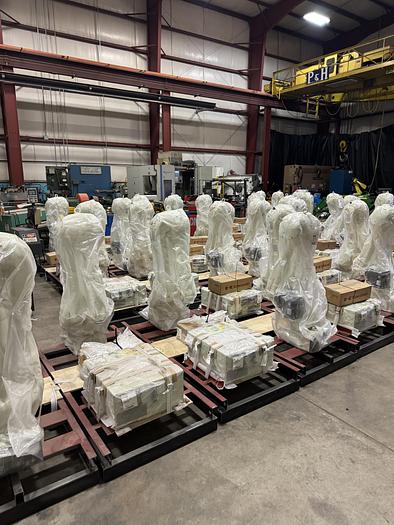

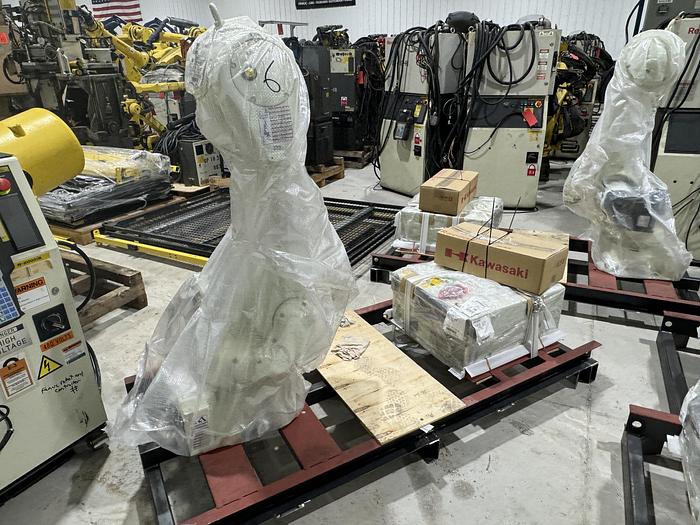

1- BRAND NEW NEVER USED KAWASAKI MODEL RS020N 6 AXIS GENERAL PURPOSE ROBOTS

    WITH E01 CONTROLLERS & CUBIC S, TEACH PENDANTS, CABLES.

APPLICATIONS: MATERIAL HANDLING, MACHINE LOAD & UNLOAD, DEBURRING, MIG & TIG WELDING,

LASER CUTTING, PLASTIC INJECTION MOLDING, WATER JET CUTTING THESE ARE UNIVERSAL ROBOTS

IDEALLY SUITED FOR A LARGE VARIETY OF APPLICATIONS.

    SERIAL NUMBERS AVAILABLE: CURRENTLY 38 UNITS AVAILABLE

  4598, 4720, 4585, 4578, 4580, 4584, 4583, 4579, 4587, 4705, 4591, 4716, 4590, 4601,

4594, 4717, 4718, 4715, 4589, 4586, 4582, 4702, 4704, 4700, 4581, 4703, 4701, 4721, 4698,

4597, 4588, 4593, 4592, 4699, 4707, 4719, 4595, 4600

DATE OF MANUFACTURE 2022

    STK#105168

 ======================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

SPECIFICATIONS OBTAINED FROM OEM SOURCE:

PAYLOAD: 20KG

MAX. REACH: 1,725MM

ROBOT CATEGORY:  GENERAL PURPOSE ROBOTS (3-80KG PAYLOAD)

MOUNTING: FLOOR, CEILING

ROBOT SERIES: R SERIES

POSITIONAL REPEATABILITY: 0.04MM

EQUIPPED WITH:

KAWASAKI ROBOTICS E01 CONTROLLER WITH CUBIC S

KAWASAKI ROBOT CONNECTION CABLES

KAWASAKI TEACH PENDANT

DESCRIPTION:

Kawasaki R series robots are setting the benchmark for all small to medium duty

industrial robots. The compact design along with industry leading speed, reach, and work

range make the R series robots ideal for a wide range of applications in a multitude of

diverse industries.

Features:

High-speed operation

The light weight of the R series arms together with high output, high revolution motors provide industry leading

acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot

posture to deliver optimum performance and the shortest cycle times.

High torque:

High output motors combined with a rigid arm construction deliver superior wrist torque and load capacity. This high torque rating lets system designers select from a broad range of end-of arm tooling, as well as provides more flexibility when working with complex workpieces.

Wide work range:

In addition to extending the robots maximum reach, the rotation range of each axis has also been increased. The extended motion range translates to a larger usable work area with minimal dead space and greater flexibility.

Environmental protection:

The R series incorporates a double seal construction on all axes and water-resistant electrical connections, offering

an IP67 classification for the wrist and IP65 for the remaining axes. If a washdown arm is required, the entire

robot can be provided as IP67. (Except for the RS003N, RS005N and RS005L)

Integrated features:

Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps

are provided to allow the easy installation of additional cabling, tubing or equipment
