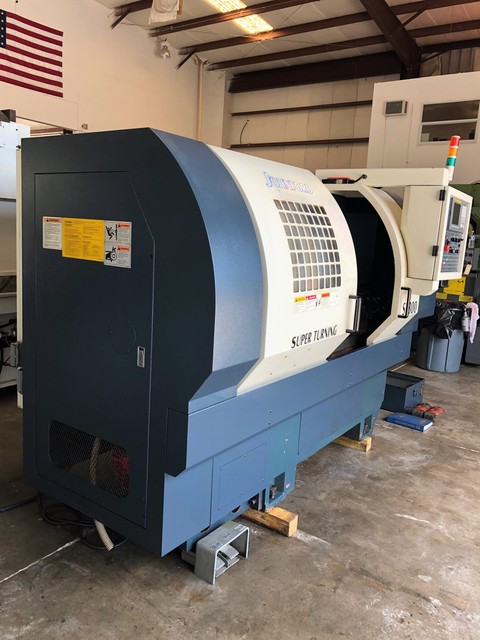

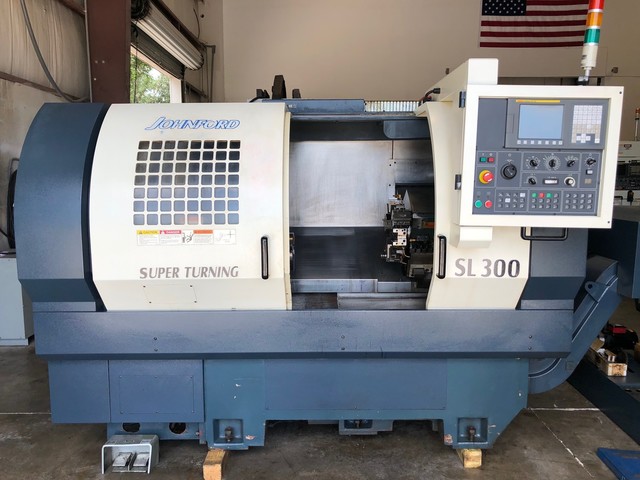

JOHNFORD SL-300 CNC LATHE TURNING CENTER FANUC 2006’ #GMT-1943

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SL-300
TE06042
Lathes and Turning Centers CNC
Slant Bed Turning center
used
9000 (LB)
0
$29,500.00

Feature Video

Description

SPECIFICATIONS:
Reference #
GMT-1943
Model #

SL-300
Serial #

TE06042
Year of Manufacture

2006
Swing over bed

15.75 in
Swing over cross slide

12.99 in
Chuck size

8 in
Peak horsepower

20 H.P.
Spindle bore

2.56 in
Maximum bar diameter

2"
Spindle nose

A2-6
X-axis travel

7.09 in
Z-axis travel

23.62 in
Rapid traverse rate, X & Z axes

945 I.P.M.

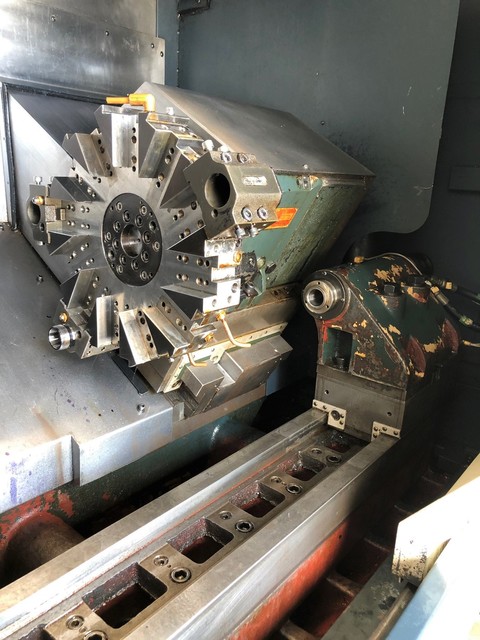

Number of stations in turret

12
Tailstock travel

19.69 in
Tailstock quill diameter

2.36 in
Tailstock spindle taper

No. 4 Morse
Tailstock quill travel

2.36 in
Spindle speed range

25 - 3400 R.P.M.
EQUIPPED WITH:
  • Box way design

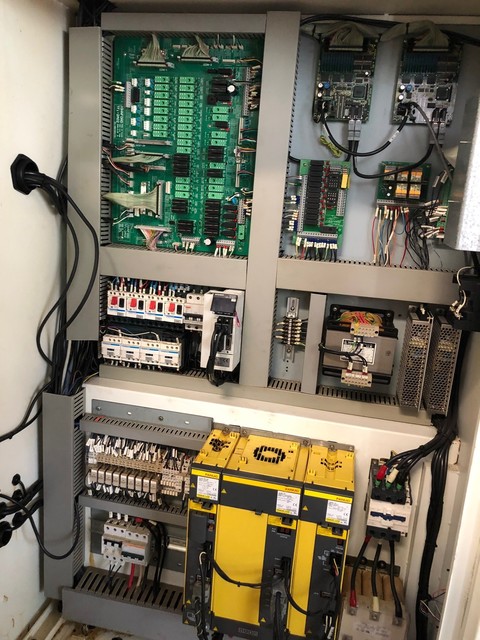

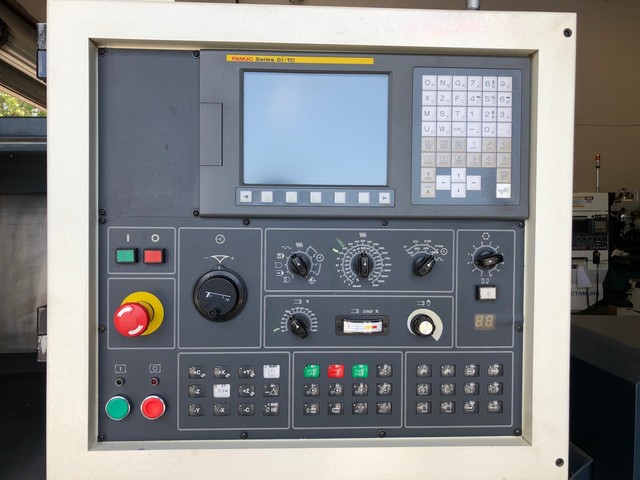

  • #Oi-TC FANUC two-axis CNC with RS-232 port

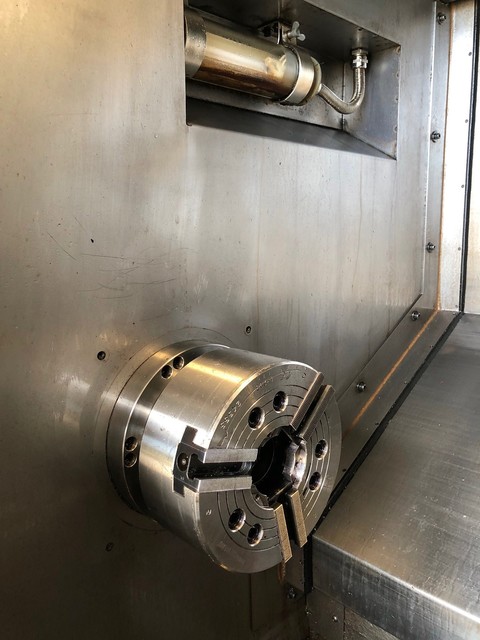

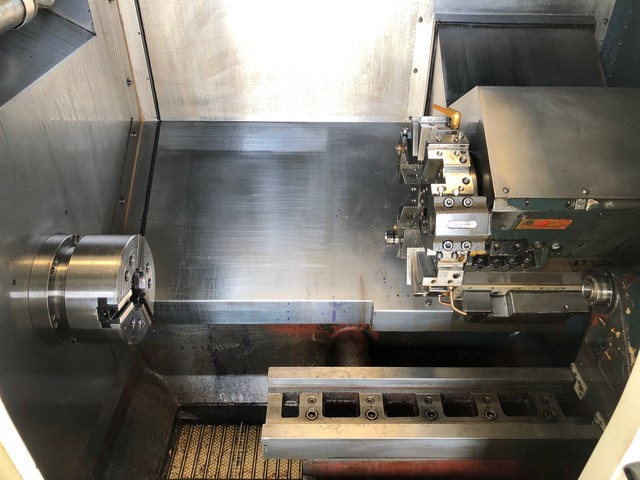

  • 8" Diameter three-jaw hydraulic chuck
  • Hydraulic tailstock quill
  • AC servo motors on all axes
  • Leveling pads

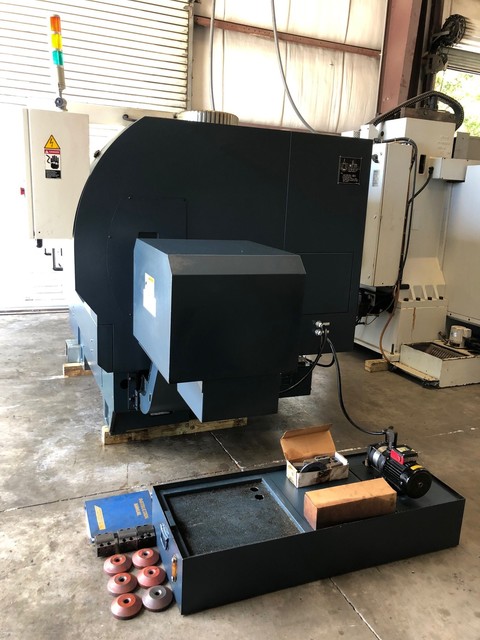

  • Chip conveyor
  • Automatic lubrication system

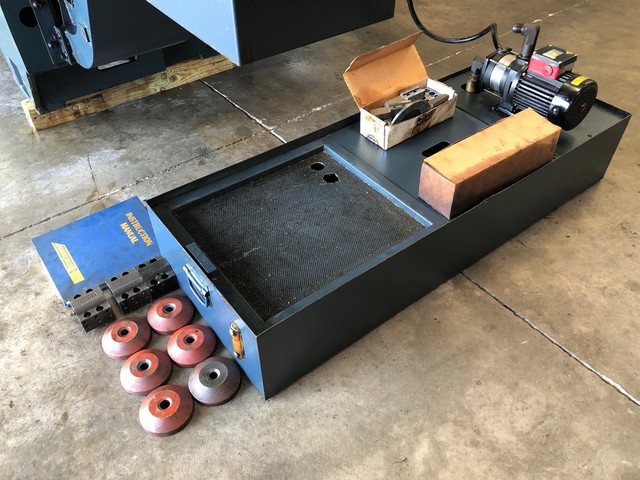

  • Coolant system with external pump and tank
  • 2 H.P. hydraulic pump motor and tank

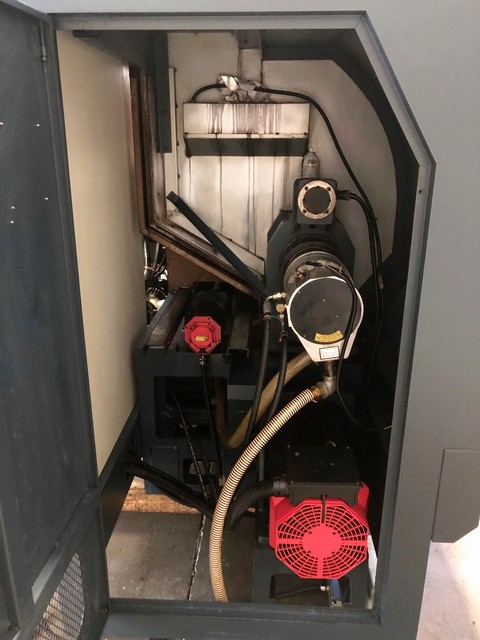

  • 20/15 H.P. (30 Minute/Continuous Duty) spindle drive motor
  • Machine is wired for 220 volt operation.
  • Power on hours 23415 / Operating hours 1298 / Cutting hours 2889
APPROXIMATE WEIGHT (MACHINE ONLY):
9000 Lbs.
APPROXIMATE DIMENSIONS:
103" L x 75" W x 84.5" H
LOCATION:
F.O.B. Bradenton, Florida
REFERENCE #:
CNC Lathe-GMT-937
PRICE #:
$29,500.00
