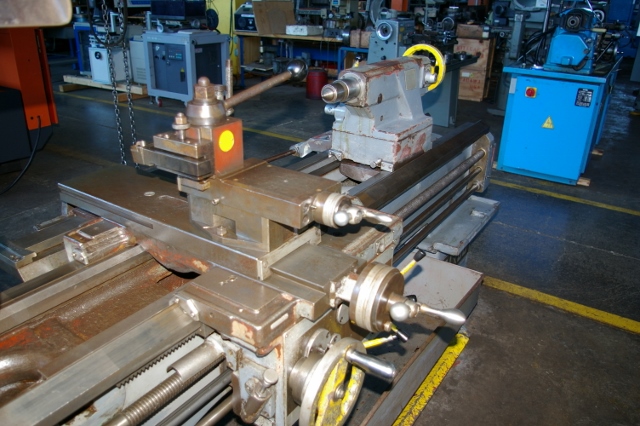

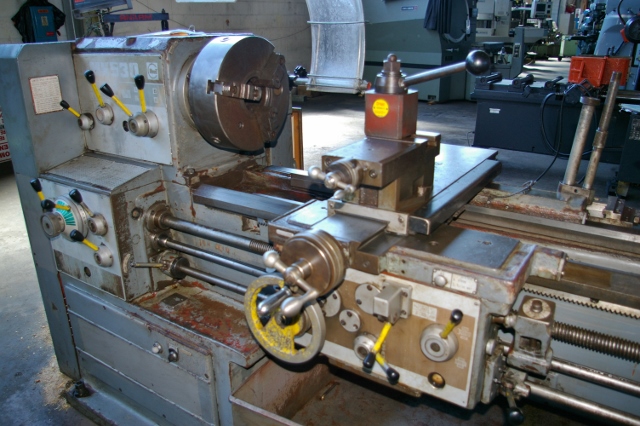

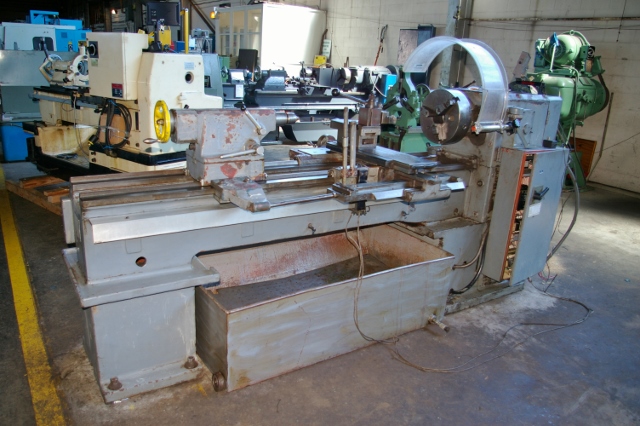

21"/28" X 60" JFMT GAP BED ENGINE LATHE
MODEL JIMK 530 X 1500
AGE?
SWING OVER BED WAYS ----------------------- 21"
SWING IN REMOVABLE GAP -------------------- 28-1/8"
SWING OVER CROSS SLIDE -------------------- 13-1/8"
DISTANCE BETWEEN CENTERS ------------------ 60"
HOLE THROUGH SPINDLE ---------------------- 3-1/8"
SPINDLE NOSE ------------------------------ D1-8" CAMLOCK
SPINDLE SPEED RANGE ----- ( 12 ) ---------- 25 TO 1500 RPM
LONGITUDINAL FEED RANGE ------------------- .0024" TO .037"
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE ---- ( 40 ) ---------- 4 TO 56 TPI
METRIC THREADING RANGE -- ( 23 ) ---------- .5 TO 7 MM
TAILSTOCK SPINDLE TRAVEL ------------------ 6.3"
TAILSTOCK SPINDLE TAPER ------------------- #4 MT
MAIN DRIVE MOTOR -------------------------- 10 HP 220/3/60
EQUIPPED WITH ---
12" 3 JAW CHUCK
TAPER ATTACHMENT

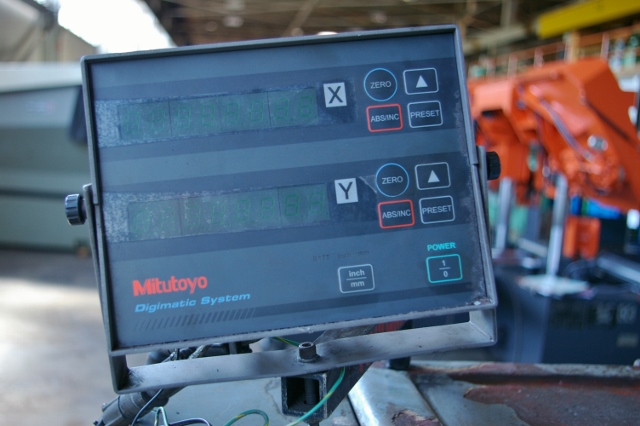

MITUTOYO READOUT
INCH & METRIC THREADING
THREADING DIAL
REMOVABLE GAP BLOCK
TOOLPOST WITH HOLDERS
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
TWO SPEED TAILSTOCK
HARDENED & GROUND BED WAYS
FOOT BRAKE
STOCK# 18355
