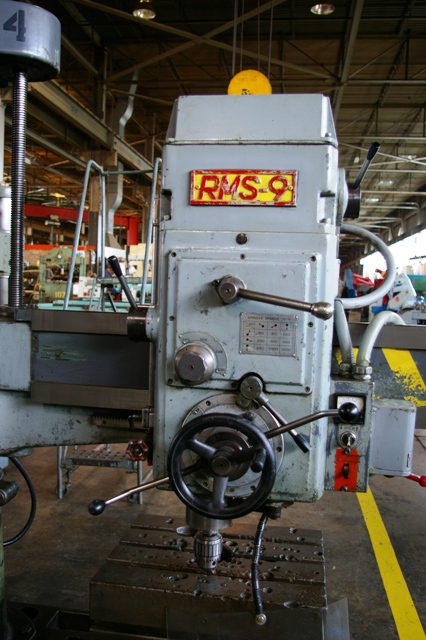

IKEDA MODEL RMS-9 36" X 9" RADIAL ARM DRILL PRESS
MAX. DISTANCE, COLUMN TO SPINDLE CENTER --- 36"
MIN. DISTANCE, COLUMN TO SPINDLE CENTER --- 12"
MAX. DISTANCE, SPINDLE END TO FACE OF BASE 43"
MIN. DISTANCE, SPINDLE END TO FACE OF BASE 12"
DRILLING CAPACITY ( STEEL ) --------------- 1.5"
DRILLING CAPACITY ( CAST IRON ) ----------- 2"
TAPPING CAPACITY ( STEEL ) ---------------- 1"
TAPPING CAPACITY ( CAST IRON ) ------------ 1.2"
CAPACITY BORING ( STEEL ) ----------------- 3.2"
CAPACITY BORING ( CAST IRON ) ------------- 4"
WORKING SURFACE OF BASE ------------------- 37" X 23"
COLUMN DIAMETER --------------------------- 9"
SPINDLE TAPER ----------------------------- #4 MT
SPINDLE SPEEDS ---------------------------- 50 - 1500 RPM
POWER DOWN FEED RATES -- ( 4 ) ------------ .003 TO .015 IPR
MAIN DRIVE MOTOR -------------------------- 3 HP
ARM ELEVATING MOTOR ----------------------- 1 HP
EQUIPPED WITH ---
BOX TABLE
COOLANT SYSTEM
JACOBS DRILL CHUCK
TO VIEW VIDEO, CLICK LINK www.racomachinery.com/vlink/17185.mp4
STOCK# 17185
