IBARMIA - 6-SPINDLE GANG DRILL | 27"

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


A- 32 & B-32
660-F-1 Thru 6
used
(1)
$0.00

Description

'

Basic Information

Model: A- 32 & B-32
Manufacturer: Ibarmia
Serial #: 660-F-1 Thru 6
Location: Painesville, OH
Year Built: -

Specifications

Swing: 27"
Throat Depth: 13 1/2"

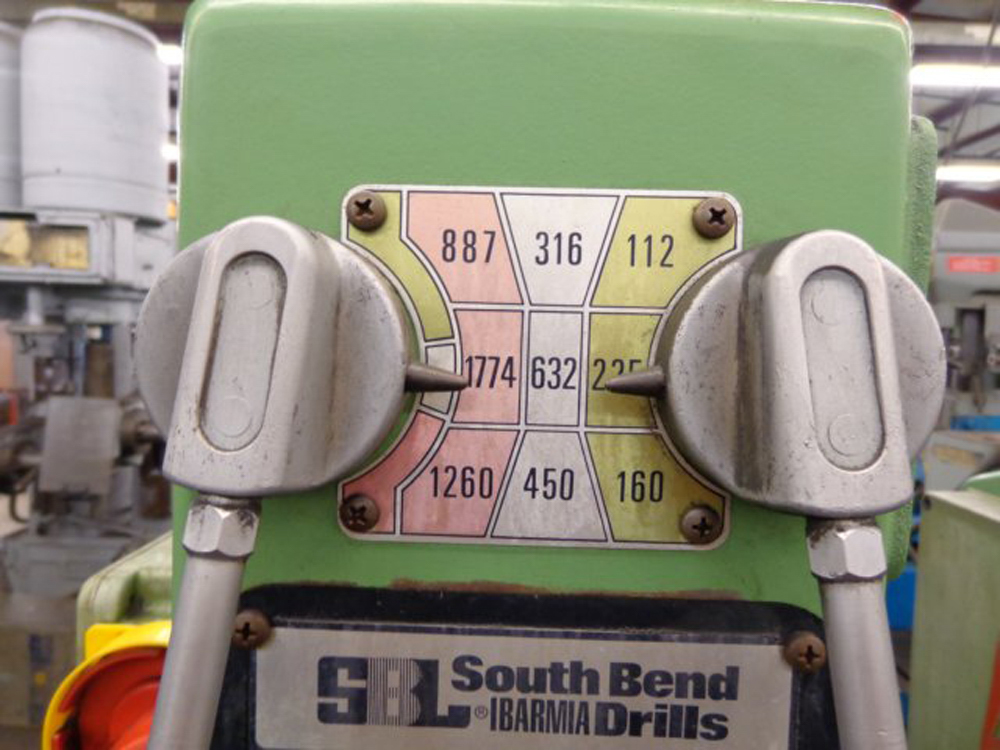

Spindle Speeds:
3- A-32 Heads: 112- 1,260 RPM
1- A-32 Head: 81- 904 RPM
1- B-32 Head: 112- 1,260 RPM
1- B32 Head: 81- 904 RPM
Spindle Quill Nose: #3 MT
Spindle Quill Travel: 8"

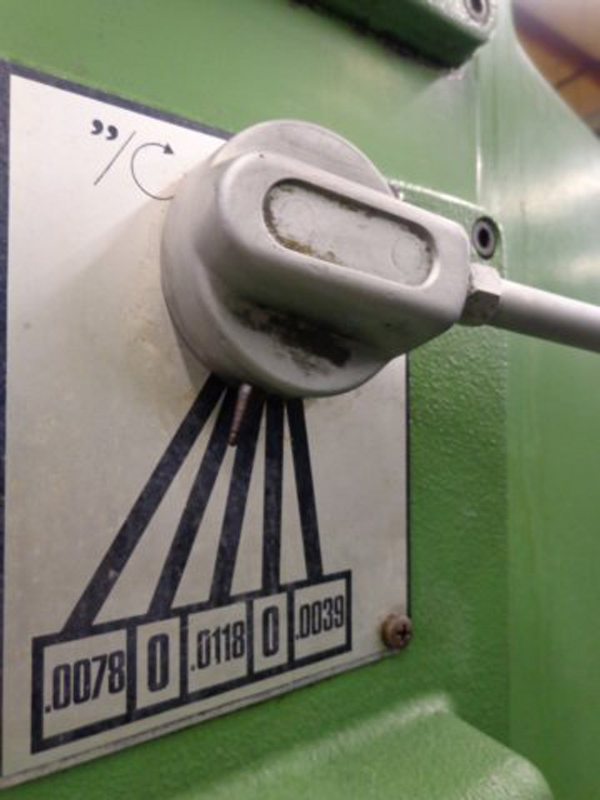

Spindle Quill Feeds (3): 0.0078"- 0.0118"- 0.0039"
Max. Height Under Spindle To Table: 12 1/2"
Vertical Head Travel: 6 1/2"

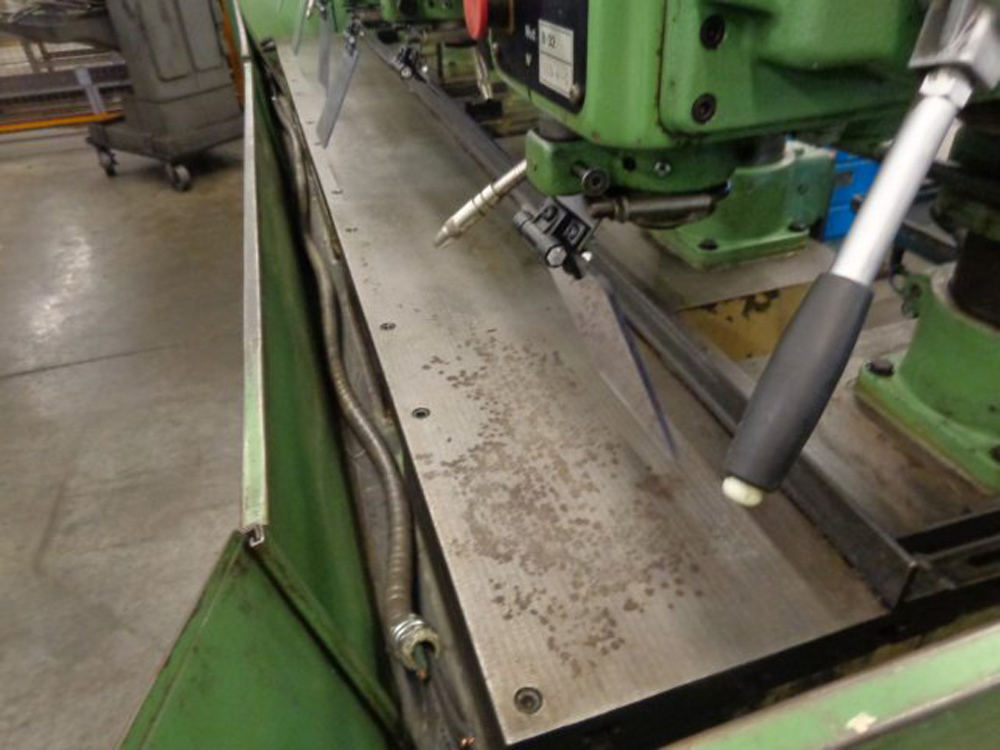

Table Size: 124" x 15 1/2"
Dimensions (L x W x H): 138" x 44" x 93"
Weight: 10,000 Lbs.

Equipped with

  • Coolant System
  • Note: There Are 4 A-32 Drill Heads & 2- B-32 Drill Heads
  • Horsepower: 2 Each Head
'
