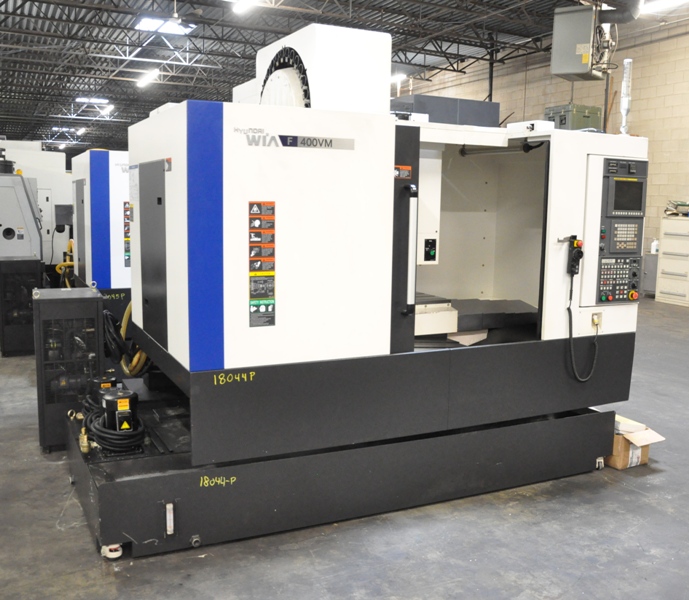

HYUNDAI WIA VERTICAL MACHINING CENTER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $45,500.00

HMC Stock No. 18044-P

Machine Serial No. G3661-0075

Machine Model No. F400VM

New Date: 2013

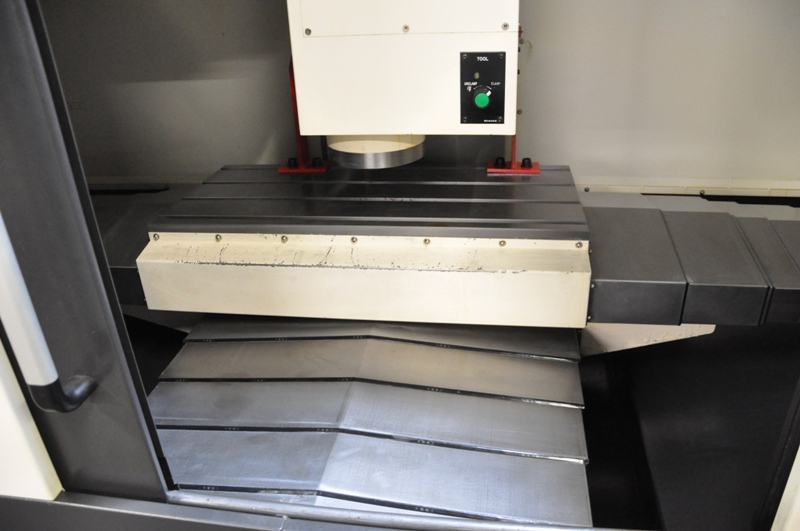

Table Size: 39.4" L-R x 18" F-B
Max. Table Load: 1,322 Lbs.
X-Axis Travel: 31.5"
Y-Axis Travel: 18"
Z-Axis Travel: 20.5"
Distance from Table to Spindle: 5.1" Min. to 25.5" Max.
Distance from Column Center to Spindle: 18.7"
Rapid Feed: 1400 Inches per Minute
Feed Rate: 390 Inches per Minute Max.
Slide Type: Linear Guide
Spindle Taper: CAT 40
Spindle RPM: 75 to 10,000 RPM
Tool Changer Style: Side Mount
Number of Tools: 30
Tool Selection: Random
Max. Tool Diameter: 3"/6"
Max. Tool Length: 11.8"
Max. Tool Weight: 17 Lbs.
Coolant Tank Capacity: 100.4 Gallons

EQUIPPED WITH:

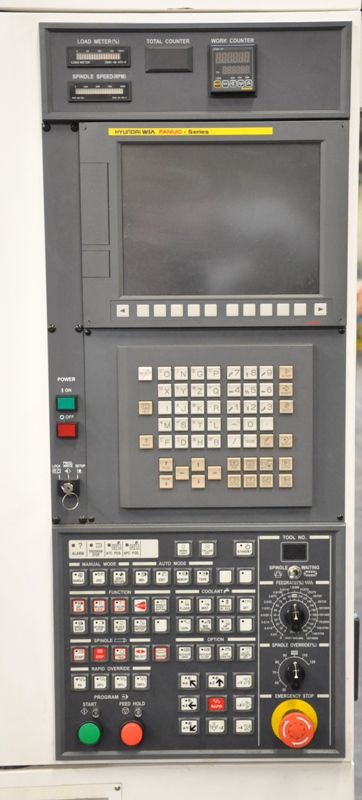

Fanuc FOi-MD Control
10.4" LCD
Through Spindle Coolant (20 BAR)
Work Counter
Top Cover
Spindle RPM Meter
Load Meter
Spindle Override
F400VM Instruction Manual
Fanuc Manuals
(31) Assorted CAT 40 Tool Holders
Leveling Feet
RS232C
Ethernet
USB
Hand Held RPG
Spindle Chiller

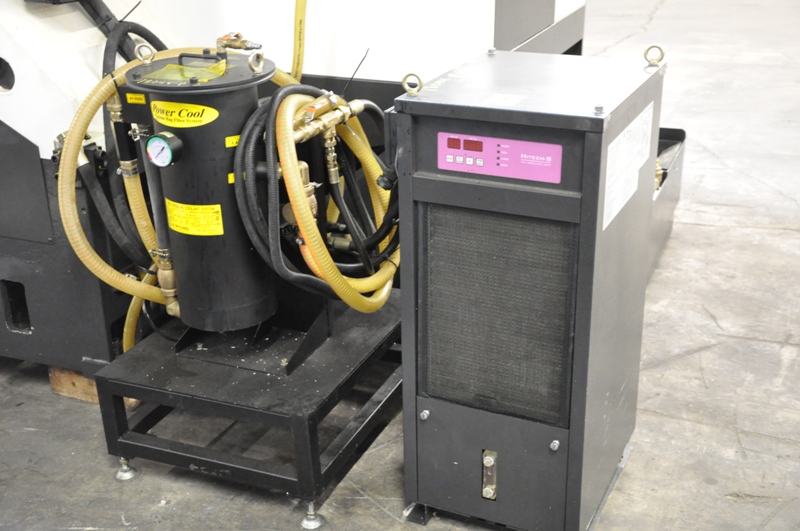

Power Cool Cyclone Bag Filter System
Spindle Output: 20/14.7 HP
Wired for 3 Phase, 60 Cycle, 220 Volts

DIMENSIONS:
Machine: 104" L-R x 76" F-B x 99" High (on 4" blocks) x 11,000 Lbs.

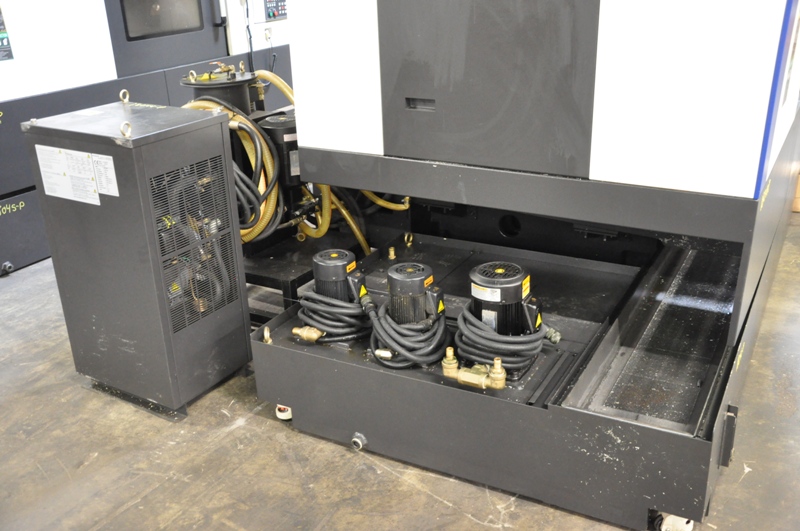

Coolant Pan: 114" L-R x 54" F-B x 24" High
Spindle Chiller: 20" L-R x 20" F-B x 40" High
Coolant Filter: 24" L-R x 24" F-B x 40" High
