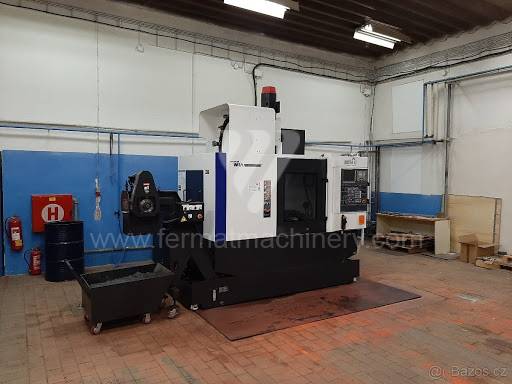

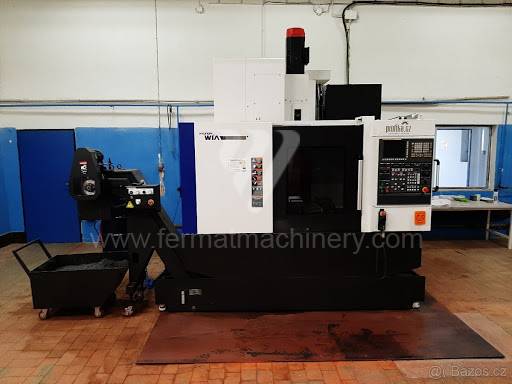

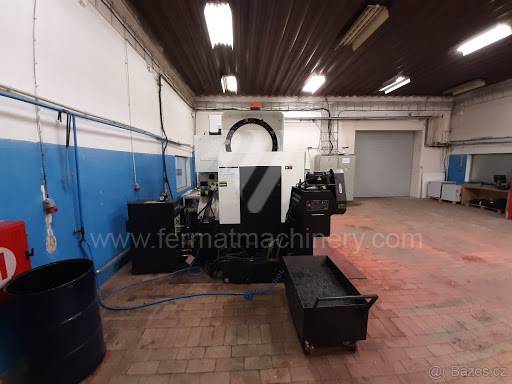

HYUNDAI VERTICAL MACHINING CENTER / F 400

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


F 400
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
new
5100 (KG)
2017
$58,800.00

Description

Product number ..... 201917

Producer ..... Hyundai

Year manufacture/Year overhaul ..... 2017

Control system Fanuc ..... Fanuc 32i

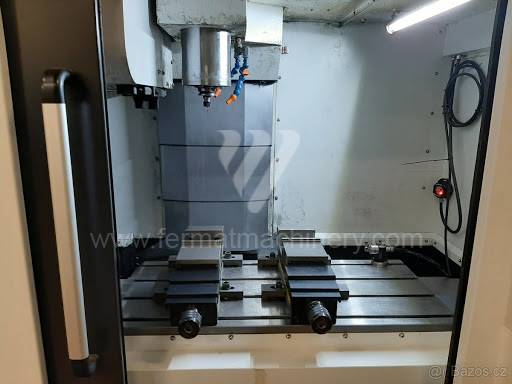

Clamping area of table ..... 1000 x 460 mm

Travel X-axis ..... 800 mm
Travel Y-axis ..... 460 mm
Travel Z-axis ..... 520 mm

Spindle speed ..... 0 - 12000 /min.

Number of driven axes ..... 3

Cooling through spindle
Pressure of cooling ..... 20 bar
Spindle taper ..... BT 40 .

Max. load of table ..... 600 kg

Machine dimensions l x w x h ..... 2450 x 2100 x 2833 mm

Machine weight ..... 5100 kg

Number of positions in magazine ..... 24

EN: The machine is in good technical condition, in operation 3 000 hours.

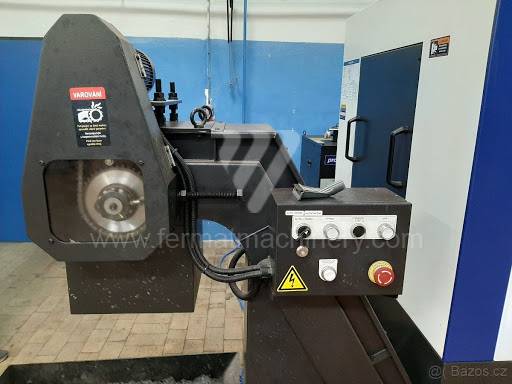

Chip conveyor - to the side, chip cart, spindle cooler, transformer incl. cabel
Renishaw TS27R tool probe
Renishaw OMP 60 workpiece probe
FANUC Al Contour control II software option
HW-MCS software option
HW-AFC software option
possible to test under power
accessories: compressor, pressure tank, air dryer
the price without this equipment - 2100000,-
Selling price ..... 58 873 USD
Change of technical parameters reserved. The validity of our offers is subject to intermediate sale.
