SKT300MS
SKT300MS0009
Lathes and Turning Centers CNC
Slant Bed Turning center
used
14500 (LB)
2006
$59,000.00

Description

Description & Specifications

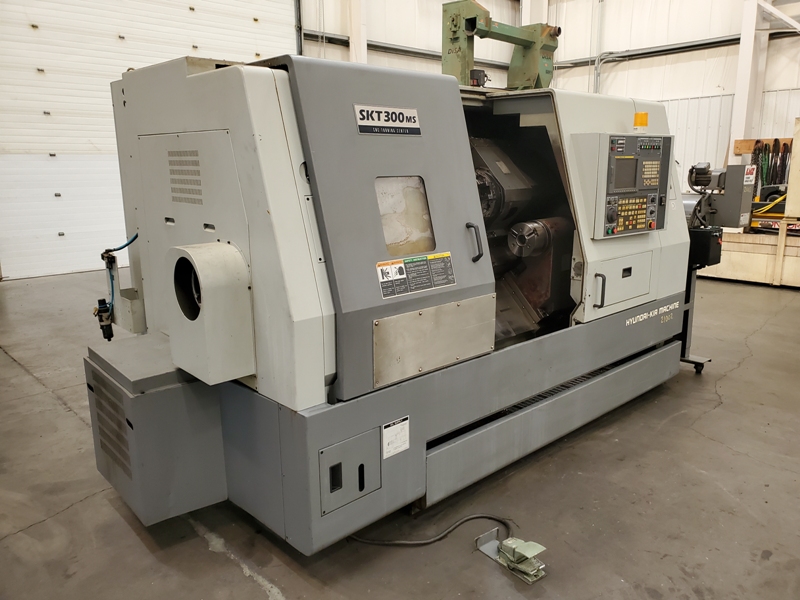

HYUNDAI KIA SKT300MS 4 AXIS CNC TURNING CENTER

PRICE: Loaded on Truck, Our Warehouse, York, PA      $79,500.00

HMC Stock # 21002

Machine Serial No.: SKT300MS0009

Machine Model No.: SKT300MS

New Date: January 2006

AXISES: X, Z, C, B

Swing Over Cross Slide: 18.90"

Swing Over Bed Way Cover: 29.53"

Maximum Turning Length: 26.77"
Maximum Turning Diameter: 19.69"
Bar Capacity: 3.54" (without existing chuck system)
Spindle Nose: A2-8 Direct Mount
Maximum Workpiece Weight: 311 Lbs. Chucking
Maximum Workpiece Weight: 521 Lbs. Center Work

MAIN SPINDLE: C AXIS
Hole Thru Installed Chuck Draw Tube: 2-1/8"
Hole Thru Spindle Chuck: 2-1/4"
Hole Thru Chuck Actuator Tube: 3-1/2"
Chuck on Main Spindle: 8" Samchully 3 Jaw Hydraulic,
Model HS-08, 5000 RPM Max., Fine Serrated Master Chuck Jaws (NO hard jaws)
Chuck on Sub Spindle: 8" Samchully 3 Jaw Hydraulic,
Model HS-08, 4600 RPM Max., Fine Serrated Master Chuck Jaws (NO hard jaws)
Headstock: 2 Step Geared Drive
C Axis Dividing Capacity: 0.001 Degree

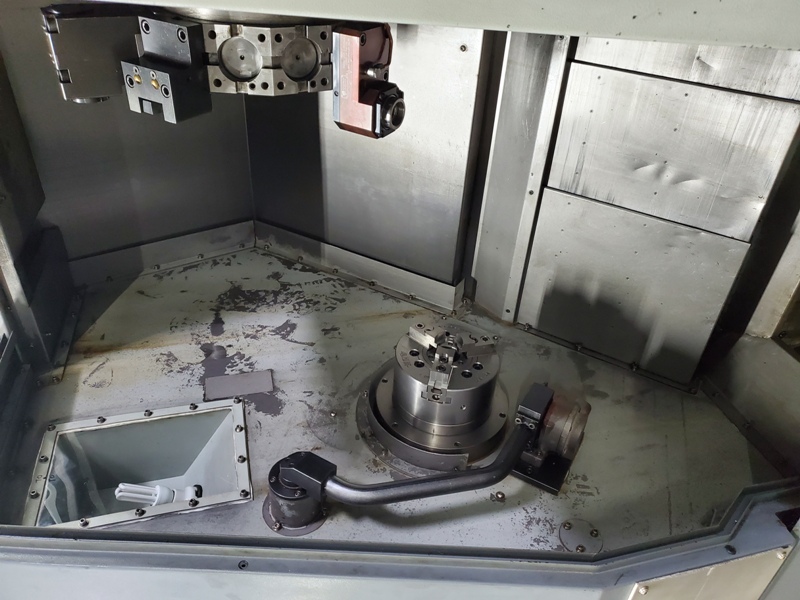

SUB SPINDLE: B AXIS
Sub Spindle Swing Over Cross Slide Ways: 9-5/8"
Sub Spindle Swing Over Bed Way Cover: 15-1/2"
Spindle Nose: A2-6 Direct Mount
Bar Work Capacity: 2.56"
Sub Spindle Speeds: 20 to 750 RPM

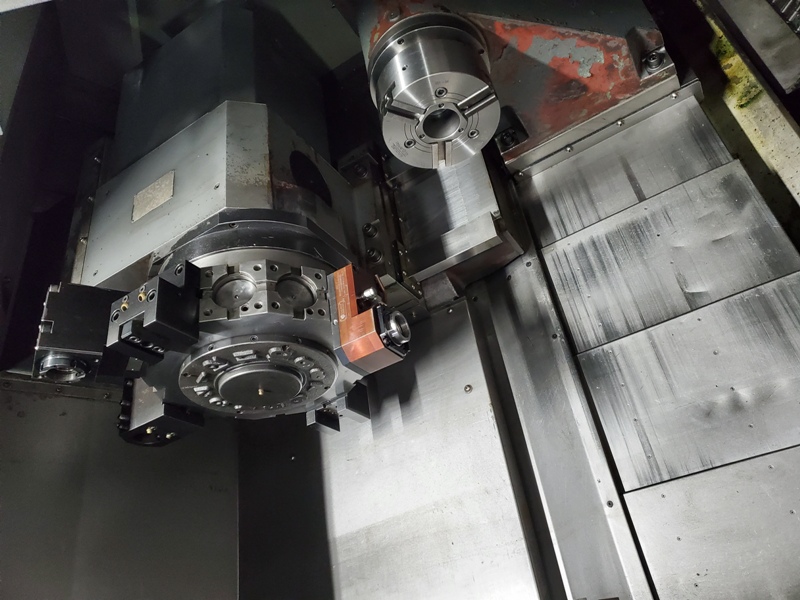

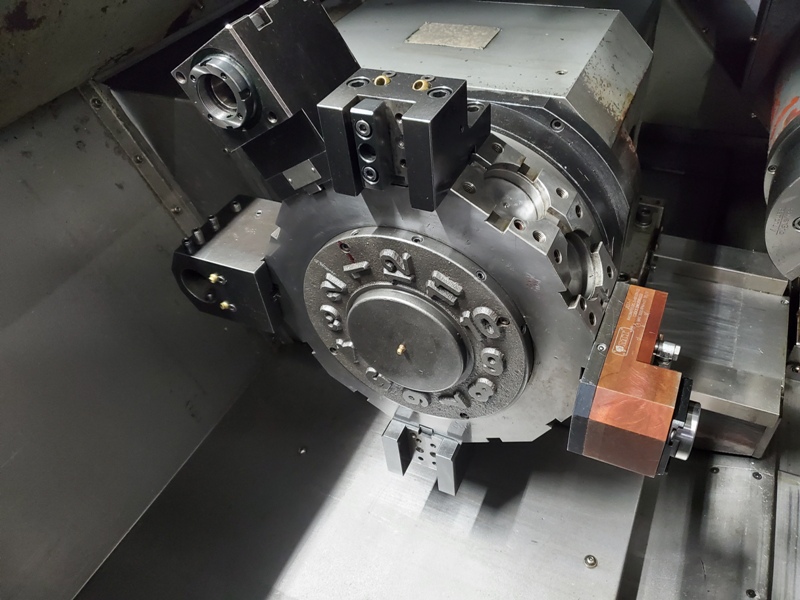

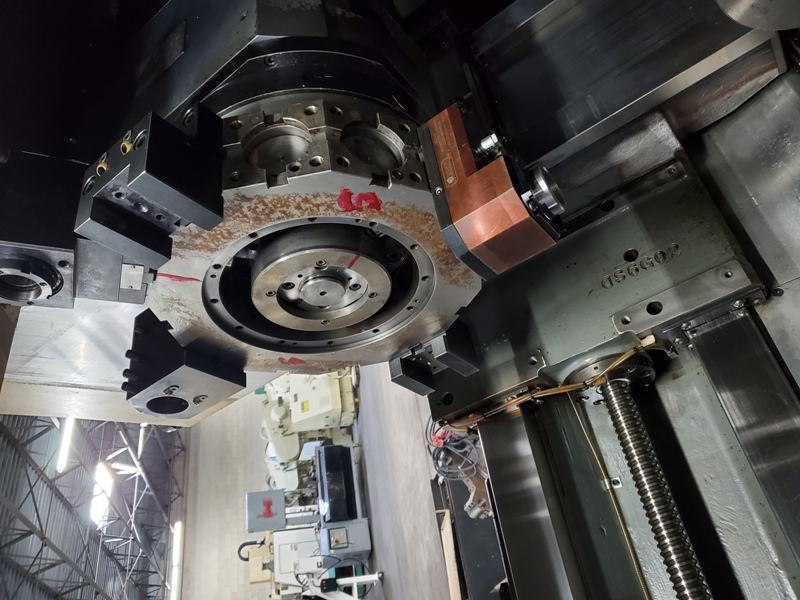

TOOL TURRET:
Number of Tools: 12
Tool Size: 0.98" OD, 1.97" ID
Cutting Capacity: 0.79" Endmill, M16 Tap

EQUIPPED WITH:
Swing Down Tool Setting Probe
12 Position Tool Turret
(2) Live Milling Tools

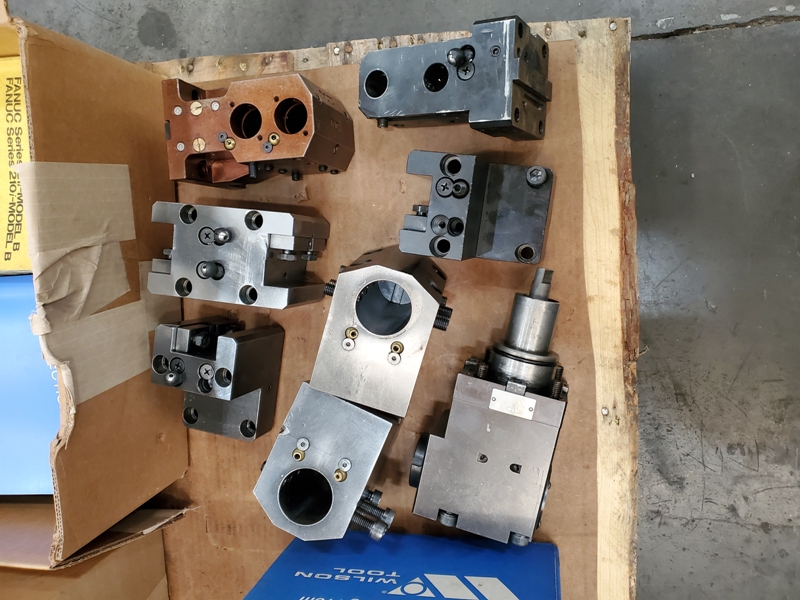

(10) Assorted Turret Tool Holders

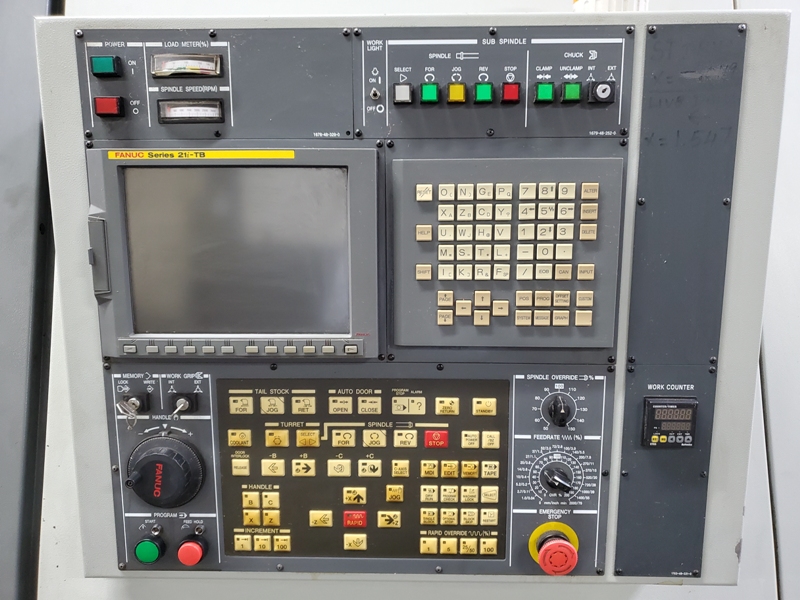

Fanuc Series 21i-TB CNC Control
32 MB Control Card
NC Parameter Data Sheet
RS232C Communications Port (25 pin)
110 Volt Outlet on Operators Console
Hyundai and Fanuc Operation, Schematics, Programing and Other Manuals
45 Degree Slant Bed Frame Construction
Spindle RPM and Load Meters
Plug In Interface for Bar Feed and Power (NO bar feed system)
Independent Adjustable Chuck Pressure Controls with Gages
Foot Pedal for Chuck Operation
LNS Link Belt Chip Conveyor, S/N 38277, Model 5475974
Chip Conveyor Auto or Manual Cycle Control
Chip Conveyor has Forward and Reverse Operation
Height Under Chip Conveyor Exit Chute: 44"
Chip Pan Coolant System on Wheels

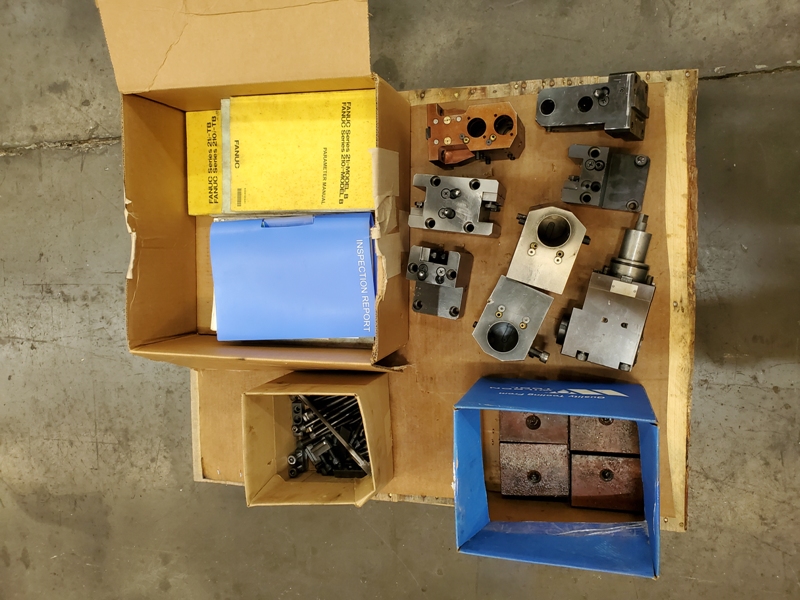

Assorted Manuals, Tool Holders, Soft Chuck Jaws and Miscellaneous
Designed for But Not Supplied: Thru the Door Parts Chutes

Chip Conveyor Motor: 0.2 KW, 230/460 Volts
Coolant Pump Motor: 1.5 KW, 220/240/380/440 Volts
Main Spindle Motor: 40/35 HP
Sub Spindle Motor: 15/10 HP
Machine is Presently Wired for 3 Phase, 60/50 Hz, 240 Volts
Control Voltage is AC, 100/110 Volt, DC 24 Volt

DIMENSIONS:

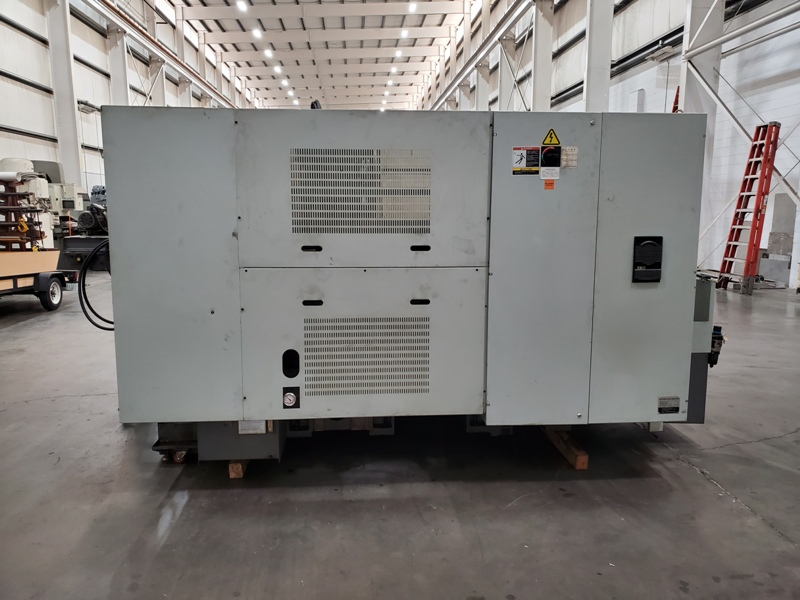

Machine: 127" LR x 80" FB x 82" High (on 4" blocks) x 14,500 Lbs.
Chip Conveyor: 130" Long x 26" FB x 64" High x ? Lbs.
Chip Pan Coolant System: 100" Long x 56" Wide x 21" High x ? Lbs.
Skid with Accessories: 32" x 40" x 14" High x ? Lbs.

To See Factory Specification and Operation Manual go to:
http://www.hildebrandmachinery.com/21002-huyndaioperationmanual.pdf
