HYUNDAI KIA SKT-V5L HIGH PERFORMANCE CNC VERTICAL TURNING CENTER - 2009 - 3193

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SKT V5L
Vertical Turret Lathes VTL
Vertical Turning Center.
used
22046 (LB)
2009
$0.00

Description

Overview:

Type: Vertical Turning Center, Vertical Turning Center CNC

Manufacturer: HYUNDAI KIA

Model: SKT V5L

Condition: Used - Excellent

Year: 2009

Stock #: 3193

Status: For Sale

Description:

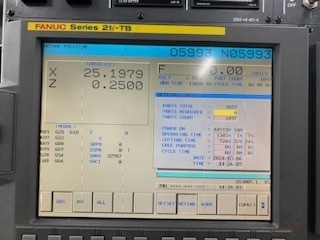

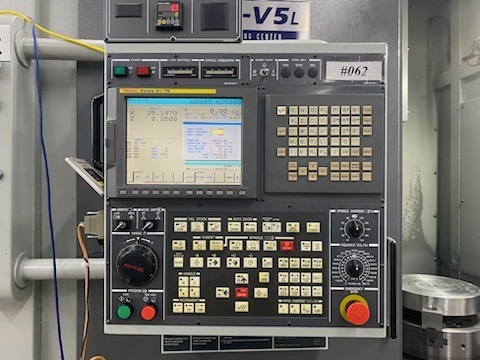

Fanuc 21i-TB Control

Note: Tools in turret NOT included

General Capacity

Maximum Swing 31.54 in

Maximum Cutting Diameter 21.7 in

Maximum cutting length 23.6 in

X-axis travel 12.8 in

Z-axis travel 24.6 in

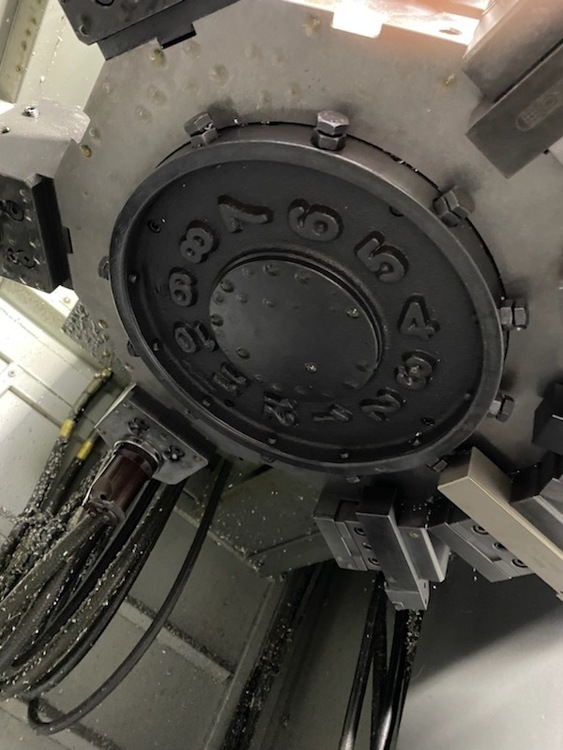

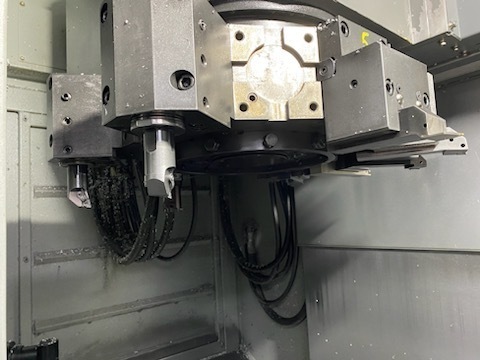

Turret (Bi-directional)

Type Hydraulic index motor

No. of Tools 12

Index Time 0.8 sec.

Square tool shank 1.0 in

Round tool shank 2.0 in

Clamping force 17,416 lbs

Spindle:

Spindle nose ASA A2-11

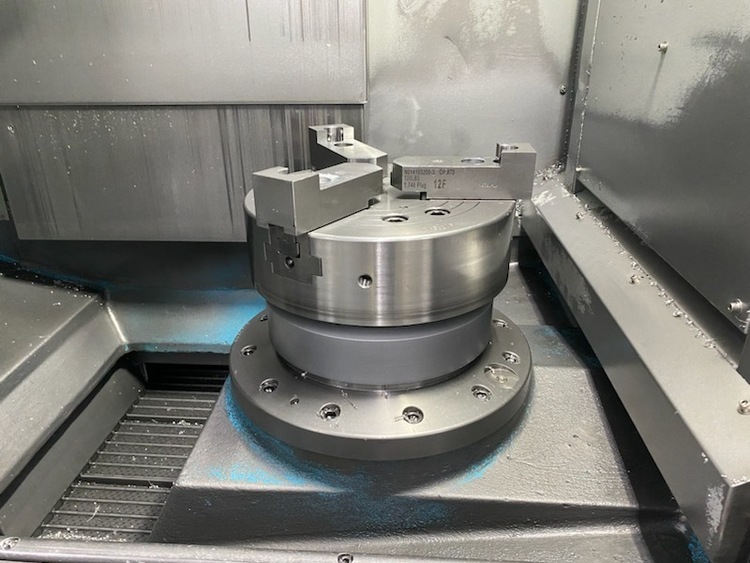

Chuck Size 15 in

Spindle speed range 20~2,000 rpm

Full power range 256 ~ 1,528 rpm

Max. torque 607.6 ft-lbs

Motor (30 min.) 30 HP

Standard through hole 2.46 in


Machine:

Ball-Screw diameter X/Z 2.0 in / 2.0 in

Ball Screw pitch X/Z 0.39 in/ 0.47 in

Guide LM Guide (Ball)


Feed System:

Rapid Traverse X/Z 787 / 709

Maximum cutting feed 197 ipm

Motor power X/Z 4.0 ./ 5.3 HP


Hydraulic:

Tank Capacity 13.2 Gallons

Operating pressure 996 psi


Coolant:

Coolant Volume from nozzle Gallons per Minute

Tank capacity 53 Gallons

Pump capacity 52.8 gallons per minute

Load Capacity

Chuck Work 1,102.3 lbs

Center Work lbs


Static Accuracy:

X axis repeatability +/- 0.00012 in

Z axis repeatability +/- 0.00012 in

Turret indexing =/- 0.0000 degree


Electric Supply:

Voltage 200 ~ 220 AC, 3 Phase

KVA 60


Equipped with:

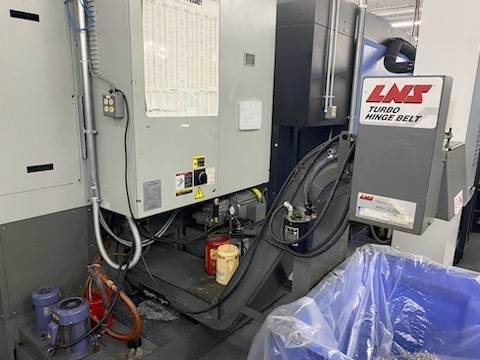

Chip Conveyor (Side, Hinge type)

15 in 3 Chuck open/close confirming device

Auto Door

Door Interlock

Turret upgrade to 12 Station


Machine Weight 22,046 lbs

Floor space 73 in x 111.0 in

Machine height 115.35
