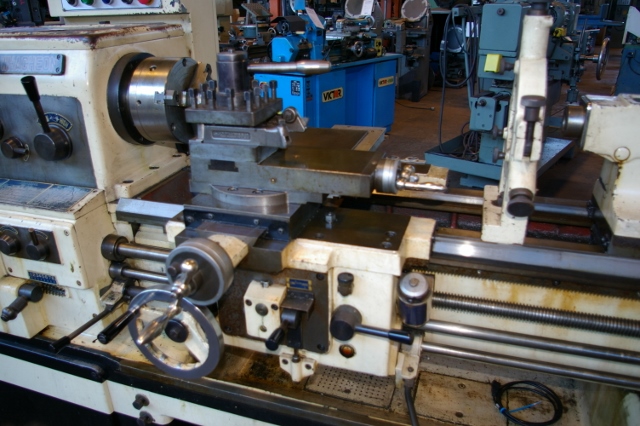

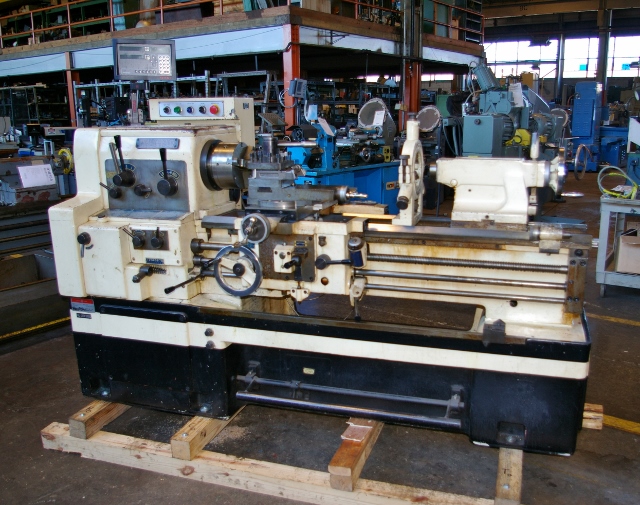

17"/25" X 40" HWACHEON GAP BED LATHE
MODEL WL435
SWING OVER BED ---------------------------- 17-1/8"
SWING OVER CROSS SLIDE -------------------- 9-3/4"
SWING OVER GAP ---------------------------- 25-9/16"
LENGTH OF GAP ------ ( FROM FACEPLATE ) --- 7-7/8"
DISTANCE BETWEEN CENTERS ------------------ 40"
SPINDLE NOSE ------------------------------ D1-6"
SPINDLE BORE ------------------------------ 2-3/64"
SPINDLE SPEEDS ----- ( 12 ) --------------- 32 TO 1800 RPM
THREADING RANGE ---- ( METRIC ) ----------- .5 TO 7 MM
MAIN DRIVE MOTOR -------------------------- 5 HP 220/440
( CURRENTLY RUNNING ON 220 VOLTS )
EQUIPPED WITH ---

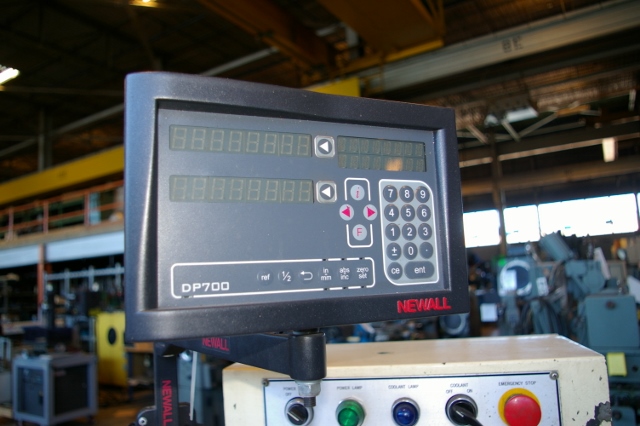

NEWALL 2 AXIS DIGITAL READOUT

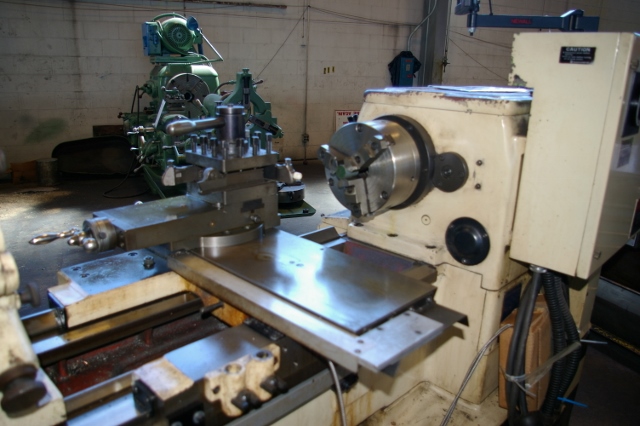

8" 3 JAW CHUCK
4 JAW CHUCK
METRIC THREADS
STEADY REST
TOOLPOST & HOLDERS
THREADING DIAL
COOLANT SYSTEM
STOCK# 80168
