HURCO VM20I VERTICAL MACHINING CENTERS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Vm20i
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
9039 (LB)
0
$144,000.00

Description

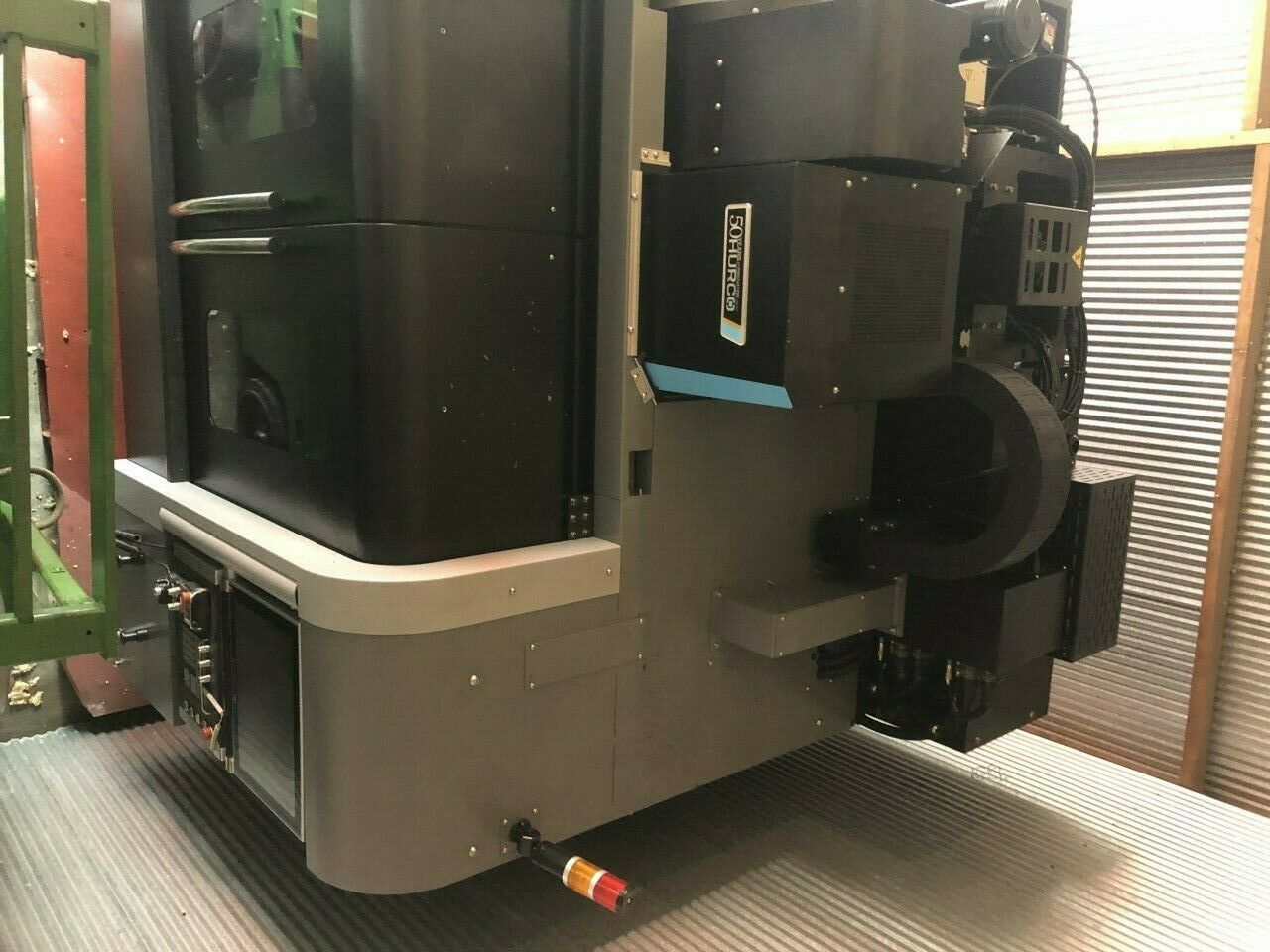

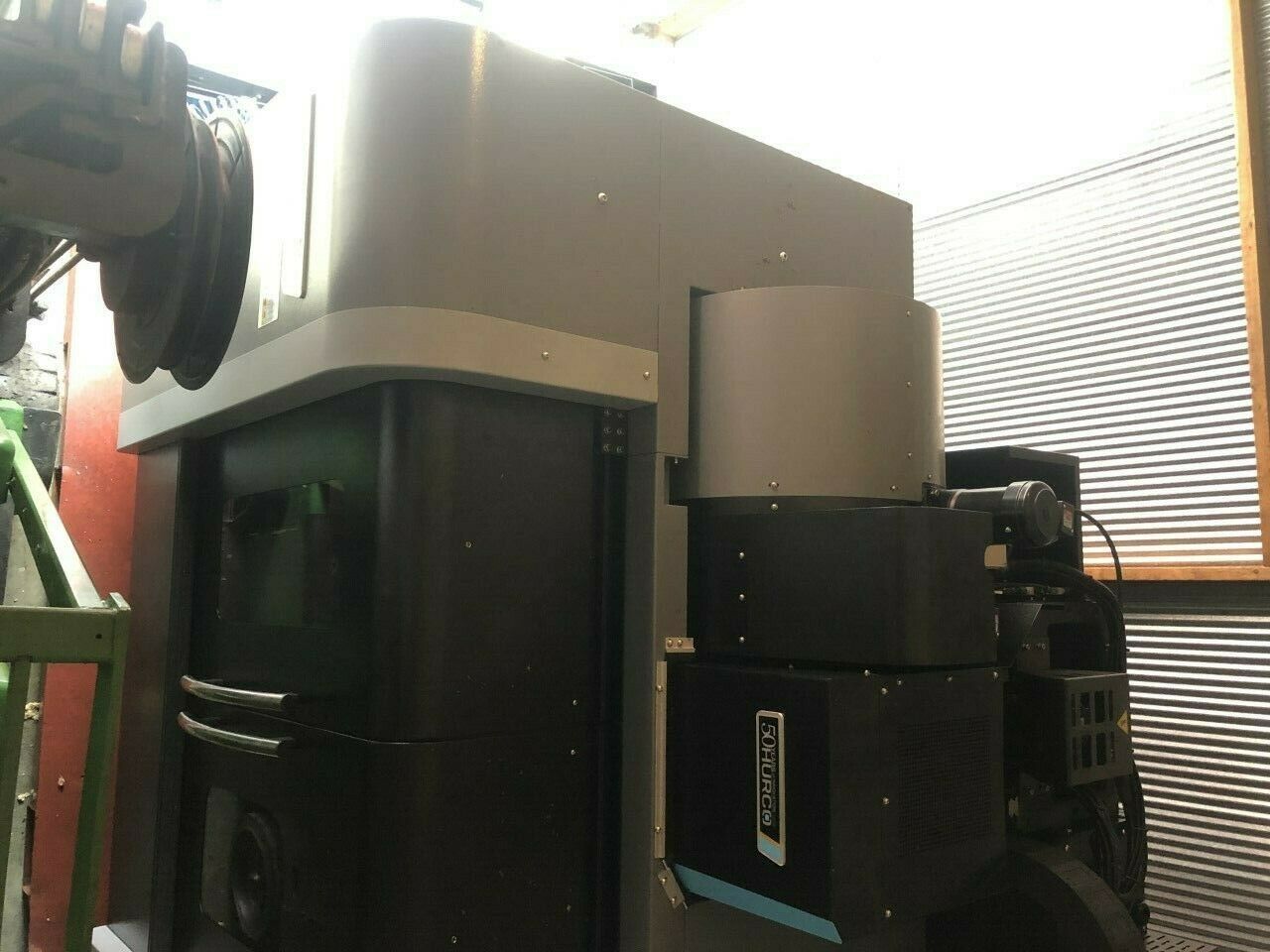

2019 Hurco VM20i 3+2 Axis Vertical Machining Center 12K RPM Spindle includes Trunnion Table Lehmann T1-505510 TOPS1 ($65K Option) Makes this 5 Axis Capable (see more info below)

*******     Machine has hardly been used at all  ********

This is like buying a new machine. It only has a few hours of cut time on it.

7 Calendar Power Up Warranty

Since this machine is not under power nor can it be put under power we will give you 7 days to power it up after you get it. If you find anything wrong with it after you get it we then will fix it at our discretion or take it back at our discretion. If we do have you send it back then you will have to pay the freight (insured back).

Please wait for your shipping quote and invoice before sending payment.

Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashiers check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.

EZ Systems Stock#: ez47462

Machine Location: Cincinnati, OH 45204

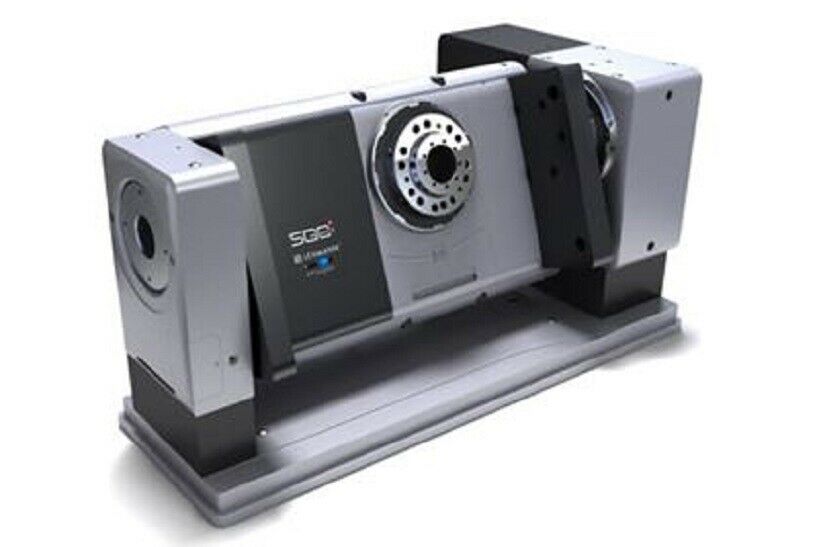

Trunnion Rotary Table included with machine is Lehmann T1-508510 Tops1


TRUNNION SIZE IS A 180MM BUT MADE A 6 INCH FACE PLATE FOR THE 5TH AXIS. SO YOU CAN MOUNT ANY THING YOU WANT ON TOP OF IT. ITS FULL SIMULTANEOUS 5 AXIS WITH INDEXING.


TRUNNION SPEED IS 210 RPM IN 4TH AND 70 RPM IN 5TH. HALF REVOLUTION IN 4TH AT FULL SPEED IS .23 OF A SECOND AND .63 OF A SECOND FOR HALF REVOLUTION IN 5TH.


WAS TOLD BY HURCO THAT IT IS CURRENTLY THE FASTEST HURCO 5 AXIS SIMULTANEOUS WISE IN THE UNITED STATES WITH THE TRUNNION THAT IS ON IT. MACHINE WAS GOING TO BE DEDICATED TO CUTTING BILLET COMPRESSOR WHEELS 5 AXIS SIMULTANEOUS 24/7 BUT COULD BE USED FOR ANYTHING.


The Trunnion with this machine is made by Lehmann. It is model T1-508510 Tops1

It is T1 - Type Rotary Table Top (Clamped Counter Bearing)

Technical Specifications on the this model trunnion can be found on pages 38 and pages 39 of the following
pdf document at this address lehmann-rotary-tables dot com/en/pdfcollector/viewer/230711?pageNum=38

Trunnion Capability:
5 Axis Indexing
5 Axis simultaneous


FEATURES/OPTIONS
5 Max Controller
20 Tool ATC
Retention Knob Kit 20 pc CAT40, CTS or Non-CTS
Spindler Chiller

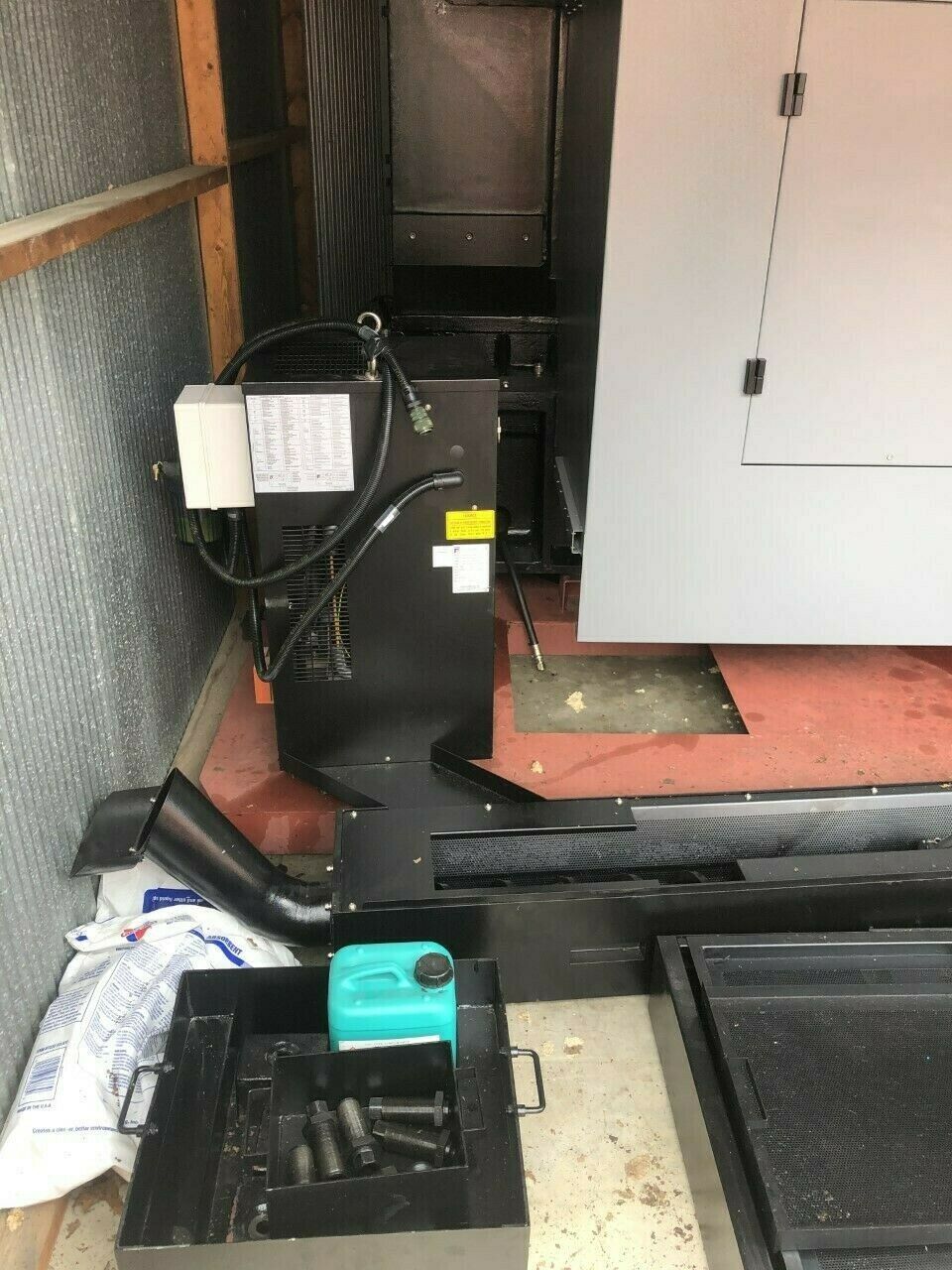

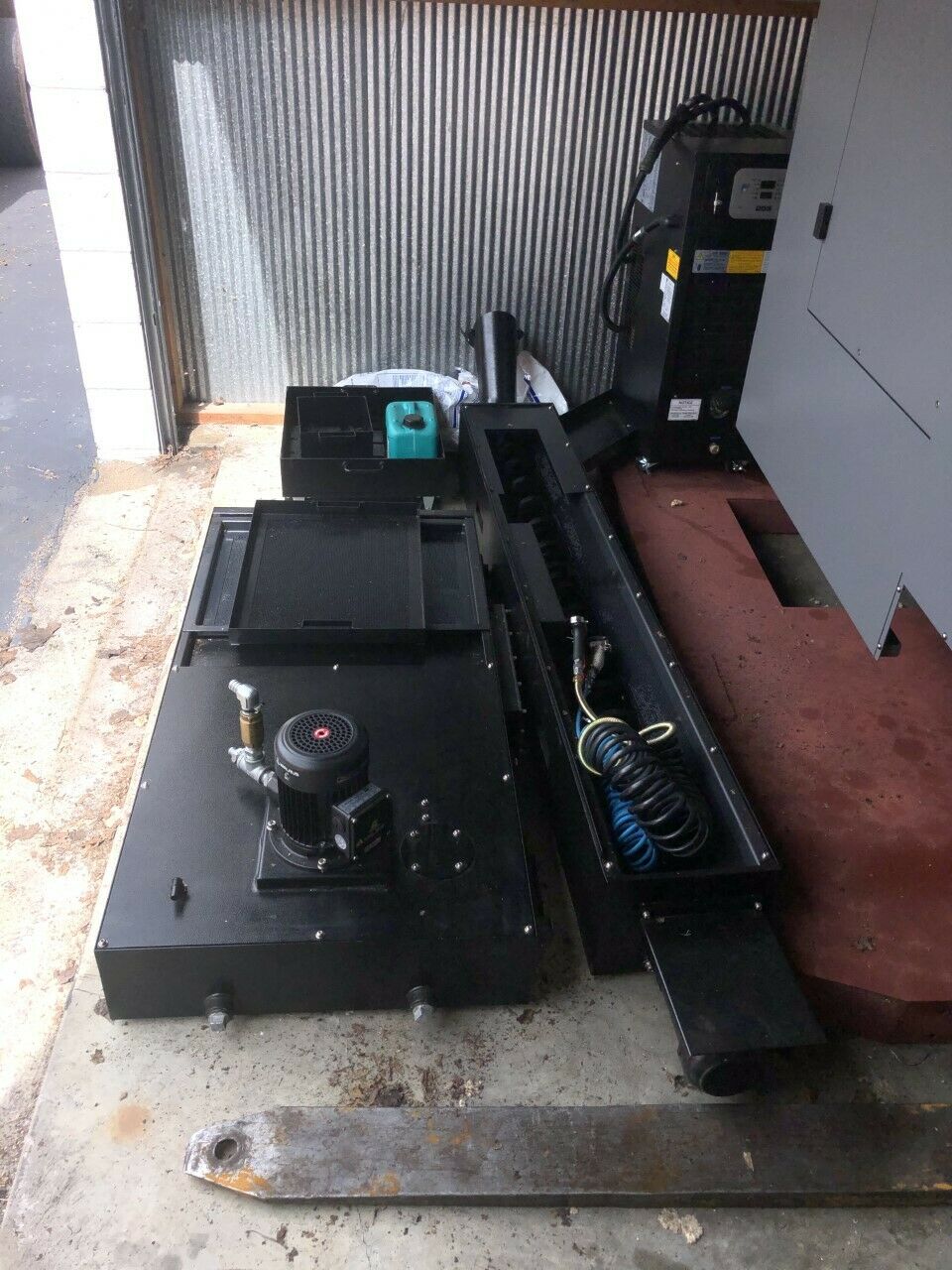

Chip Auger Assembly for VM20i Series
Winmax Classic Package includes Advanced Verification Graphics, ISNC, NCMP, Select Service Finish
and Keyboard Assembly
Rigid Tap
Lehmann Rotary Table Model T1-508510 Tops1 including Yaskawa Motor and Cable Set
with Hurco Interface


TRAVELS & CAPACITY


X, Y, Z Axis Travel 40 x 20 x 20 in (1016 x 508 x 508 mm)
Table Size46 x 20 in (1,168 x 508 mm)
Max. Weight on Table 3970 lbs (1800 kg)
Spindle Nose to Table Min/Max4.0 in / 24 in (101.6 mm / 609.6)
T-Slot Size5 x .71 in (5 x 18 mm)

SPINDLE

Max. Spindle Speed 12000 rpm
Spindle Power (peak - 1 min)20 hp (15.0 kW)
Spindle Torque (peak - 1 min)60 ft-lbs @ 1740rpm (81 Nm @ 1740 rpm)

TOOL CHANGER

Tool Type CAT 40 / Big Plus (BT 40)
Number Of Tools 20
Max Tool Diameter 3.5 in (90 mm)
Max Tool Length 9.8 in (250 mm)
Max Tool Weight 15.4 lb. (7 kg)

FEEDRATES

Rapid Traverse X,Y,Z Axis 945 in/min (24 m/minute)
Max Programmable Feedrate 945 inches/minute (24 m/minute)

SIZE

Max Operating Floor Space   145 x 118
Machine Height 101.5 in (2,576 mm)
Machine Weight 9,039 lbs (4,100 kg)
