Specifications Tonnage: 67 tons Overall length bed/ram: 100 in
Distance between housings: 86-1/2 in
Ram depth stop style: Programmable
Upacting or downacting: Downacting
Ram tilt adjustment: Powered
Backgauge range: 24 in
Number of gauging axis: 4
R axis travel: 8 in
Manual or powered Z axis: Powered
Number of backgauge fingers: 2
Stroke length: 6-1/2 in
Throat depth: 14 in
Clamp style (American or European): American
Ram clamps (sectionalized or solid bar) Sectionalized
Hydraulic or manual clamping: Manual
Crowning type: CNC
Number of cylinders: 2
Advance speed: 472 IPM
Pressing speed: 1.8 - 23 IPM
Die holder type: Standard single groove
Bed height: 33 in
Bed cap width: 3 in
Main motor: 7.5 H.P.
Voltage: 220 / 440 volt 3 phase Currently wired: 440 volt 3 phase
Dimensions: 118 in x 80 in x 94 in
Weight: 14,550 lbs.

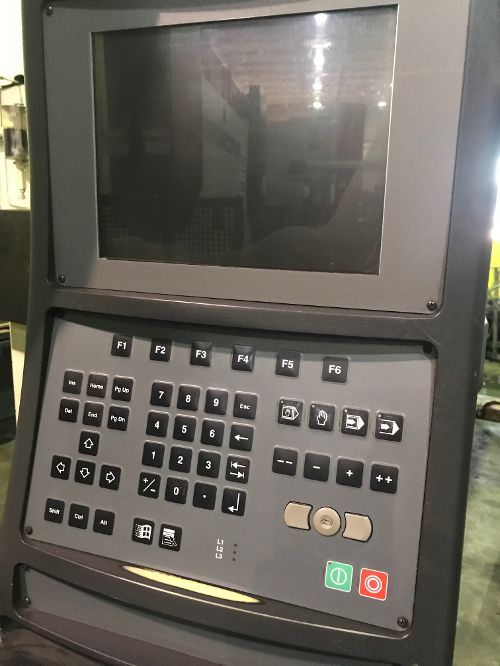

Cybelec DNC1200 CNC control
CNC crowning in bed
One shot lube system
SICK light curtains
Portable foot pedal

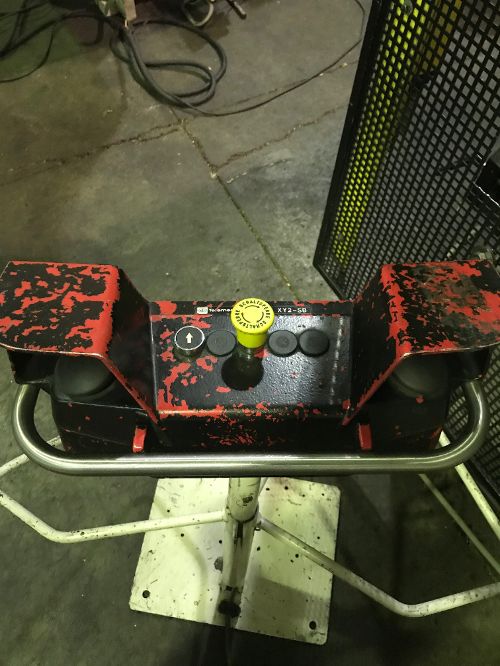

Portable palm button station
Full length die holder
Price: $17,500.00
Mark Ostrander| Inside Sales
FORGE manufacturing solutions
E: mark@Forge-USA.com | C:608-807-6182
