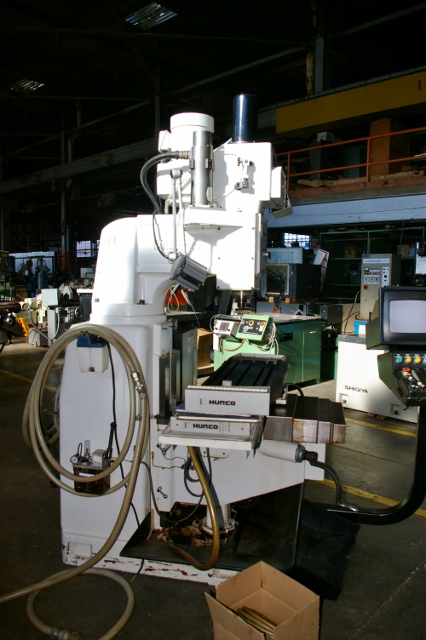

HURCO HAWK 5M MODEL KM5P 3 AXIS CNC KNEE MILL

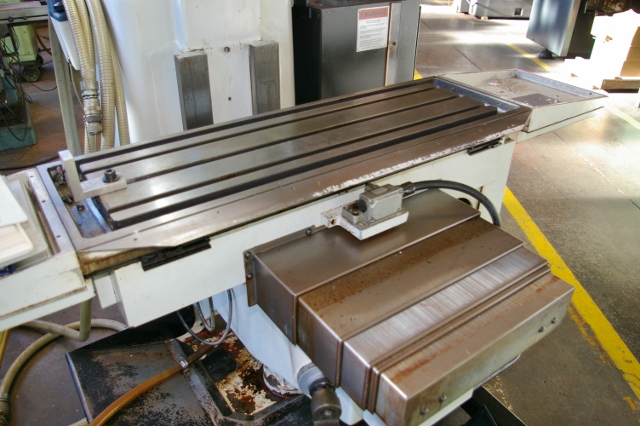

TABLE SIZE -------------------------------- 42" X 13"
TRAVEL ------- ( X ) ---------------------- 31"
TRAVEL ------- ( Y ) ---------------------- 14"
QUILL TRAVEL - ( Z ) ---------------------- 6"
KNEE TRAVEL, MANUAL ----------------------- 15"
TABLE LOAD CAPACITY ----------------------- 800 LBS.
SPINDLE TAPER ----------------------------- CAT40
SPINDLE SPEED RANGE ( CNC PROGRAMMABLE ) -- 70 TO 3800 RPM
SPINDLE NOSE TO TABLE ( MIN./MAX. ) ------- 4.5"/19.5"
SPINDLE DRIVE MOTOR ----------------------- 5 HP A.C.
EQUIPPED WITH ---

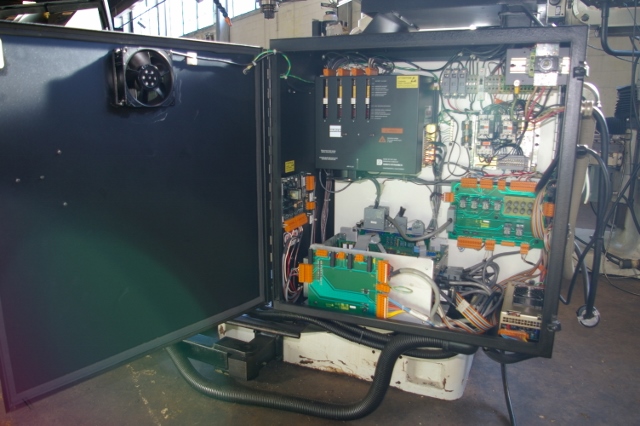

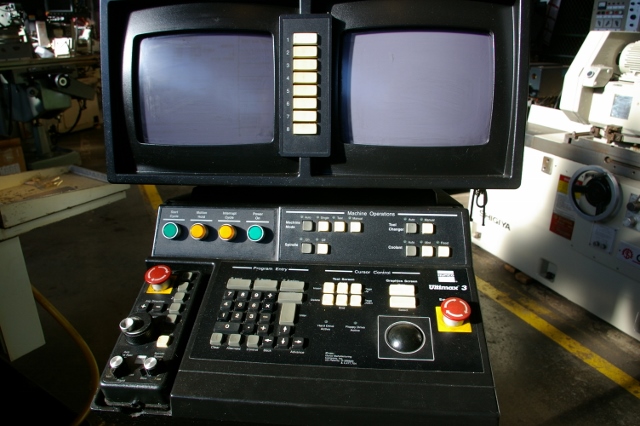

ULTIMAX 3 TWIN SCREEN CNC CONTROL ( GRAPHIC SCREEN NOT WORKING )
POWER DRAW BAR
SOME TOOL HOLDERS
CARD FOR 4TH AXIS
PROGRAMMABLE SPINDLE SPEEDS
AUTOMATIC LUBRICATION
COOLANT SYSTEM
WORKLIGHT
STOCK# 18217
