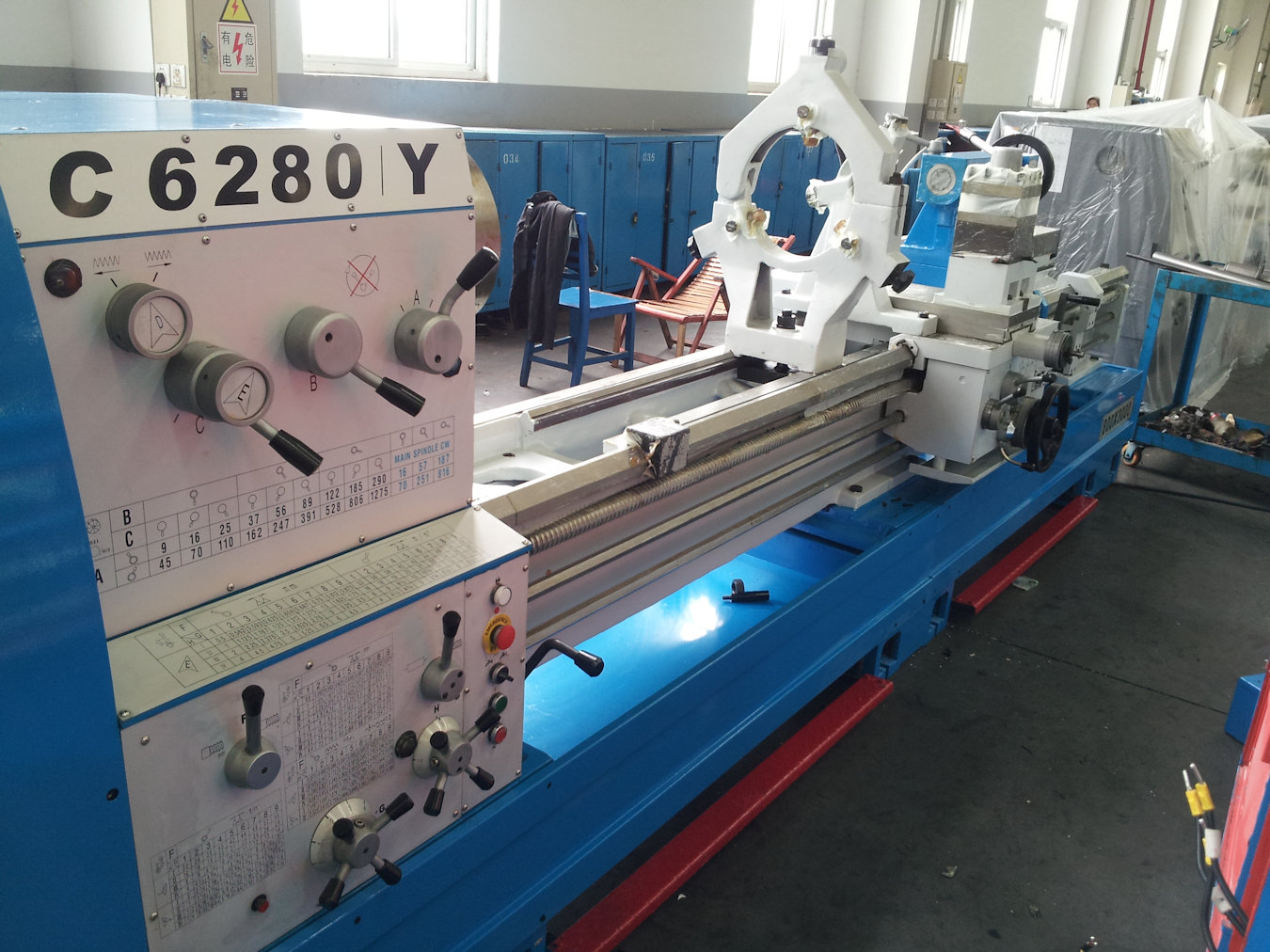

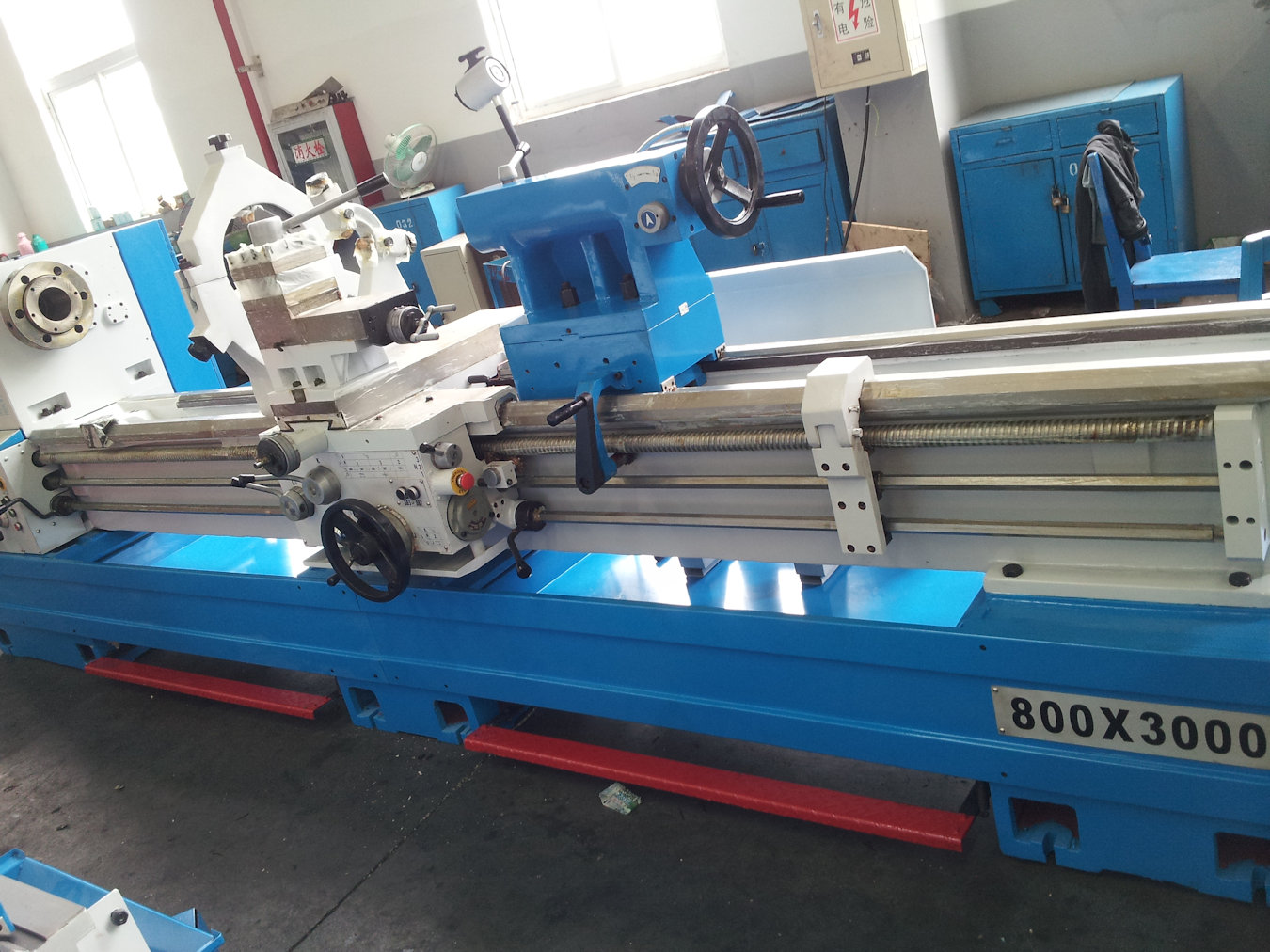

Model C6280Y, 31.5" Swing over bed, 39" Swing in 11"L gap, 120" Between centers, 4" Thru hole, Max travel of compound rest 4.33", Max travel of cross slide 12.79", In/mm Threading, Longitudinal lead screw pitch 2TPI, 72 Longitudinal feed ranges from 0.073 to 4.066 mm/rev, 72 Cross feed ranges from .036 to 2.033 mm/rev, 72 Metric thread ranges from 0.5 to 112mm, 72 Inch thread ranges from 56 to 1/4", 36 Module thread ranges from 0.5 to 7mm, 36 Diametric thread ranges from 56 to 4DP, Dia. of tailstock sleeve 3.54", Morse taper No. 6 on tailstock, Travel of tailstock sleeve 5.9", Cross adjustment range 0.393", 11kw 220/380/440v 3ph 60hz, Standard accessories: 3 Jaw chuck, Driving plate, Center & center sleeve, Wrenches, Oil gun, Operation manual, Optional accessories: Longitudinal automatic trip, Live center, Quick change tool post, Taper copy ruler, 4 Position longitudinal automatic trip, Overall shipping Dim. 15 10"L x 4 4"W x 7H, Est. Wt. 10,360 lbs.
To view more information on the HOSTON REMOVABLE GAP BED 31" - 39" X 120" - "NEW", including reviews, brand information, photos, videos, and more,
