Used Drills Manual And CNC For Sale - HOLEMASTER 5-12, TABLE FIXTURE

Brand: HOLEMASTER 5-12, TABLE FIXTURE

Model: HOLEMASTER 5-12

Serial No. :

Category: Drills Manual and CNC

Sub Category: Radial Drill

Condition: used

Weight: 6900 (LB)

Year Built: 0

Status:

Price: $0.00

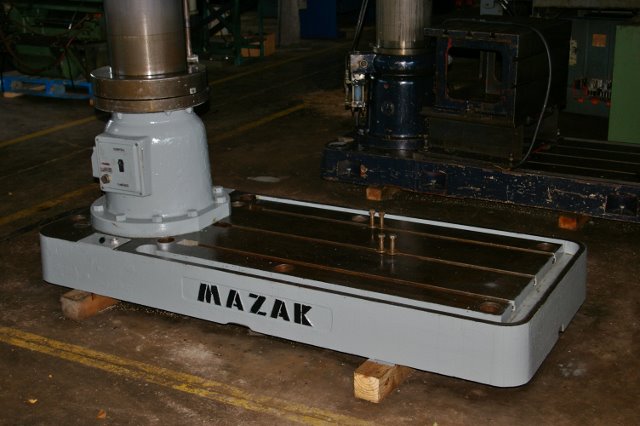

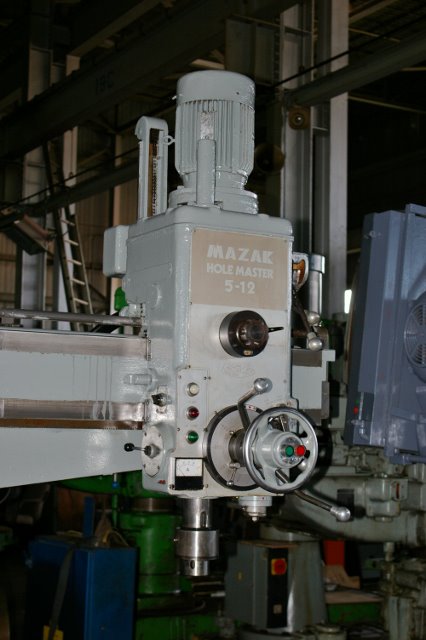

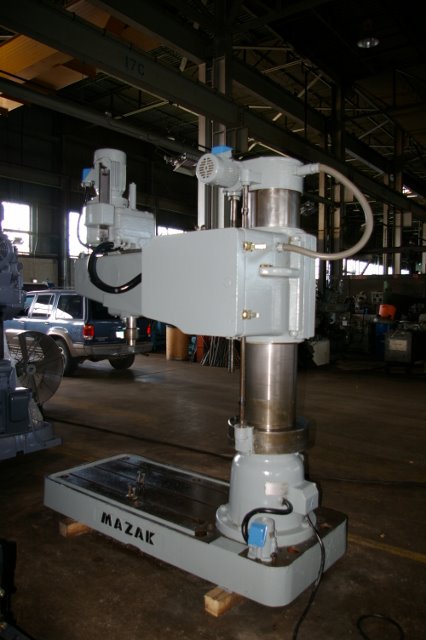

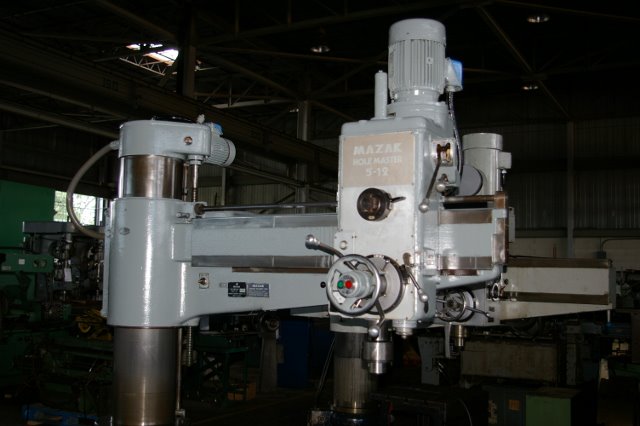

5 X 12" MAZAK HOLEMASTER 5-12 RADIAL DRILL MANUFACTURED STOCK# 18512
MAXIMUM DISTANCE SPINDLE TO COLUMN -------- 58"
COLUMN DIAMETER --------------------------- 12"
SPINDLE TO BASE -------------------------- 47-1/2"
TAPER ------------------------------------- #5 MT
CAPACITY DRILLING -- ( MILD STEEL ) ------- 2"
CAPACITY DRILLING -- ( CAST IRON ) -------- 2-3/8"
CAPACITY TAPPING --- ( MILD STEEL ) ------- 1-9/16"
CAPACITY TAPPING --- ( CAST IRON ) -------- 1-3/4"
SPINDLE SPEEDS ----- ( 12 ) --------------- 38 TO 2030 RPM
SPINDLE FEEDS ------ ( 6 ) --------------- .0030 TO .040 IPR
SPINDLE DRIVE MOTOR ----------------------- 5 HP A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 6,900 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 96"(LR) X 40"(FB) X 80"(H)

EQUIPPED WITH ---
TABLE FIXTURE
POWER ELEVATION
DRILL/TAP

Dimension (IN) : N/A
