Description & Specifications

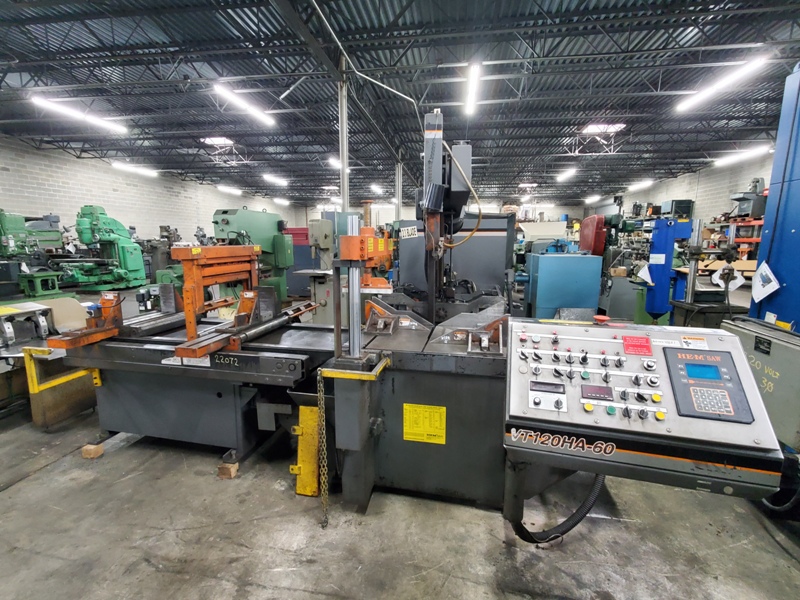

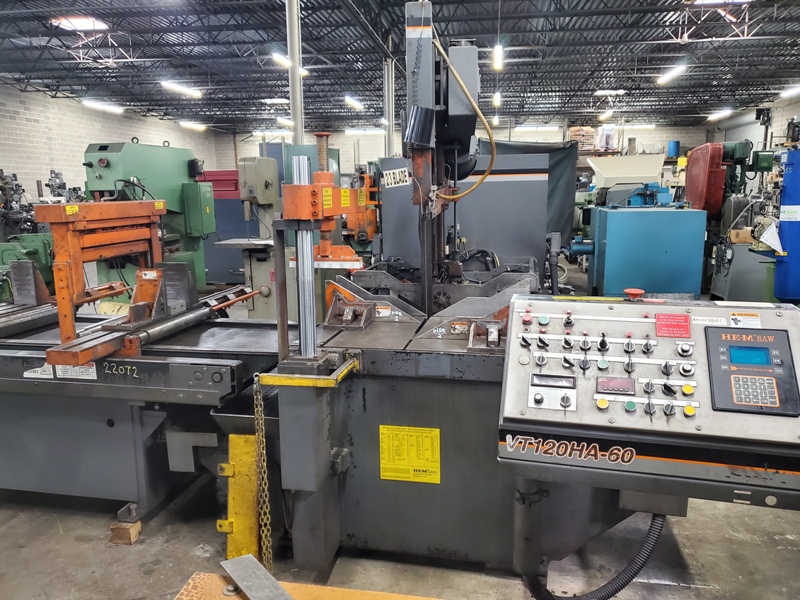

HEM TILT FRAME VERTICAL AUTOMATIC BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA $49,500.00
HMC Stock # 22072
Machine Serial No.: 1049408
Machine Model No.: VT120HA-60
New Date: 2008
CAPACITY:
@ 90 Degrees: 18" Wide x 24" High
@ 45 Degrees, Left Tilt: 18" Wide x 16" High
@ 45 Degrees, Right Tilt: 18" Wide x 14.75" High
@ 60 Degrees, Left Tilt: 18" Wide x 10" High
@ 60 Degrees, Right Tilt: 18" Wide x 9" High
Arm Canted: 4 Degrees
Blade Speed: 65 to 300 SFM
Blade Size: 1-1/4" x .42" Thick x 16 6" Long
Bar Feed: 0 to 48" Stroke with Multiple Index
EQUIPPED WITH:

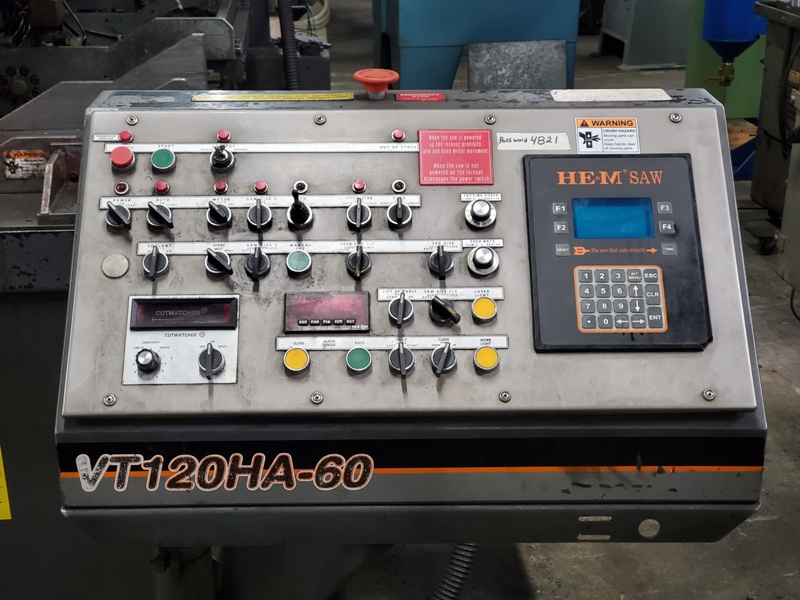

HEM Saw Digital Touch Pad Control (Not a Touch Screen)
Powered Programmable Tilt
Powered Blade Tension
Carbide Blade Guides
Blade Brush
"Cutwatcher" System

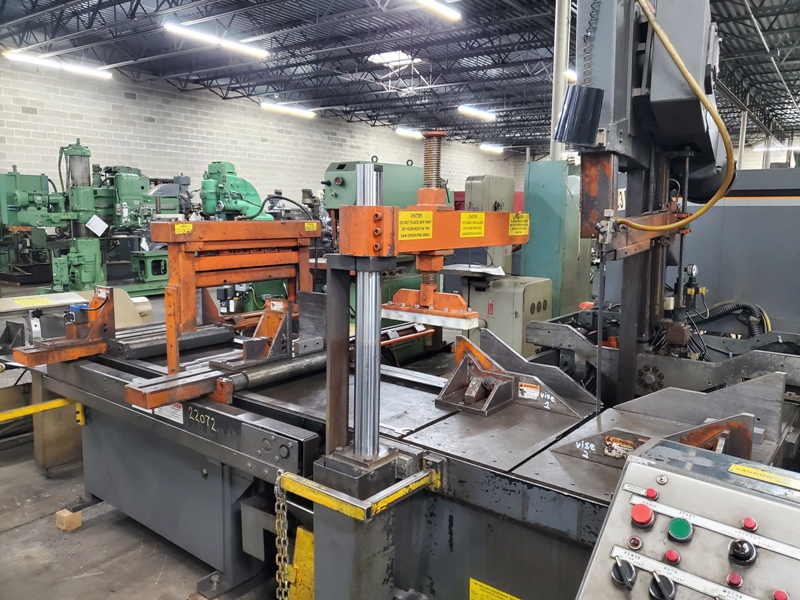

Full Stroking Main and Feed Vise
Idle Base Rollers
Flood Coolant
E-Stop
Lock-Out Key
Panic Mode
Broken Blade Alarm
Out of Stock Alarm
Optional Second Main Vise
Optional Third Vise on Feed Table
Optional Swing Away Top Clamp
Optional Top Clamp on Feed Vise
Powered Adjustable Upper Blade Guide Arm
7.5 HP Main Motor
5 HP Hydraulic Motor
Swing Away Style Control Console
Wired for 3 Phase, 60 Cycle, 440 Volts
OVERALL SIZE FOR SHIPPING:
Saw: 90" LR x 114" FB (Control Removed) x 98" High x 7,000 Lbs.
Bar Feed: 84" LR x 72" FB x 67" High x Weight TBD
Overall Size Assembled: 174" LR x 128" FB x 98" High
click on VIEW MORE INFORMATION to see the operating manual
