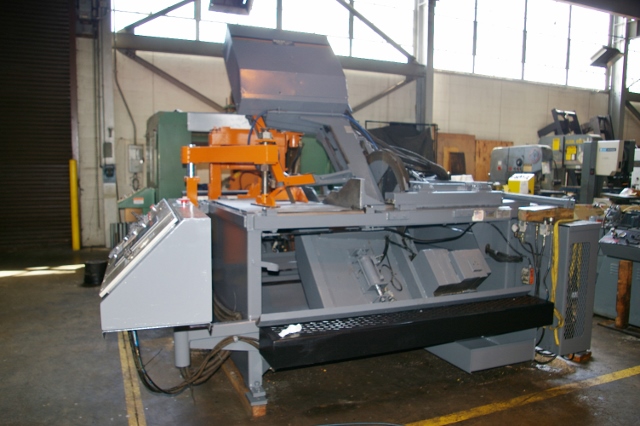

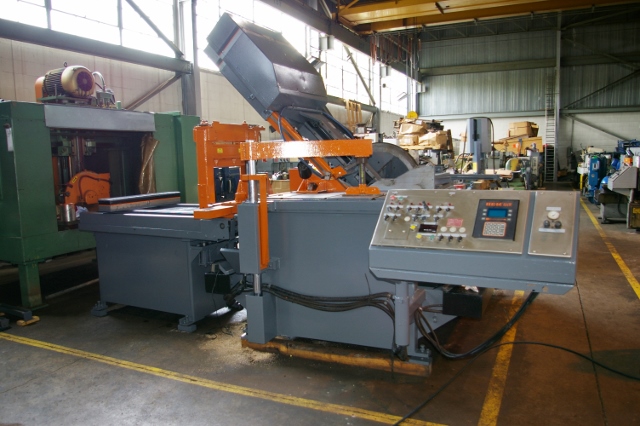

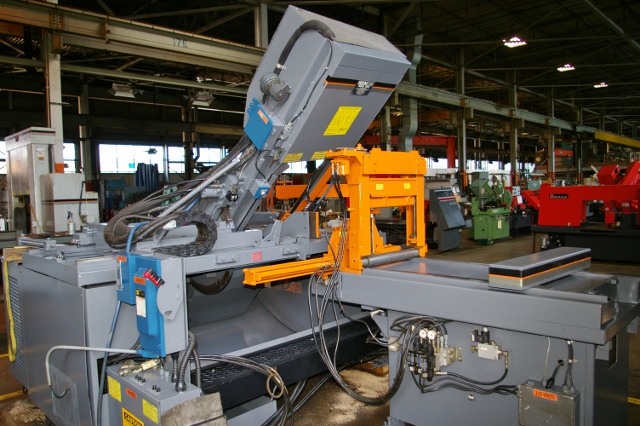

20" X 24" HEM #VT130HA-60 AUTOMATIC TILT FRAME VERTICAL BAND SAW
WITH 60 DEGREE TILT
CAPACITY ---- ( 90 DEGREES ) -------------- 20" X 24"
CAPACITY ---- ( 45 DEGREES ) -------------- 20" X 16"
CAPACITY ---- ( 60 DEGREES ) -------------- 20" X 10"
BLADE SIZE -------------------------------- 1.5" X 19 X .050"
BLADE CANT -------------------------------- 4 DEGREES
BLADE DRIVE MOTOR ------------------------- 10 HP 220/440/3/60
HYDRAULIC MOTOR --------------------------- 5 HP 220/440/3/60
BLADE SPEED ------------------------------- 75 TO 400 SFPM WITH READOUT
CUTTING PRESSURE -------------------------- 0 TO 400 PSI
BLADE FEED RATE --------------------------- 0 TO 3 IPS
POWER TILT -------------------------------- 60 DEGREES LEFT OR RIGHT
FEED STROKE ------------------------------- 0 TO 48" ( MULTIPLE INDEX )
EQUIPPED WITH ---
BUNDLING TOP CLAMP TO SAW VISE AND FEED VISE COOLANT SYSTEM
COMPUTER CONTROLLED FEED SYSTEM CHIP CONVEYOR
PROGRAMMABLE TILT ( 60 DEGREES ) LED BLADE SPEED READOUT

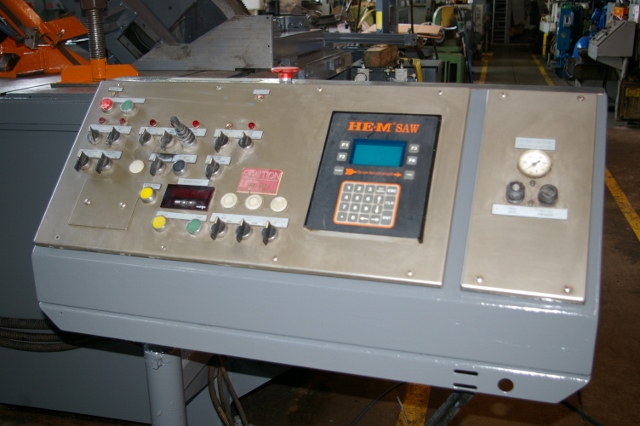

POWER TILT WITH ANGLE READOUT SWING AWAY CONTROL PANEL
VARIABLE VISE PRESSURE FULL STROKING VISES
POWER GUIDE ARM POWER BLADE TENSION
STOCK# 18367
