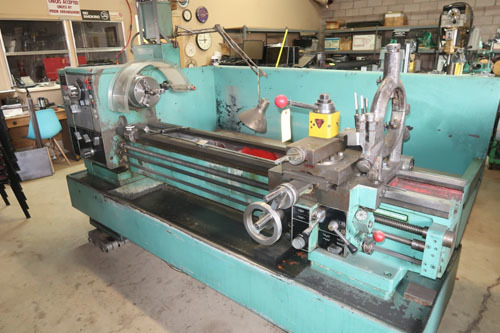

Harrison - Engine Lathe | 21" x 60"

HARRISON - ENGINE LATHE | 21" X 60"

Add to Your File

Brand: HARRISON - ENGINE LATHE | 21" X 60"

Model: M500

Serial No. : 501359-1185

Category:

Sub Category:

Condition: used

Weight: (6)

Year Built:

Status:

Price: $0.00

Description

Basic Information

Model: M500
Manufacturer: Harrison
Serial #: 501359-1185
Location: Huntington Park, CA
Year Built: -

Specifications

Swing Over Bed: 21"
Swing Over Cross Slide: 14.5"
Distance Between Centers: 60"
Spindle Speeds (18): 31- 1,600 RPM
Spindle Nose: D1- 8
Hole Through Spindle: 3"
Threads:
Inch (51): 2- 84 TPI
Metric: 0.2- 14 MM
Feeds: 0.0016"- 0.112"
Cross Slide Travel: 12"
Tailstock Quill Travel: 6"
Tailstock Quill Taper: #5 MT
Dimensions (L x W x H): 115" x 45" x 57"
Weight: 6,000 Lbs.

Equipped with

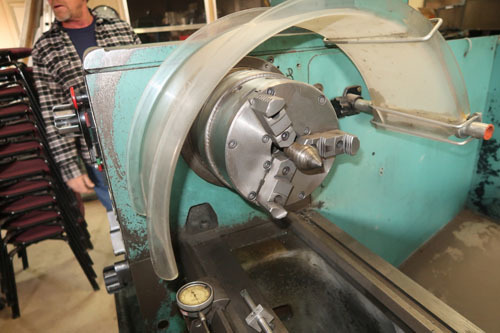

Buck Adjust True 3 Jaw Chuck
Steady Rest
Turret Type Carriage Bed Stop

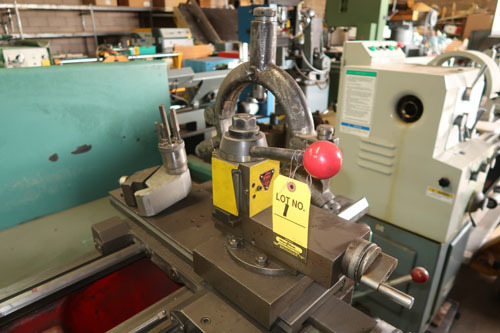

Tool Post
Carriage Stop With Indicator
Chuck Guard
Splash Guard
Note: Missing Tailstock
Horsepower: 16.5
