SPECIFICATIONS:
Reference # GMT-1679

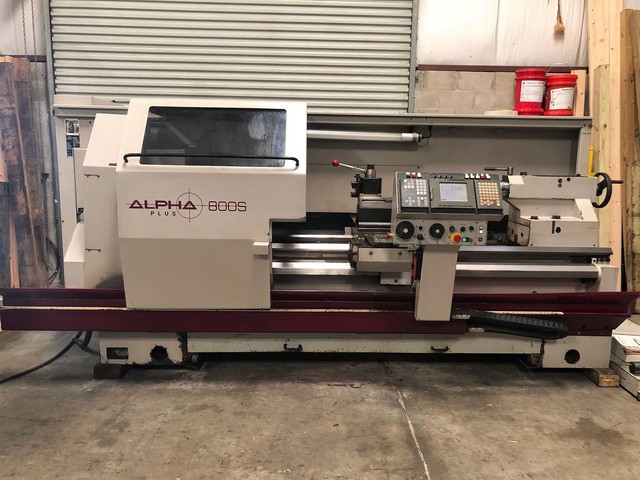

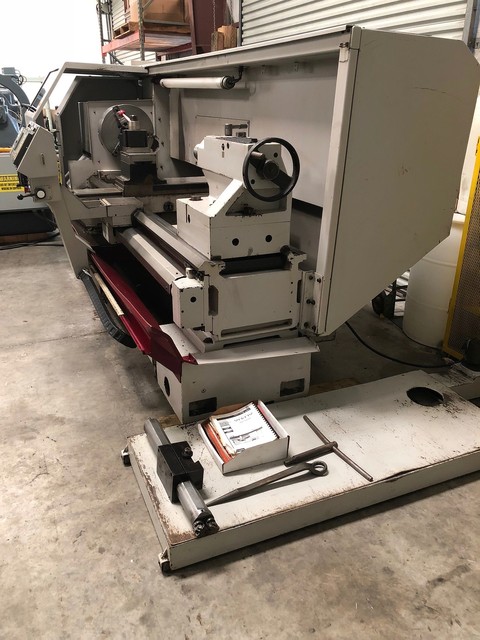

Model # ALPHA PLUS 800S

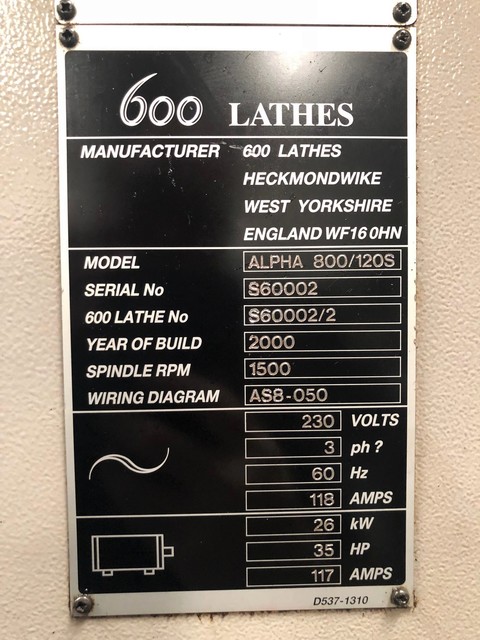

Serial # S60002
Year of Manufacture 2000
Swing over bed 31-1/2 in
Swing over cross-slide 20-1/4 in
Spindle bore 4-3/4 in
Spindle nose D1-11 Camlock
Spindle speeds (2 infinitely variable ranges) 15 to 611 R.P.M. / 40 to 1500 R.P.M.
X axis ball screw diameter 1-1/4 in Z axis ball screw diameter 2 in
Longitudinal feedrate (manual) 0.001 in to .0016 in/rev
Longitudinal feedrate (CNC) 4000 mm/min max
Radial feedrate (manual) 0.001 in to 0.024 in/rev
Radial feedrate (CNC) 5750 mm/min max
Feedrate over ride range (manual) 50 to 150 percent
Feedrate over ride range (CNC) 0 to 150 percent
Rapid traverse speed (guards closed)- X- 4000 mm/min / Z- 10000 mm/min
Rapid traverse speed (guards open)- X- 4000 mm/min / Z- 10000 mm/min
Longitudinal threading feed (manual & CNC) 5750 mm/min (max)
Width of bed ways 21.65 in
Cross slide travel 15-3/4 in

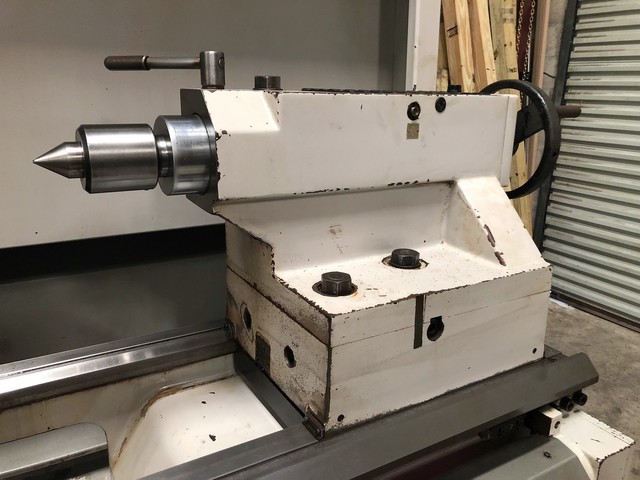

Tailstock quill diameter 4-3/4 in
Tailstock quill travel 8-1/4 in
Tailstock taper #6 Morse
EQUIPPED WITH: FANUC 21 CNC Control

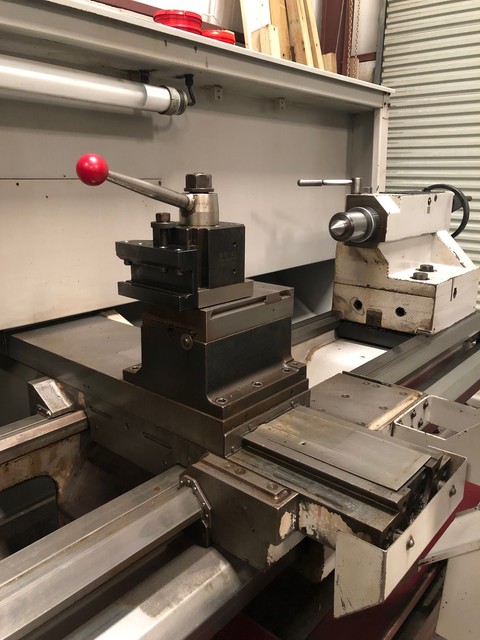

DORIAN Tool Post & (2) Holders 18 in

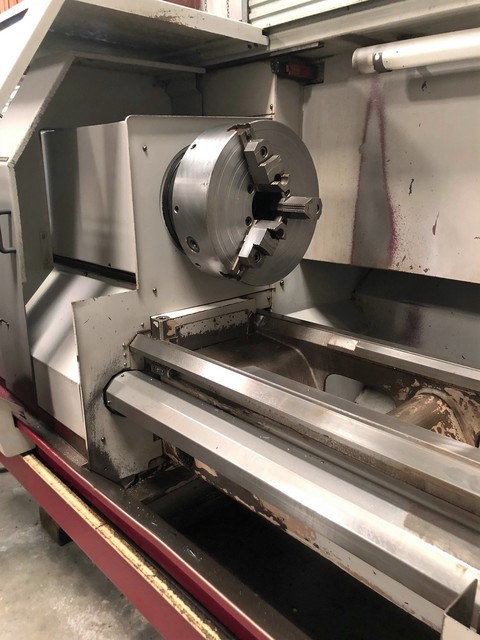

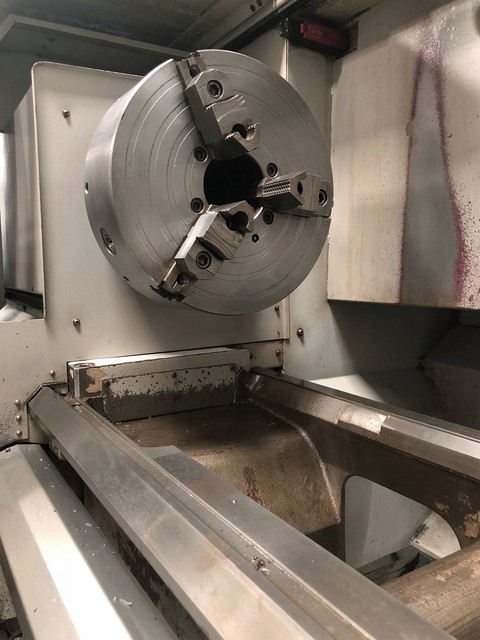

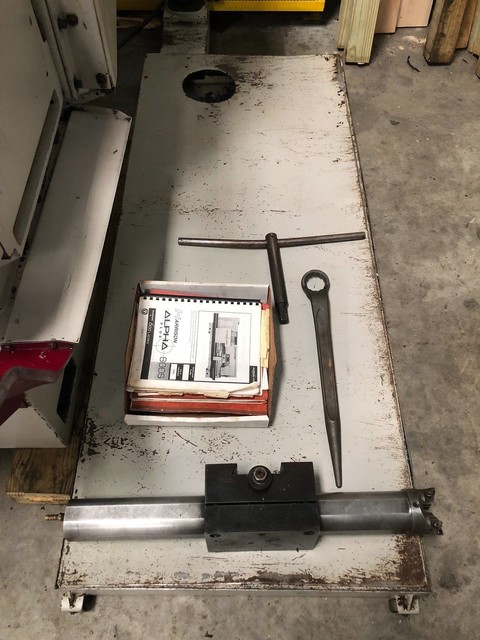

BUCK FORKARDT 3 Jaw chuck with top reversible jaws Live center Chuck wrench Tailstock wrench Removable chip pan Coolant tank & Pump 35 H.P. Spindle motor Machine manuals & disk
APPROXIMATE WEIGHT (MACHINE ONLY): 12,500 Lbs.
APPROXIMATE DIMENSIONS: 166 in L x 92 in W x 74 in H
LOCATION: F.O.B. Bradenton, Florida
REFERENCE #: CNC Lathe-GMT-688
PRICE #: $34,500.00
To view more information on the HARRISON ALPHA PLUS 800S 31-1/2” X 80”CC CNC LATHE FANUC 21 2000’ GMT-1679, including reviews, brand information, photos, videos, and more,
