13" X 40" HARRISON GEARED HEAD LATHE
MODEL M300
SWING OVER BED ---------------------------- 13"
SWING OVER CROSS SLIDE -------------------- 8-1/4"
DISTANCE BETWEEN CENTERS ------------------ 40"
SPINDLE BORED TO PASS --------------------- 1-1/2" DIA.
SPINDLE NOSE ------------------------------ D1-4" CAMLOCK
SPINDLE TAPER ----------------------------- NO. 5 MORSE
SPINDLE SPEEDS ------- ( 12 ) ------------- 40 TO 2500 RPM

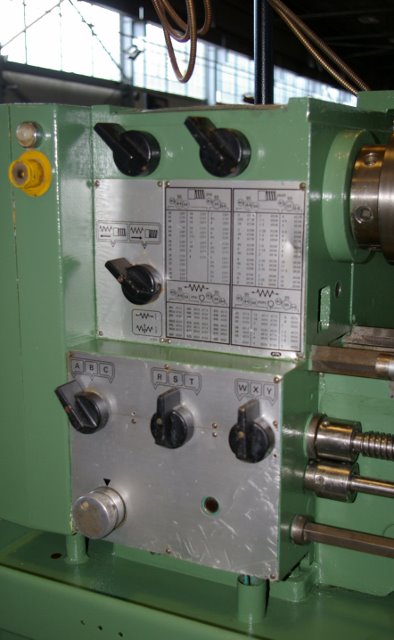

THREADING CAPACITY:
ENGLISH ------------ ( 35 ) ------------- 2 TO 56 TPI
METRIC ------------- ( 39 ) ------------- 0.2 TO 14 MM
MODULE ------------- ( 18 ) ------------- 0.3 TO 3.5 MOD
DIAMETRAL ---------- ( 18 ) ------------- 8 TO 56 DP
FEED CAPACITY:
ENGLISH ------------ ( 16 ) ------------- .001 TO .040 IN./REV.
METRIC ------------- ( 16 ) ------------- .03 TO 1 MM/REV.
( CROSS FEEDS HALF LONGITUDINAL VALUES )
CROSS SLIDE TRAVEL ------------------------ 7-1/2"
TOP SLIDE TRAVEL -------------------------- 3-5/8"
TAILSTOCK QUILL DIAMETER ------------------ 1-21/32"
TAILSTOCK QUILL TAPER --------------------- NO. 3 MORSE
TAILSTOCK SET-OVER ------------------------ +/- 1/2"
MOTOR ------------------------------------- 3 HP 230/460/3/60
EQUIPPED WITH ---

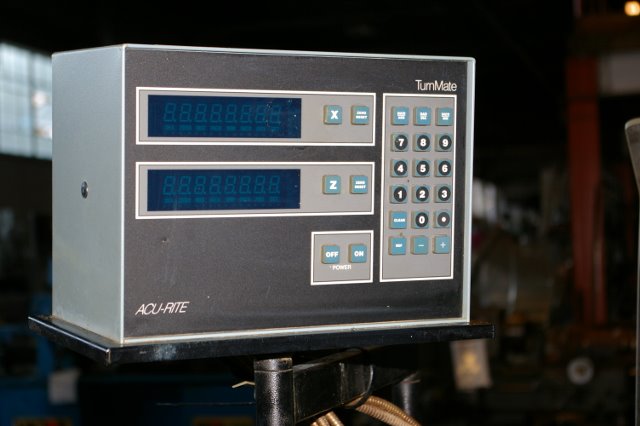

ACCURITE TURNMATE 2 AXIS DIGITAL READOUT LEVER TYPE COLLET CLOSER
6" 3 JAW CHUCK INCH METRIC THREADING

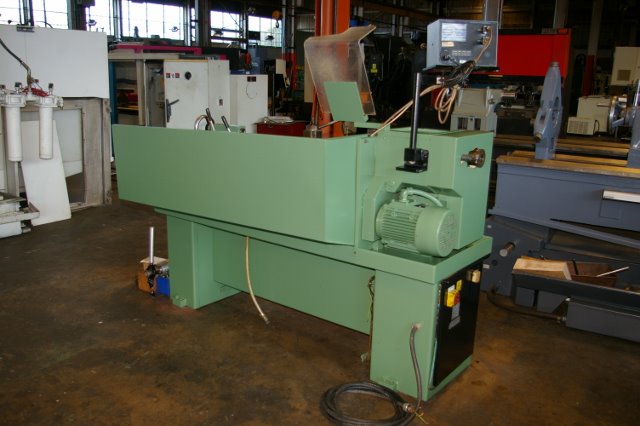

HARD BED WAYS REAR SPLASH GUARD

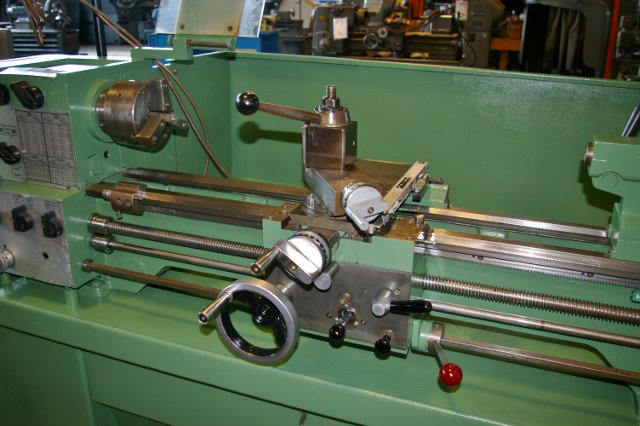

QUICK CHANGE TOOL POST WITH 1 HOLDER BRAKE
COOLANT PUMP AND TANK
STOCK# 18426
