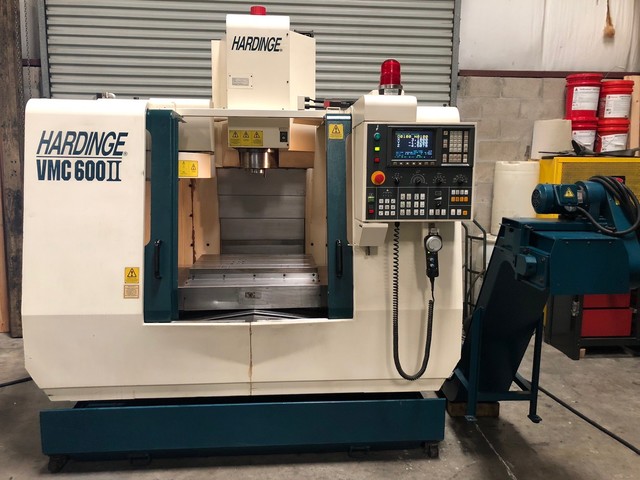

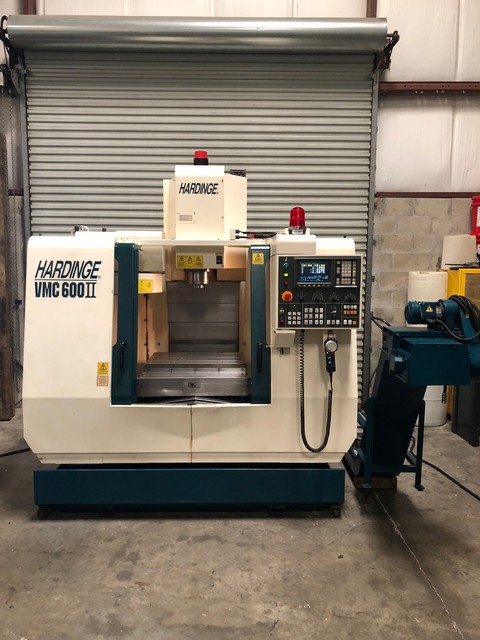

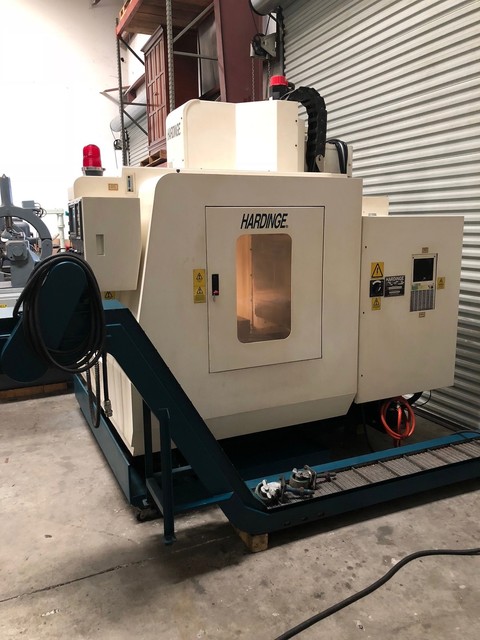

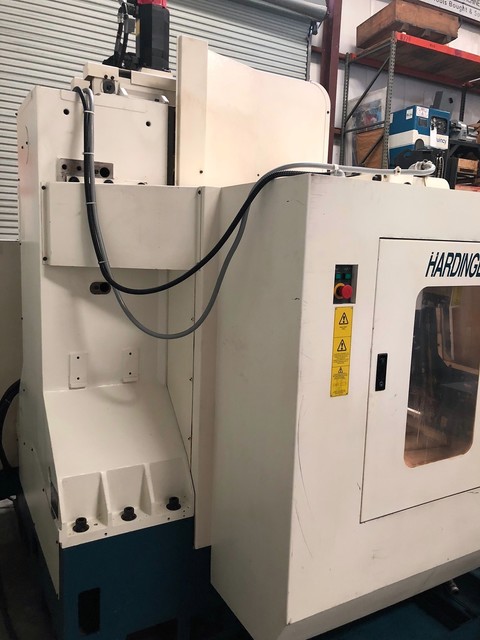

HARDINGE VMC 600 II CNC VERTICAL MACHINING CENTER 2000 #GMT-1662

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VMC 600 II
NVA-410
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
8500 (LB)
2000
$18,500.00

Feature Video

Description

SPECIFICATIONS:
Reference #
GMT-1662
Model #
VMC 600 II
Serial #
NVA-410
Year of manufacture
2000
Table load capacity
1,540 Lbs.
Longitudinal travel (X-axis)
23.62
Cross travel (Y-axis)
20.08"
Vertical travel (Z-axis)
20.08"
Minimum/Maximum distance from working surface of table to spindle nose
6.1"/26.1"
Distance from centerline of spindle to face of column
23 in

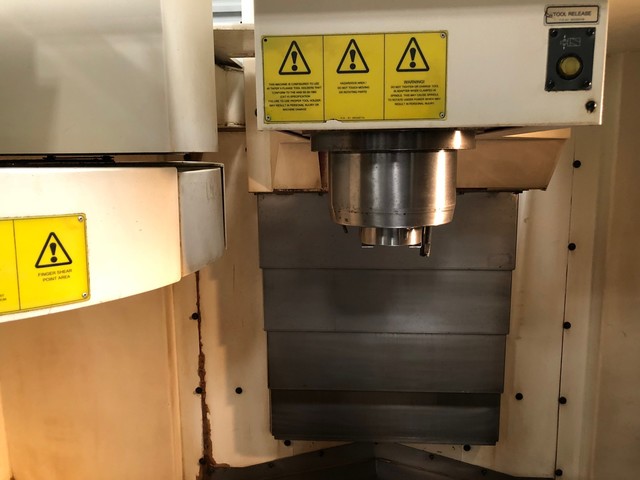

Spindle taper
CAT-40
Maximum spindle speed, direct drive
8,000 R.P.M.
Rapid traverse rate, X ,Y & Z-axes
1,181 I.P.M.
Cutting feed rate
Up to 472 I.P.M.
Maximum tool diameter
3.5"
Maximum tool diameter without adjacent tools
5.9"
Maximum tool length
9.84"
Maximum tool weight
13.2 Lbs.

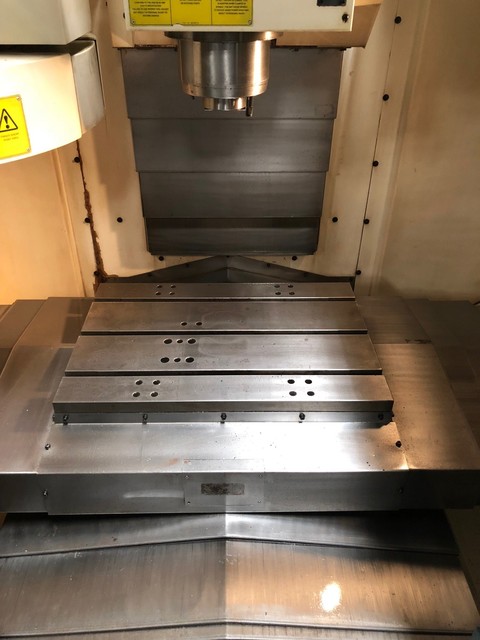

Table work area
29.5" x 20"
EQUIPPED WITH:
  • FANUC / HARDINGE CNC Control
  • AC servo motors and ball screws on all axes
  • (20) Tool capacity umbrella-type automatic tool changer
  • Direct drive spindle
  • Cast iron spindle carrier, column, and base
  • Linear way construction with telescopic way covers on all axes
  • Coolant system with external tank
  • Chip Conveyor
  • 17.3 H.P. AC spindle drive motor
  • Machine is wired for 220 Volt / 3 Phase / 60 HZ
APPROXIMATE WEIGHT (MACHINE ONLY):
8500 Lbs.
APPROXIMATE DIMENSIONS:
88 in L x 98 in W x 96 in H
LOCATION:
F.O.B. Bradenton, Florida
REFERENCE #:
Maching Centers -GMT-664
PRICE #:
$18,500.00
