Stock Number: 18164
FEATURES
Maximum Swing: 20.4 in
Maximum Machining Diameter: 14.05 in
Travel: X-Axis 7.45 in
Z-Axis 25.130 in

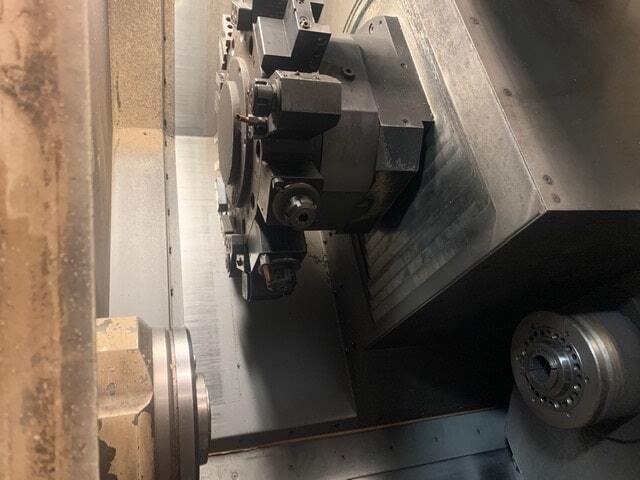

Turret Type (VDI 30): 12 Position Drum, 6 Live
Spindle Nose: A2-6 in
Spindle Bore: 2 in
Spindle Speed: 4,200 RPM
Spindle Motor 30 Min/Cont 20 HP / 15 HP
Sub-Spindle Speed: 6,000 RPM
Sub-Spindle Motor 10 HP
Sub-Spindle Travel: 23.5 in
Rapid Traverse Rates X-Z 590 / 1181 IPM

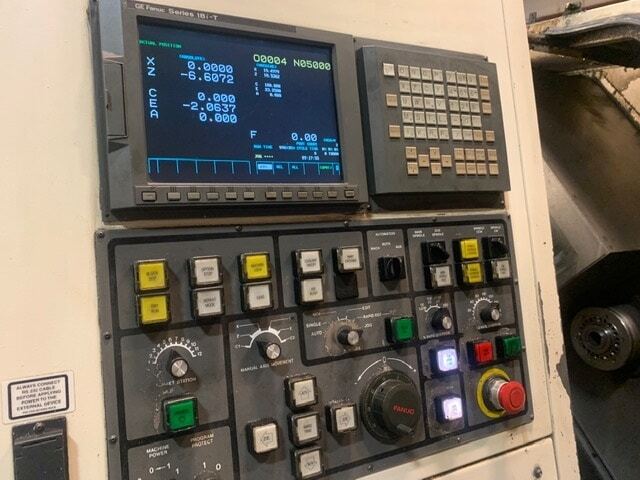

Fanuc 18iT Control
Collet Size Main / Sub S-20 / 16C
Chip Conveyor
Coolant
Bar Feed Interface
Overall Size, Approximately: 119 in L-R x 73 in F-B x 75 in H
Weight, Approximately: 12,000 Lbs.
To view more information on the HARDINGE QUEST-51 CNC LATHE W/LIVE TOOLING & SUB-SPINDLE, including reviews, brand information, photos, videos, and more,
