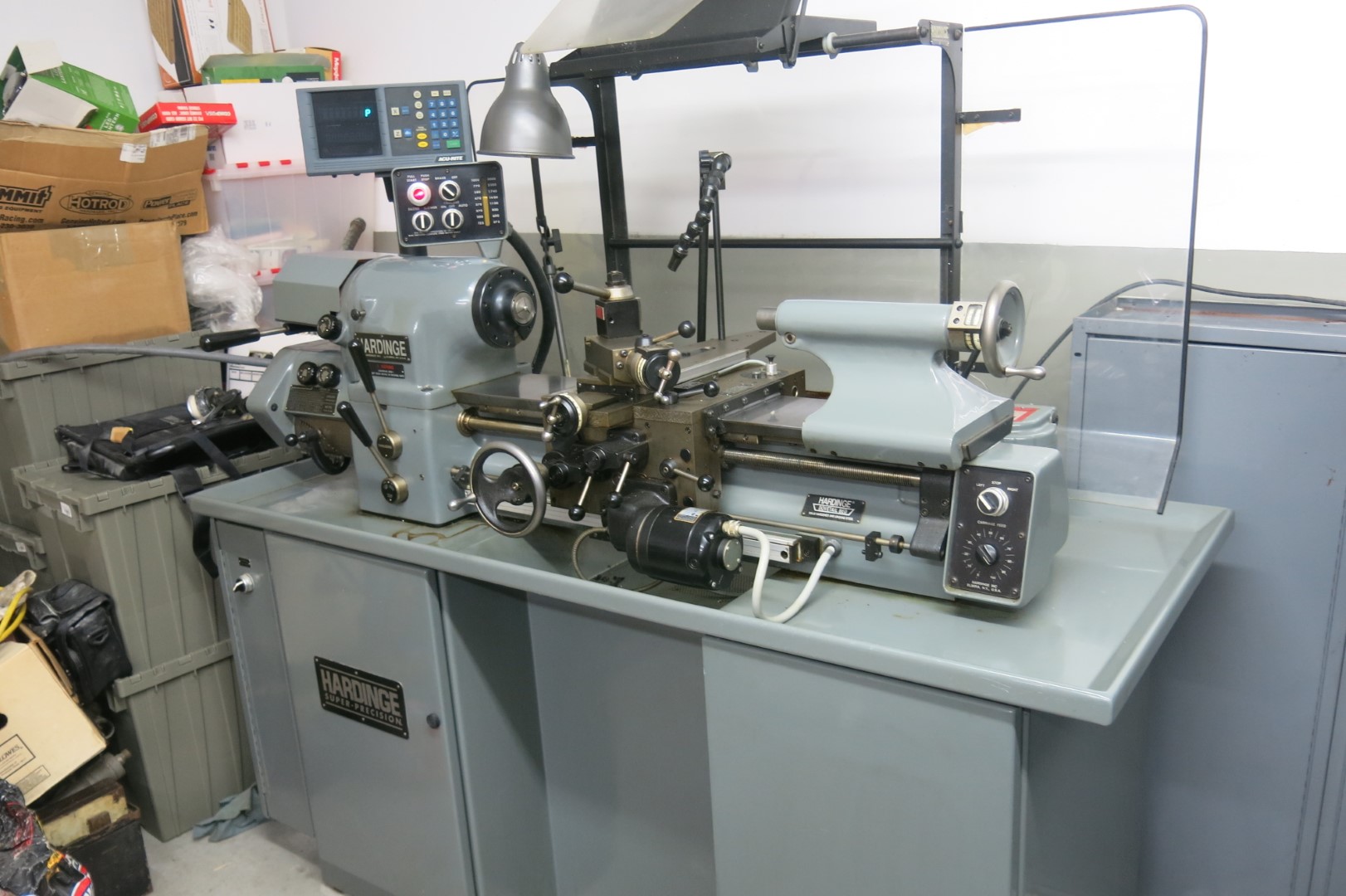

HARDINGE HLV-EM SUPER PRECISION TOOLROOM LATHE
HLV-EM

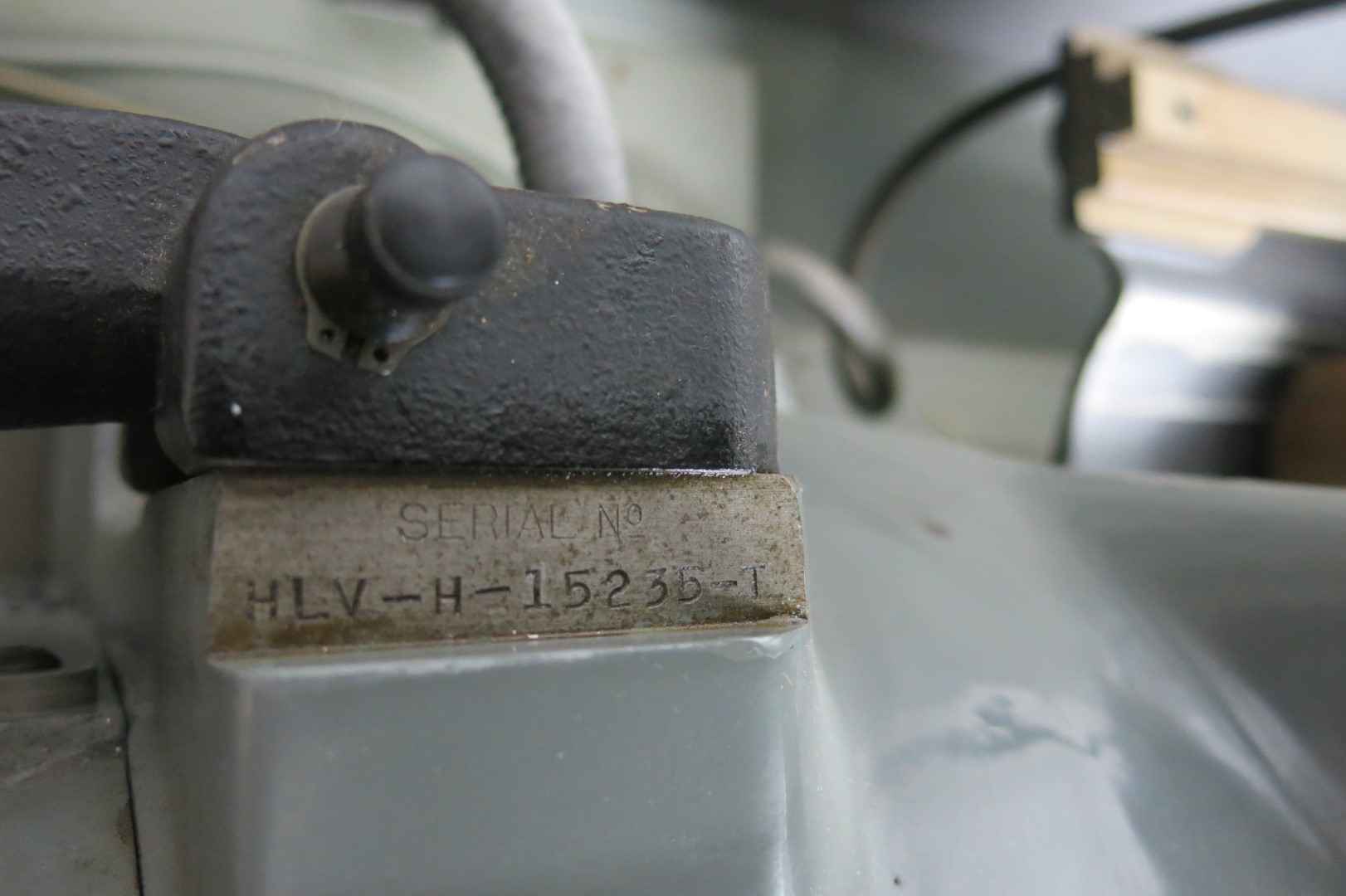

15235-T
Lathes (Manual)
Precision
used
1700 (LB)
0
$44,500.00

Feature Video

Description

SPECIFICATIONS:

SPINDLE CONSTRUCTION            HARDINGE BALL BEARING
SPINDLE NOSE                    HARDINGE TAPERED
SPINDLE CAPACITY:

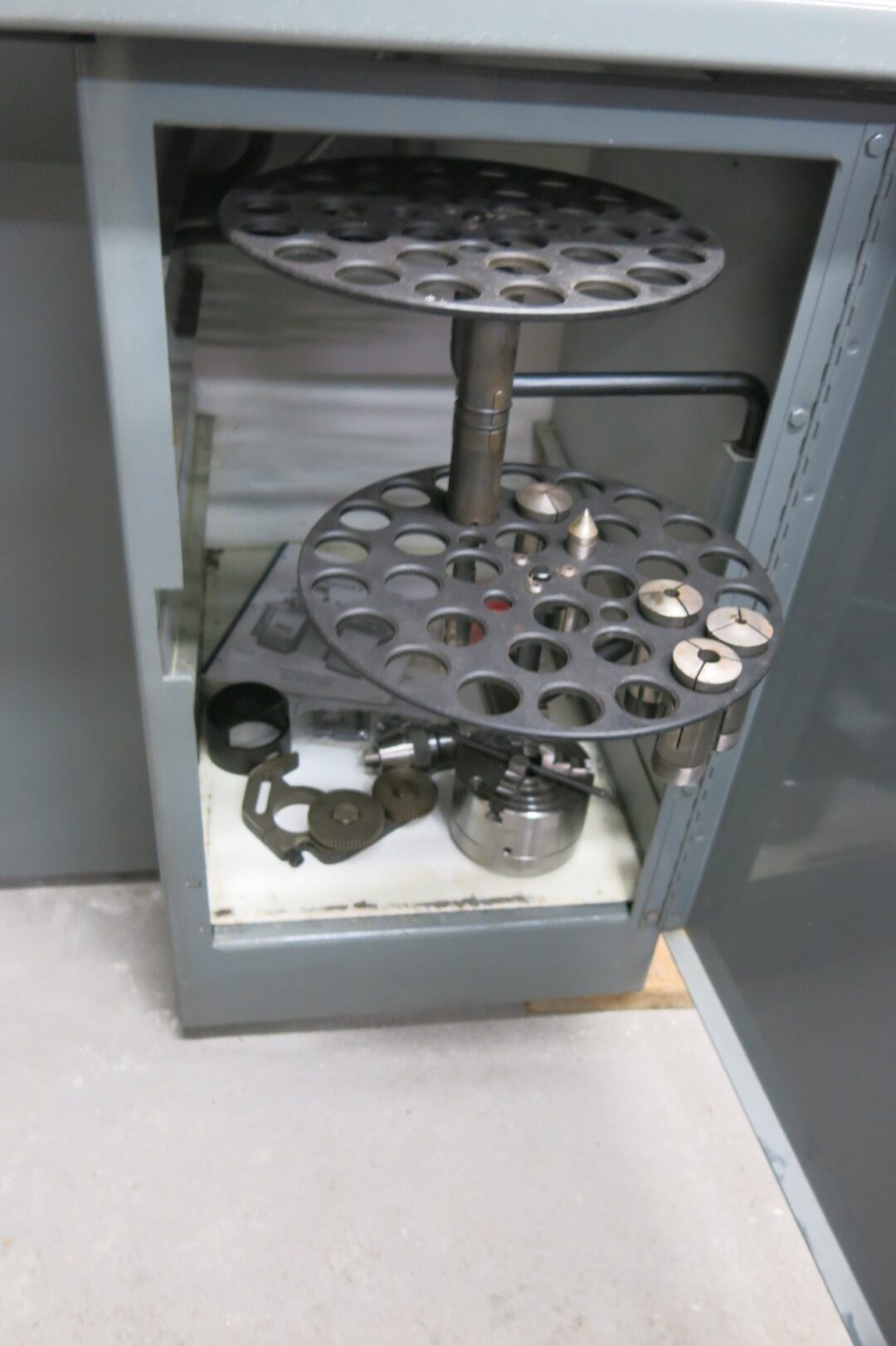

    WITH ROUND TYPE 5C COLLETS        1-1/16 in
WITH STEP CHUCKS                             1-1/16 in TO 6 in
WITH JAW CHUCKS                               5 in
WITH EXPANDING COLLETS                   3 in
VARIABLE SPINDLE SPEEDS                  125 to 3,000 R.P.M.
HOLE THROUGH SPINDLE                    1-1/4 in
SWING OVER BED                               11 in
SWING OVER CARRIAGE                       9 in
SWING OVER CROSS SLIDE                    6 in
DISTANCE BETWEEN CENTERS               18 in
COMPOUND SLIDE TRAVEL                     3 in
CARRIAGE POWER FEED RANGE             5/16 to 7 I.P.M.
CROSS SLIDE POWER FEED RANGE          3/16 to 4 I.P.M.
TAILSTOCK SPINDLE DIAMETER               1-3/8 in
TAILSTOCK SPINDLE TAPER                     #2 MT

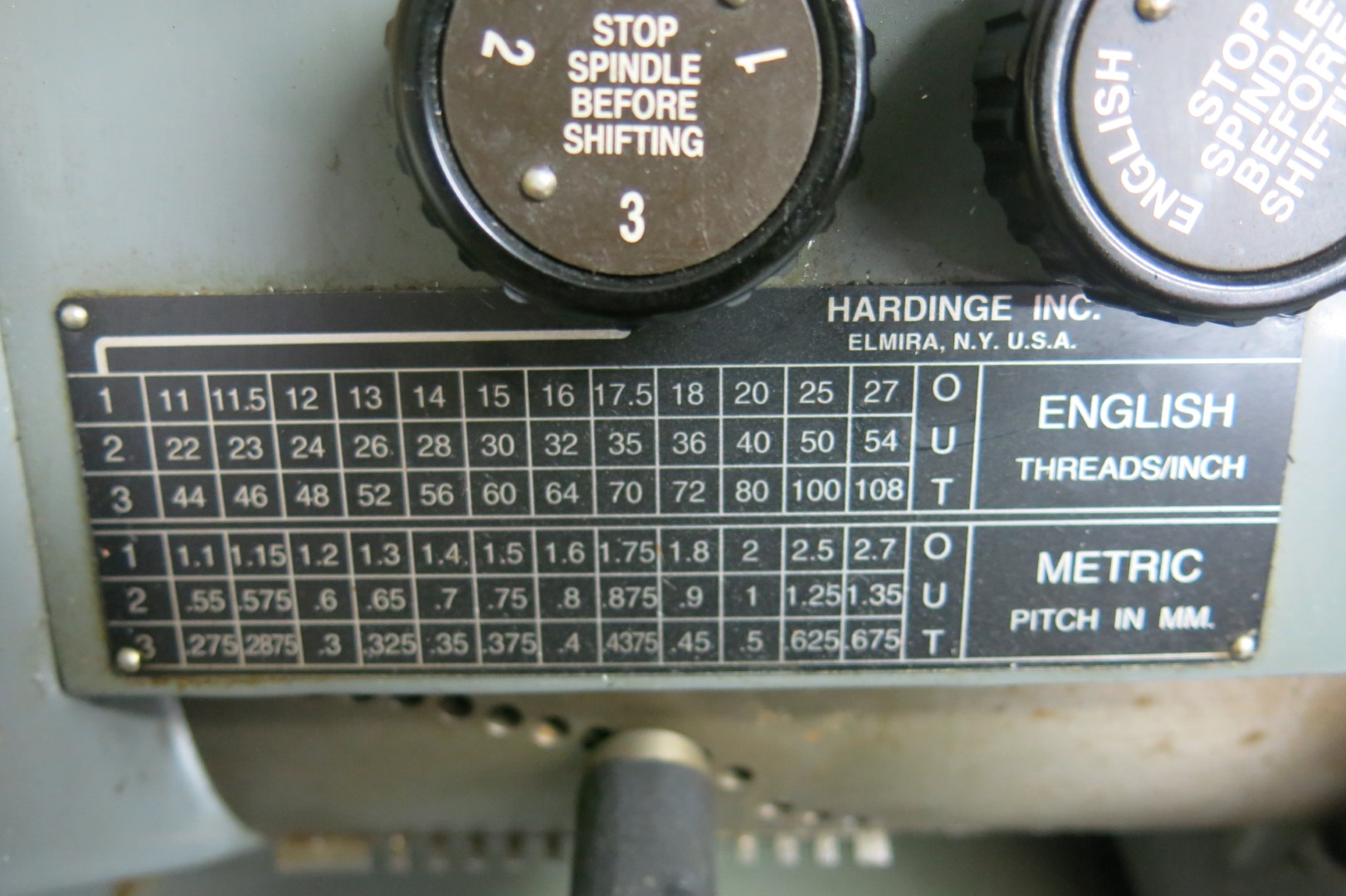

INCH THREADING RANGE IN GEARBOX (36) . 11 to 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 to 2.7 MM
APPROXIMATE WEIGHT                      1,700 LBS.
EQUIPPED WITH:

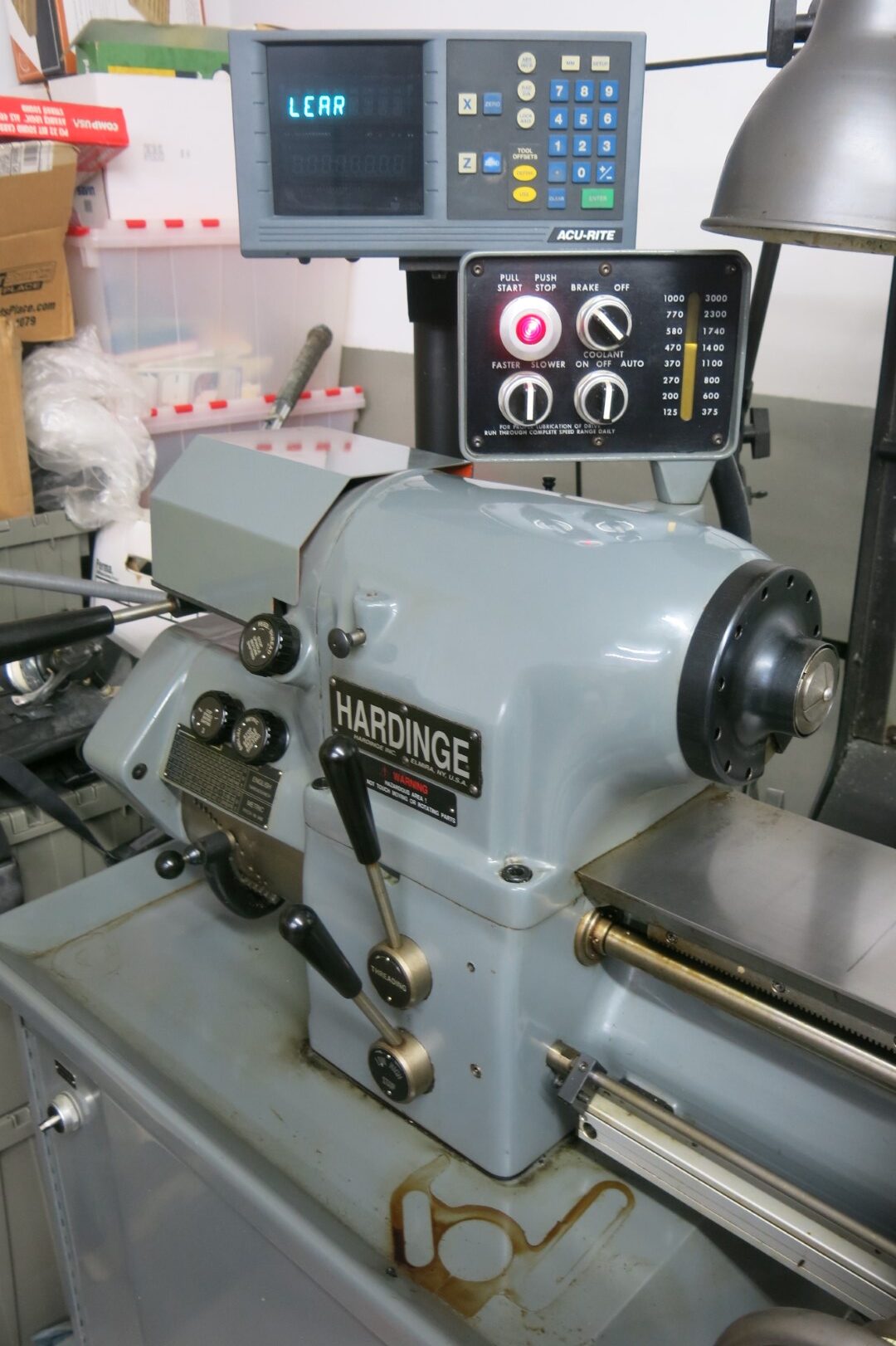

          -Acurite 2-Axis DRO
          -Coolant Pump

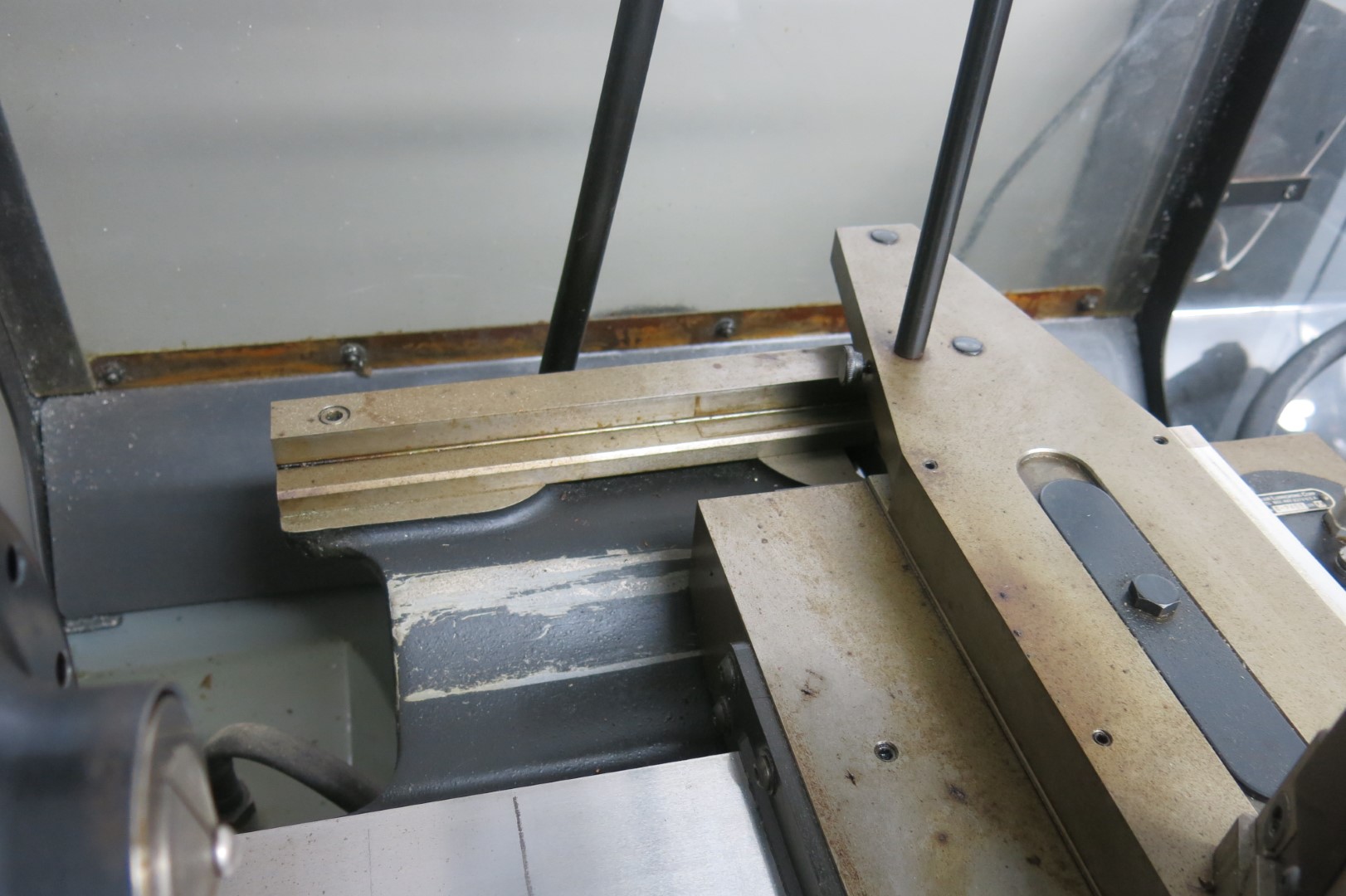

          -Taper Attachment

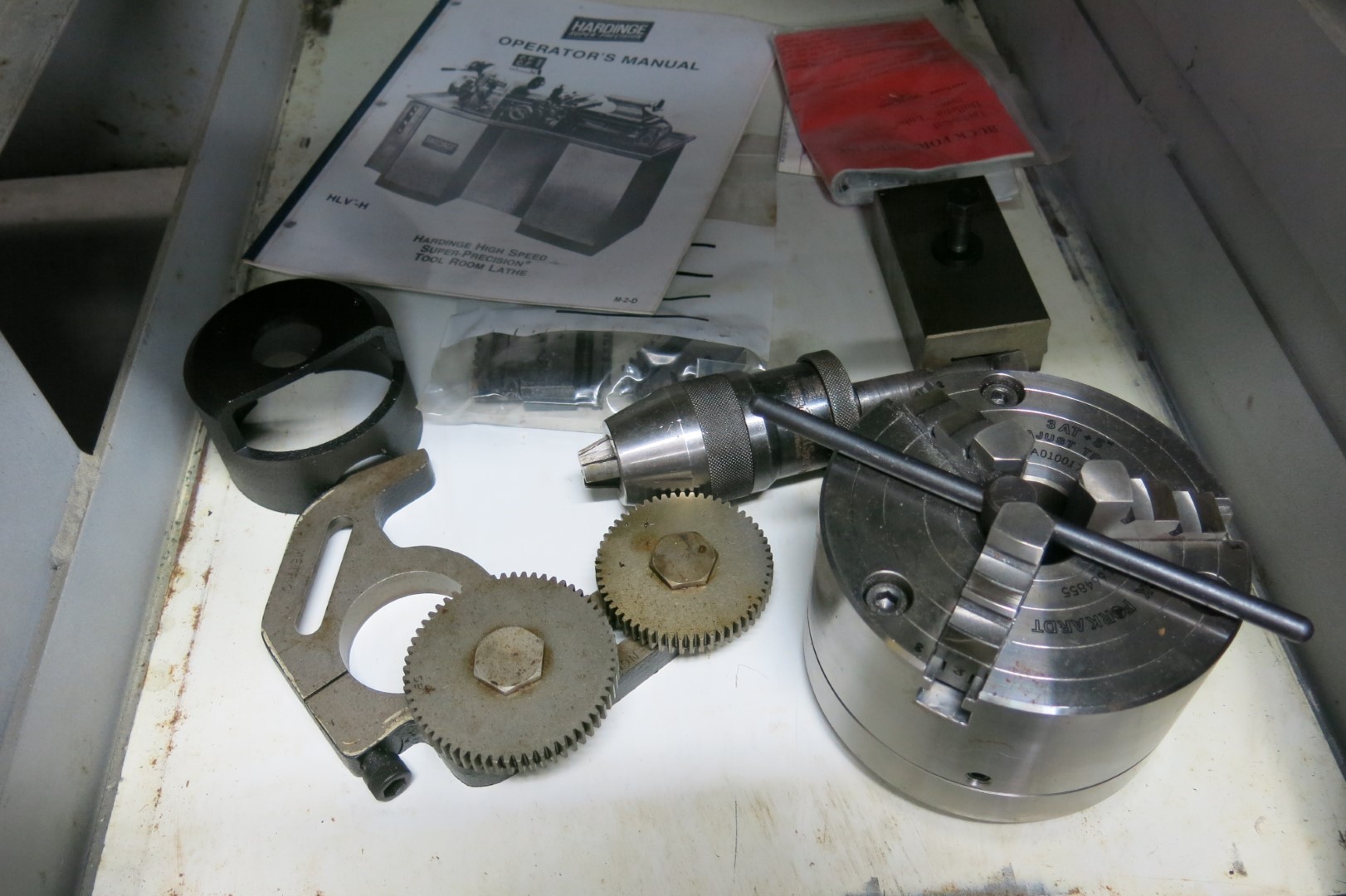

          -5 in 3-Jaw Chuck with ID & OD Jaws
          -Aloris AXA Toolpost
          -Machine Manuals
******ALL ORIGINAL PAINT.  NO WEAR.  MACHINE WAS PURCHASED AND PUT IN STORAGE FOR MANY YEARS.  LITTLE SIGN OF USE.  MINOR CRACK IN REAR RIGHT CHIP SHIELD PLASTIC.  MACHINE WAS NOT EVEN CLEANED- PICTURES TAKEN AT THE STORAGE LOCATION.  ****
