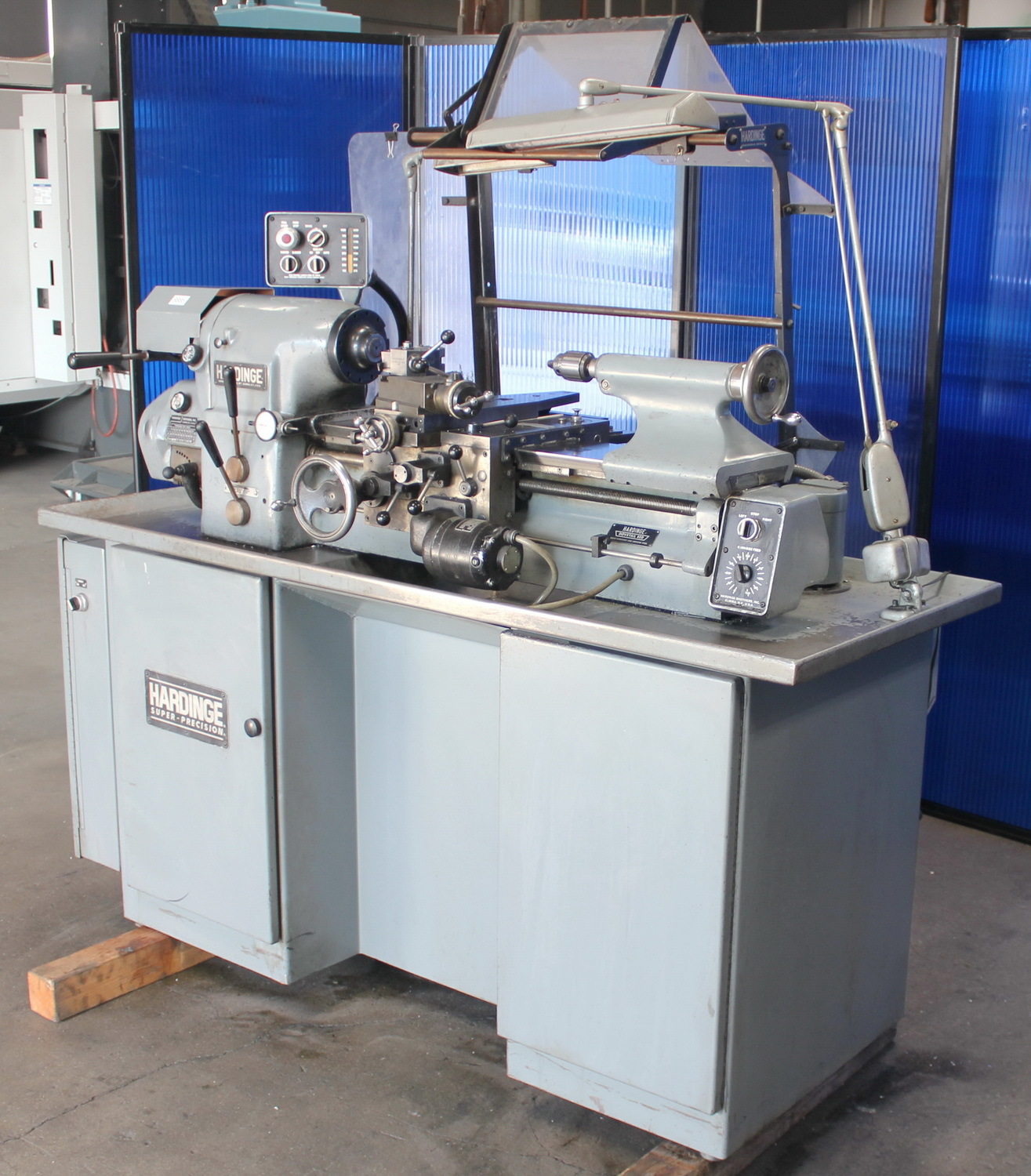

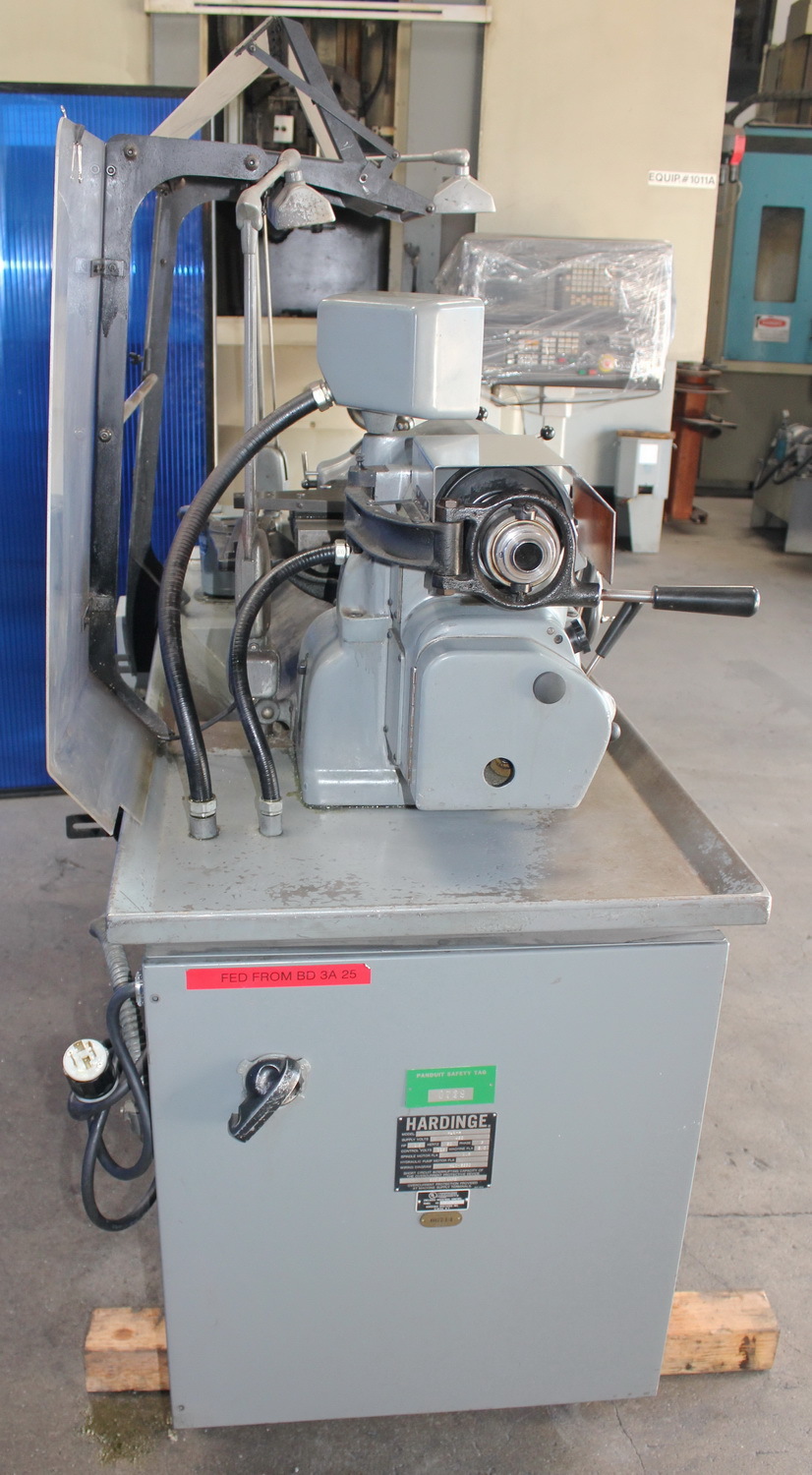

Hardinge High Precision Toolroom Lathe 11" x 18"

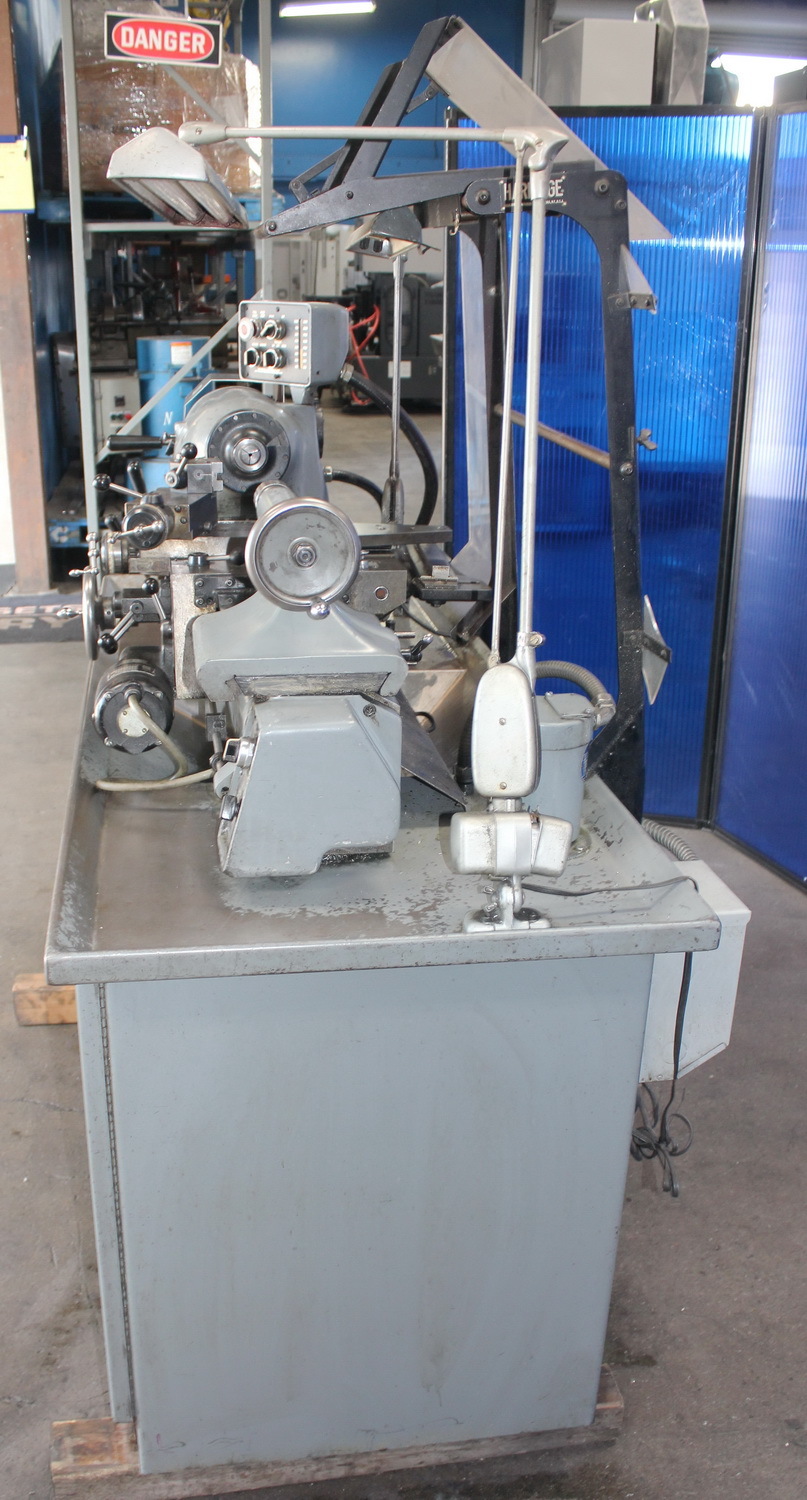

HARDINGE HIGH PRECISION TOOLROOM LATHE 11" X 18"

Add to Your File

Brand: HARDINGE HIGH PRECISION TOOLROOM LATHE 11" X 18"

Model: HLVH

Serial No. : 9198-T

Category:

Sub Category:

Condition: used

Weight: (1)

Year Built:

Status:

Price: $0.00

Description

Basic Information

Model: HLVH
Manufacturer: Hardinge
Serial #: 9198-T
Location: Huntington Park, CA
Year Built: -

Specifications

Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"

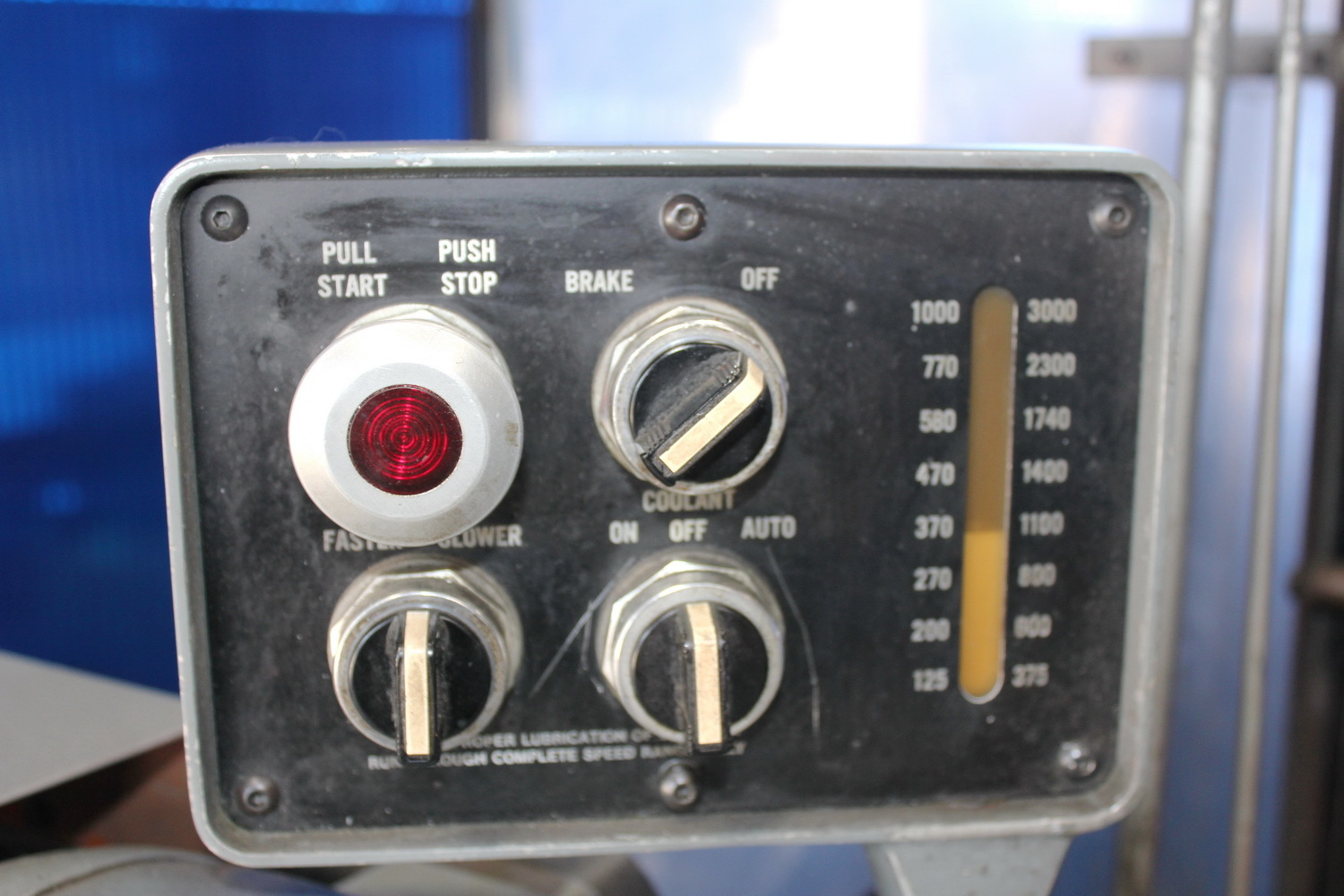

Spindle Speeds (Variable): 125- 3,000 RPM
Spindle Nose: 4 Degree Taper
Hole Through Spindle: 1 1/4"

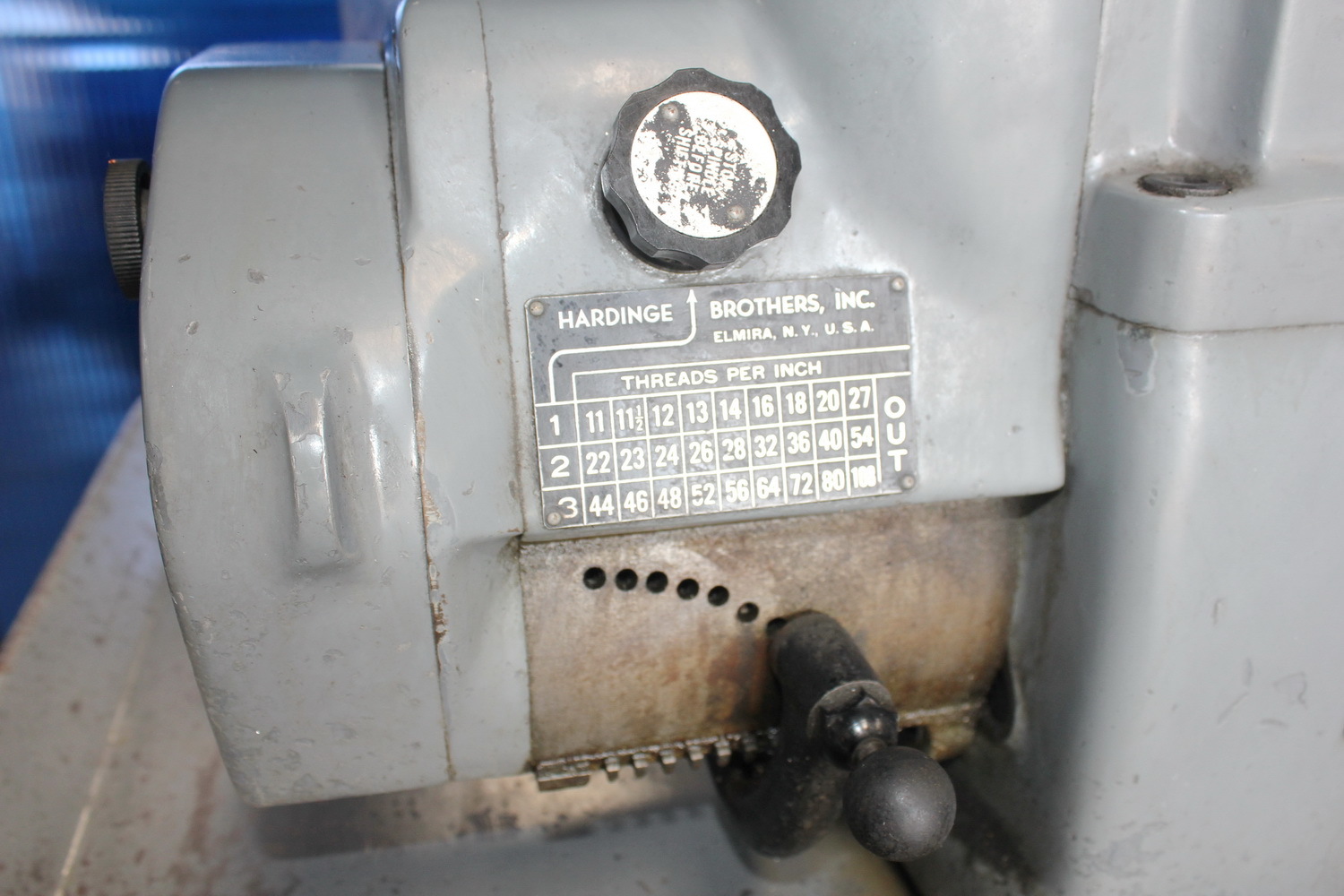

Threads (Inch): 11- 108 TPI

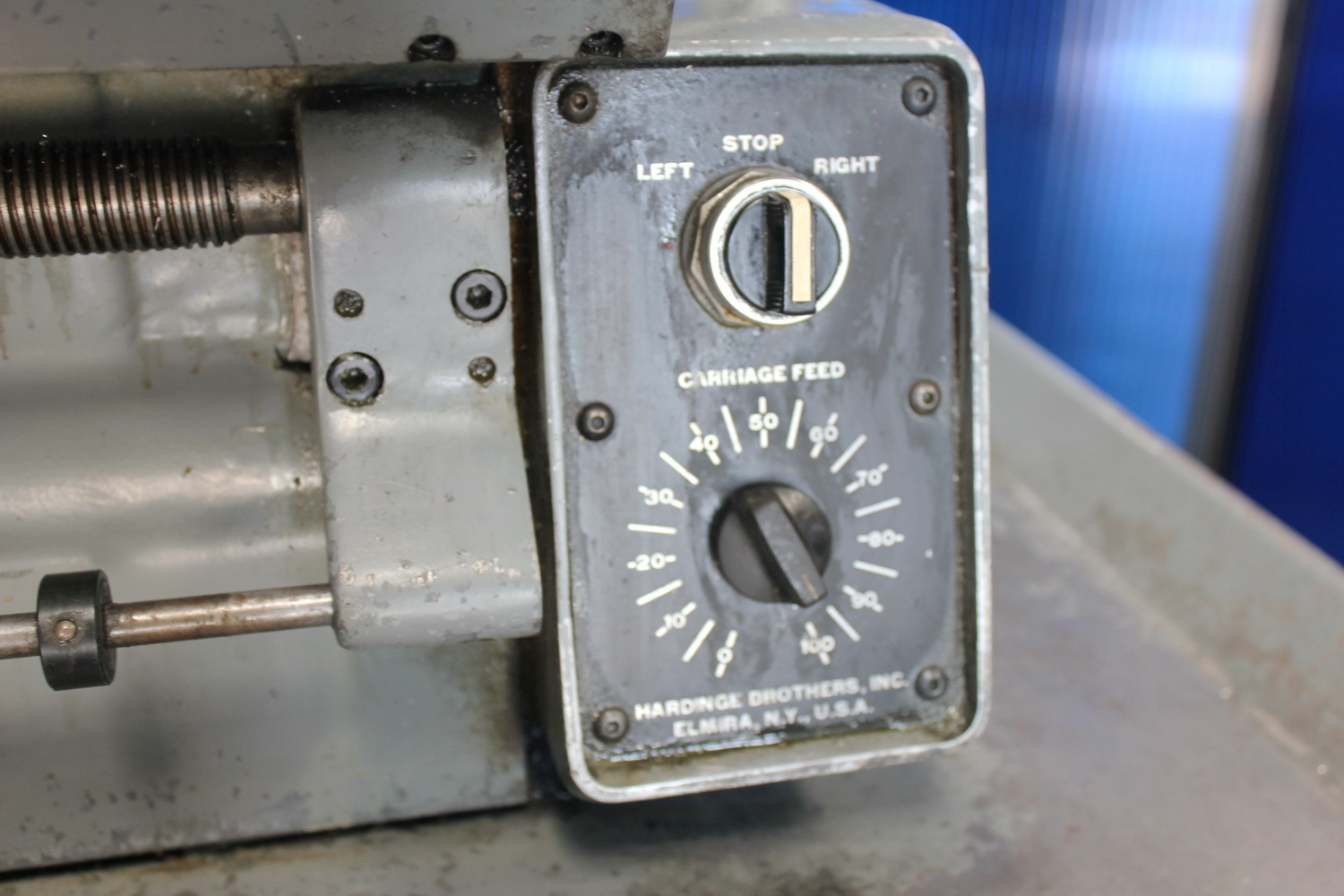

Feeds (Variable): 3/16- 7 IPM
Cross Slide Travel: 6"

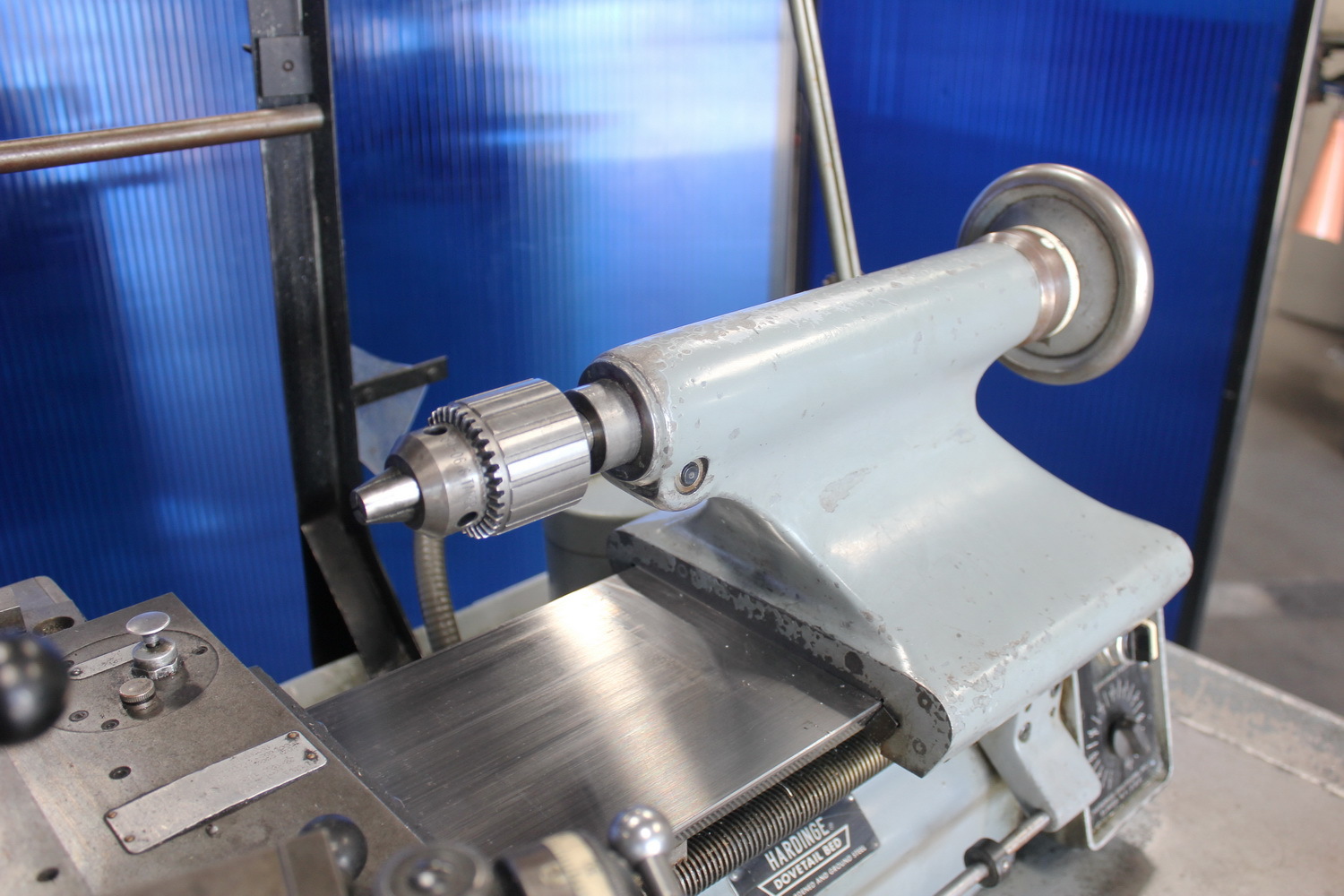

Tailstock Quill Travel: 3 3/4"
Tailstock Quill Taper: #2 MT
Dimensions (L x W x H): 70" x 30" x 63"
Weight: 1,800 Lbs.

Equipped with

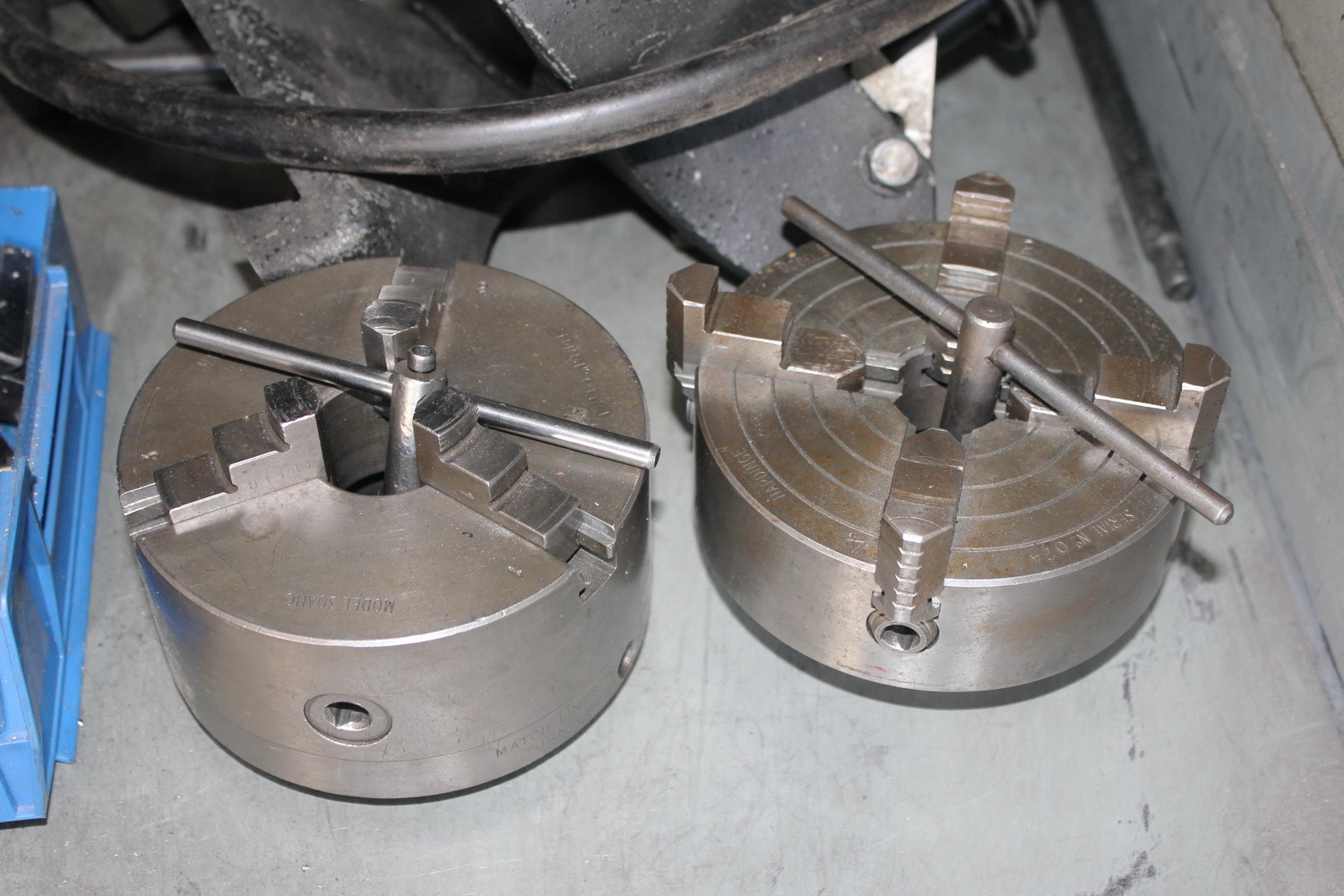

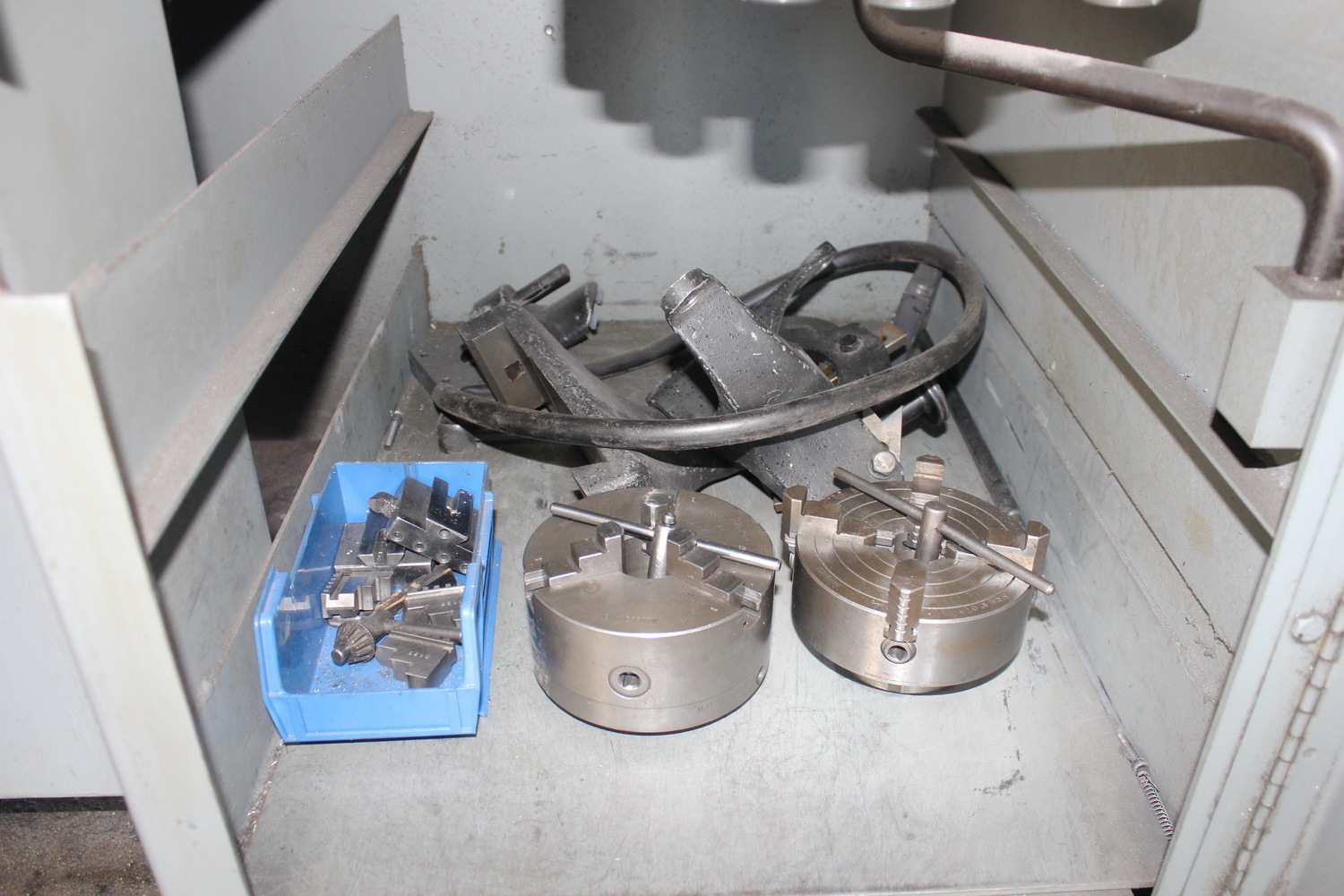

3 Jaw Chuck
4 Jaw Chuck

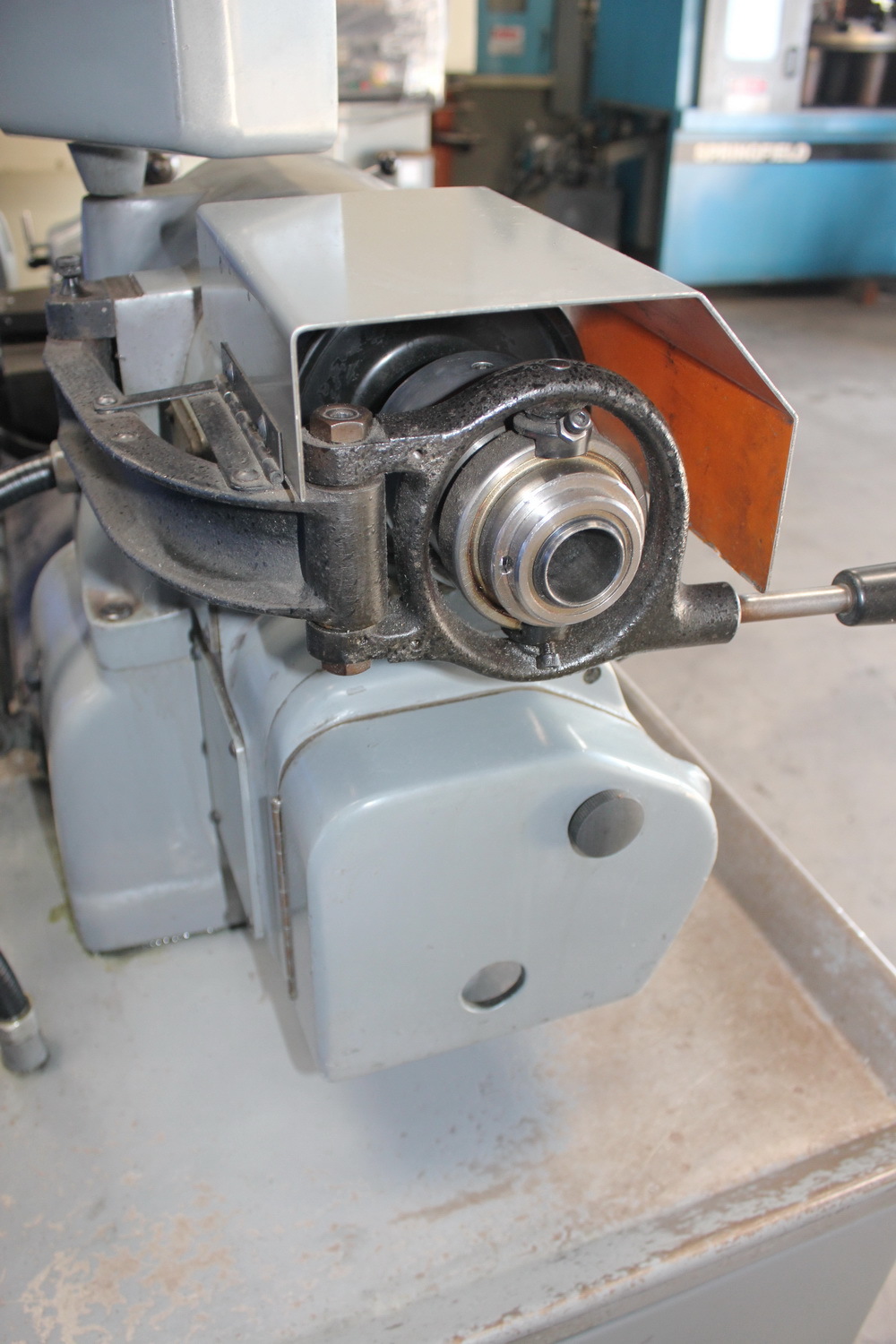

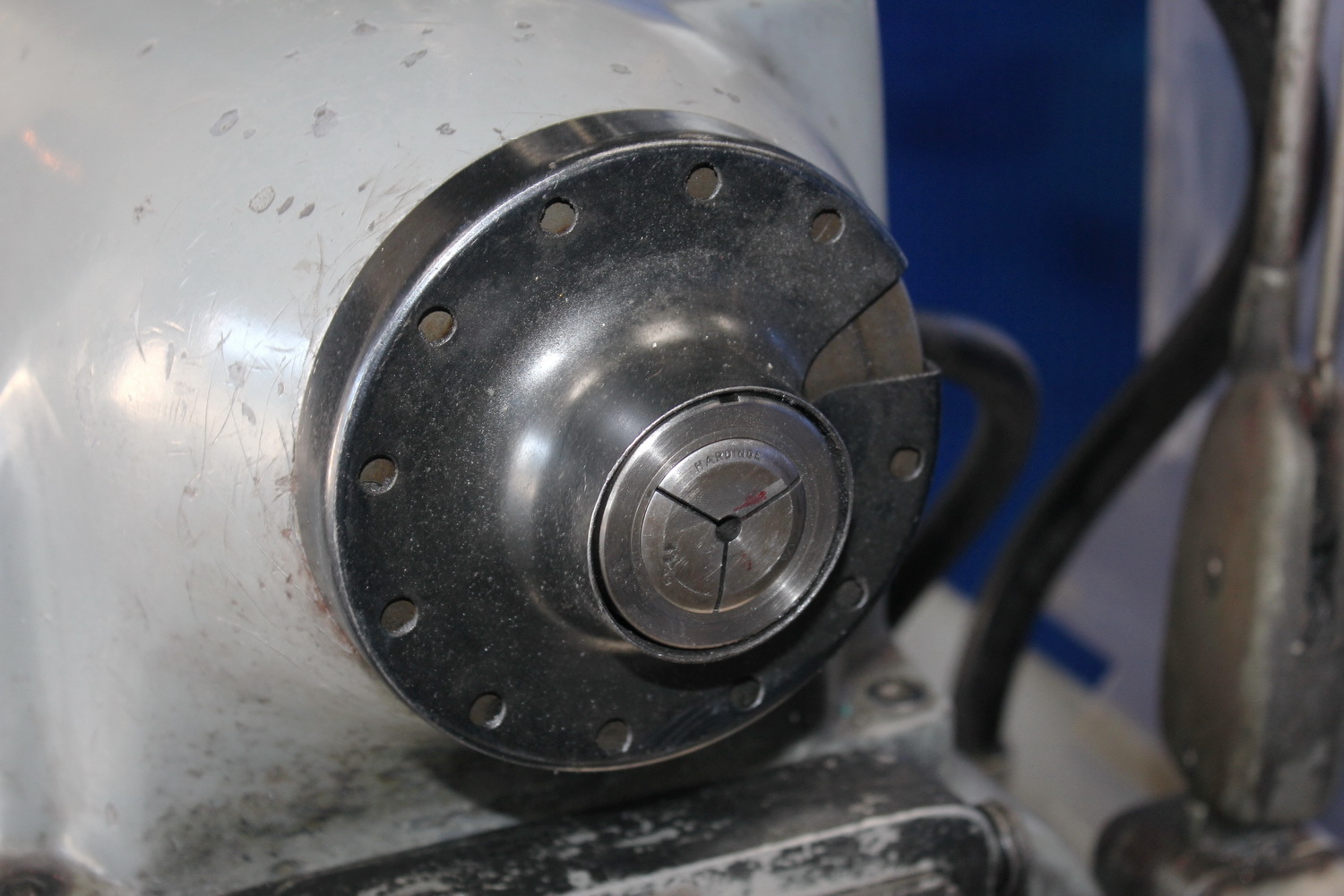

Lever 5C Collet Closer

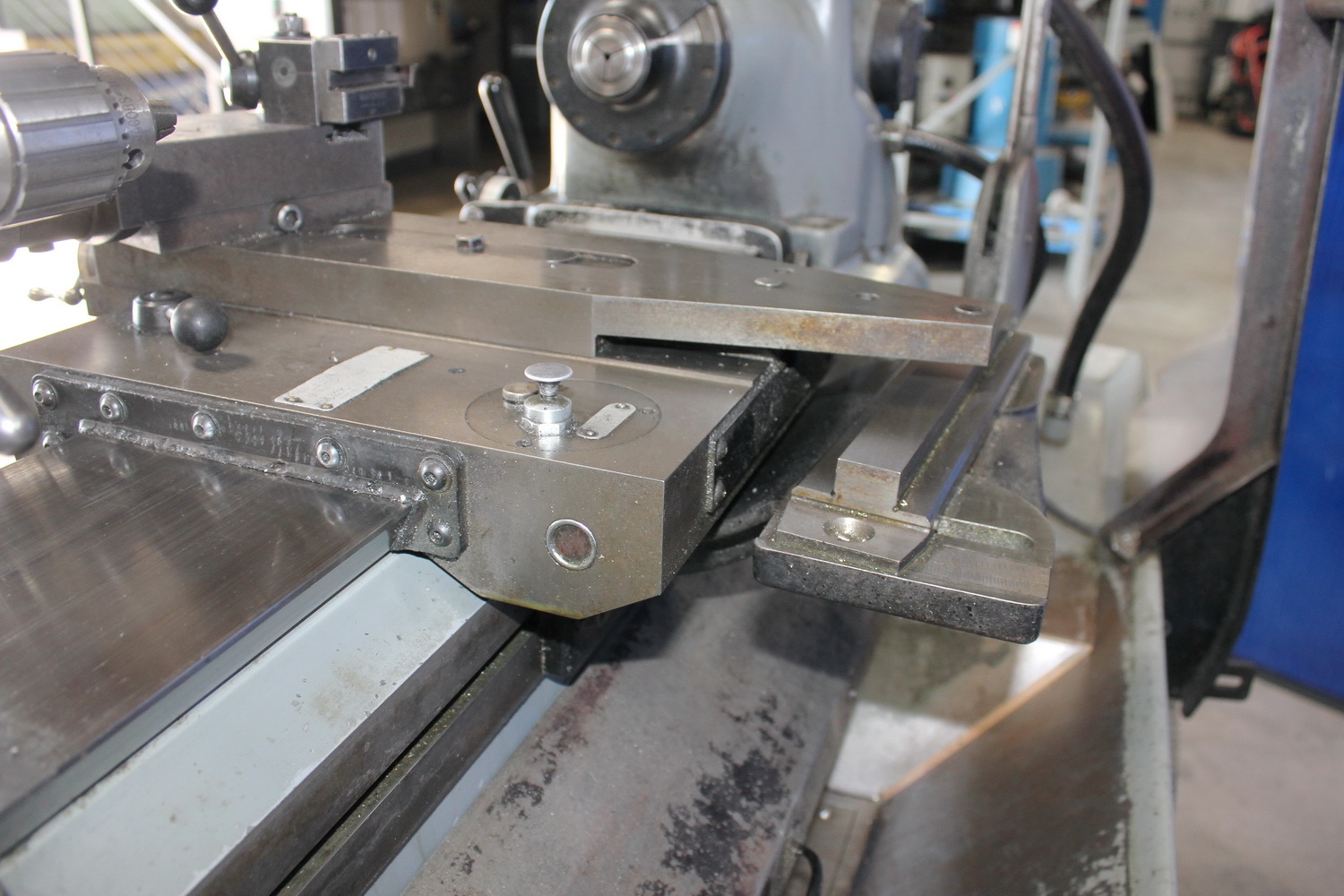

Taper Attachment
Steady Rest
Follow Rest

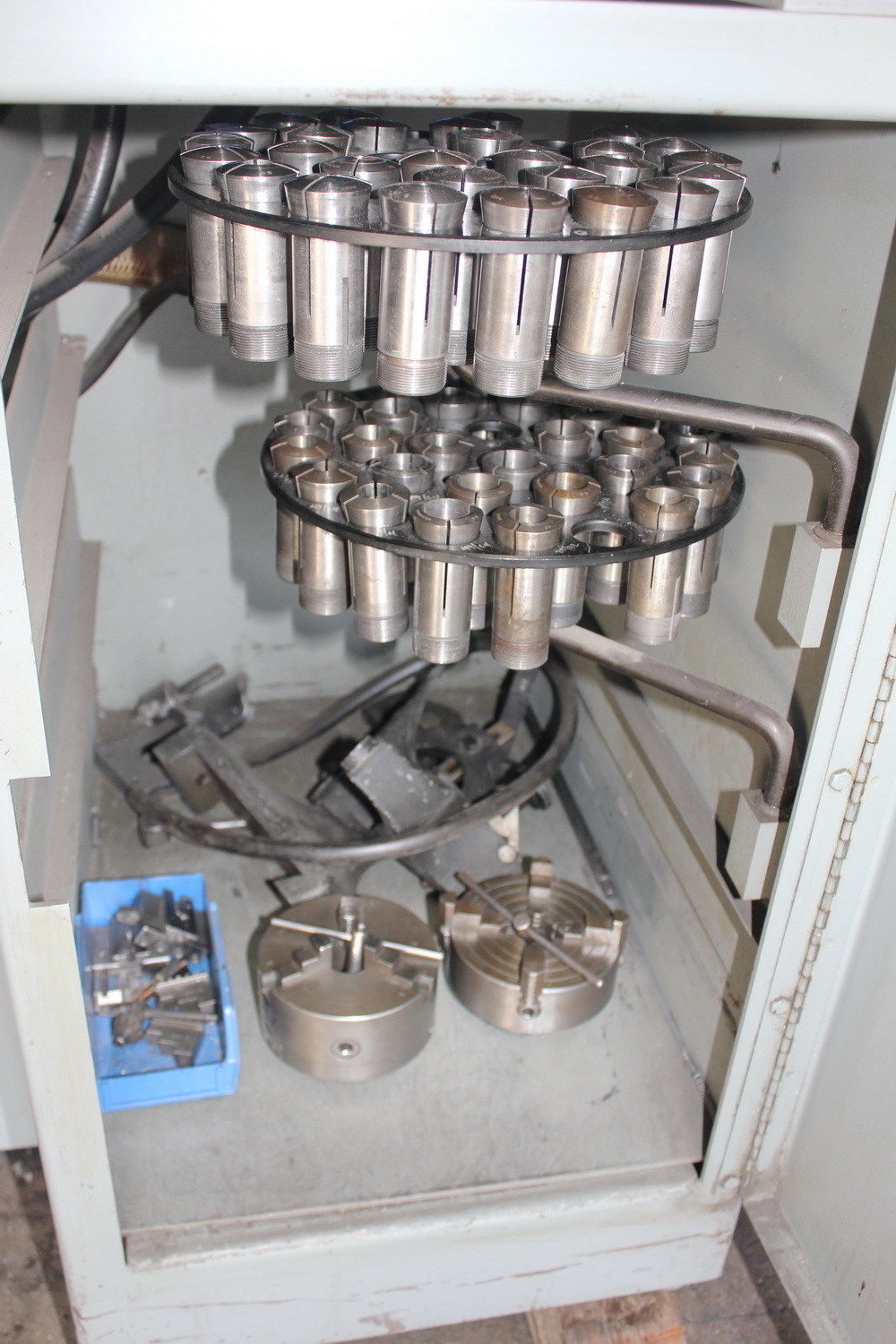

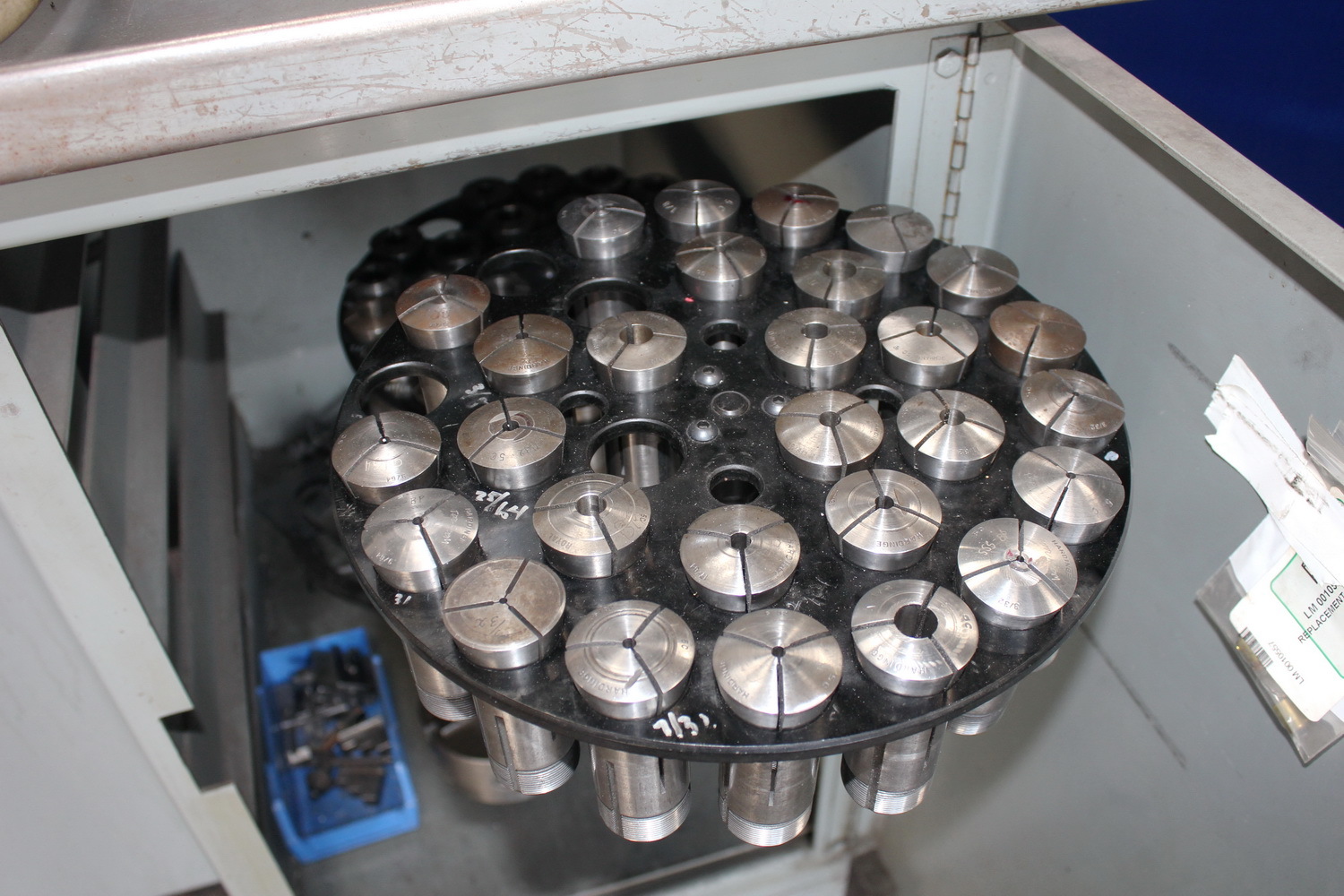

2 Racks Of 5C Collets

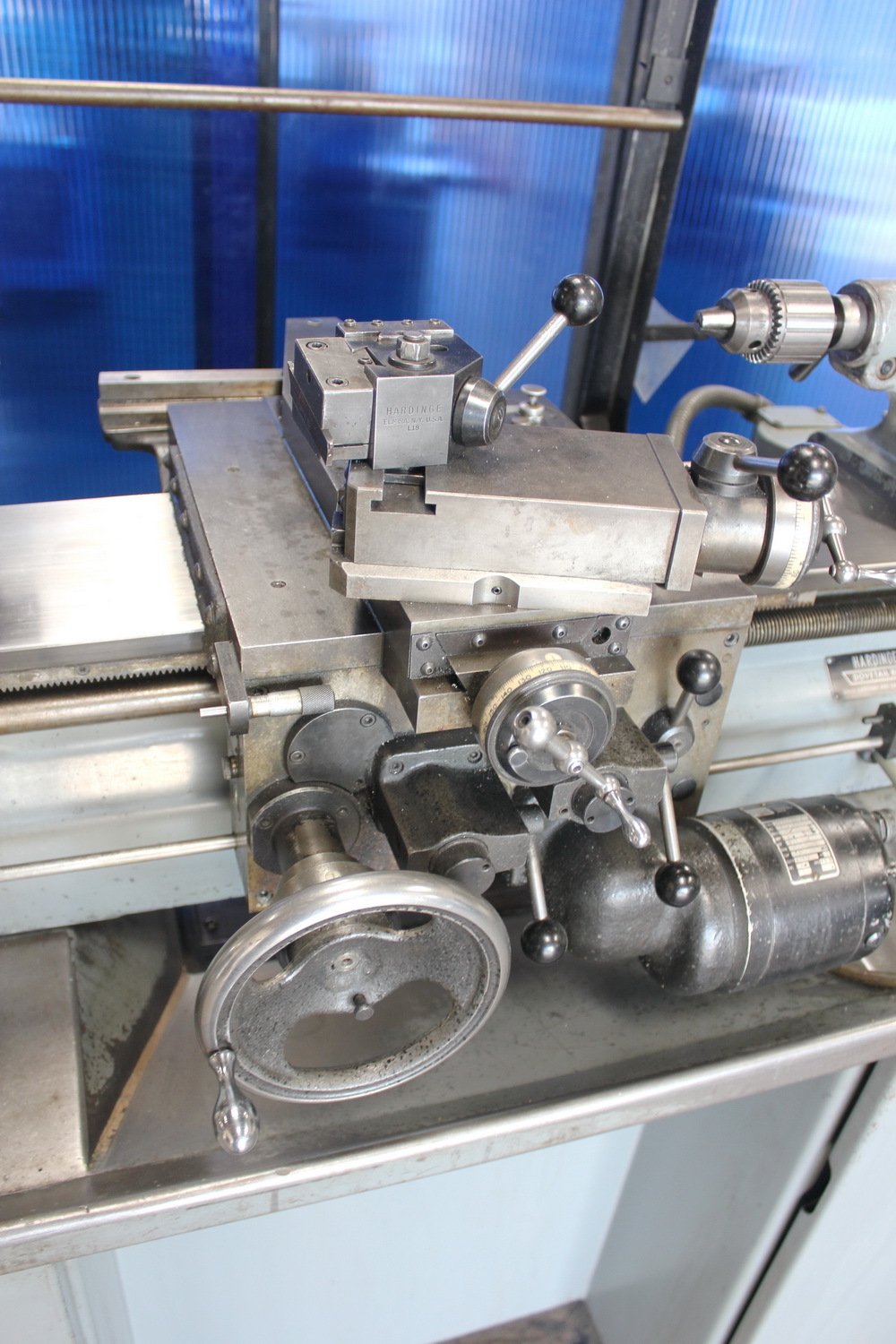

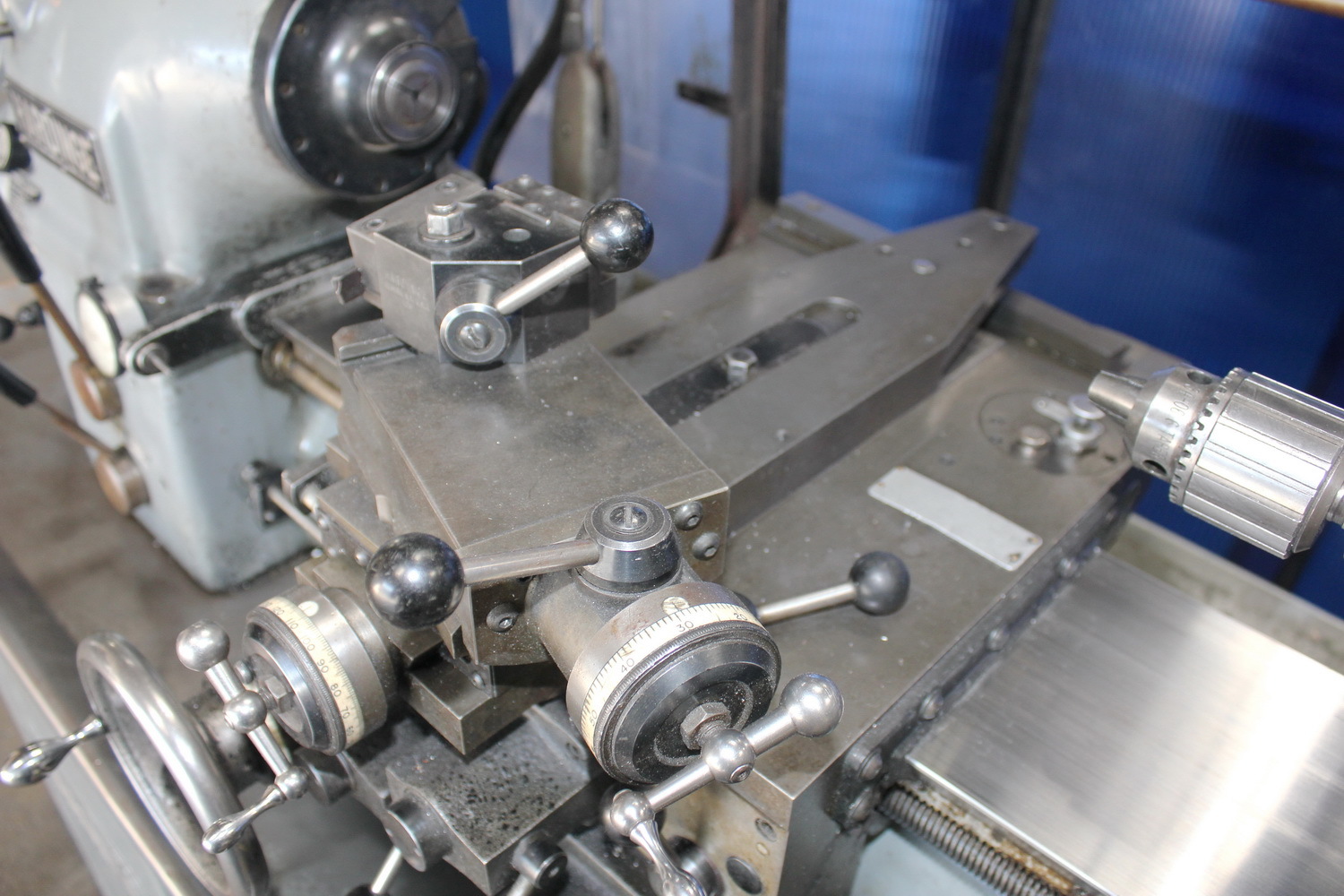

Tool Post
Drill Chuck

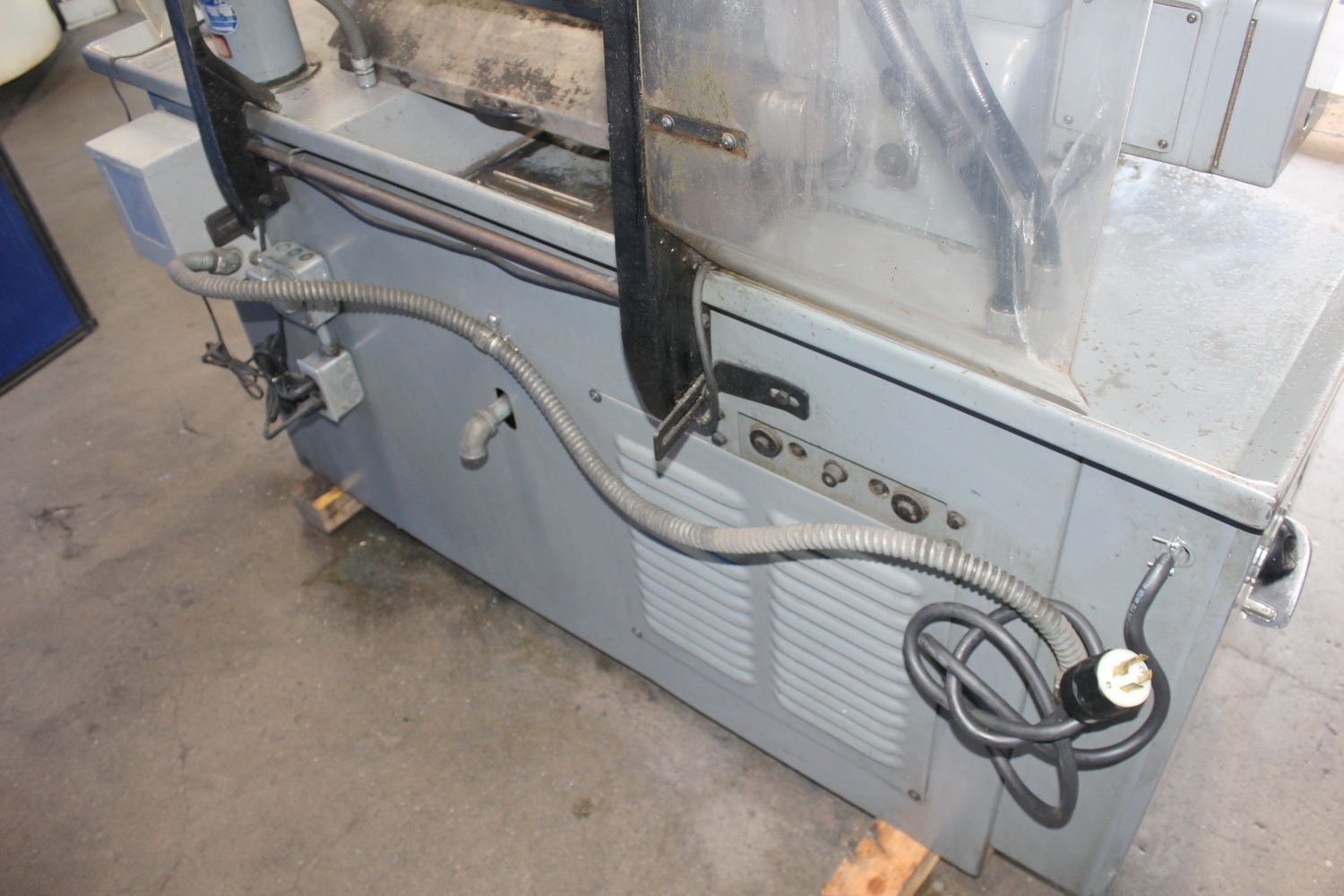

Coolant System
Splash Guard

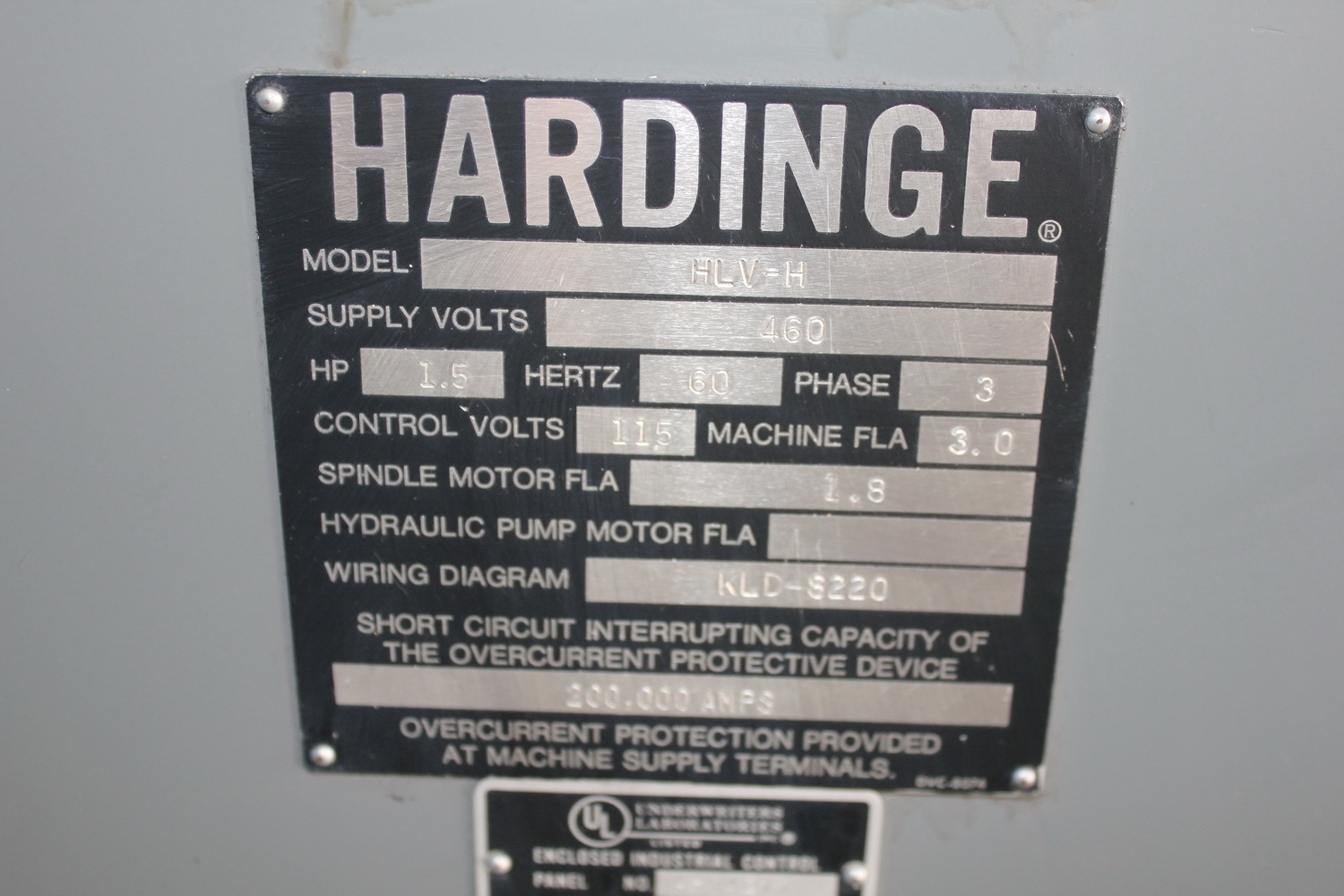

Horsepower: 1 1/2
