DV59
DV59-13605
Lathes (Manual)
Secondary Operation
used
1200 (LB)
1974
$3,950.00

Description

Description & Specifications

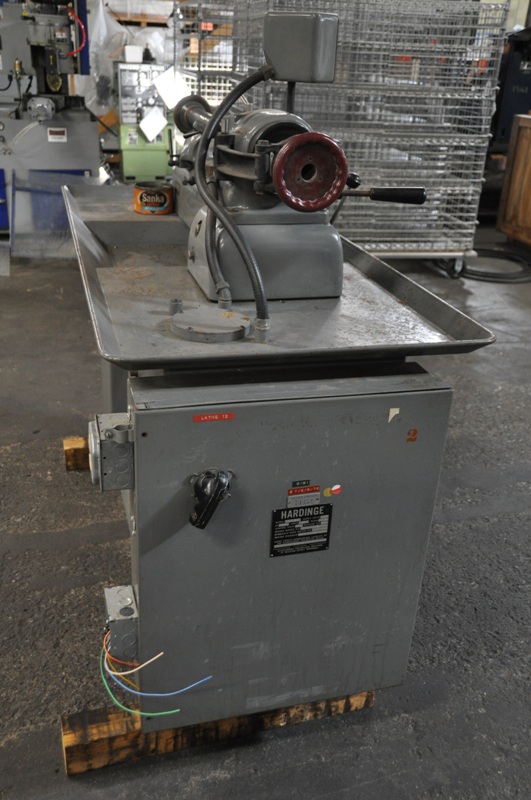

HARDINGE DV59 SECOND OPERATION LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA   $3,950.00

HMC Stock #19031

Machine Serial No.: DV59-13605

Machine Model No.: DV59
New Date: 1974

Swing Over Bed: 9"
Swing Over Cross Slide: 4-1/2"
Bed Length: 36"
Distance Between Centers: 17"
Travel of Top Slide: 4-1/4"
Travel of Bottom Slide: 5"

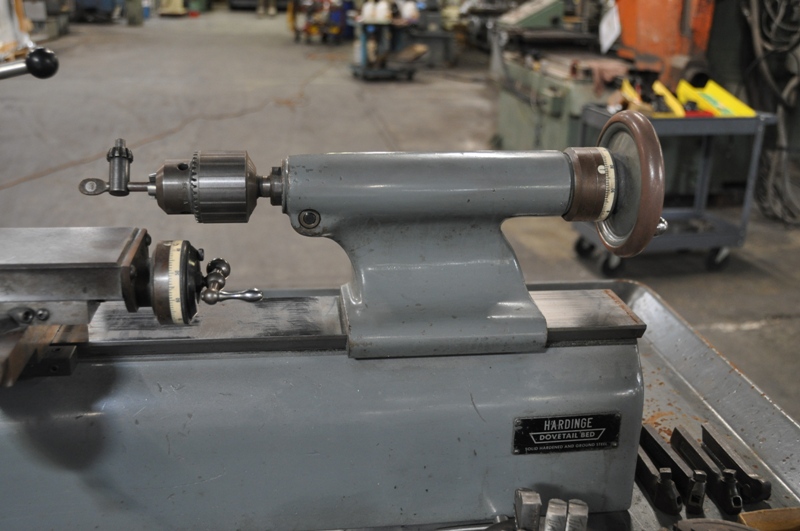

Travel of Tailstock Spindle: 3-1/2"
Tailstock Spindle Taper: #2 Morse
Variable Spindle Speeds: 230 to 3500 RPM (via powered change)
Spindle Thru Hole: 1-7/16"
Spindle Nose: Hardinge Taper
Spindle Capacity with Round 5C Collet: 1-1/16"
Spindle Capacity with Hexagon 5C Collet: 7/8"
Spindle Capacity with Square 5C Collet: 3/4"
Spindle Capacity with Step Chucks: 1-1/6" to 6"
Dovetail Bed Width: 3-3/8" (at widest point)

EQUIPPED WITH:
Hand Lever Collet Closer
Manual Collet Tube for 5C Collets
Hardened and Ground Dovetail Bed Way
(1) 5C Collet

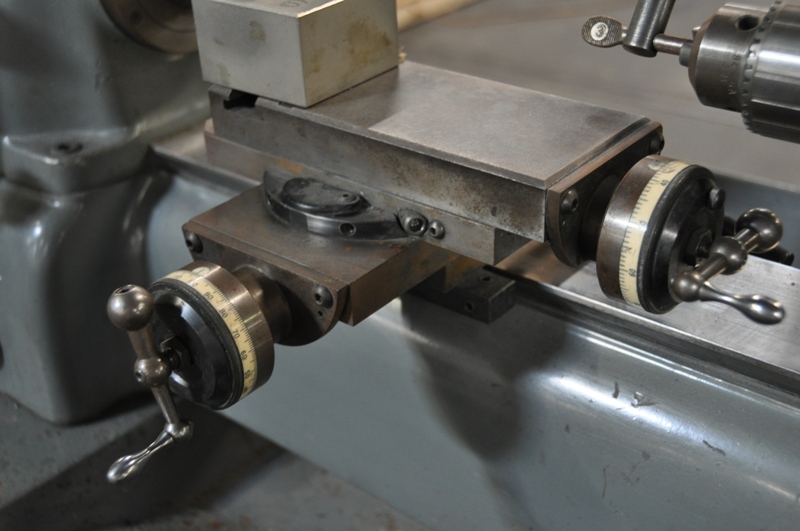

(1) 2 Axis Adjustable Compound Tool Slide with Inch Graduated Dials and
Quick Acting Interlock for Bed Positioning

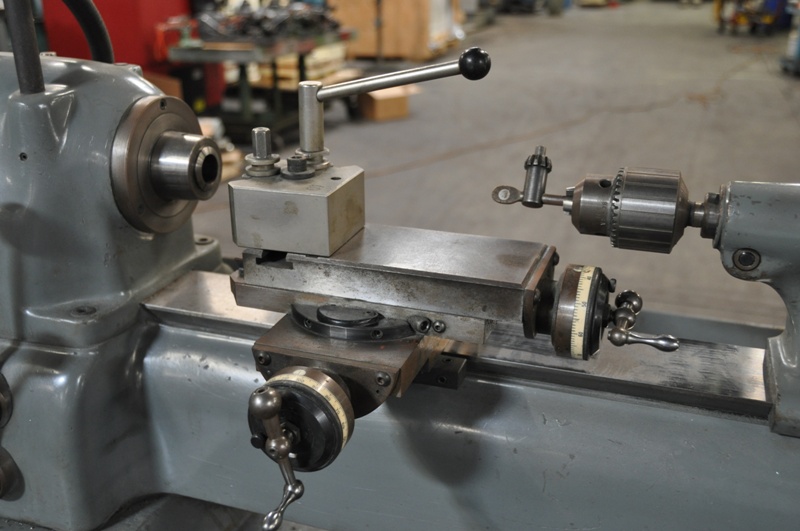

(1) Boni Feldbach Quick Change Tool Post #80, NO Tool Holders
(1) CFA Key Type Drill Chuck with Key, 1/32" to 5/8", #2 MT
(1) Rocker Arm Style Tool Post with (4) Assorted 1/4" Tool Holders

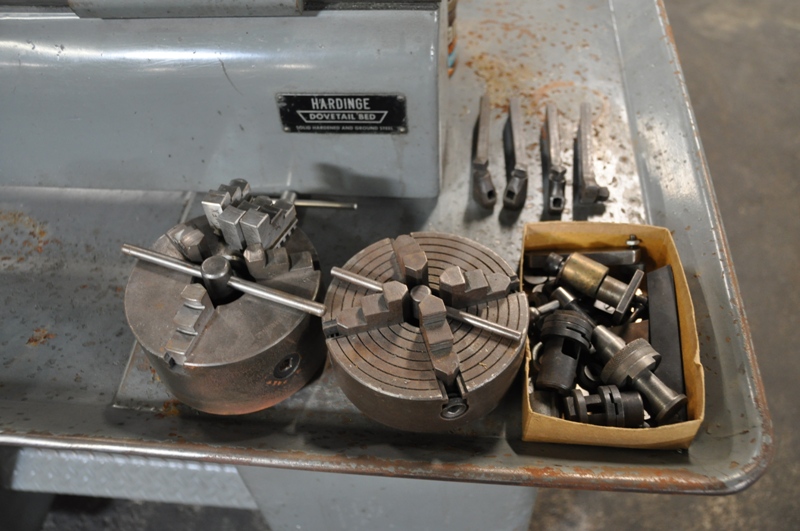

(1) 5" 3 Jaw Chuck with 1 Piece Hard Jaw Sets for OD & ID
(1) 5" 4 Jaw Chuck with 1 Piece Hard Reversible Jaws
(both chucks have Hardinge taper mounts)

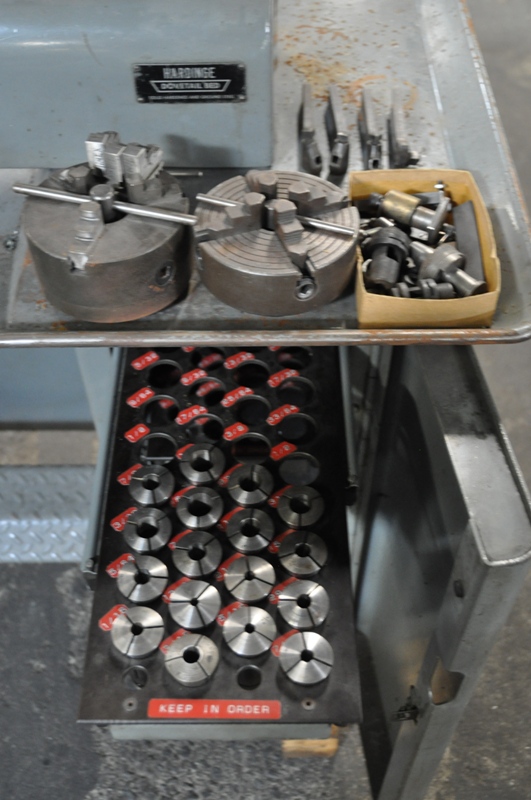

(17) Assorted Round 5C Collets
Push Button Motor Start   Stop Controls

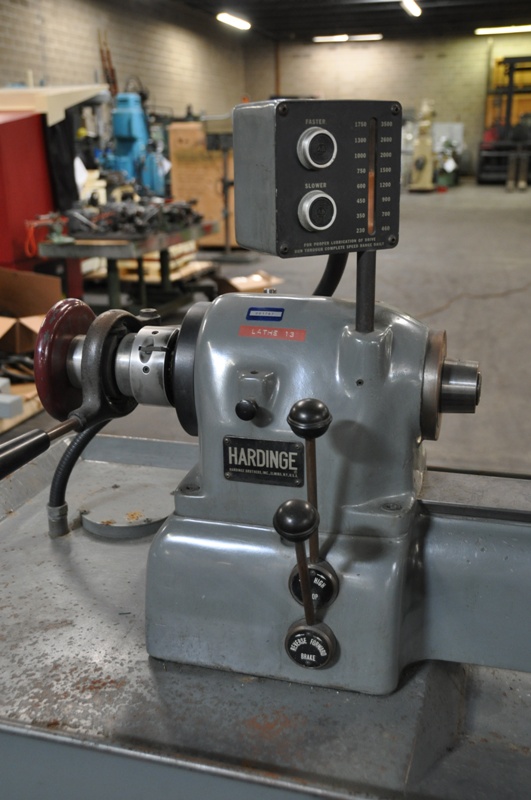

Hardinge 2 Lever Controls for  Forward   Reverse and High  Low Range
NO Coolant Pump or System
OEM Manuals for Catalog, Operation and Maintenance
Machine is in GOOD Condition
1 HP 2-Speed Motor, Wired for 3 Phase, 60Hz, 440 Volts ONLY, 2.6 FLA

Overall Size: 69" LR x 29" FB x 51" High (on 3-1/2" blocks) x 1,200 Lbs.
