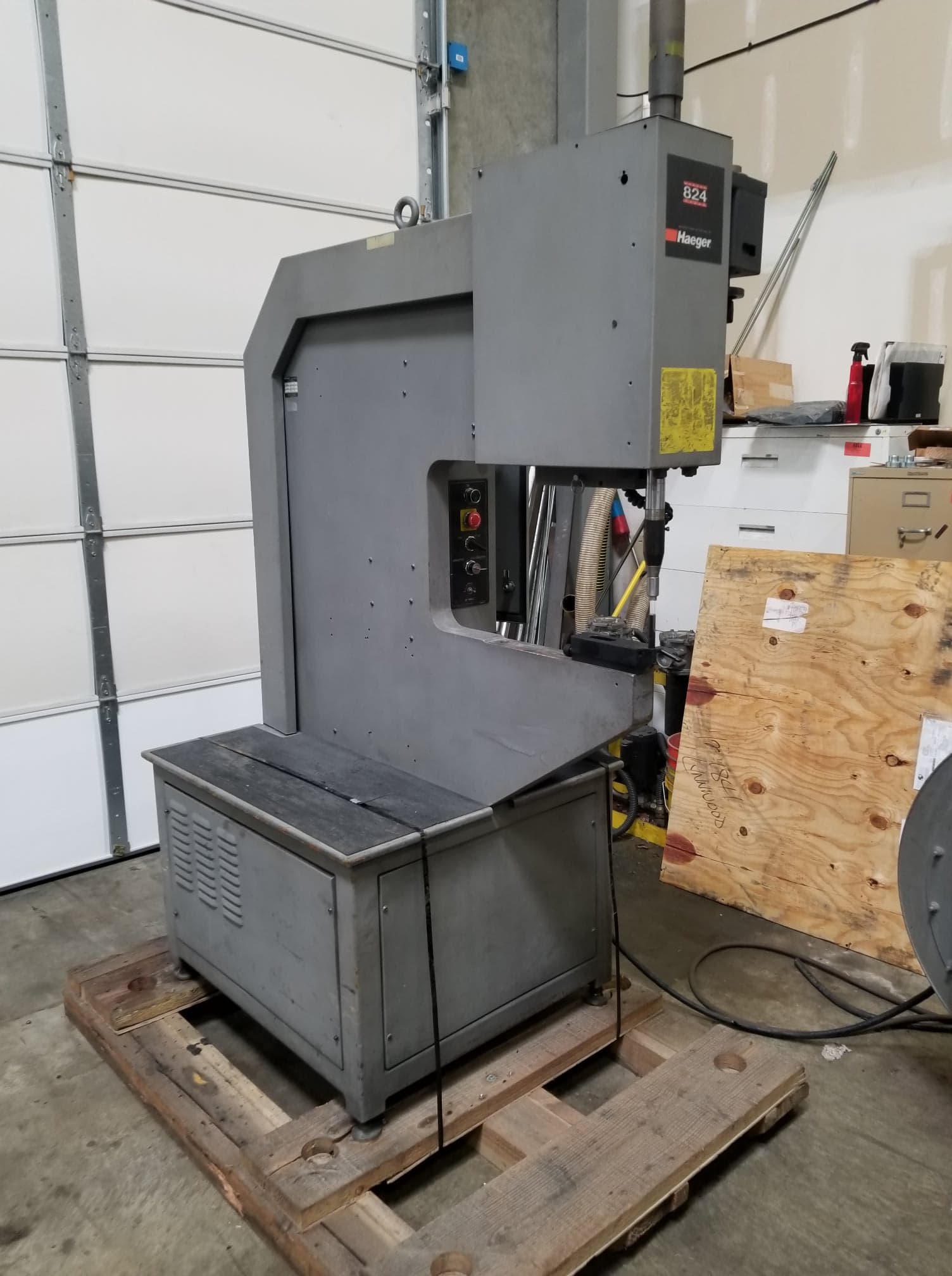

HAEGER HARDWARE INSERTION PRESS – MODEL 824

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Model 824
Presses & Accessories
Hardware Insertion Press
used
(LB)
1997
$0.00

Feature Video

Description

Serial: 940

Model 824

Year: 1997

Machine Specifications

Force range              Adjustable up to 16,000 lbs.

Throat depth            24 in 610mm

Stroke length            0-8.5 in Adjustable

Strokes per minute   40 at 1 in stroke

Vertical up stroke      3/8 in-8.5 in Adjustable

Electrical                  220 to 575/3PH/50 or 60 HZ

Motor                        3 HP

Oil tank reservoir      18 gallons (80 liters)

Repeatability             +/-1 percent of force set



Features and Benefits

  • Hydraulically powered.
  • Safe, even application of pressure ensures proper seating of fastener.
  • Ability to apply pressure at any point in stroke.
  • Ability to jog ram up or down.
  • Reversible at any point in the stroke.
  • Patented safety system.
  • Allows operator to work fast, confidently, without cumbersome tool guarding.
  • No time consuming safety set-up necessary before use.
  • Always operational regardless of pressure and stroke settings.
  • Tooling Protection System T
  • Monitors machine operation to protect tooling from damage.
  • Significantly decreases risk of part damage during hardware insertion.
  • Designed for easy set up and operation.
  • For use in automatic mode.
  • Positive stop adjustable stroke cylinder.
  • Allows delicate insertion work into light gauge material, aluminum, and plastic.
  • Limits stroke when precise depth of stroke is required.
  • Crank assembly with digital read out position indicator.

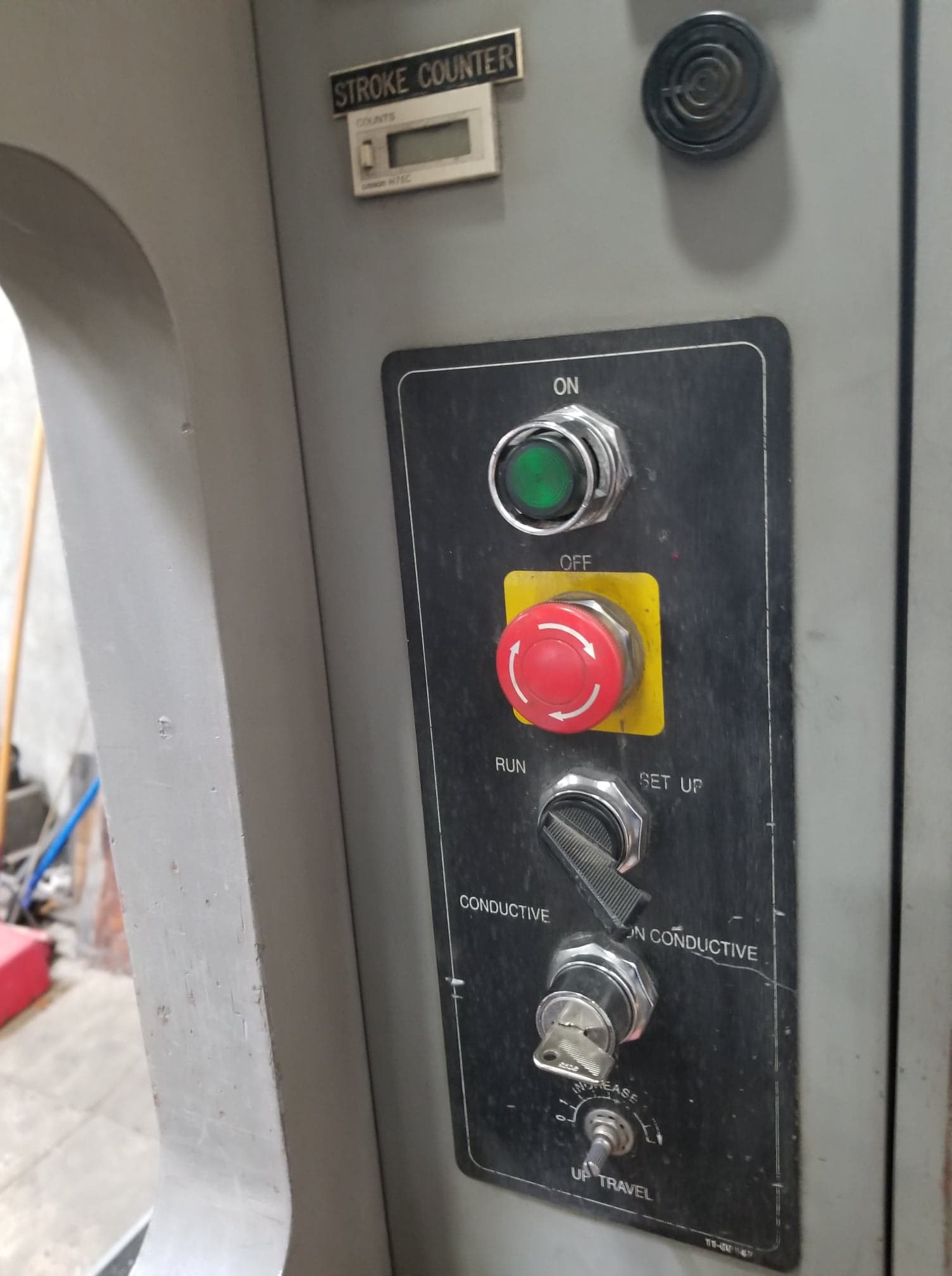

  • Built-in batch counter.
  • Confirms that all holes received fasteners and counts completed parts.
  • 24 inch throat depth.
  • Allows easy access to large parts.
  • Interchangeable tooling.
  • Manual and automatic tooling for all Haeger Press models are interchangeable to keep tooling costs low as additional machines are added.
  • Versatile.
  • Optional part marking attachment.
  • Optional corner rounding attachment.
  • Optional press joining tooling.

Machine includes:

Positive Stop

Batch Counter
