Description

Overview

Type: Vertical Machining Centers

Manufacturer: HAAS

Model: VM-2

Year: 2006

Stock #: 7102

Status: For Sale

Description

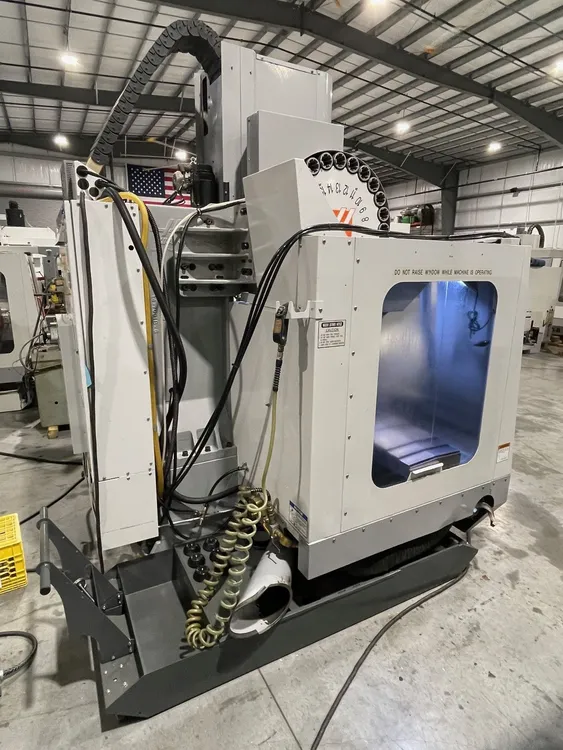

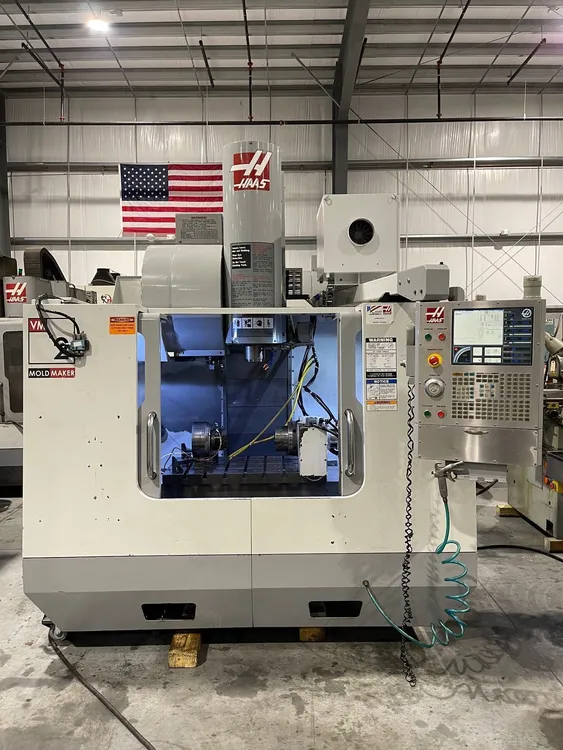

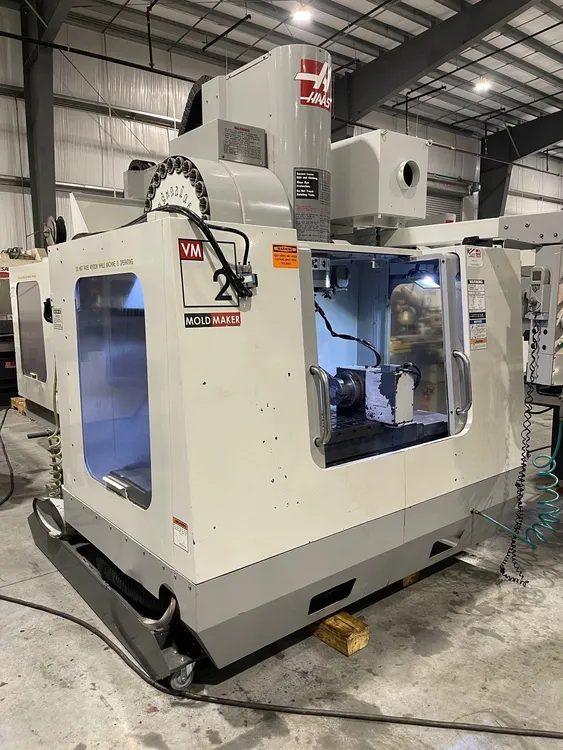

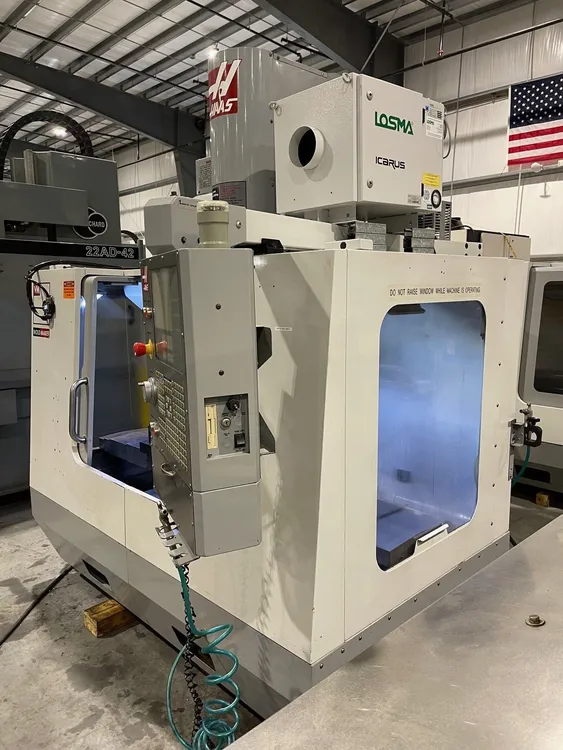

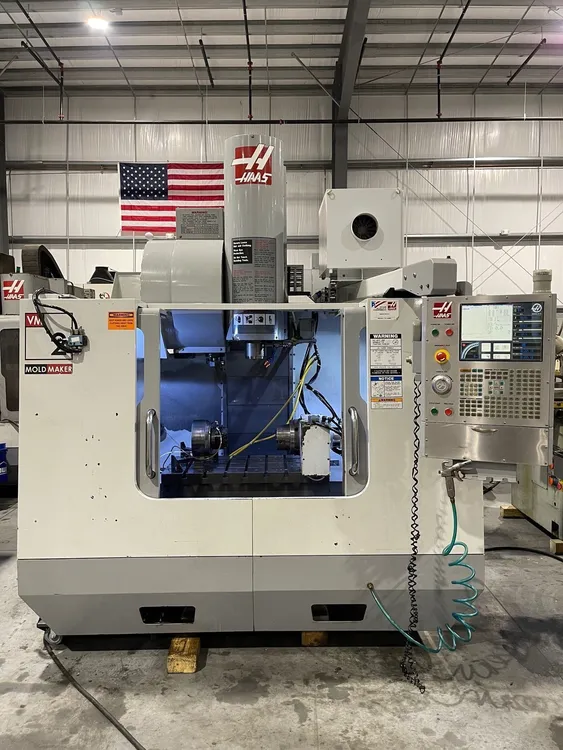

HAAS #VM-2 CNC Vertical Machining Center 2006 HSM 4th USA Stock #7102

Specifications

X axis 30"

Y axis 20"

Z axis 20"

Power 30 hp

RPM 12,000 RPM

# ATC 24

Taper 40

Table-W 18"

Table-L 36"

# Axis 3

Dimensions 111 in L x 91 in W x 91 in H

Weight 8000 Lbs.

HAAS #VM-2 CNC Vertical Machining Center 2006 HSM 4th USA Stock #7102

Stock #-7102

Model # VM-2

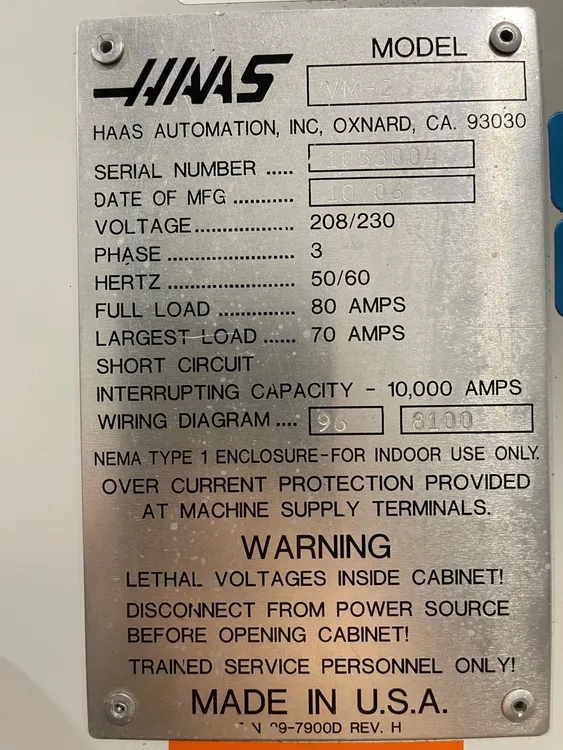

Serial # 1053004

Year of manufacture- 10/2006

Table size- 18 in x 36 in

Number of T-slots- (3)

Max table weight- 3000 Lbs.

Travels-

X axis- 30 in

Y axis- 20 in

Z axis- 20 in

Maximum distance from spindle nose to table- 24 in

Minimum distance from spindle nose to table- 4 in

Maximum spindle speeds- 12,000 R.P.M.

Spindle taper- CAT-40

Max cutting rate- 500 I.P.M.

X,Y,Z Rapids- 710 I.P.M.

Side mount tool changer- 24 +1 Tool capacity

Max tool diameter- 3 in

Max tool length- 11 in

Max tool weight - 12 Lbs.

Equipped With

HAAS CNC Control

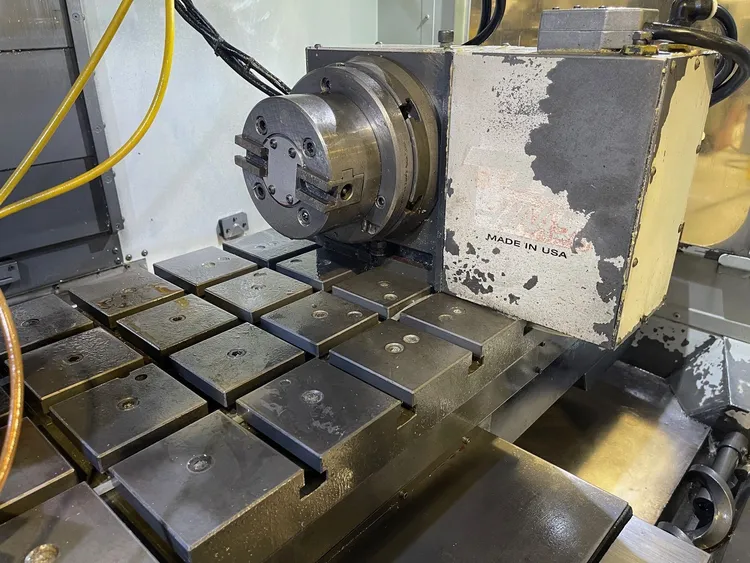

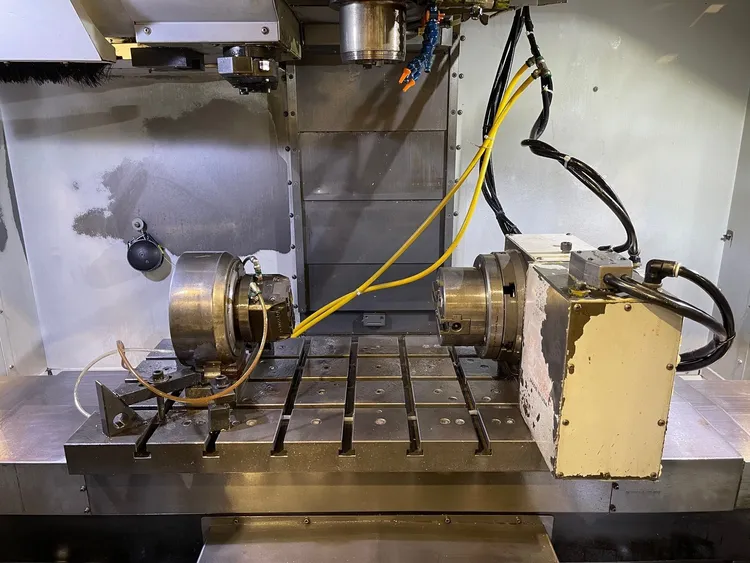

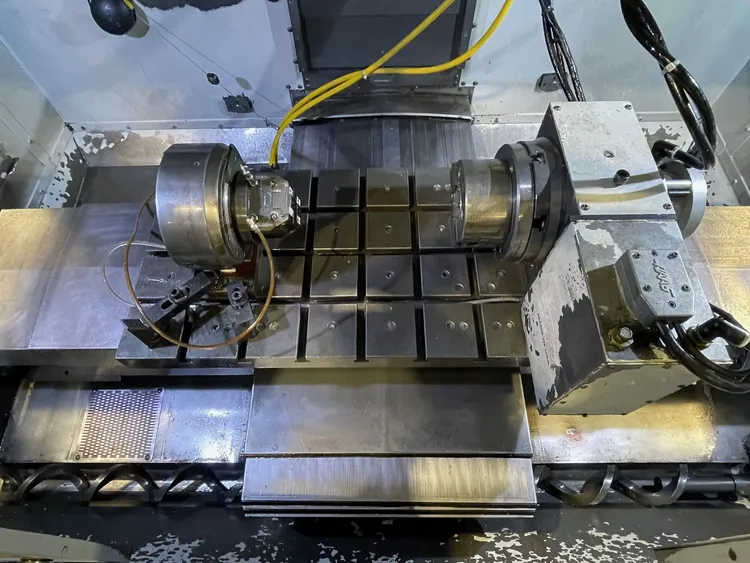

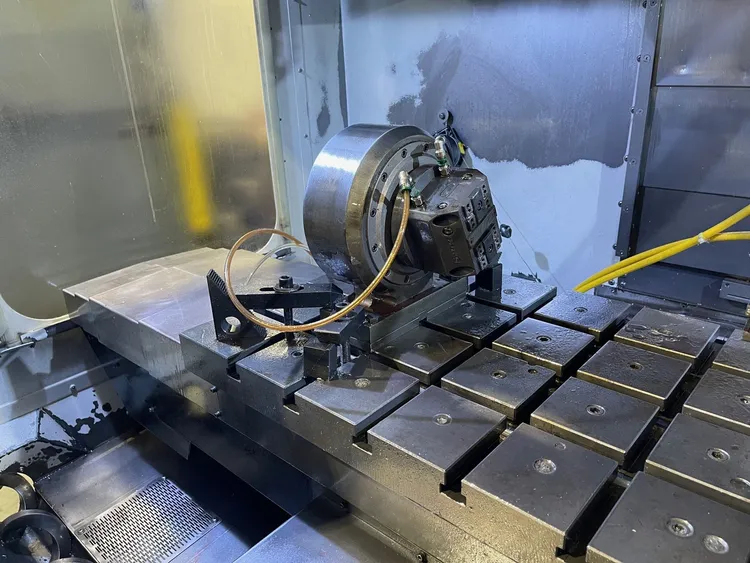

Haas HRT-210 rotary table with pneumatic closer

Programmable coolant nozzle

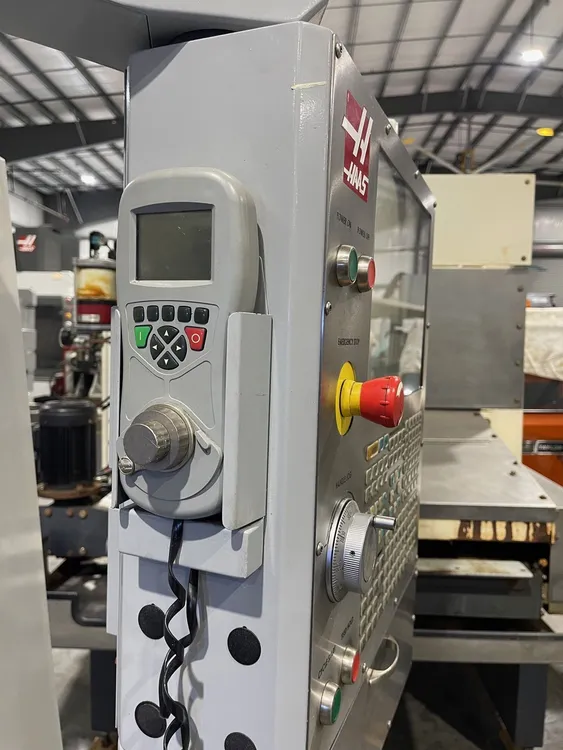

MPG Manual Pulse Generator

Prewired for 4th Axis

Side mount tool changer 24 tool station

Telescopic way covers

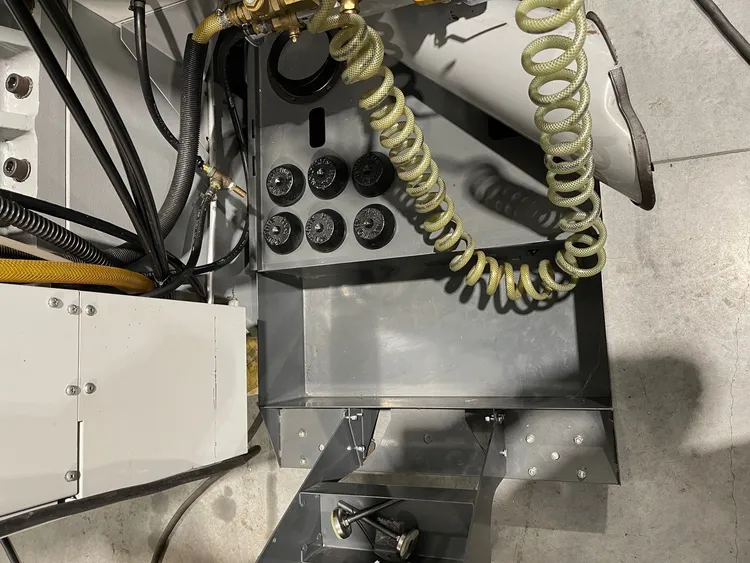

Air gun

(4) Leveling pads

Chip Auger

BIJUR automatic lubrication system

External coolant tank & Less pump

Control options- Programmable coolant, Rigid tapping, DNC, Rotation & Scaling, Quick code, Macros, M19 spindle orient, Quick code, Pre-Orient Tap, Advanced Tool Management, High Speed Machining, Prewired 4th axis

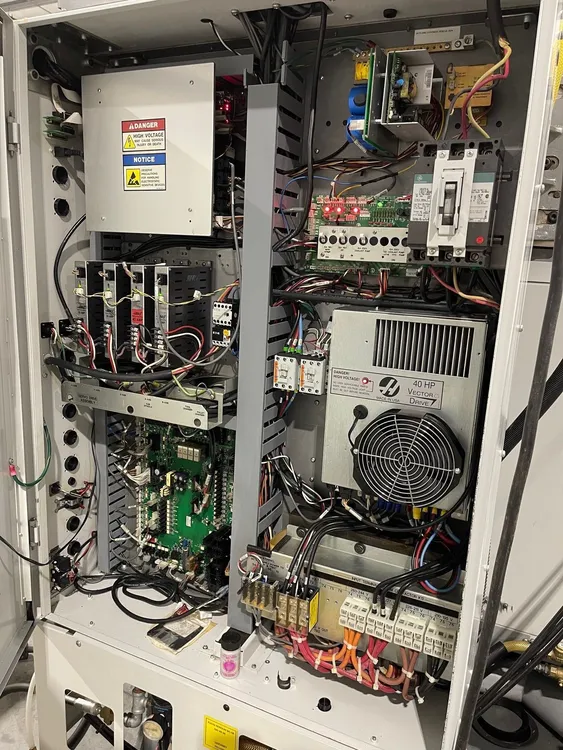

Machine is wired for 230 Volt / 3 phase / 60 HZ

Machine weight- 8000 Lbs.

Machine dimensions- 111 in L x 91 in W x 91 in H

Machine location- F.O.B. Sarasota, Florida
