Overview
Type: Vertical Machining Centers
Manufacturer: HAAS
Model: VF-2SS
Year: 2003
Stock #: 6936
Status: For Sale
Description

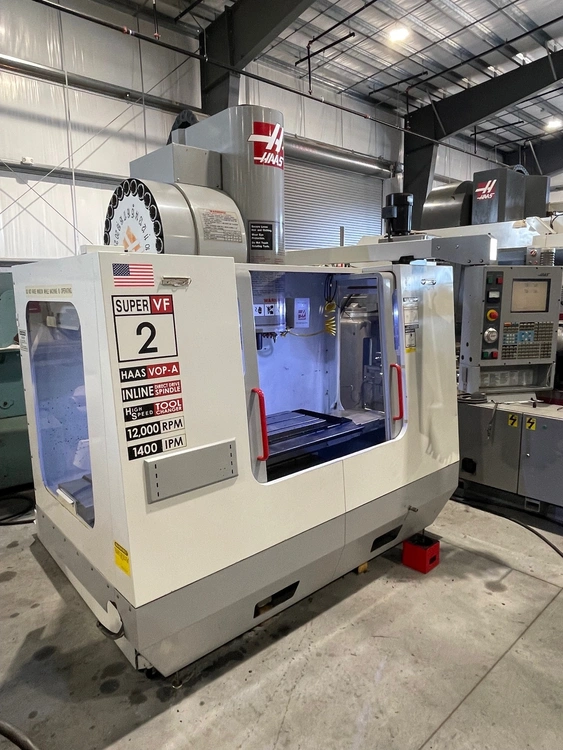

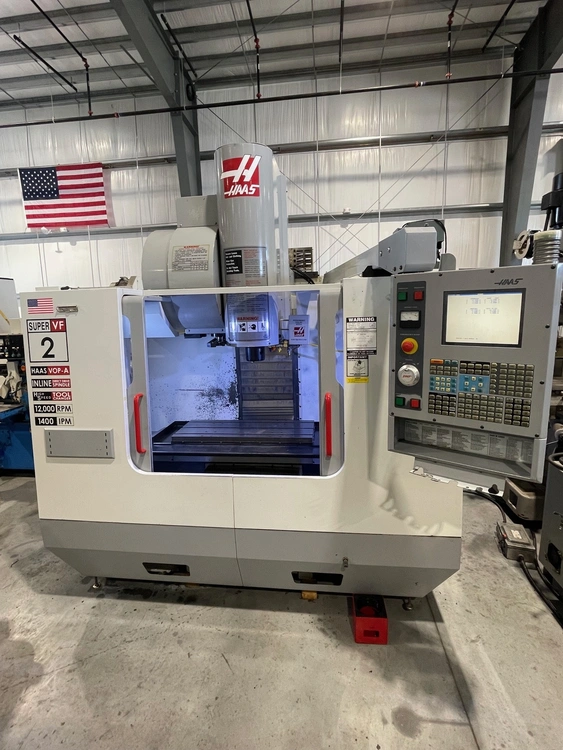

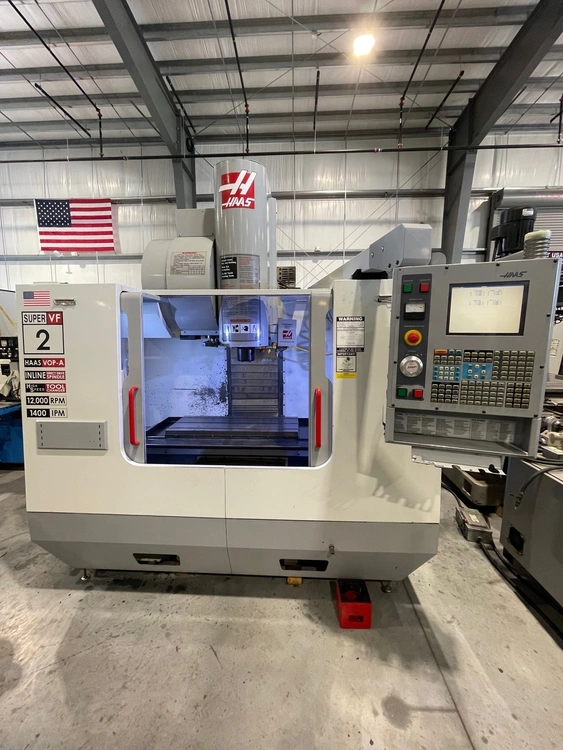

HAAS #VF-2SS CNC Vertical Machining Center 2003 SUPER SPEED USA
Specifications
X axis 30"
Y axis 16"
Z axis 20"
Power 30 hp
RPM 12,000 RPM
# ATC 24
Taper CT or BT 40
Table-W 14"
Table-L 36"
Dimensions 111in L x 91 in W x 91 in H
Weight 8,000 Lbs.
HAAS #VF-2SS CNC Vertical Machining Center 2003 SUPER SPEED USA
Reference # 6936
Model # VF-2SS

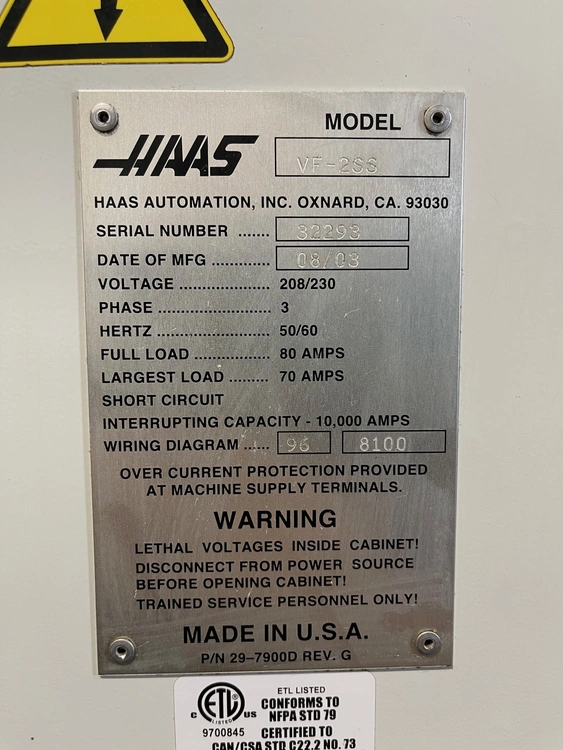

Serial # 32293
Year of manufacture- 8/2003

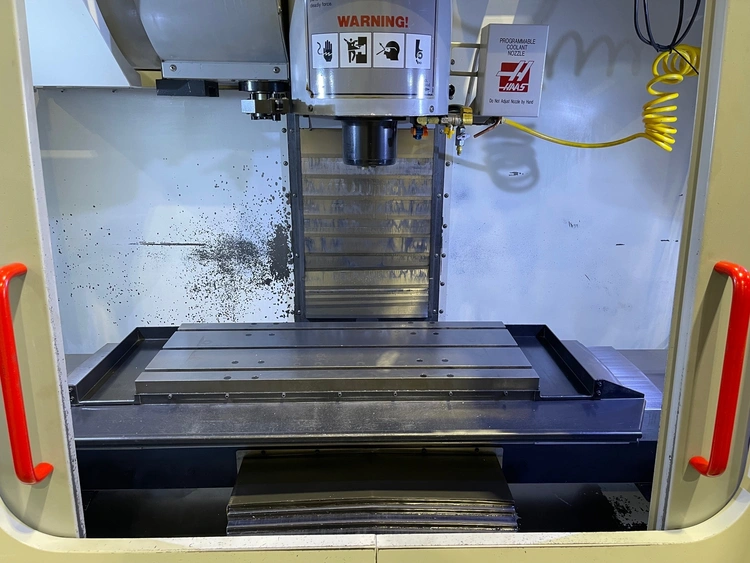

Table size- 16 in x 36 in
Number of T-slots- (3)
Max table weight- 3000 Lbs.
Travels-
X axis- 30 in
Y axis- 16 in
Z axis- 20 in
Maximum distance from spindle nose to table- 24 in
Minimum distance from spindle nose to table- 4 in

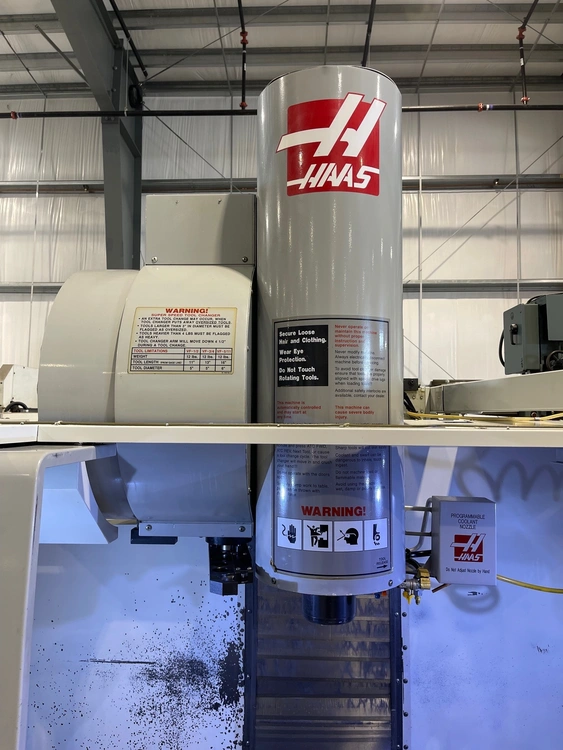

Maximum spindle speeds- 12,000 R.P.M.
Spindle taper- BT-40
Max cutting rate- 833 I.P.M.
X,Y,Z Rapids- 1400 I.P.M.
Side mount tool changer- 24 +1 Tool capacity
Max tool diameter- 3 in
Max tool length- 11 in
Max tool weight - 12 Lbs.
Equipped With
Programmable coolant nozzle

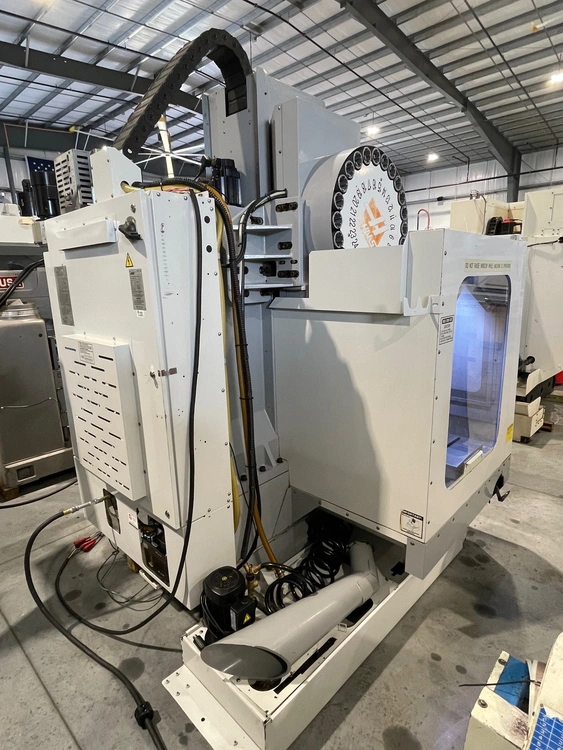

Side mount tool changer 24 tool station
Telescopic way covers
Air gun
(6) Leveling pads

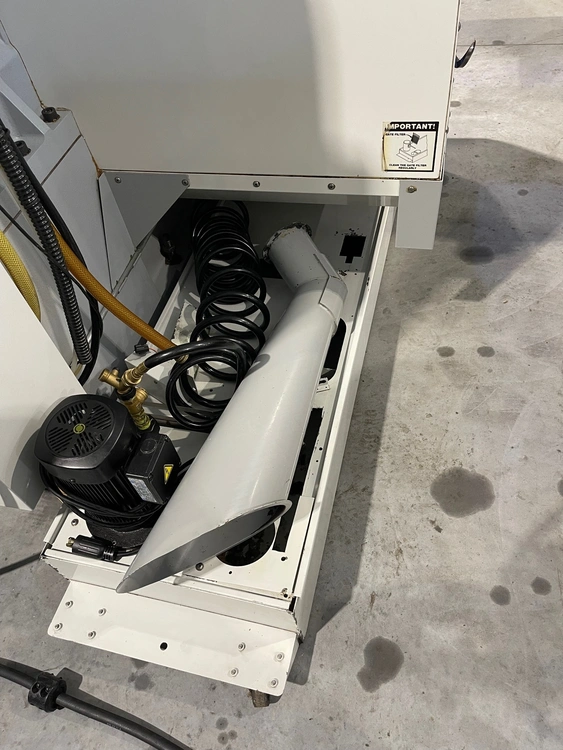

Chip Auger
BIJUR automatic lubrication system
External coolant tank & Coolant pump
Control options- Programmable coolant, Rigid tapping, DNC, M19 spindle orient, Quick code

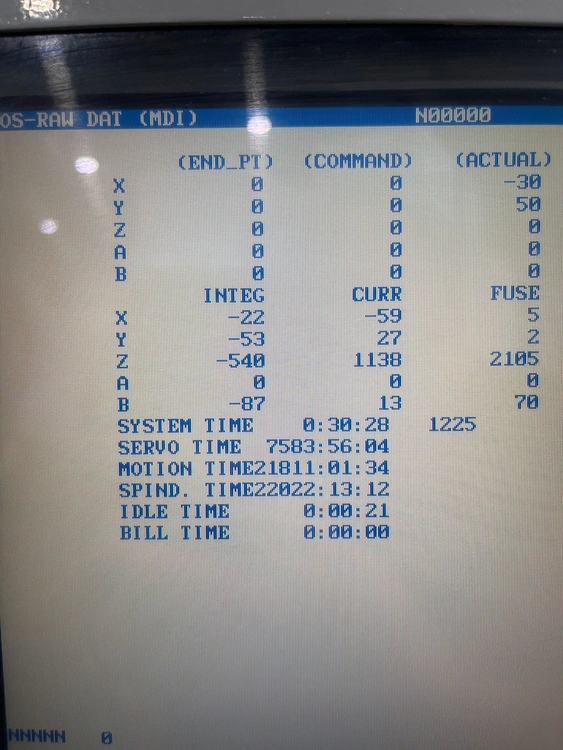

Machine hours -Servo Time 7,583, Motion Time 21,811, Spindle Time 22,022
30 H.P. Spindle motor

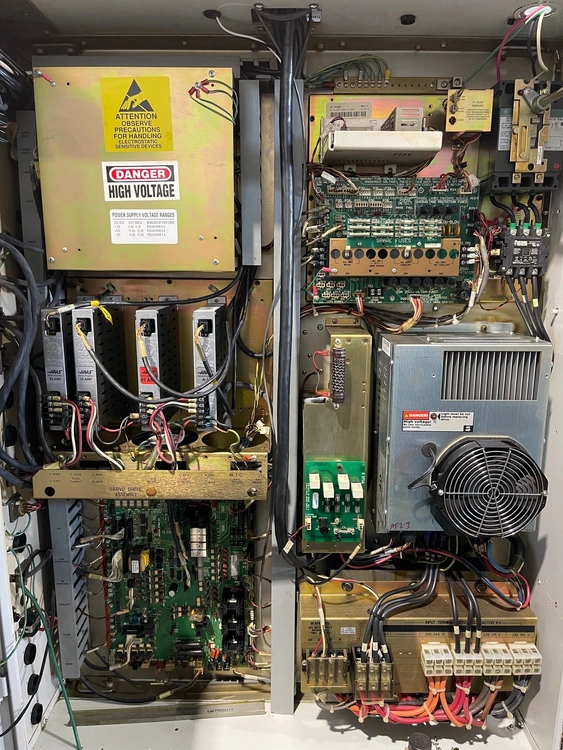

Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 8000 Lbs.
Machine dimensions- 111 in L x 91 in W x 91 in H
Machine location- F.O.B. Sarasota, Florida
