SPECIFICATIONS:
Reference # GMT-1743
Model # TL-25
Serial # 67136
Year of manufacture 2004
Maximum swing over bed 30 in
Max turning diameter 16 in
Max swing over cross slide 14. in
Max work length 34 in
Distance between centers 43 in
X axis (Cross) Travel 11.3 in Z axis (longitudinal) 34 in B axis (Sub-spindle) 33.5 in C axis 360,000 Positions
Rapid traverse (X axis) 710 I.P.M.
Rapid traverse (Z axis) 710 I.P.M.
Turret (12) station
Spindle bore 3.5 in
Bar capacity 3 in
Spindle nose A2-6
Spindle speed range 50 to 3400 R.P.M.
Sub-spindle speed range 50 to 4000 R.P.M.
EQUIPPED WITH: ***Machine was purchased out of a pharmaceutical part MFG***

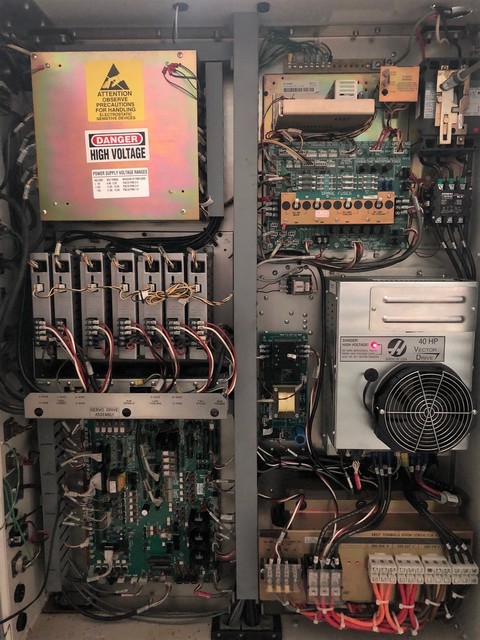

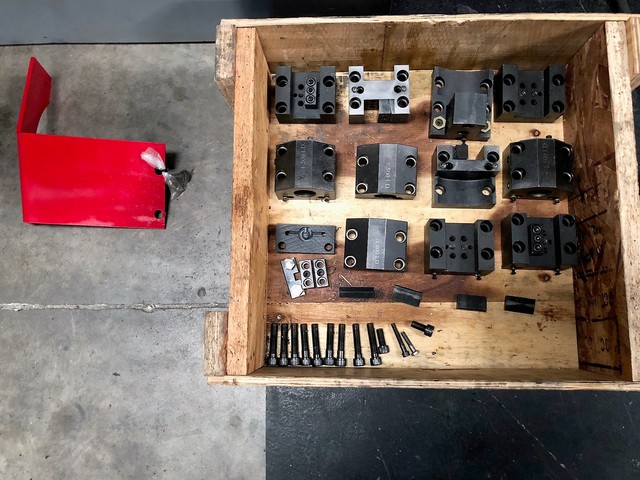

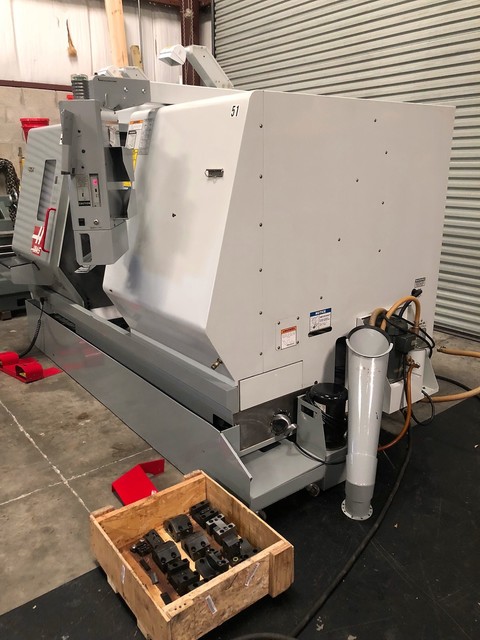

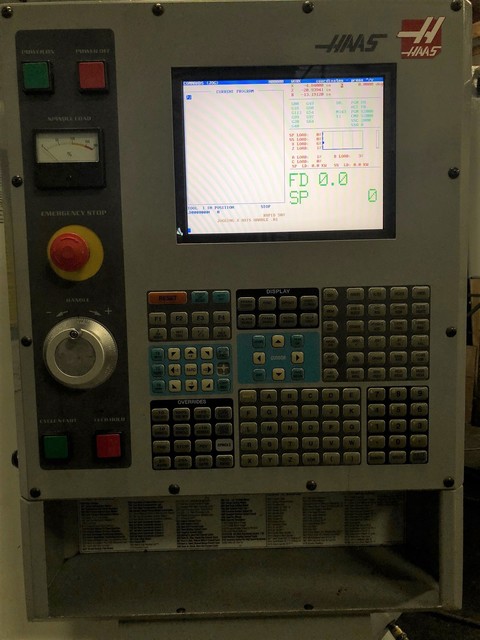

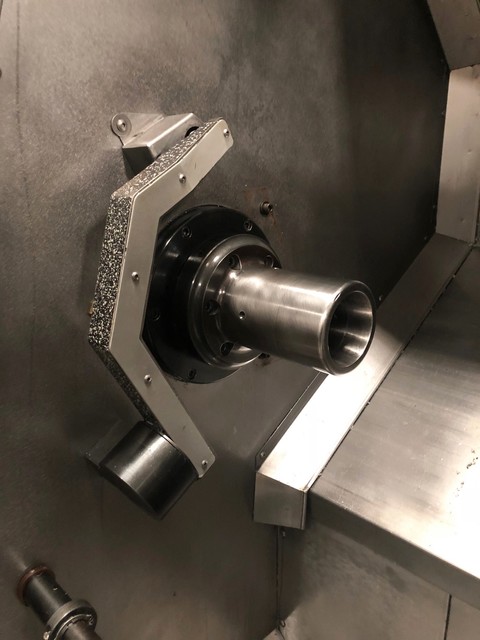

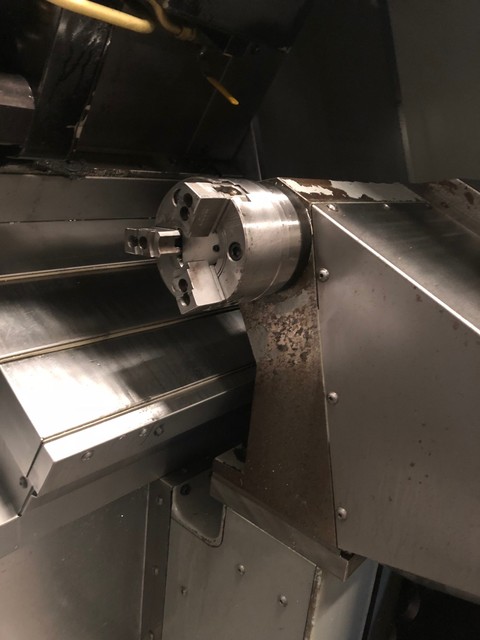

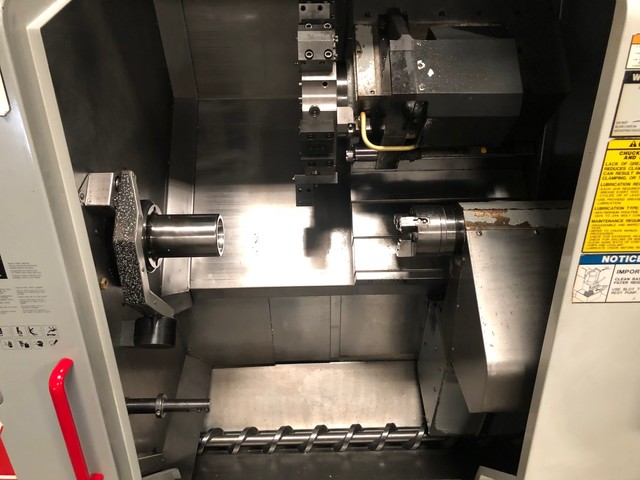

Haas CNC Control Full C Axis Live tooling option Sub-spindle ATS Collet chuck on main spindle 5-1/2 in MMK 3-Jaw chuck on sub-spindle Dual foot pedal for spindle & sub-spindle RS-232 Port & USB Port Tool pre-setter Chip auger Parts catcher High intensity lighting Auto door Centralized lubrication system Control options- Spindle Orientation, Visual quick code, Bar feed interface, Auto jet blast, Memory lock key High pressure coolant 300 P.S.I. Spindle drive motor 30 H.P. Live tooling Motor 5 H.P. Shipping bracket Machine is wired for 208/230 volt, 3 phase, 60 H.Z. Large assortment of tool holders / turret blocks
APPROXIMATE WEIGHT (MACHINE ONLY): 17500 Lbs.
APPROXIMATE DIMENSIONS: 150 in L x 78 in W x 80 in H
LOCATION: F.O.B. Bradenton, Florida
REFERENCE #: CNC Lathe-GMT-742
PRICE #: $59,500.00
