HAAS ST20SSY CNC TURNING CENTER WITH LIVE TOOLING AND Y-AXIS NEW 2011

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ST20SSY
Lathes and Turning Centers CNC
Multi Axis Turning Center
new
(LB)
2011
$0.00

More Specs

31.75 in
30 HP
21 in
HAAS CNC CONTROL
8 in
3 Jaw

Feature Video

Description

Specifications

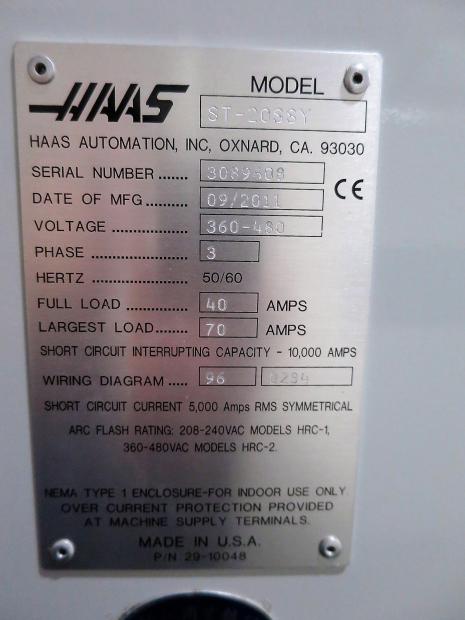

Model: Haas ST-20SSY
Year: 2011
Swing over front apron: 31.75 in
Swing over cross slide: 20.75 in
Max. cutting dia: 10"
Max. cutting length: 21"
Bar capacity: 2"
Travels (xyz): 9.3 in x +2 in x 21 in
Rapids (xz) (z): 472 x 1200 ipm
Spindle rpm: 4000
Spindle hp: 30 HP (C-Axis 5 HP)


Equipped With

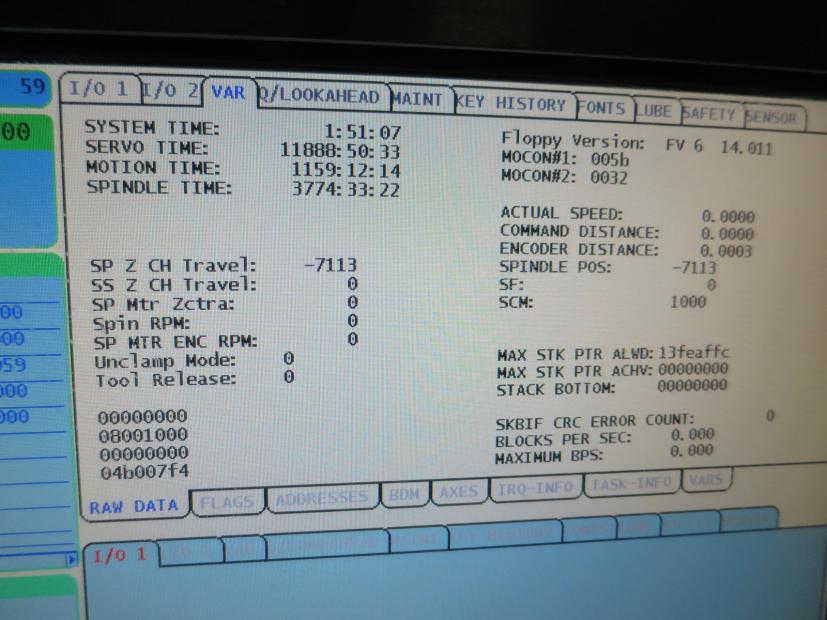

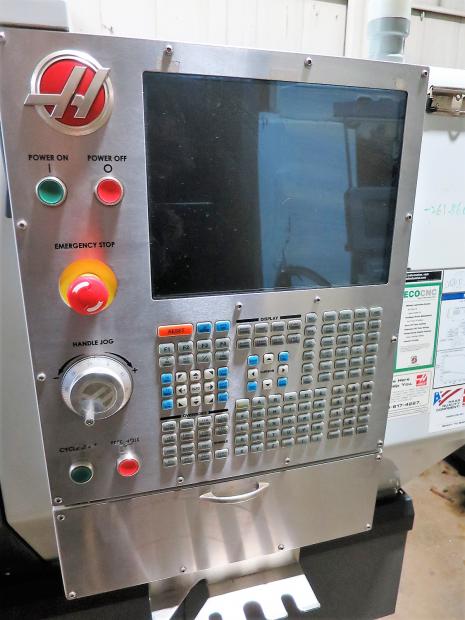

HAAS CNC CONTROL
HT Live Tooling 4000rpm

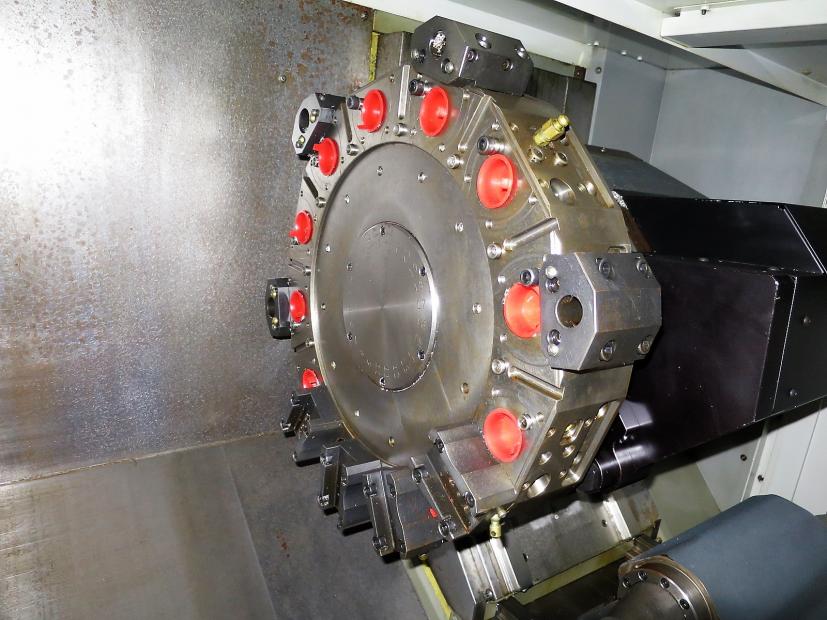

VB 24 station turret
C-Axis
Y-axis

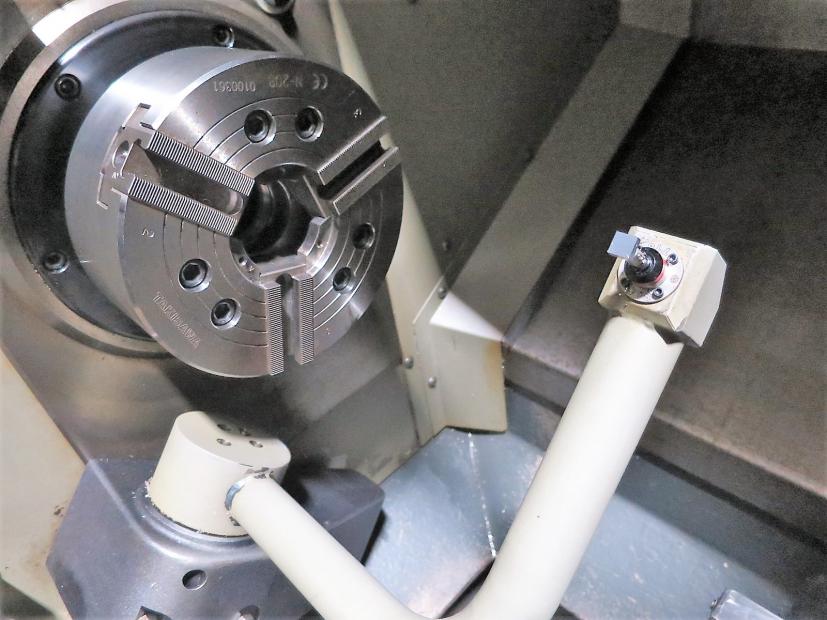

8 in 3jaw Chuck
Automatic tool setter

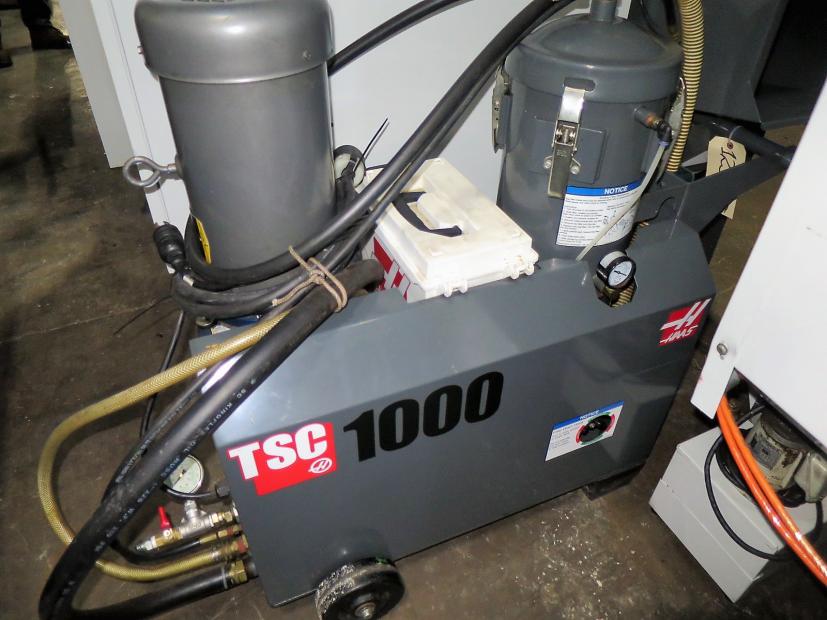

High pressure coolant system 1000psi
Airblast, Gun
15 in Lcd Monitor,
Memory Lock Keyswitch,
Spindle Orientation,
Usb Port,
Rigid Tapping,
Chip Conveyor,
High Intensity Lighting
Parts Catcher
