Type: CNC Lathes
Manufacturer: HAAS
Model: SL-20
Year: 2008
Stock #: 6599
Status: For Sale
Description:

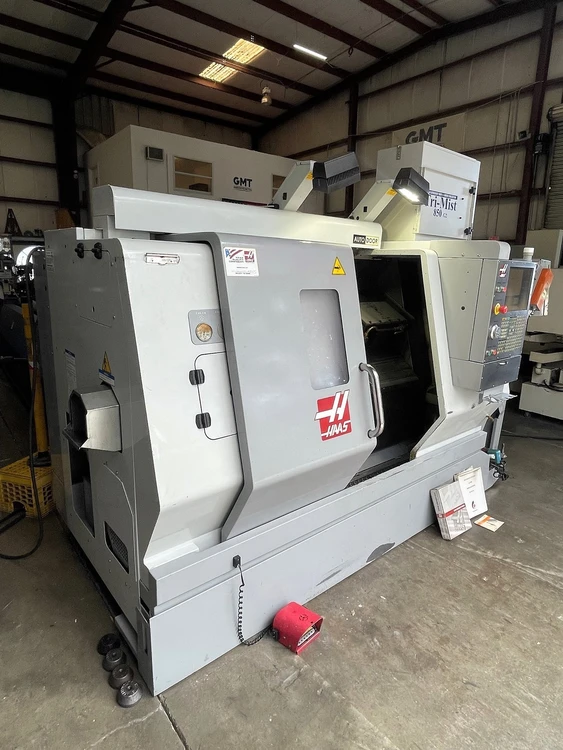

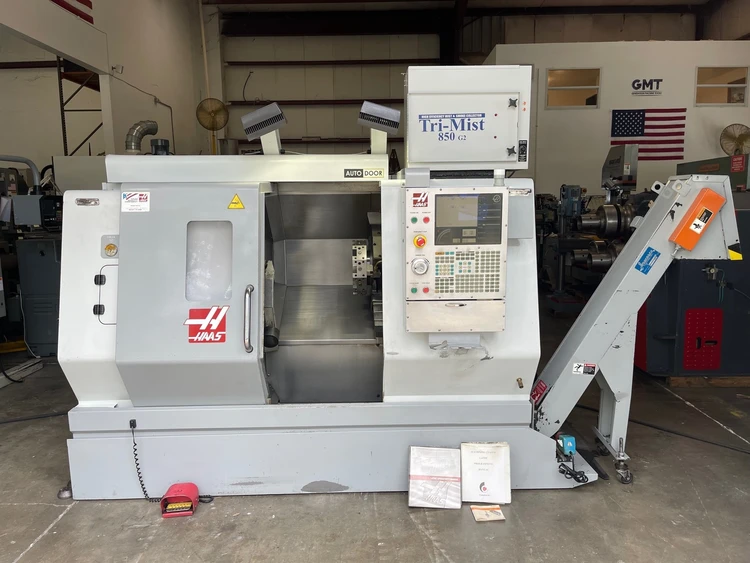

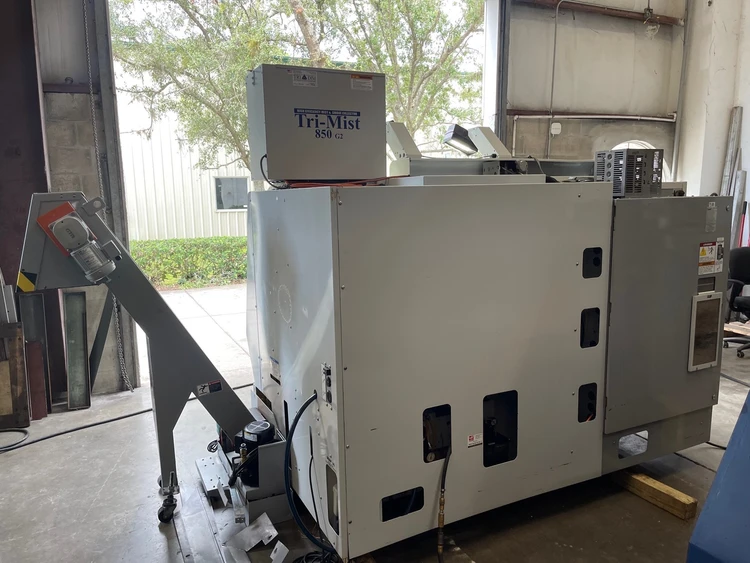

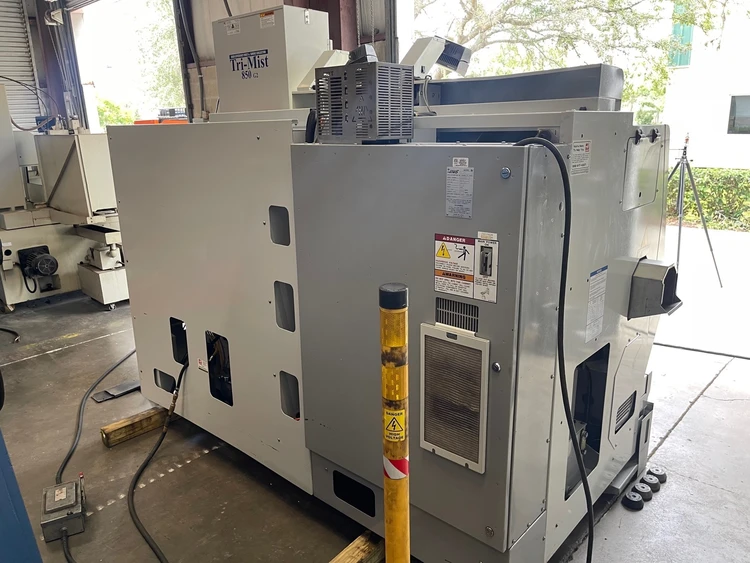

HAAS SL-20 CNC Lathe Turning Center 2008
Specifications
Swing 23"
Machining Length 24"
Chuck Size 8"
Bar Capacity 2"
Power 20 hp
Max RPM 4,000 RPM
Turning Dia 10.3"
Tailstock No
Reference #6599
Model # SL-20

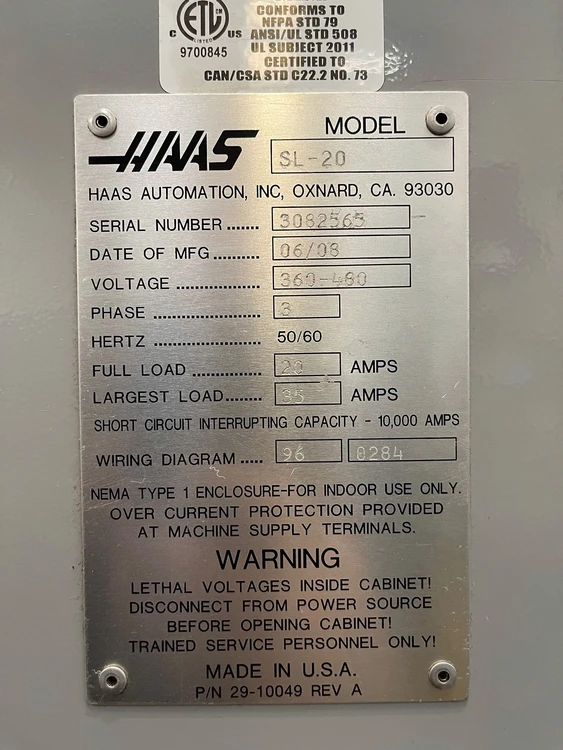

Serial # 3082563
Year of manufacture- 6/2008
Swing over front apron- 23 in
Swing over cross slide- 9.5 in
Standard bar capacity- 2 in
Maximum cutting diameter- 10.3 in
Maximum cutting length- 20 in
Maximum cutting length with standard work holding- 19 in
Maximum spindle speed- 4,000 R.P.M.
Peak horsepower- 20 H.P.

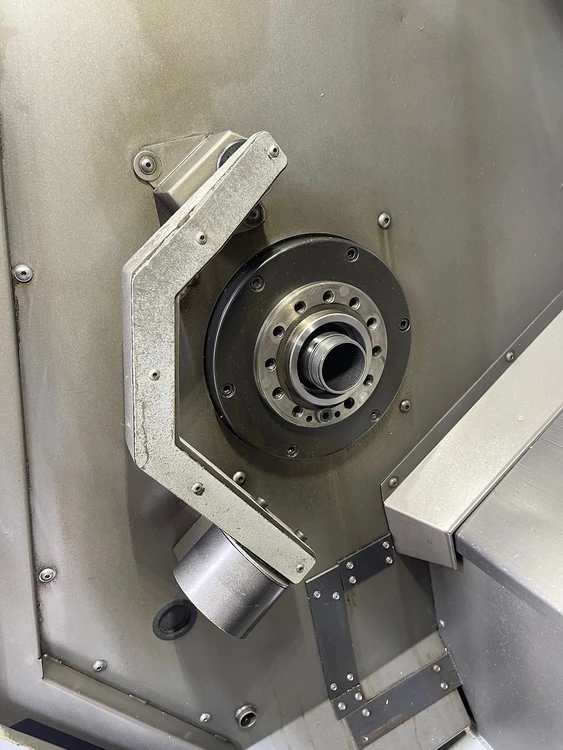

Spindle nose- A2-6
Spindle bore- 3 in
Draw tube bore- 2.06 in
X-axis travel- 8.45 in
Z-axis travel- 20 in
Rapid traverse rate- 1,200 I.P.M.
Number of stations in turret- 10
Tool size (OD turning)- 1 in
Boring bar rear clearance (from turret face)- 4.37 in
Index time (one tool)- 1 sec
Equipped With:

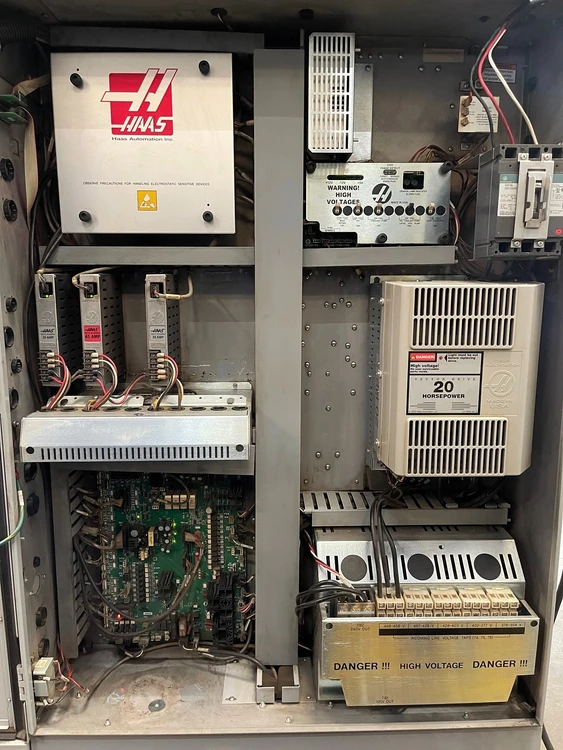

Brushless AC servo drives
HAAS CNC control
Tool presetter
LED lights

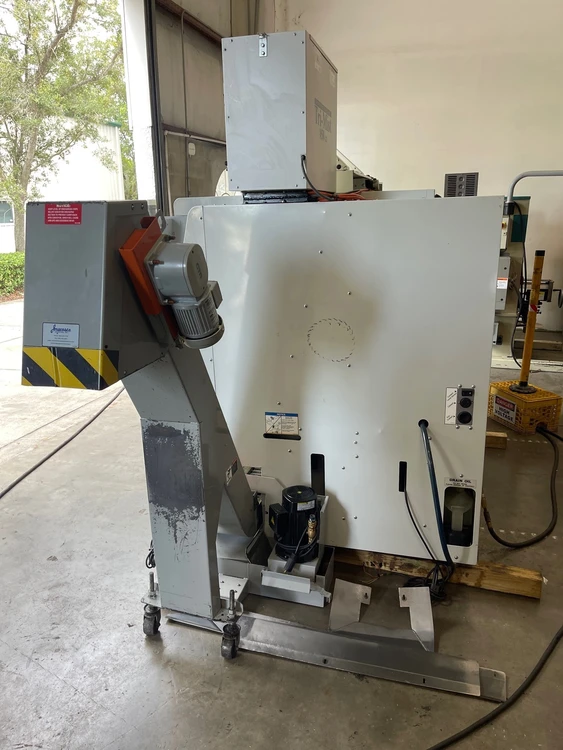

Chip conveyor
Tri-Mist collector
Foot pedal
Leveling pads
BIJUR automatic lubrication system
Machine manuals
Machine Hours- Motion time- 7,391 hours , Spindle time 8,054 hours

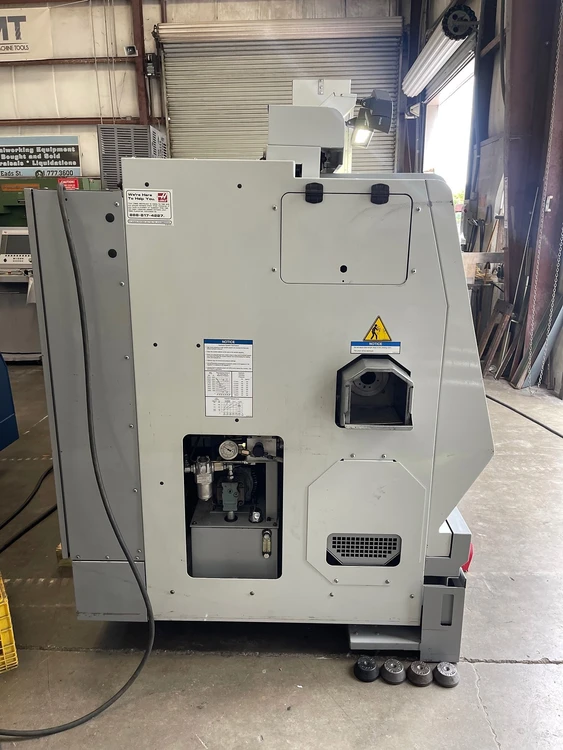

2 H.P. 3/60/220 volt hydraulic pump motor and tank
20/15 H.P. (30 Minute/Continuous Duty) AC vector spindle drive
Machine is wired for 3/60/360-480 volt operation.
Machine weight- 9500 Lbs.
Machine dimensions- 96 in L x 65 in W x 75 in H
Machine location- F.O.B. Bradenton, Florida
